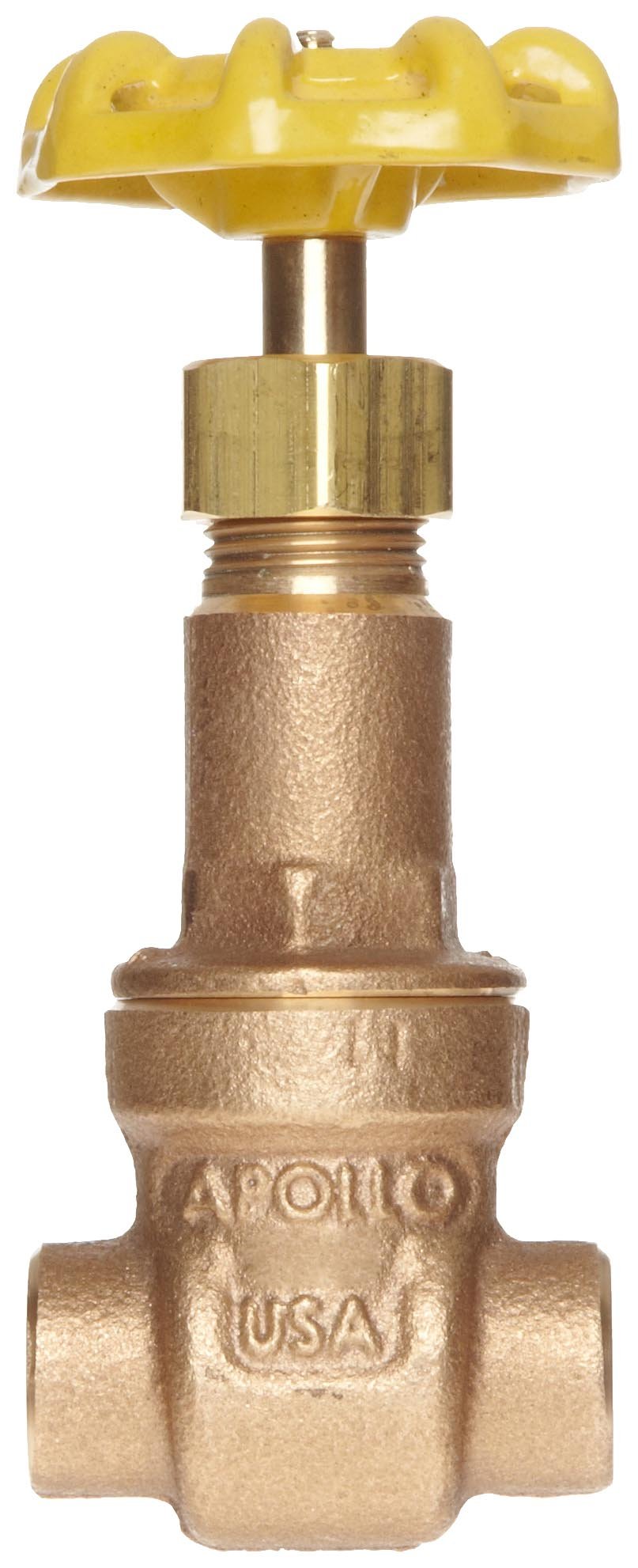

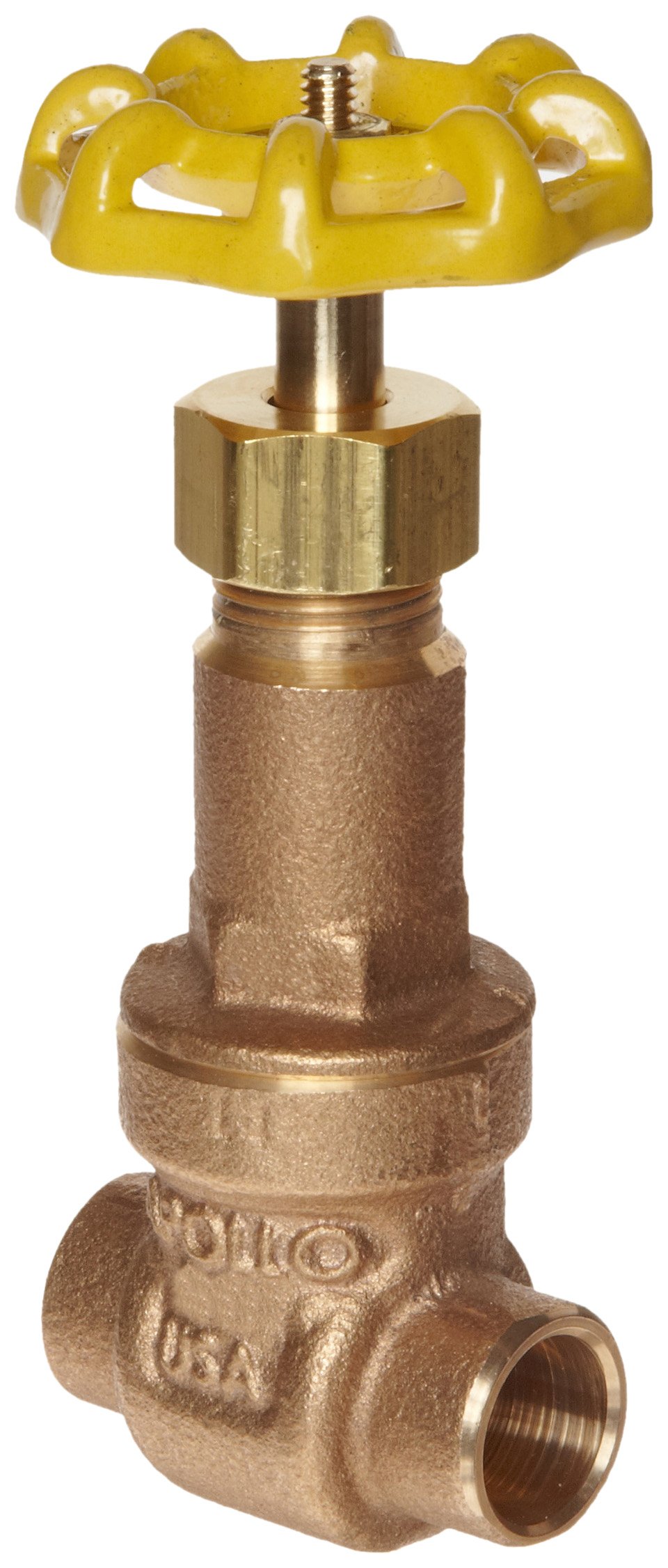

Apollo 101S Series Bronze Gate Valve, Class 125, Rising Stem, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
Grafoil
Material Type
Bronze
Construction Type
Full Port
Operation Mode
Manual
Maximum Steam Pressure Description
125 pounds_per_square_inch
Structure Description
Rising Stem
Handle Type
Hand Wheel
Brand Name
Apollo Valve
Manufacturer Series Number
101S
Upper Temperature Range
406  Degrees Fahrenheit
Specification Met
MSS SP-80
Maximum Pressure
200  PSI
Connector Type
Solder End
UNSPSC Code
40141613
Style Name
Solder
System of Measurement
Inch
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 6 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
1/2" 2.03" 3008301 B006QQ0WJ6 yes $35.10 Buy Options
3/4" 2.07" 3008401 B006QQ0WSW yes $36.03 Buy Options
1" 2.45" 3008501 B006QQ0X8G yes $40.19 Buy Options
1-1/4" 2.63" 3008601 B006QQ0XL8 yes $72.23 Buy Options
1-1/2" 2.88" 3008701 B006QQ0XTA yes $88.92 Buy Options
2" 3.06" 3008801 B006QQ0Y12 yes $122.44 Buy Options
2-1/2" 4.13" 3008901 B006QQ0Y80 yes $284.75 Buy Options
3" 4.48" 3008001 B006QQ0WBE yes $390.27 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Rising stem with inside screw lifts with gate to signal visually when the valve is open
  • 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP)
  • Solder end connections on both ends for a semi-permanent connection to a piping system
  • Top-mounted iron hand wheel for lowering and lifting the gate

Product Description

This class 125 Apollo 101S Series bronze gate valve has a rising stem and solder end connections on both ends. The bronze construction, its solid wedge gate, and screw-in bonnet provide higher strength and resistance to corrosion than brass. It has a rising stem with an inside screw that moves up and down with the gate that provides a visual signal (when extended) that the valve is open. This rising stem design and graphite internal packing also prevent the stem threads from coming into contact with flow to avoid corrosion to extend valve life. This gate valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency. The maximum pressure for this class 125 valve is 200 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 125 psig for steam working pressure (SWP), and the valve has a temperature range of -20 to 406 degrees Fahrenheit. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. It has solder end connections on both ends for a semi-permanent connection to a piping system. Mounted on top of the valve, a manually operated malleable iron hand wheel activates the inside screw mechanism which lifts and lowers the gate to start and stop the flow between the connected pipes. This valve comes with a five-year warranty for workmanship and material defects. The valve meets Manufacturers Standardization Society (MSS) SP-80 for quality assurance, and it is appropriate for use in various plumbing and heating applications, including use in building service pipe and HVAC systems.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.
