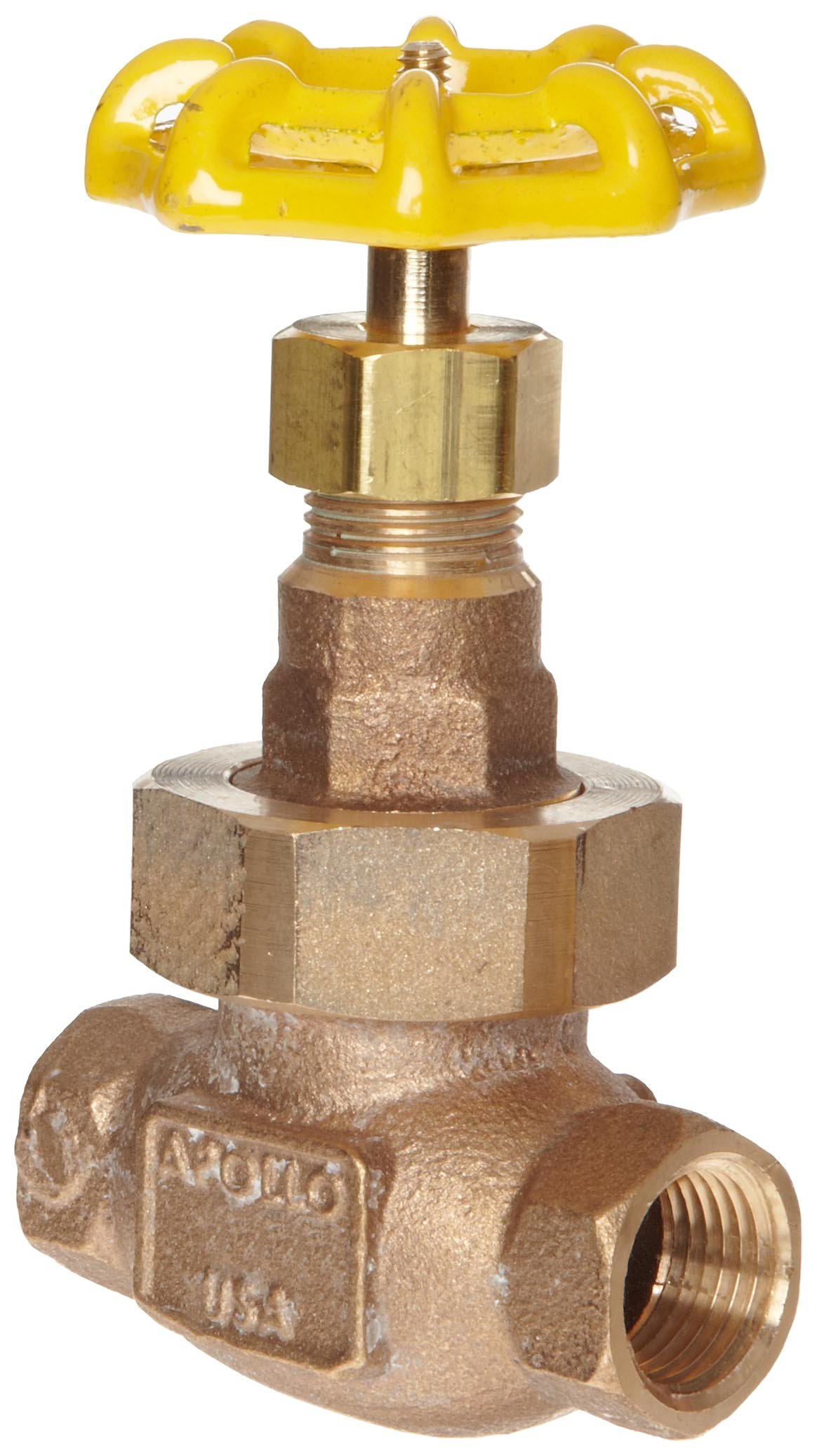

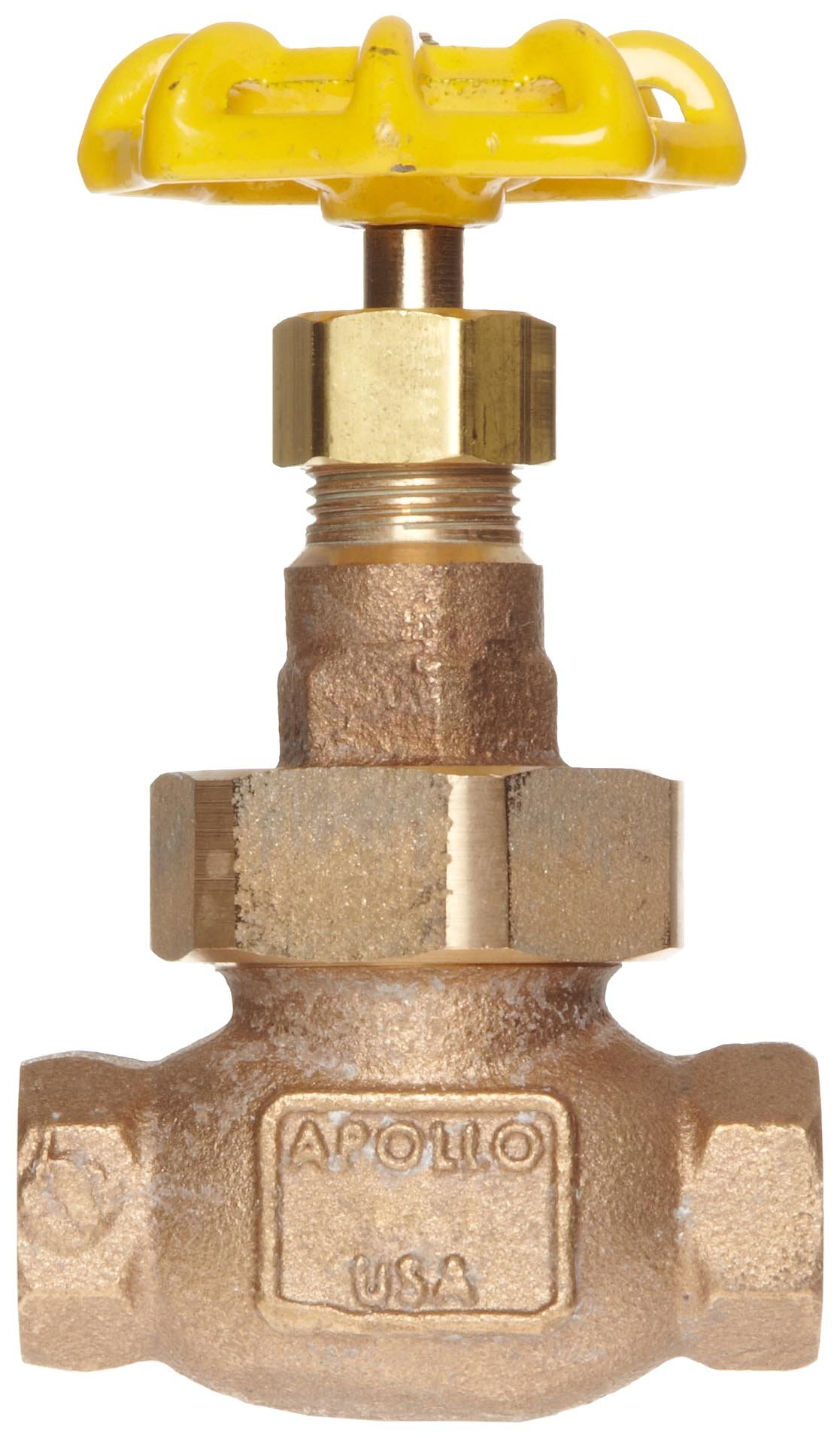

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 122T Series Bronze Globe Valve, Class 150, Inline, Union Bonnet, PTFE Seat, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Grafoil
Item Shape
Inline
Seat Material Type
PTFE
Material Type
Bronze
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Brand Name
Apollo Valve
Manufacturer Series Number
122T Series
Specification Met
MSS SP-80
Maximum Pressure
300  PSI
Connector Type
NPT Female
UNSPSC Code
40141611
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 19 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
1/4" 2.39" 3322101 B006QPWBEQ yes $57.53 Buy Options
3/8" 2.39" 3322201 B006QPWBSW yes $51.60 Buy Options
1/2" 2.7" 3322301 B006QPWC9K yes $56.21 Buy Options
3/4" 3.2" 3322401 B006QPWCQI yes $72.51 Buy Options
1" 3.75" 3322501 B006QPWD4E yes $114.02 Buy Options
1-1/4" 4.74" 3322601 B006QPWDHQ yes $174.21 Buy Options
1-1/2" 4.74" 3322701 B006QPWDWG yes $221.39 Buy Options
2" 5.72" 3322801 B006QPWE8E Usually ships in 1 to 4 weeks $247.82 Buy Options
2-1/2" 6.6" 3322901 B006QPWEMA Usually ships in 1 to 4 weeks $498.66 Buy Options
3" 7.74" 3322001 B006QPWB78 Usually ships in 1 to 4 weeks $709.99 Buy Options

Key Features

  • Inline globe valve with rising stem and union bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Bronze valve body and PTFE seat for strength and corrosion resistance
  • 300 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 150 psig for steam working pressure (SWP)
  • Union bonnet for simplified inspection of valve interior
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

This class 150 Apollo 122T series inline bronze globe valve has a union bonnet, rising stem, polytetrafluoroethylene (PTFE) seat, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of American Society for Testing and Material (ASTM) B62 bronze for strength and corrosion resistance, and has a PTFE seat. The valve’s maximum pressure is 300 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 150 psig for steam working pressure (SWP). It has a union bonnet to simplify inspection of the valve interior, and female NPT threads on both ends for connecting to male threaded pipes. This class 150 valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Conbraco Industries, Inc. manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices under the Apollo Valve brand. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard ISO/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
