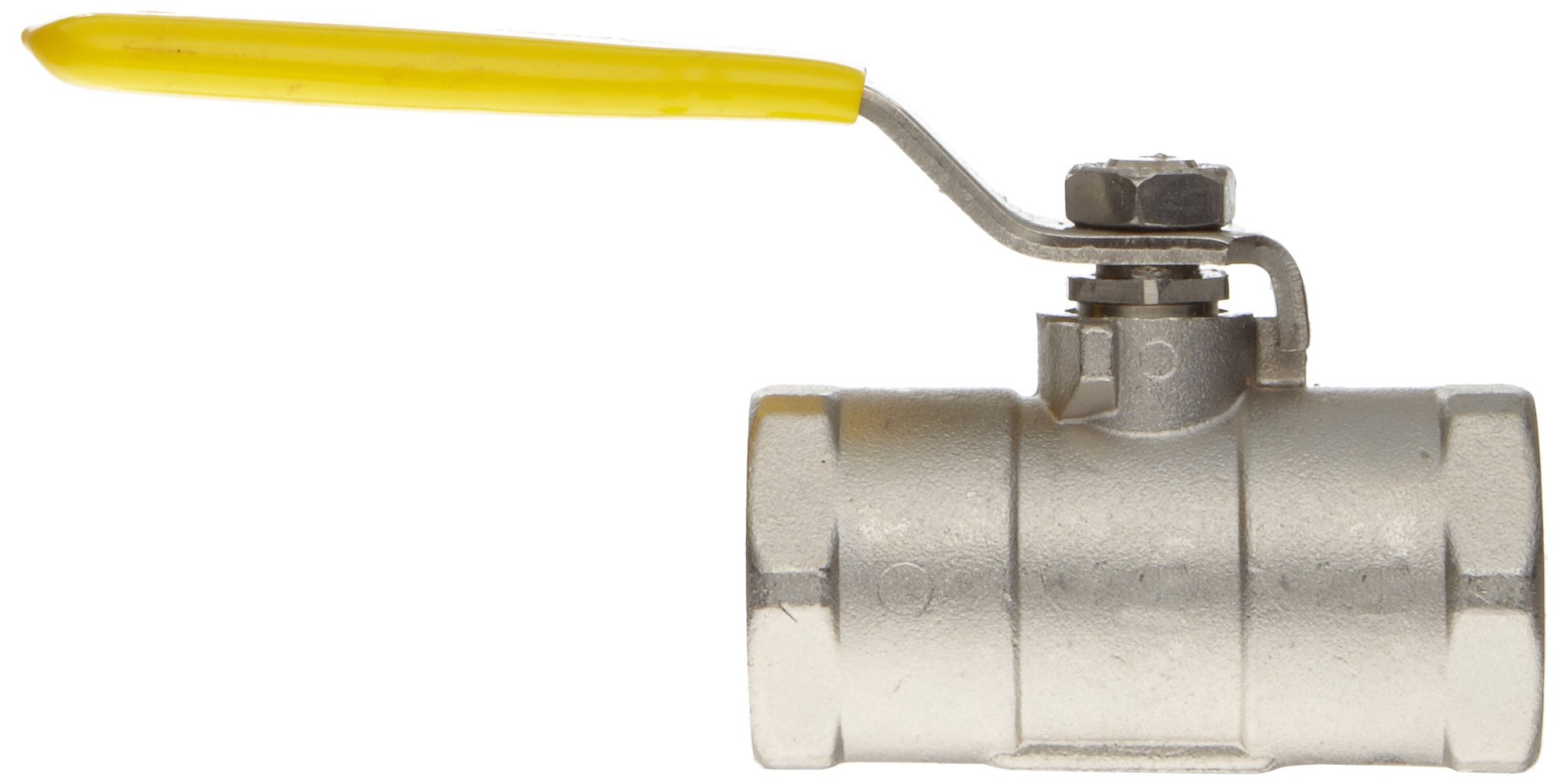

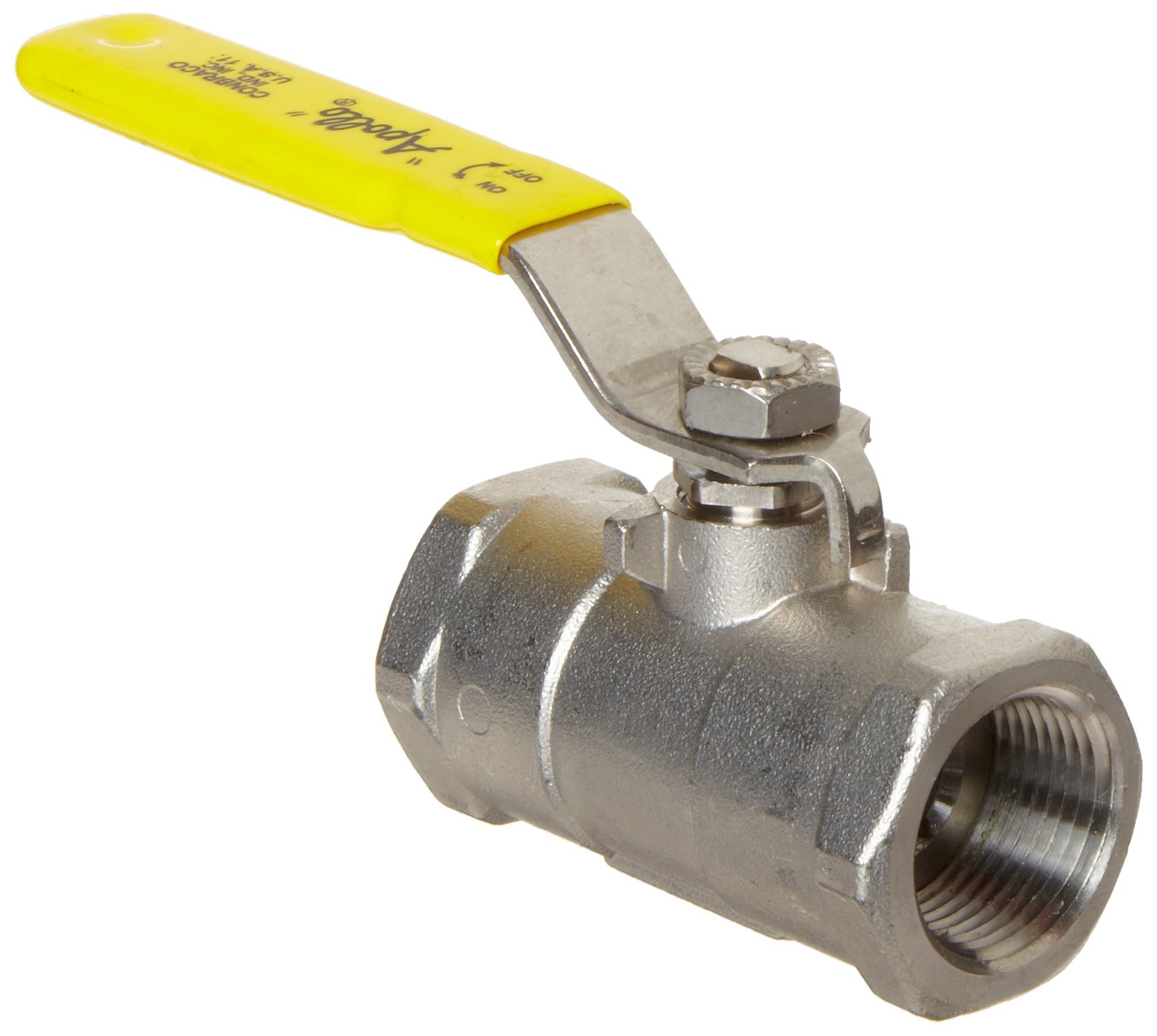

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 96-100 Series Stainless Steel Ball Valve, Unibody, Inline, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
MPTFE
Maximum Vacuum Pressure
29  in Hg
Item Shape
Inline
Material Type
Stainless Steel
Construction Type
Reduced Port
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Unibody
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
96-100
Ball Material Type
Stainless Steel 316
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
WW-V-35C
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 22 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
2-11/16 inches 1 96-104-01 B006G06XKY yes $47.04 Buy Options
2-13/64 inches 1 96-101-01 B006G06R0U yes $39.30 Buy Options
2-13/64 inches 1 96-102-01 B006G06T0S yes $36.65 Buy Options
2-13/64 inches 1 96-103-01 B006G06VJ2 yes $36.25 Buy Options
3-1/64 inches 1 96-105-01 B006G06ZI4 yes $55.51 Buy Options
3-39/64 inches 1 96-106-01 B006G072WM yes $78.89 Buy Options
4 inches 1 96-107-01 B006G075EC Usually ships in 2 to 4 weeks $128.05 Buy Options
4-23/32 inches 1 96-108-01 B006G0778G yes $159.50 Buy Options

Key Features

  • Made of stainless steel for resistance to corrosion
  • One-piece body for reduced possibility of leakage
  • Stainless steel 304 lever handle with vinyl sleeve for manual on/off control
  • Meets American Petroleum Institute (API) standard 607 for fire safety
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

The Apollo 96-100 series stainless steel unibody inline ball valve has a lever handle and female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes. It is made of stainless steel (ASTM A351 CF8M) for resistance to corrosion, and has a stainless steel 304 lever handle with a vinyl sleeve for manual on/off control. The one-piece body and reinforced polytetrafluoroethylene (RPTFE) seats and seals reduce the risk of leakage. It has National Pipe Taper (NPT) threads for creating tighter seals than straight threads. The maximum pressure rating is 2000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) (sizes from 1/4 to 1 inch), 1500 psig WOG (sizes from 1-1/2 to 2 inches) and 150 psig for saturated steam, and the temperature range is -20 to 450 degrees Fahrenheit. This ball valve is for use in water lines, processing plants, and petroleum and natural gas applications, and meets standards MSS SP-110, API 607 4th Edition Class 600, and NACE MR0175 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
