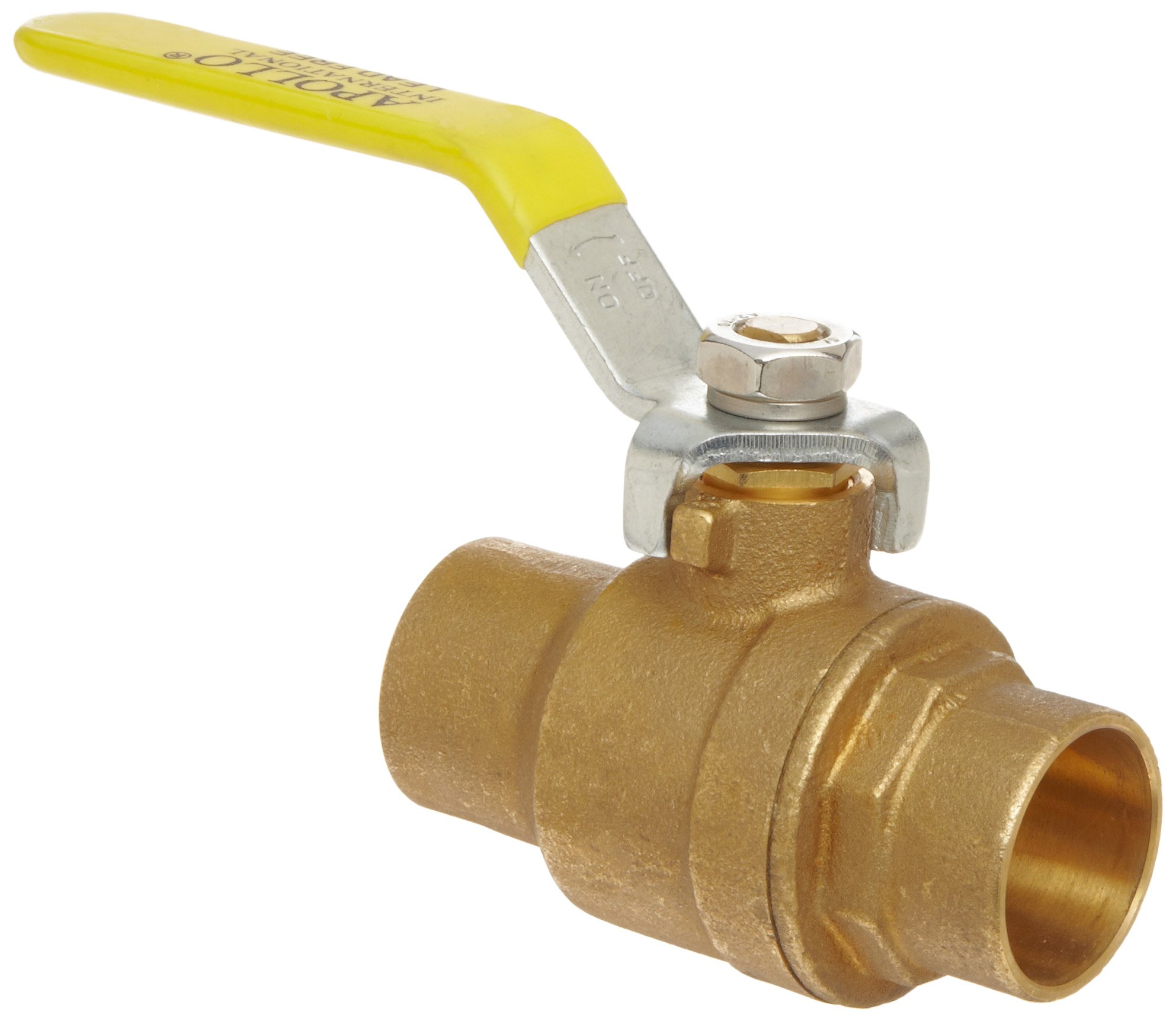

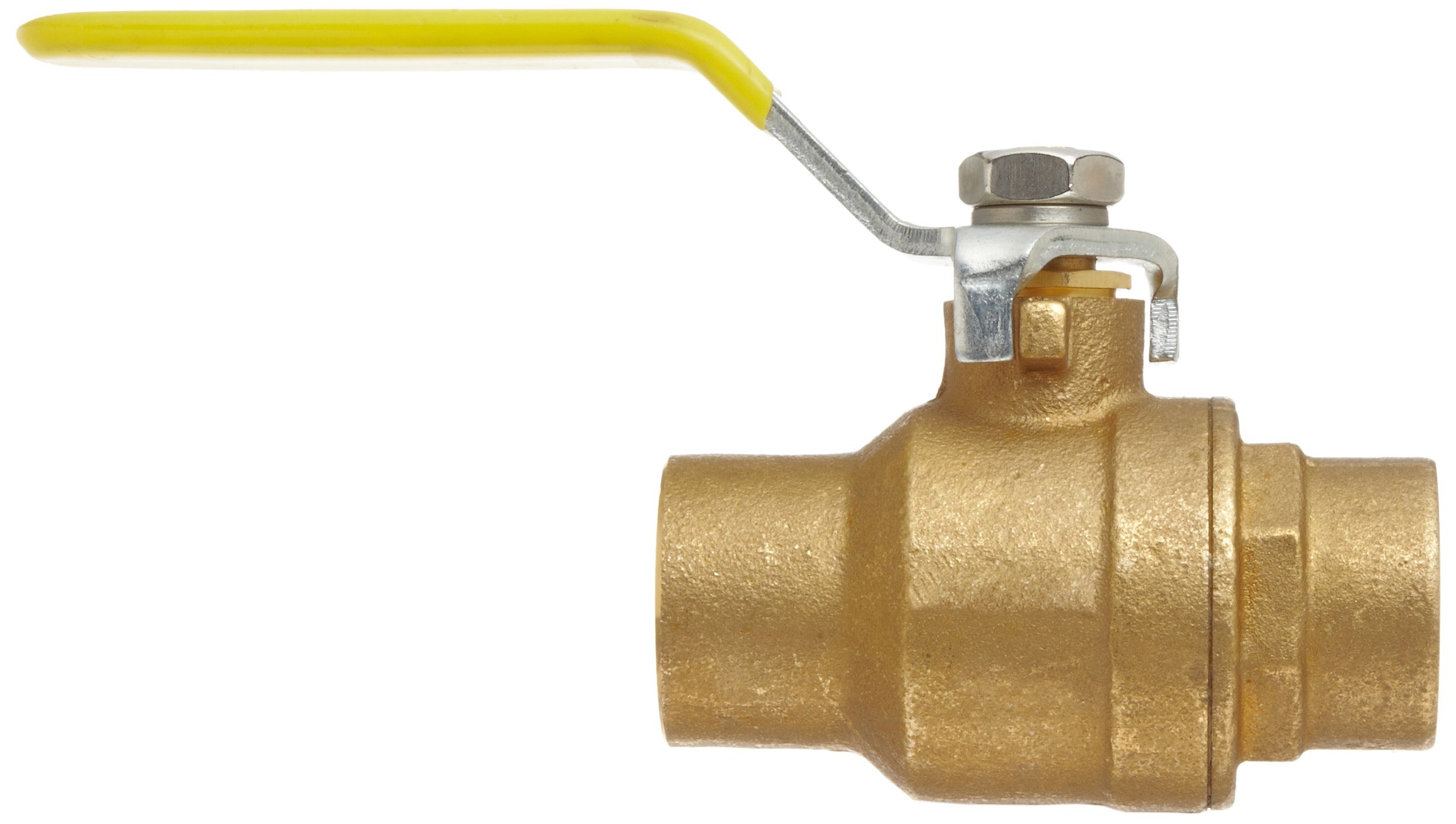

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 94ALF-200 Series Brass Ball Valve, Potable Water Service, Two Piece, Inline, Lever, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
PTFE
Item Shape
Inline
Material Type
Brass
Construction Type
Full Port
Operation Mode
Manual
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
94ALF-200
Upper Temperature Range
400  Degrees Fahrenheit
Ball Material Type
Brass
Connector Type
Solder End
UNSPSC Code
40141607
Style Name
Solder
System of Measurement
Inch
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 1 hr 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
2.01 inches 1 94ALF20301 B006G084YW yes $16.94 Buy Options
2.74 inches 1 94ALF20401 B006G086PO yes $19.10 Buy Options
3.35 inches 1 94ALF20501 B006G0897Y yes $29.42 Buy Options
3.78 inches 1 94ALF20601 B006G08C0S yes $39.21 Buy Options
4.42 inches 1 94ALF20701 B006G08DM0 Usually ships in 2 to 4 weeks $53.84 Buy Options
5.34 inches 1 94ALF20801 B006G08FNW yes $78.77 Buy Options
6.22 inches 1 94ALF20901 B006G08I48 yes $111.08 Buy Options
7.13 inches 1 94ALF20001 B006G082TY yes $340.69 Buy Options

Key Features

  • Made from brass for higher corrosion resistance than steel
  • Zinc-plated steel lever handle with a PVC (polyvinyl chloride) grip for manual on/off control
  • Lead-free materials for potable water service
  • Full port flow for higher operating efficiency than standard port
  • Solder end connections on both ends for a semi-permanent connection to tubing

Product Description

The Apollo 94ALF-200 series brass two-piece inline ball valve has a lever handle and solder end connections on both ends. It is made of brass for higher corrosion resistance than steel, and has a zinc-plated steel lever handle with a PVC (polyvinyl chloride) grip for manual on/off control. The valve materials meet federal and state lead level requirements for use with potable water systems. This valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage, and the valve has solder ends for semi-permanent yet reversible connections to tubing. The maximum pressure ratings are 600 pounds per square inch (psi) cold working pressure (CWP) (sizes from 1/4 to 2 inches) and 400 psi CWP (sizes from 2-1/2 to 3 inches), and the temperature range is -20 to 400 degrees Fahrenheit. This ball valve is for use in water lines, processing plants, and agricultural applications and meets standards CA AB1953, VT Act 193, MD HB372, LA HB471, Federal Public Law 111-380, ANSI/NSF 61-8, and MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
