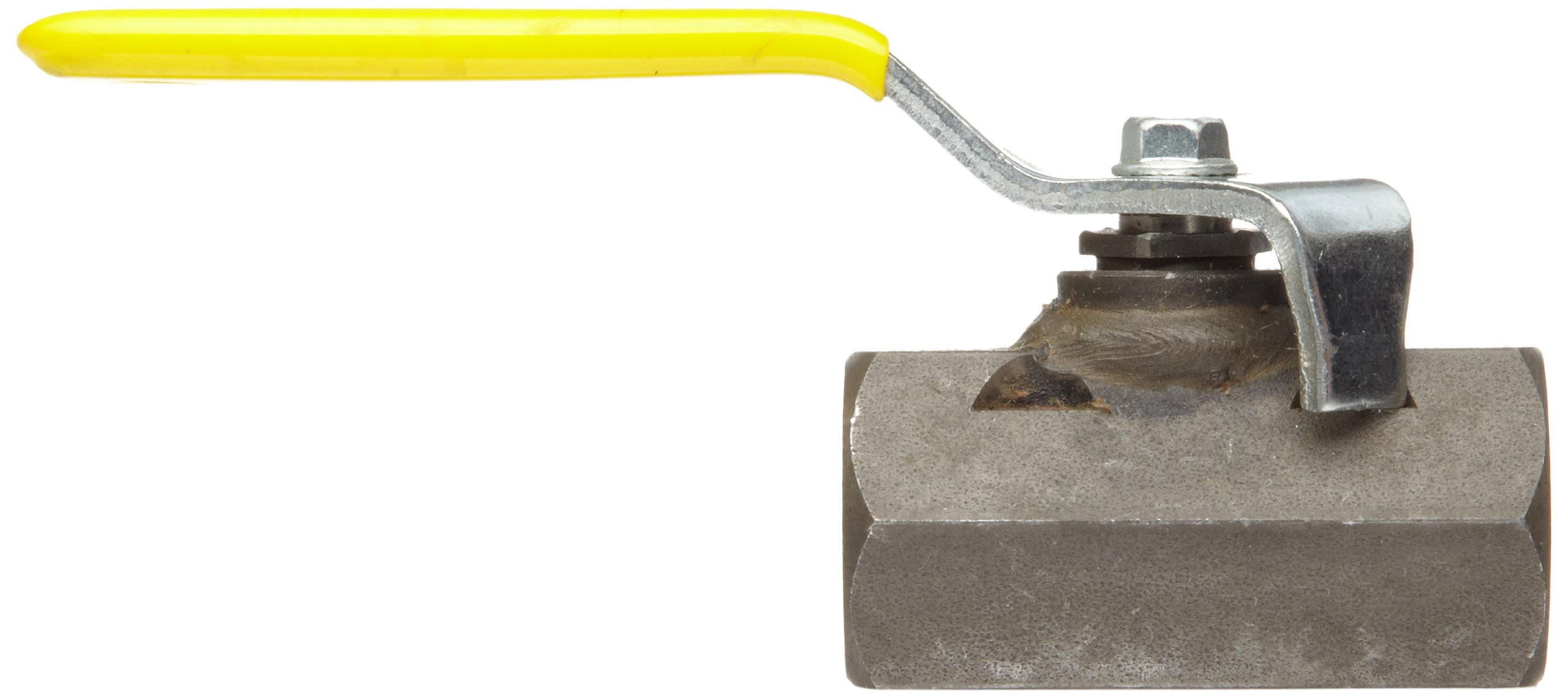

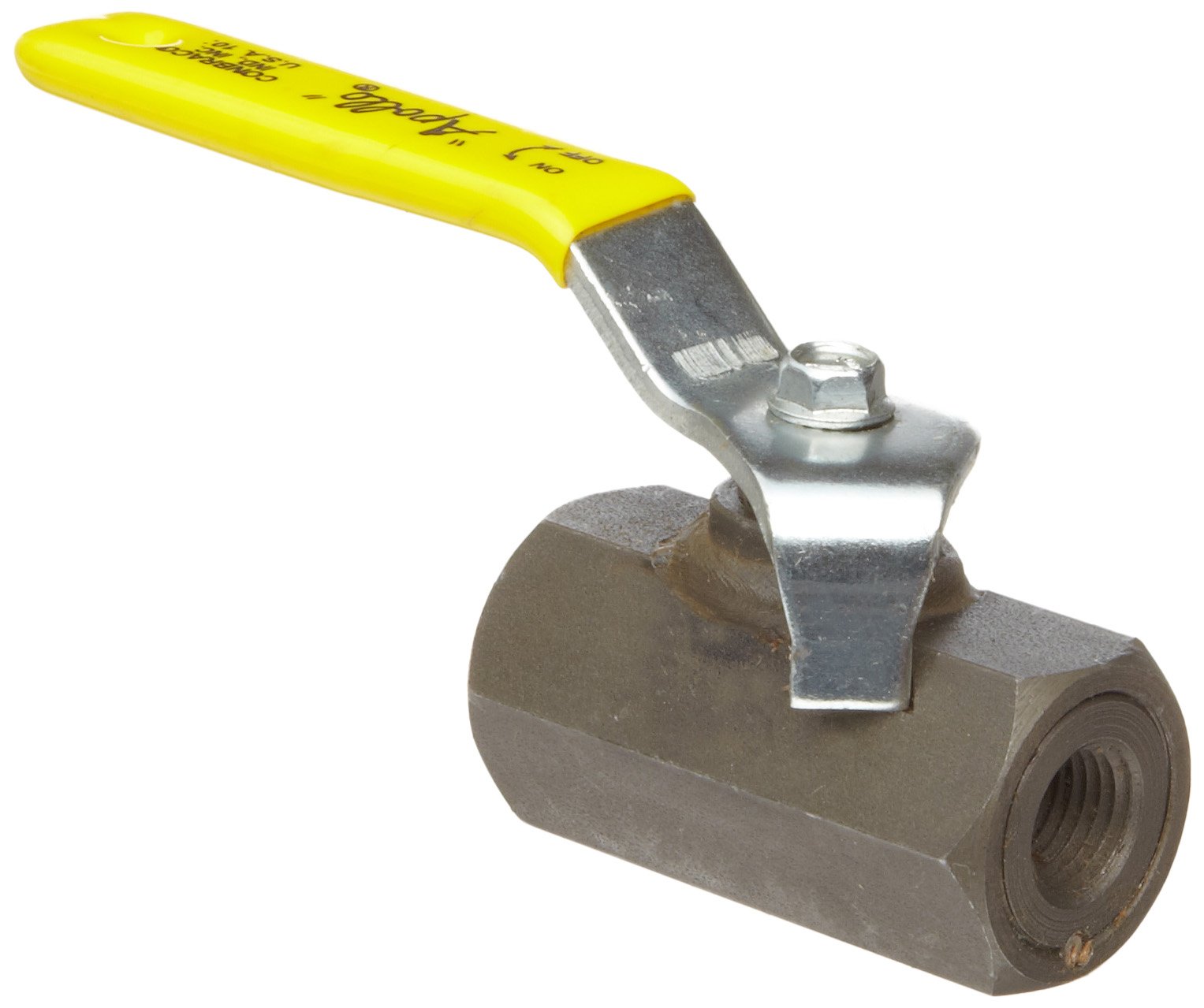

Apollo 93-140 Series Carbon Steel Ball Valve with Stainless Steel 316 Ball and Stem, Unibody, Inline, Lever, NPT Female
Be the first to review this item
Product Specifications
- Ball Material Type
- Stainless Steel 316
- Brand Name
- Apollo Valve
- Connector Type
- NPT Female
- Construction Type
- Reduced Port
- Handle Type
- Lever
- Internal Packing Material Type
- MPTFE
- Item Shape
- Inline
- Manufacturer Series Number
- 93-140
- Material Type
- Carbon Steel
- Maximum Steam Pressure Description
- 150 pounds_per_square_inch
- Operation Mode
- Manual
- Specification Met
- WW-V-35C
- Structure Description
- Unibody
- Style Name
- Threaded
- System of Measurement
- Inch
- Upper Temperature Range
- 500 Degrees Fahrenheit
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 2 days 17 hours 19 minutes and choose One-Day Shipping at checkout.
Key Features
- Made from carbon steel for strength and greater hardness than stainless steel
- Zinc-plated heavy duty steel lever handle with vinyl sleeve for manual on/off control
- One-piece body for reduced possibility of leakage
- Stainless steel 316 ball and stem for resistance to corrosion
- Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
Product Description
The Apollo 93-140 series carbon steel unibody inline ball valve has a lever handle and female National Pipe Taper (NPT) threads on both ends. The valve body is made of carbon steel for strength and greater hardness than stainless steel, and the ball and stem are made of stainless steel 316 for greater corrosion resistance than standard steel. This valve has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control and a one-piece body for a reduced possibility of leakage. It is standard (or regular) port for reduced valve size and cost. Reinforced polytetrafluoroethylene (RPTFE) seats and seals reduce the risk of leakage. This valve has a nitride coating for corrosion protection, and NPT threads for creating tighter seals than straight threads. The maximum pressure ratings are 2000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) for sizes from 1/4 to 1 inch, 1500 psig for sizes from 1-1/4 to 2 inches, and 150 psig for saturated steam, and the temperature range is -20 to 450 degrees Fahrenheit. This ball valve is for use in water lines, processing plants, and automotive applications and meets standard MSS SP-110 for quality assurance.
Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
