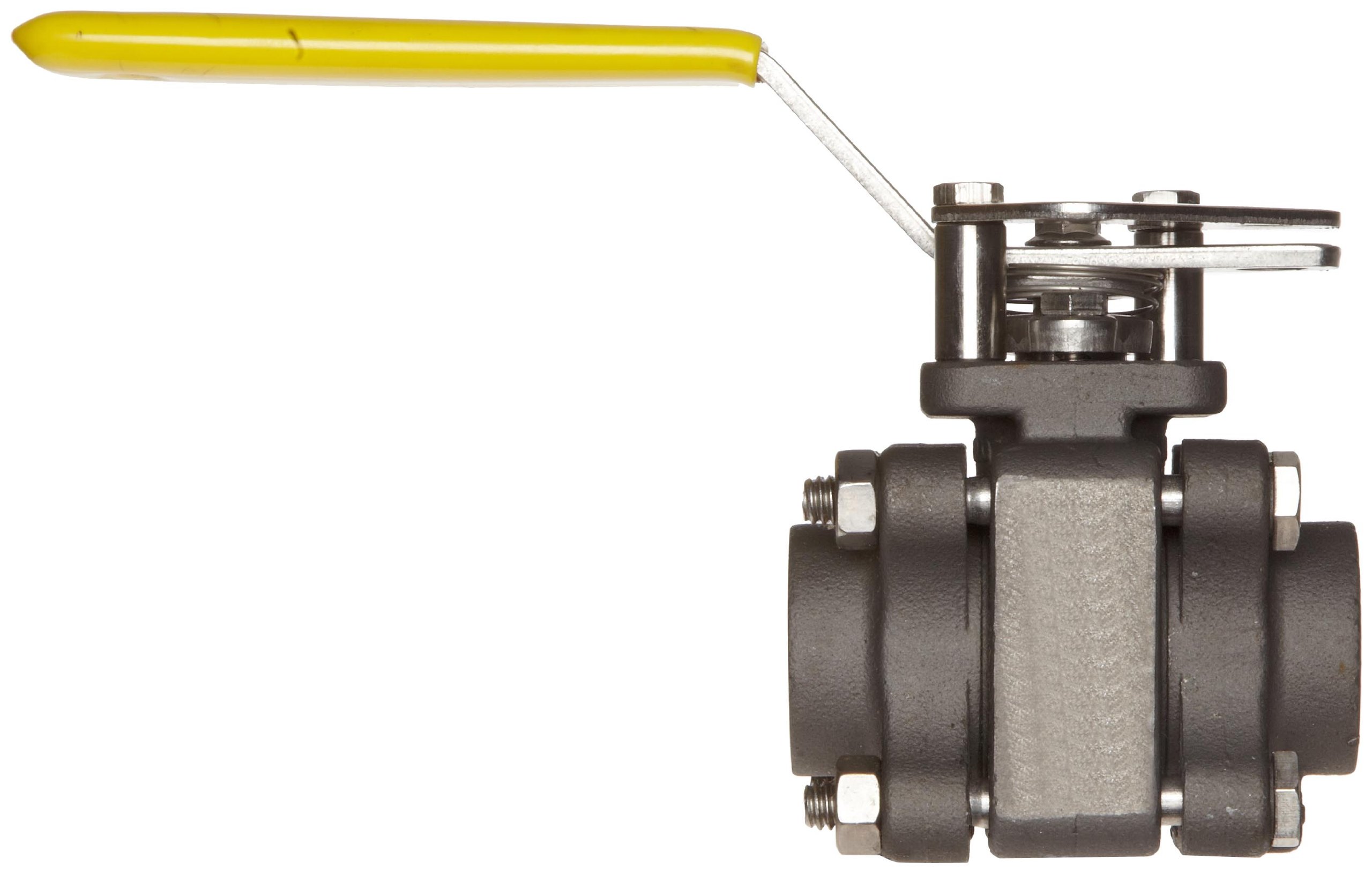

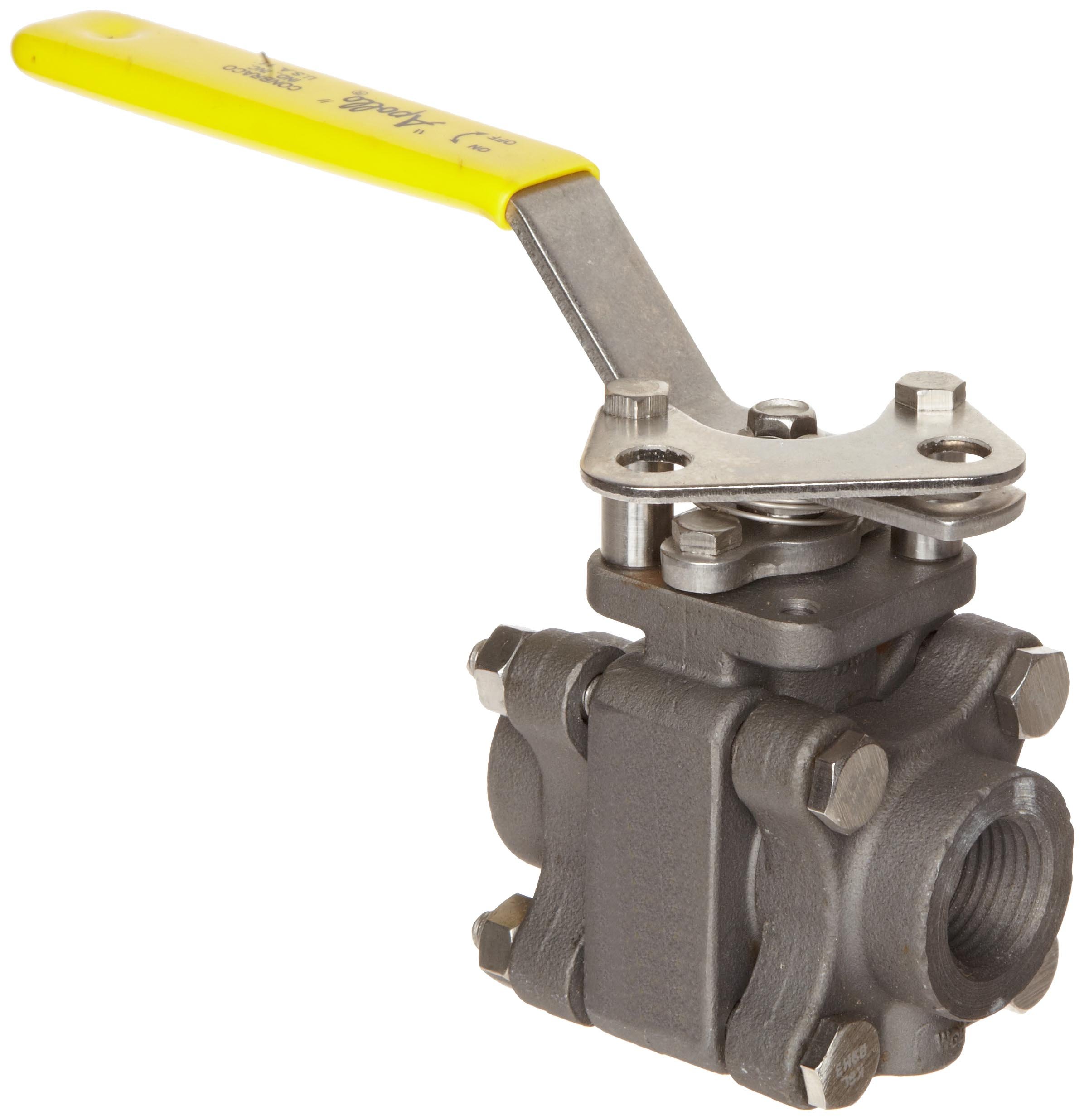

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 83B-140 Series Carbon Steel Ball Valve with Stainless Steel 316 Ball and Stem, Three Piece, Inline, Class 600, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
PTFE
Item Shape
Inline
Material Type
Carbon Steel
Construction Type
Full Port
Operation Mode
Manual
Maximum Steam Pressure Description
250 pounds_per_square_inch
Structure Description
Three Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
83B-140
Ball Material Type
Stainless Steel 316
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
ASME B16.3 , ASME B1.20.1
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch
LowerTemperature Range
-50  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
2.80 inches 1 83B14101 B006QPZ2PQ 8 $100.70 Buy Options
2.80 inches 1 83B14201 B000R8EO3O Usually ships in 2 to 5 weeks $96.41 Buy Options
2.80 inches 1 83B14301 B000R89498 1 $100.87 Buy Options
3.68 inches 1 83B14401 B000R8DAPW 6 $137.46 Buy Options
4.19 inches 1 83B14501 B000R894CA 4 $145.63 Buy Options
4.5 inches 1 83B14601 B000R8F58C 2 $230.31 Buy Options
4.98 inches 1 83B14701 B000R894G6 2 $321.94 Buy Options
5.86 inches 1 83B14801 B000R8BACC 1 $630.32 Buy Options

Key Features

  • Carbon steel for tensile strength and hardness
  • Lever handle with two-position locking with a vinyl sleeve for manual on/off control
  • Stainless steel 316 ball and stem for resistance to corrosion
  • Maximum steam pressure rating of 250 psi and maximum vacuum pressure of 29 in Hg; maximum temperature of -50 to 500 degrees Fahrenheit
  • Female NPT threads for connecting to male threaded pipes

Product Description

This class 600 Apollo 83B-140 series carbon steel three-piece inline ball valve has a stainless steel 316 ball and stem, lever handle, and National Pipe Taper (NPT) female threads on both ends. The valve body is made of carbon steel for strength and greater hardness than stainless steel, and the ball and stem are made of stainless steel 316 for greater corrosion resistance than standard steel. This valve has a stainless steel and vinyl sleeve lever handle with two-position locking and manual on/off control. Adjustable multi-piece polytetrafluoroethylene (PTFE) "V" style packing reduce the risk of leakage. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the connecting pipe for maximum operating efficiency. Female NPT threads connect this valve to male threaded pipes, creating a tighter seal than straight threads. The maximum steam pressure rating is 250 pounds per square inch (psi), and the maximum vacuum pressure is 29 in Hg. The temperature range is -50 to 500 degrees Fahrenheit. This valve meets American Society of Mechanical Engineers (ASME) B16.3, and ASME B1.20.1 standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
