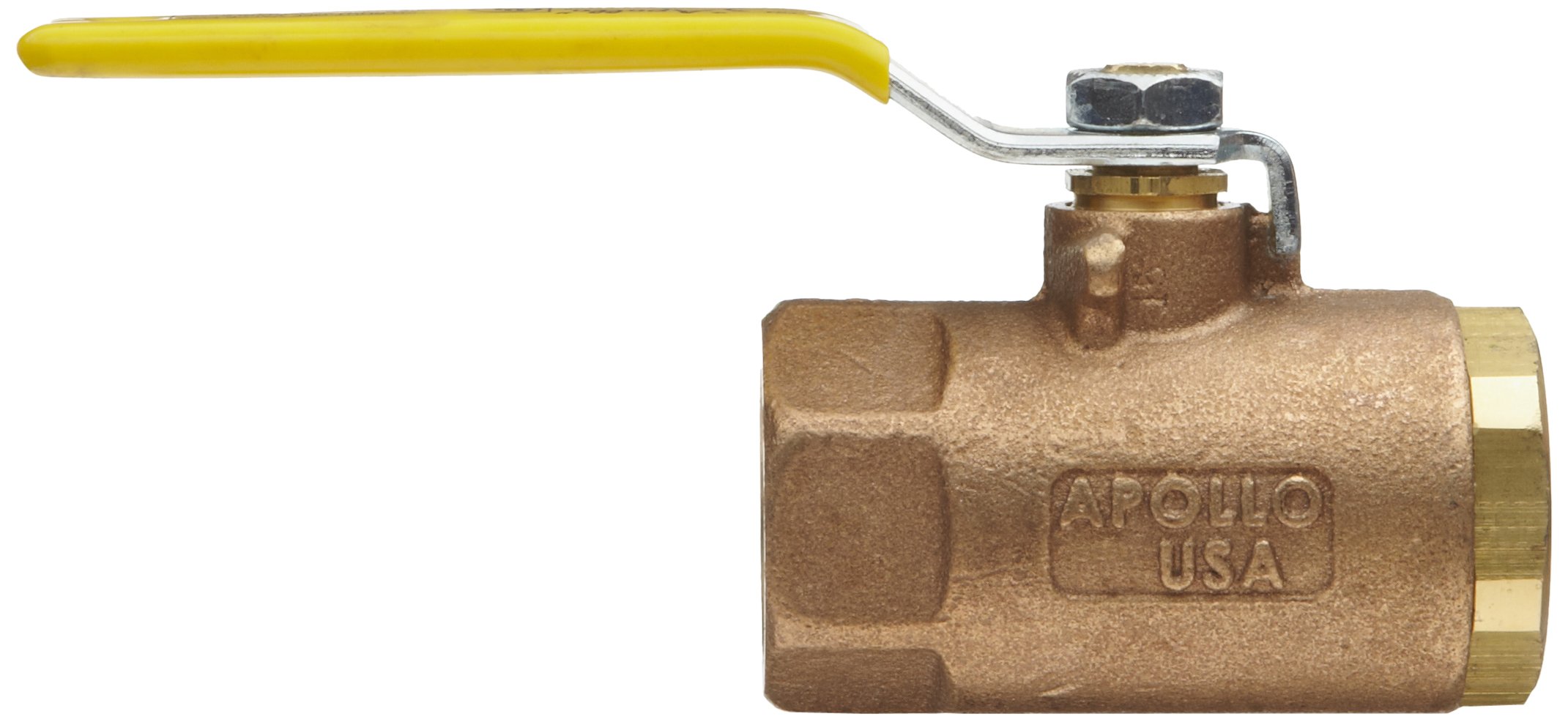

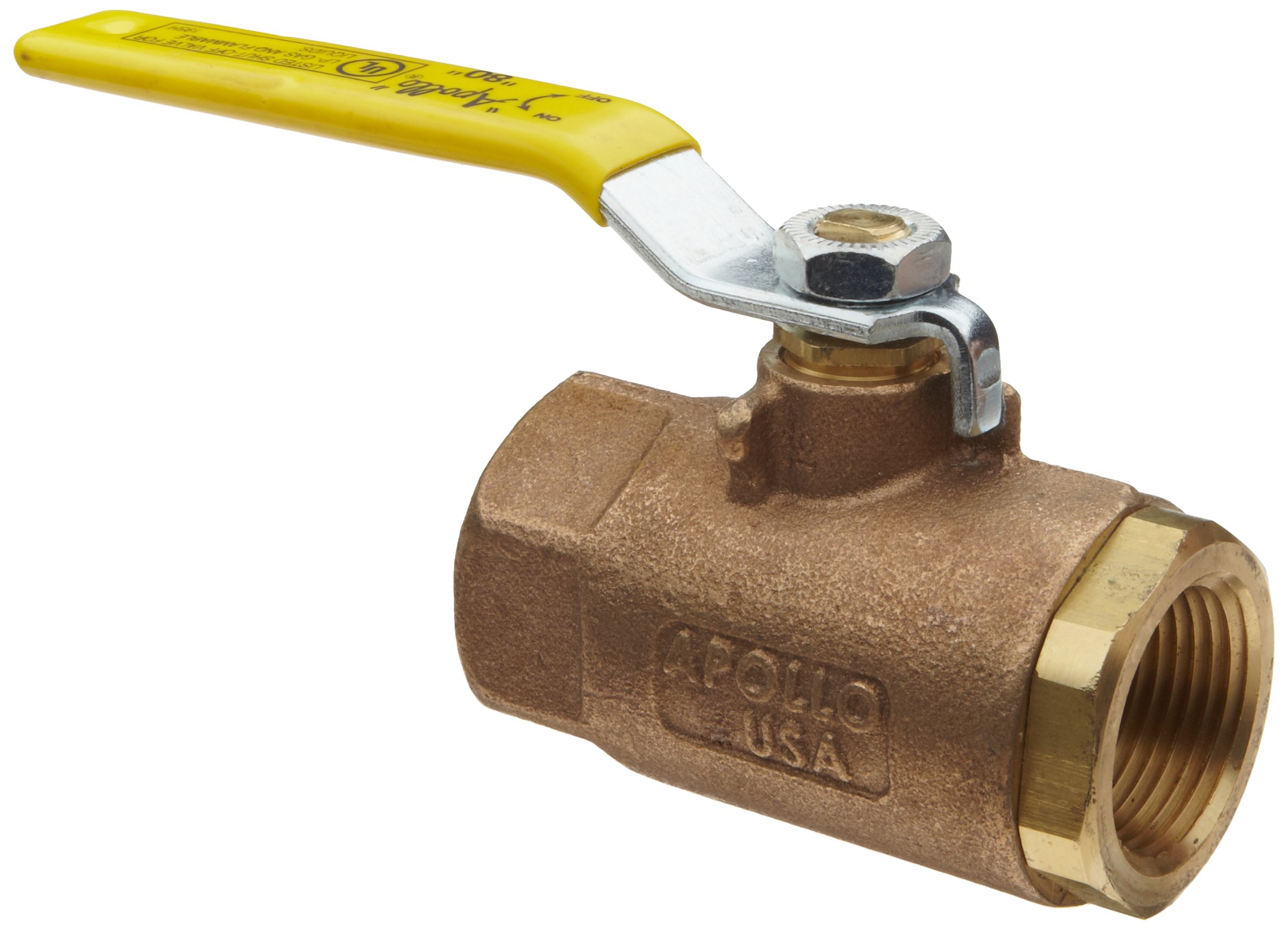

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 80-100 Series Bronze LP-Gas Ball Valve, Two Piece, Inline, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
RPTFE
Item Shape
Inline
Seat Material Type
RPTFE
Material Type
Bronze
Construction Type
Standard Port
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
80-100
Ball Material Type
Brass
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Maximum Pressure
600  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 11 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
2.06 inches 1 80-101-01 B0062RYZSI yes $14.06 Buy Options
2.06 inches 1 80-102-01 B0062Q8E8Q yes $14.89 Buy Options
2.25 inches 1 80-103-01 B0062RZ12C Usually ships in 1 to 2 months $13.06 Buy Options
3.00 inches 1 80-104-01 B0062RZ26C yes $19.92 Buy Options
3.37 inches 1 80-105-01 B0062RZ49W yes $32.39 Buy Options
4.00 inches 1 80-106-01 B0062RZ5JQ yes $41.11 Buy Options
4.37 inches 1 80-107-01 B0062RZ71M yes $66.02 Buy Options
4.68 inches 1 80-108-01 B0062RZ8KC yes $60.70 Buy Options
6.50 inches 1 80-109-01 B0062RZA7S yes $323.24 Buy Options
6.75 inches 1 80-100-01 B0062RYY4I yes $369.49 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Zinc-plated steel lever handle with vinyl sleeve for manual on/off control
  • Listed with Underwriters Laboratory (UL) for use with liquefied petroleum gas (LP-Gas), natural gas, flammable liquids, and heated oils
  • Pounds per square inch (gauge) (psig) rating of 600 for water, oil, and gas (WOG) and 250 for liquefied petroleum gas (LP-Gas)
  • Female National Pipe Taper (NPT) threads on both ends for use with male threaded pipes

Product Description

The Apollo 80-100 series two-piece inline LP-Gas ball valve is made of bronze and has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. The valve body is made of bronze for higher strength and corrosion resistance than brass and it has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. This valve is listed with Underwriters Laboratory (UL) for safe use with liquefied petroleum gas (LP-Gas), natural gas, flammable liquids, and heated oils. The maximum pressure is 600 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 250 for liquefied petroleum gas (LP-Gas). The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. This ball valve has large ports to reduce drops in pressure and has reinforced polytetrafluoroethylene (RPTFE) seats and a PTFE seal to reduce the risk of valve leakage. This valve is for use with LP-Gas lines, water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
