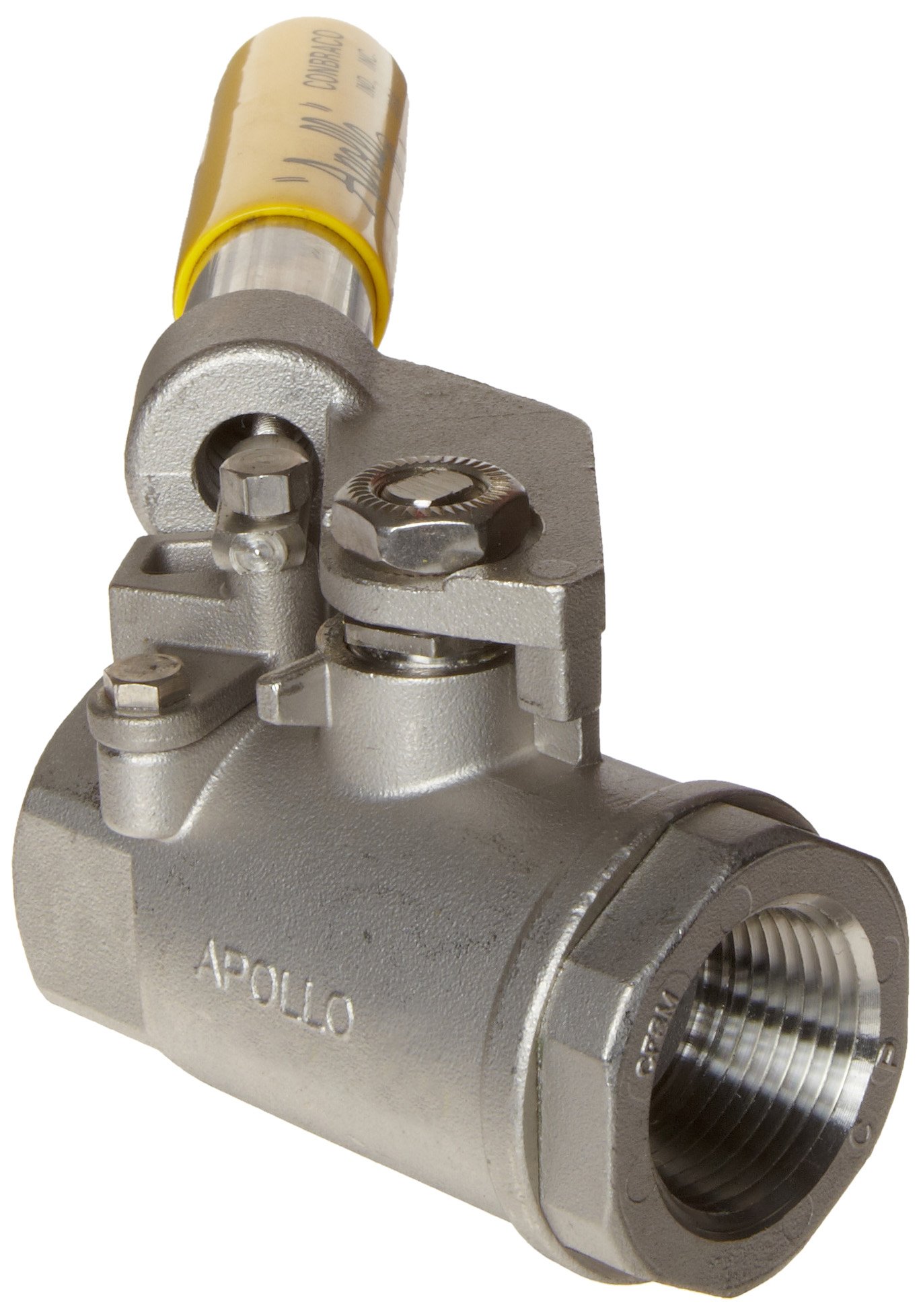

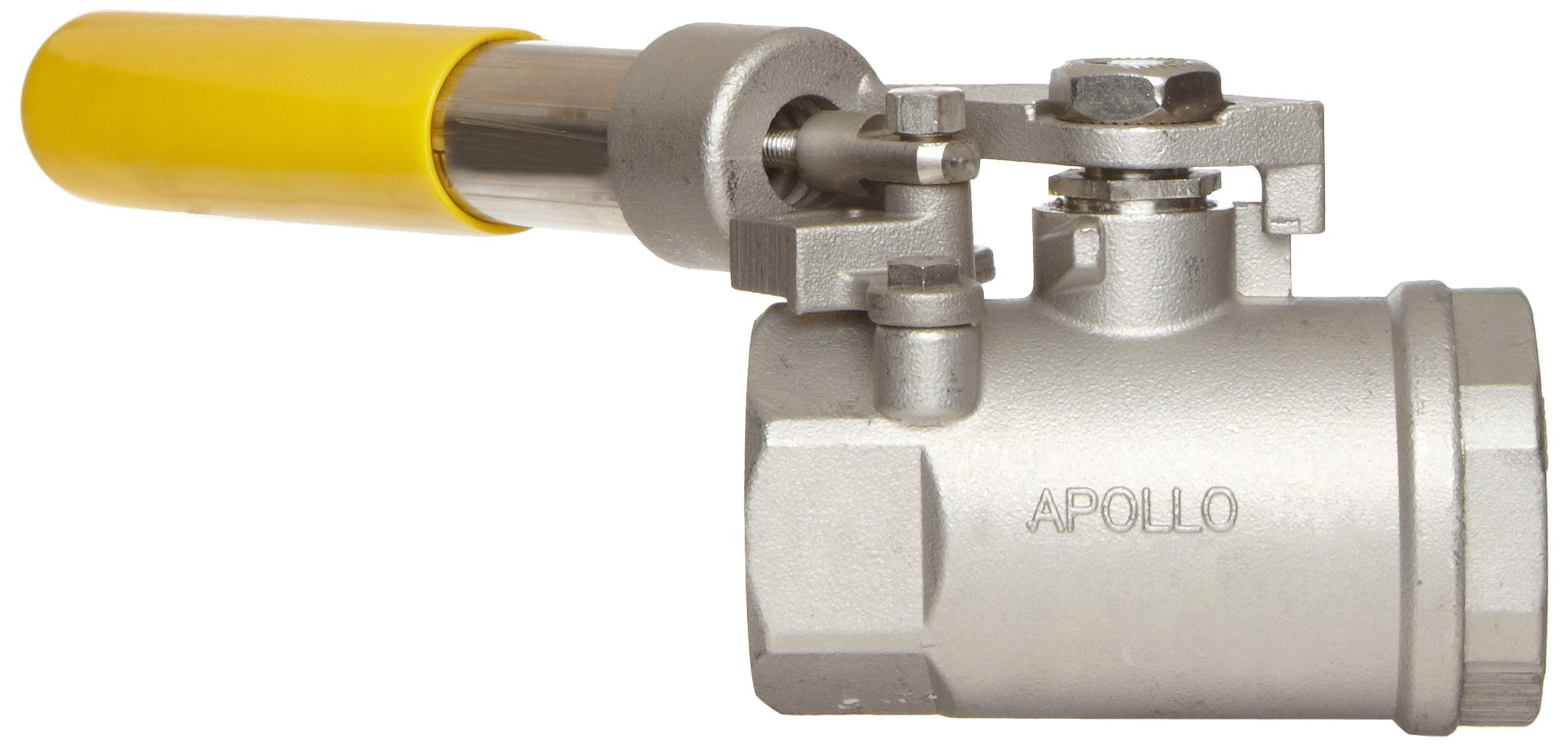

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 76-500 Series Stainless Steel Ball Valve, Two Piece, Inline, Spring Return Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
MPTFE
Item Shape
Inline
Seat Material Type
MPTFE
Material Type
Stainless Steel
Construction Type
Standard Port
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Spring Return Lever
Brand Name
Apollo Valve
Manufacturer Series Number
76-500
Ball Material Type
Stainless Steel 316
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 9 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
2-1/4 inches 1 76-503-01A B0062S0PJU yes $90.05 Buy Options
2-3/64 inches 1 76-501-01A B0062S0MXE yes $88.93 Buy Options
2-3/64 inches 1 76-502-01A B0062S0OAU yes $124.78 Buy Options
3 inches 1 76-504-01A B0062S0QOE yes $118.85 Buy Options
3-23/64 inches 1 76-505-01A B0062S0RXE yes $181.57 Buy Options
4 inches 1 76-506-01 B0062S0TXC yes $295.62 Buy Options
4-23/64 inches 1 76-507-01 B0062S0XR4 yes $250.70 Buy Options
5-1/2 inches 1 76-508-01 B0062S0Z0Y yes $279.65 Buy Options

Key Features

  • Made of stainless steel for resistance to corrosion
  • Stainless steel spring-return lever handle to ensure the valve is open only when an operator is at hand
  • Pounds per square inch (gauge) (psig) rating of 2,000 for water, oil, and gas (WOG) for 1/4" to 1" valves; 1,500 for 1-1/4" to 2"; and 150 for saturated steam
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes
  • Multifill polytetrafluoroethylene (MPTFE) seats and stem packing reduce the risk of valve leakage

Product Description

The Apollo 76-500 series two-piece inline ball valve is made of stainless steel and has a spring-return lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of stainless steel for resistance to corrosion and has a stainless steel spring-return handle with a vinyl sleeve for manual on/off control. This valve closes automatically when its spring-return lever is released, ensuring that the valve is open only when an operator is at hand. The maximum pressure is 2,000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) for 1/4” to 1” valves, 1,500 psig for 1-1/4” to 2” valves, and 150 psig for all sizes for saturated steam. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Multifill polytetrafluoroethylene (MPTFE) reinforced seats and stem packing reduce the risk of valve leakage and this ball valve is standard (or reduced or regular) port for reduced valve size and cost. This valve is for use with water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
