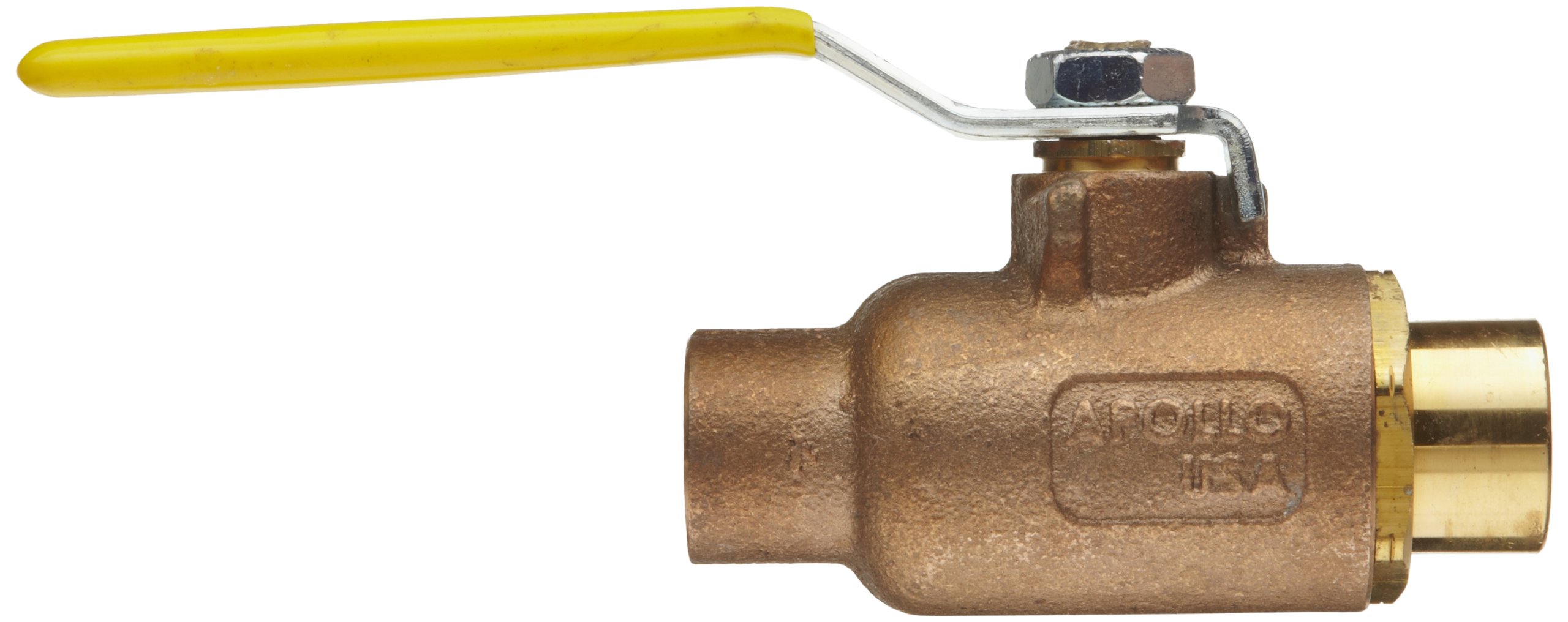

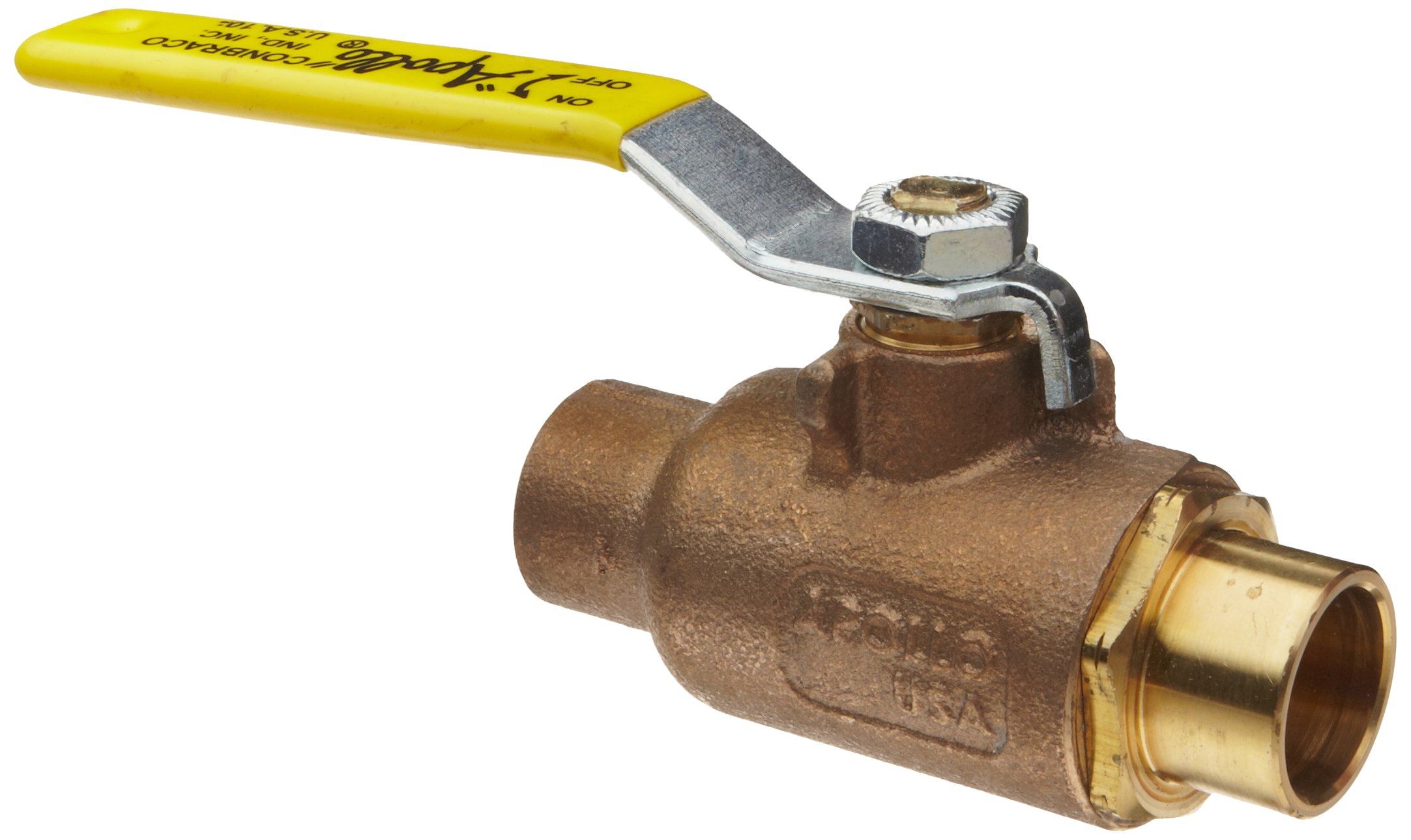

Apollo 70LF-200 Series Bronze Ball Valve, Potable Water Service, Two Piece, Inline, Lever, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
RPTFE
Maximum Vacuum Pressure
29  in Hg
Item Shape
Inline
Seat Material Type
RPTFE
Material Type
Bronze
Construction Type
Standard Port
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
70LF-200
Ball Material Type
Brass
Upper Temperature Range
450  Degrees Fahrenheit
Specification Met
MSS SP-110 , NSF/ANSI 61-8
Maximum Pressure
600  PSI
Connector Type
Solder End
UNSPSC Code
40141607
Style Name
Solder
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 6 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-9 of 9
10.26 inches 1 70LF20A01 B006G020UQ yes $583.44 Buy Options
2.56 inches 1 70LF20201 B0051SUUY2 yes $18.48 Buy Options
2.87 inches 1 70LF20301 B0051SUV3M yes $18.48 Buy Options
3.87 inches 1 70LF20401 B0051SUV7I yes $33.71 Buy Options
4.50 inches 1 70LF20501 B0051SUVG4 yes $40.73 Buy Options
4.62 inches 1 70LF20601 B006G01V7Y yes $59.29 Buy Options
5.25 inches 1 70LF20701 B0051SUVJ6 yes $62.43 Buy Options
7.51 inches 1 70LF20901 B006G01YW6 yes $346.92 Buy Options
8.25 inches 1 70LF20001 B006G01PP2 Usually ships in 2 to 4 weeks $386.85 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Zinc-plated steel lever handle with vinyl sleeve for manual on/off control
  • Lead-free materials for potable water service
  • Rated 600 pounds per square inch (gauge) (psig) cold working pressure (CWP) and 150 psig steam working pressure (SWP)
  • Solder connections on both ends for a semi-permanent connection to tubing

Product Description

The Apollo 70LF-200 series bronze two-piece inline ball valve has a lever handle and solder end connections for semi-permanent yet reversible connections to tubing. This valve is made of bronze for higher strength and corrosion resistance than brass, and has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. The valve materials meet federal and state lead level requirements for use with potable water systems, and the maximum pressure ratings are 600 pounds per square inch (gauge) (psig) cold working pressure (CWP) and 150 psig steam working pressure (SWP). The reinforced polytetrafluoroethylene (RPTFE) seats and stem packing reduce the risk of leakage. This valve is standard (or regular) port for reduced valve size and cost, and has a temperature range of -20 to 450 degrees Fahrenheit. This ball valve is for use in water lines, processing plants, and agricultural applications and meets standards CA AB1953, VT Act 193, MD HB372, LA HB471, Federal Public Law 111-380, ANSI/NSF 61, and MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
