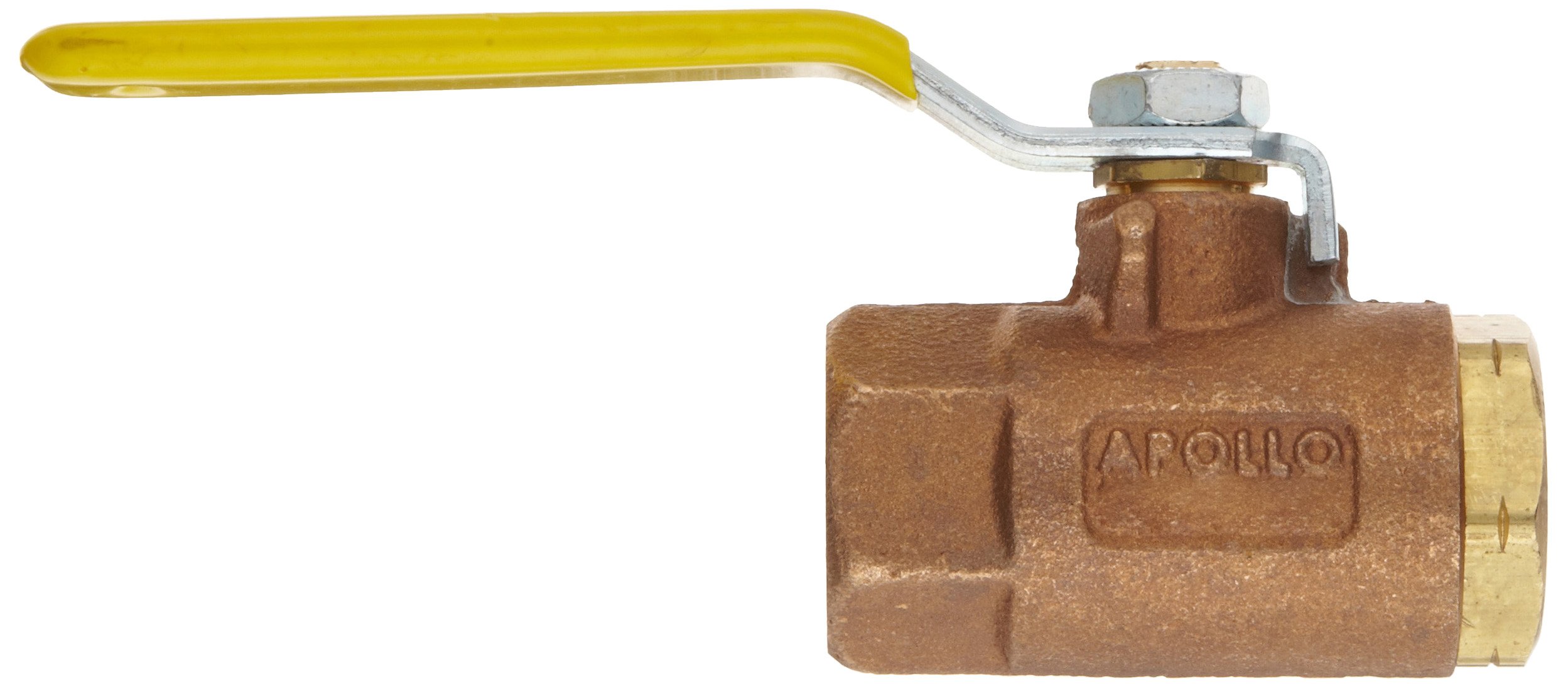

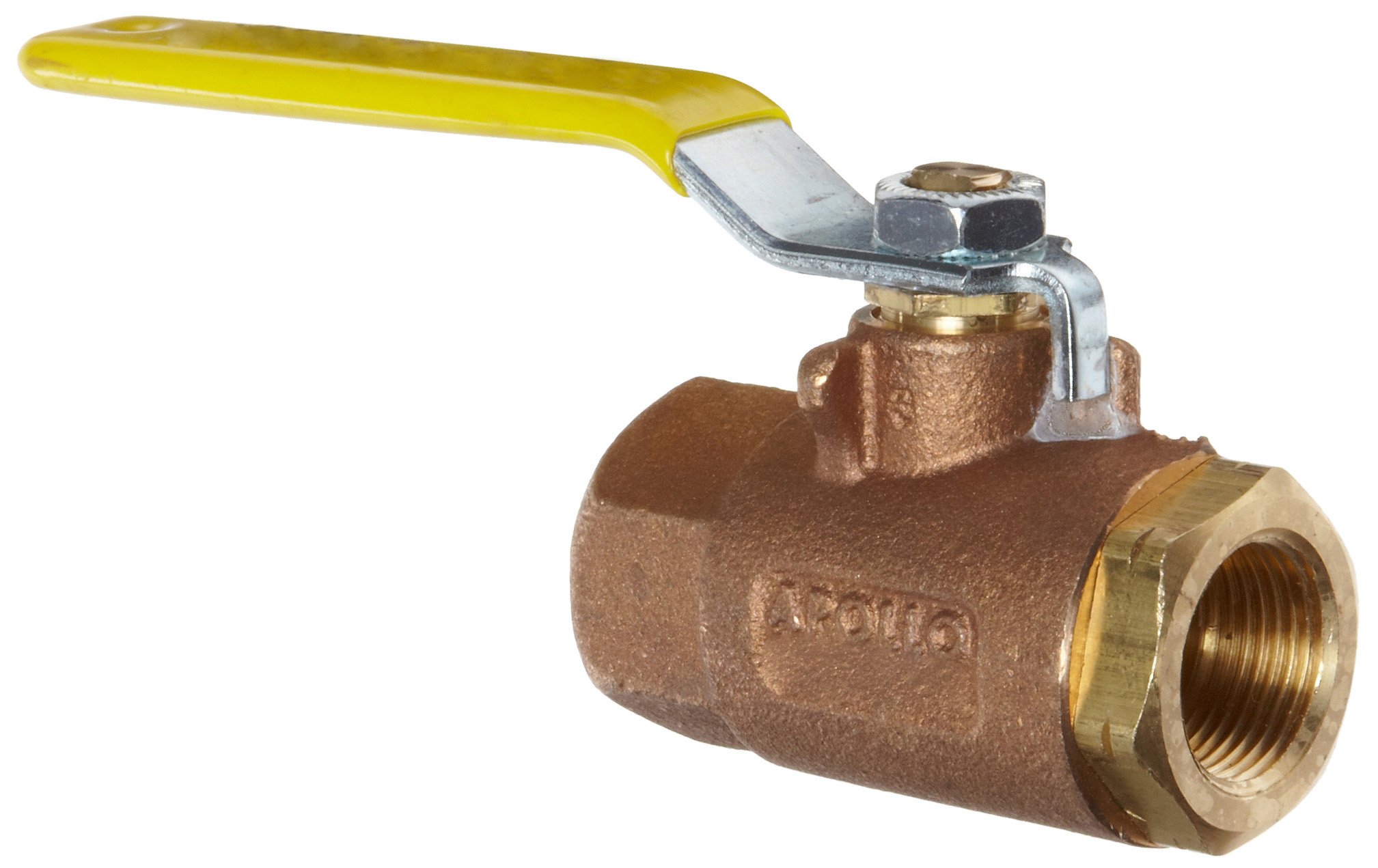

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 70LF-100 Series Bronze Ball Valve, Potable Water Service, Two Piece, Inline, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
RPTFE
Item Shape
Inline
Seat Material Type
RPTFE
Material Type
Bronze
Construction Type
Standard Port
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
70LF-100
Ball Material Type
Brass
Upper Temperature Range
450  Degrees Fahrenheit
Specification Met
MSS SP-110 , NSF/ANSI 61-8
Maximum Pressure
600  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 2 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-10 of 10
2.06 inches 1 70LF10201 B0051SUT9S 10 $19.67 Buy Options
2.25 inches 1 70LF10301 B0051SUTIY 3 $19.67 Buy Options
3 00 inches 1 70LF10401 B0051SUTZC 7 $29.92 Buy Options
3.37 inches 1 70LF10501 B0051SUU3S 9 $38.90 Buy Options
4 68 inches 1 70LF10801 B0051SUUN8 2 $86.97 Buy Options
4.00 inches 1 70LF10601 B0062RYCI6 Usually ships in 2 to 5 weeks $60.88 Buy Options
4.37 inches 1 70LF10701 B0051SUUI8 1 $83.46 Buy Options
6.25 inches 1 70LF10901 B0062Q81NY 1 $351.34 Buy Options
6.75 inches 1 70LF10001 B0062Q7YZK 2 $299.32 Buy Options
7.37 inches 1 70LF10A01 B0062Q82L0 1 $552.00 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Meets CA AB 1953 and VT S.152 for lead free quality assurance and use with potable water
  • Zinc-plated steel lever handle with a vinyl sleeve for manual on/off control
  • Pounds per square inch (gauge) (psig) rating of 600 for cold working pressure (CWP) and 150 for steam working pressure
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes

Product Description

The Apollo 70LF-100 series two-piece inline ball valve for potable water service is made of bronze and has a lever-handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve meets CA AB 1953 and VT S.152 for lead free quality assurance and use with potable water. It is made of bronze for higher strength and corrosion resistance than brass and has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. The maximum pressure is 600 pounds per square inch (gauge) (psig) for cold working pressure (CWP) and 150 psig forsteam working pressure (SWP). The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Reinforced polytetrafluoroethylene (RPTFE) seats and stem packing reduce the risk of valve leakage. This ball valve is standard (or regular) port for reduced valve size and cost and has a working temperature range of -20 to 450 degrees Fahrenheit. This valve is used in plumbing and heating applications. It meets standards MSS SP-110 and ANSI/NSF 61 and is registered under CSA B51 (CRN: OC10908.5C) for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
