Apollo 70-900 Series Bronze Ball Valve, Two Piece, 3-Port Diverting, Lever, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
Item Shape
3-Port Diverting
Seat Material Type
Material Type
Construction Type
Standard Port
Operation Mode
Structure Description
Two Piece
Handle Type
Brand Name
Apollo Valve
Manufacturer Series Number
Ball Material Type
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Maximum Pressure
400  PSI
Connector Type
Solder End
Style Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 5 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-3 of 3
2.87 inches 1 70-903-01 B002E8P9M0 yes $18.87 Buy Options
3.87 inches 1 70-904-01 B0025QBHOA yes $35.07 Buy Options
4.42 inches 1 70-905-01 B0026H2U1M yes $45.26 Buy Options

Key Features

  • Bronze for higher strength and corrosion resistance than brass
  • Lever handle with vinyl sleeve for manual on/off control
  • Standard port for reduced valve size and cost
  • Maximum pressure rating of 600 psig for CWP; maximum temperature of 500 degrees Fahrenheit
  • Solder ends for a strong and durable heat-joined bond using solder and a torch

Product Description

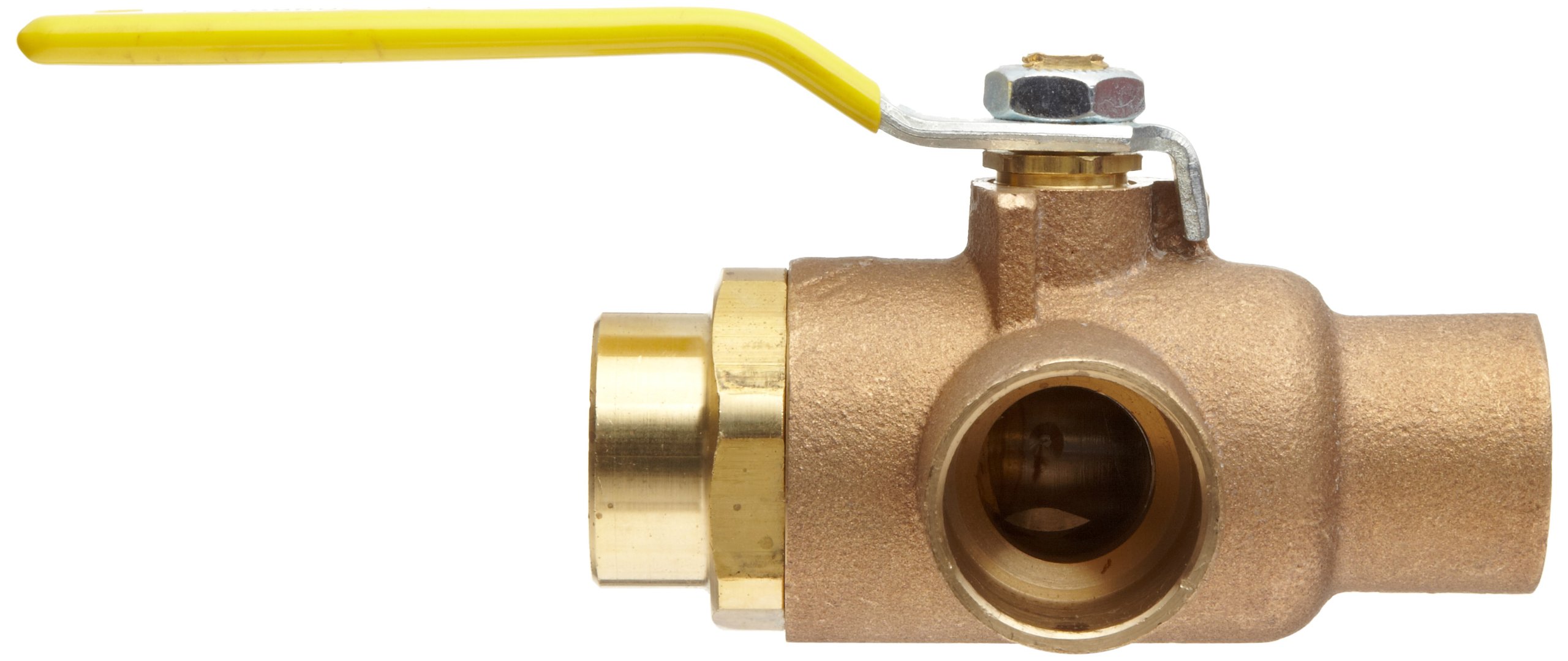

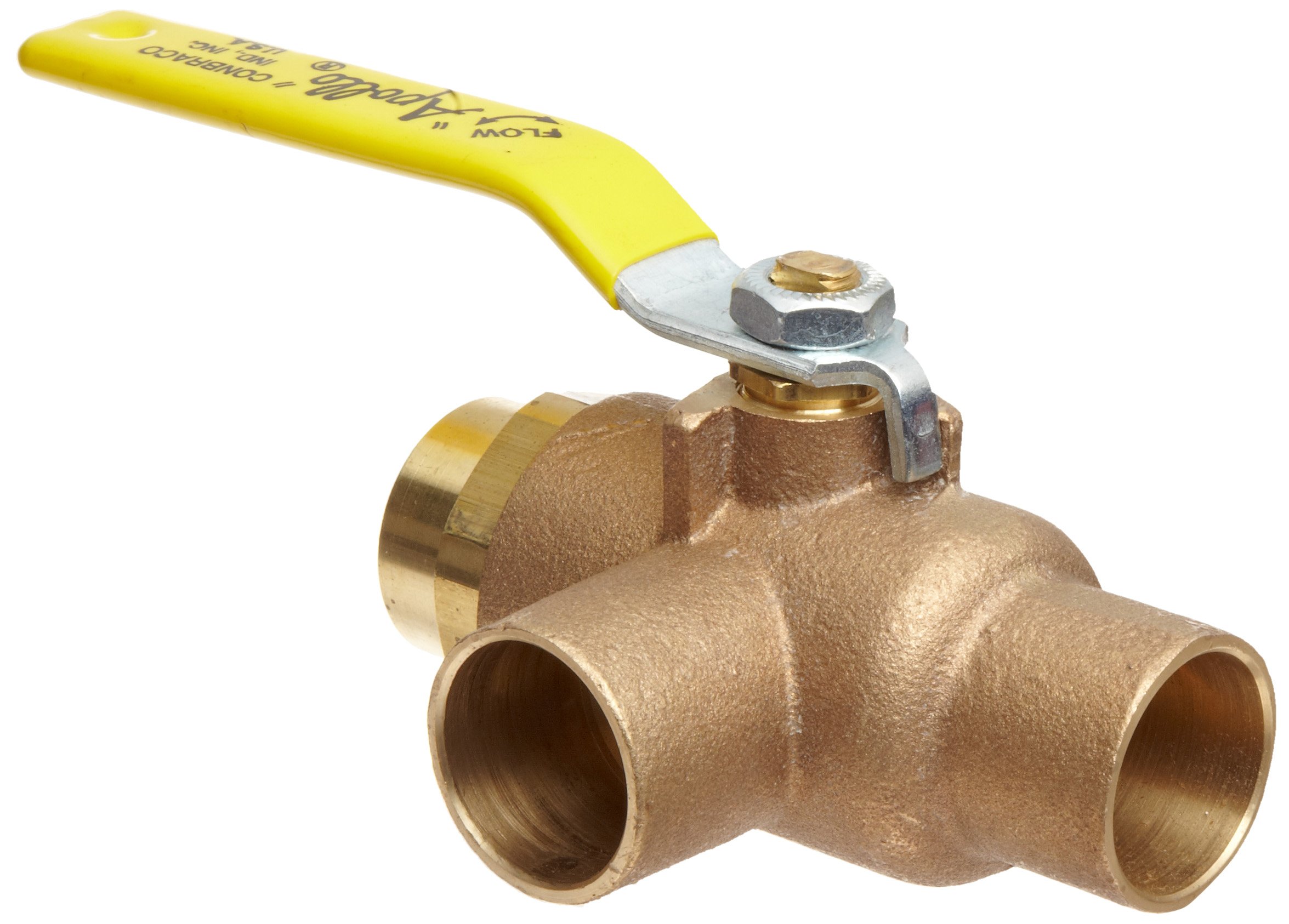

The Apollo 70-900 series bronze two-piece inline 3-port diverting ball valve has a lever handle and solder ends on all ends. The valve body is made of bronze for higher strength and corrosion resistance than brass. This valve has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. Reinforced polytetrafluoroethylene (RPTFE) seats and stem packing reduce the risk of leakage. The valve is standard (or regular) port for reduced valve size and cost. It has solder ends for a strong and durable heat-joined bond using solder and a torch. The maximum pressure rating is 600 pounds per square inch (gauge) (psig) for cold working pressure (CWP), and the maximum temperature is 500 degrees Fahrenheit. This valve meets Manufacturers Standardization Society (MSS) SP-110 and WW-V-35C Type II standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
