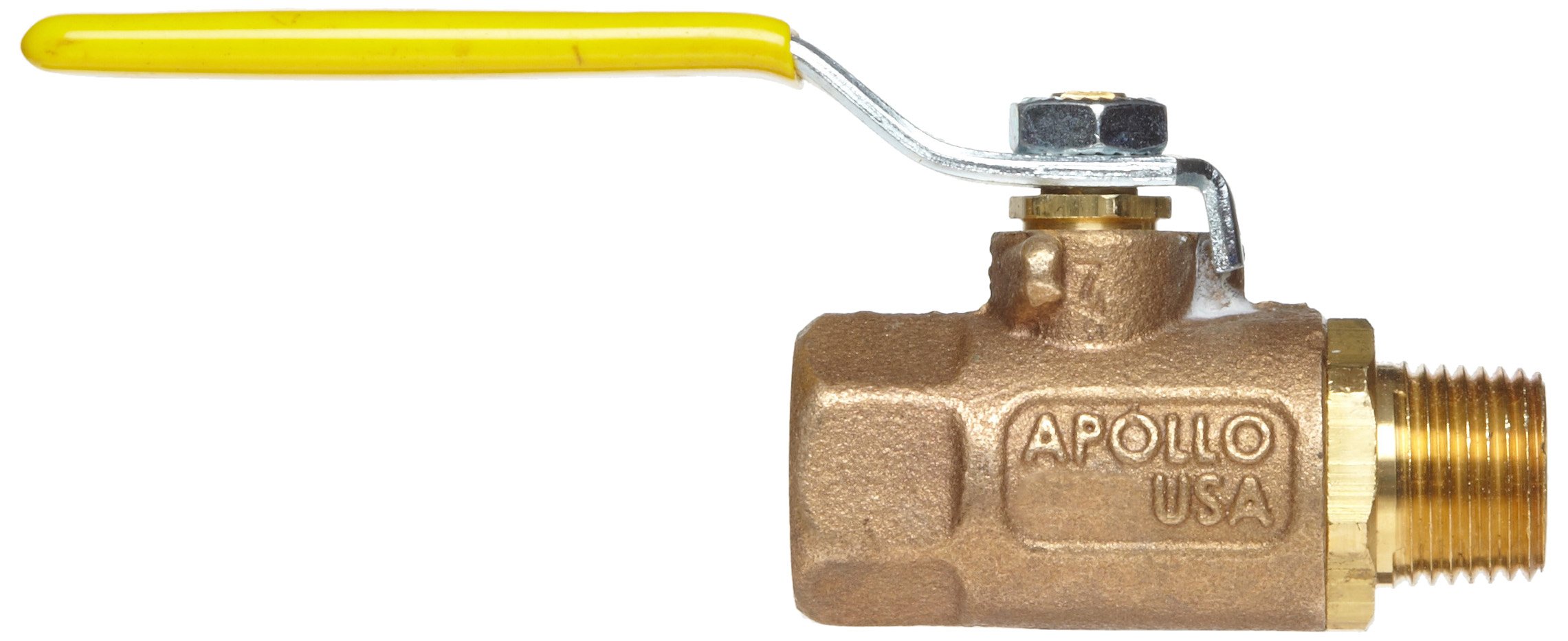

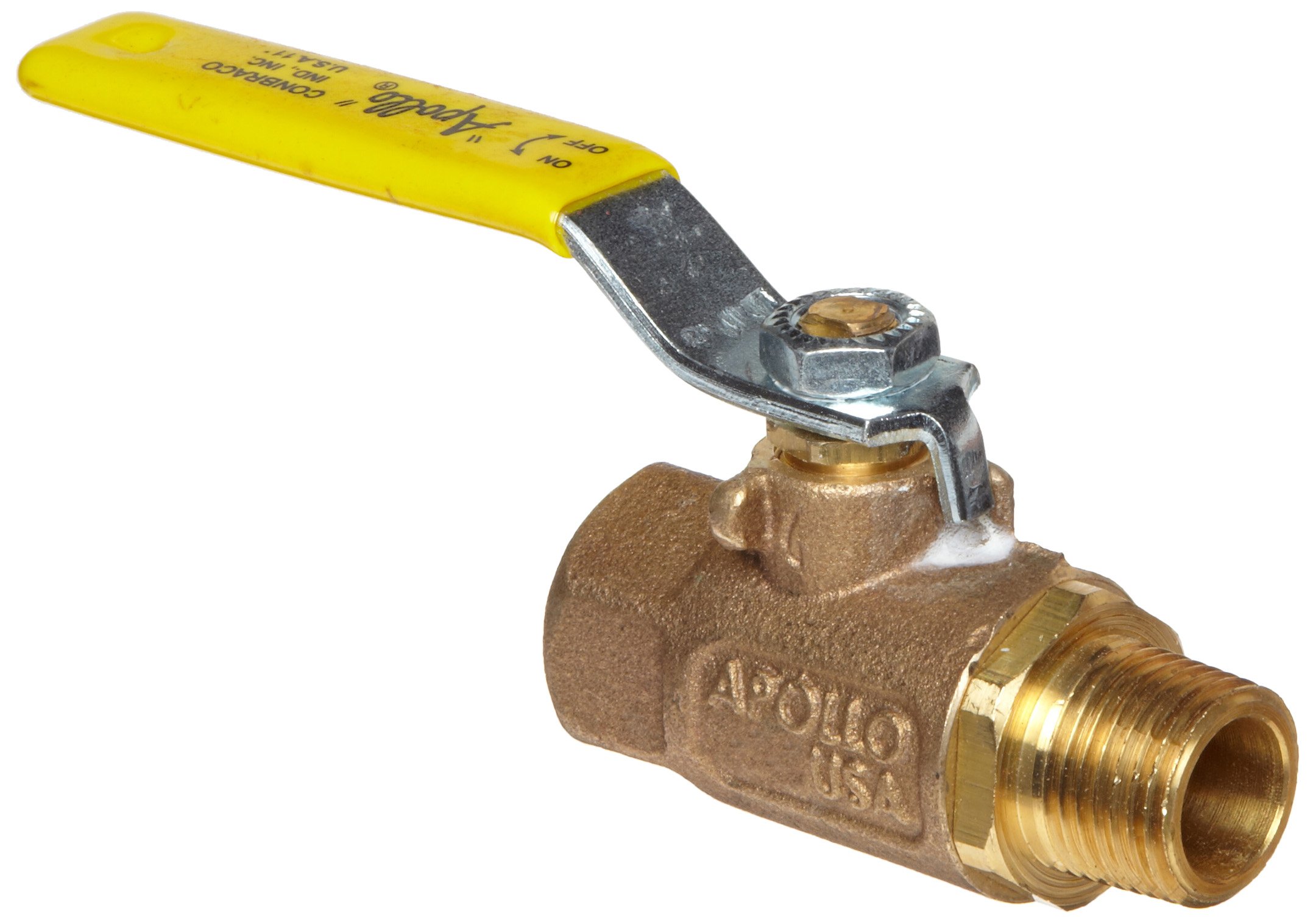

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 70-800 Series Bronze Ball Valve, Two Piece, Inline, Lever, NPT Male x NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Maximum Vacuum Pressure
29  in Hg
Item Shape
Seat Material Type
Material Type
Construction Type
Standard Port
Operation Mode
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Brand Name
Apollo Valve
Manufacturer Series Number
Ball Material Type
Upper Temperature Range
425  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Maximum Pressure
600  PSI
Connector Type
NPT Male x NPT Female
Style Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 1 hr 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-7 of 7
2.43 inches 1 70-801-01 B001C29HKE yes $18.96 Buy Options
2.50 inches 1 70-802-01 B001C27616 yes $13.28 Buy Options
2.81 inches 1 70-803-01 B001C254JW yes $13.28 Buy Options
3.50 inches 1 70-804-01 B001C1WA0O yes $21.93 Buy Options
4.00 inches 1 70-805-01 B001C22FDU yes $43.17 Buy Options
4.31 inches 1 70-806-01 B001C2576W yes $69.17 Buy Options
5.18 inches 1 70-807-01 B001C29ERK yes $84.57 Buy Options

Key Features

  • Bronze for higher strength and corrosion resistance than brass
  • Lever handle with vinyl sleeve for manual on/off control
  • Standard port for reduced valve size and cost
  • Maximum pressure rating of 600 psig for CWP and 150 psig for saturated steam; maximum vacuum pressure of 29 in Hg; maximum temperature of 425 degrees Fahrenheit
  • NPT threads for a tight seal connection

Product Description

The Apollo 70-800 series bronze two-piece inline ball valve has a lever handle and National Pipe Taper (NPT) male threads on one end and NPT female threads on the other. The valve body is made of bronze for higher strength and corrosion resistance than brass. This valve has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. Reinforced polytetrafluoroethylene (RPTFE) seats and stem packing reduce the risk of leakage. The valve is standard (or regular) port for reduced valve size and cost. The NPT threads create a tighter seal than straight threads. The maximum pressure rating is 600 pounds per square inch (gauge) (psig) for cold working pressure (CWP), 150 psig for saturated steam, and the maximum vacuum pressure is 29 in Hg. The maximum working temperature is 425 degrees Fahrenheit. This valve meets Manufacturers Standardization Society (MSS) SP-110 and WW-V-35C standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
