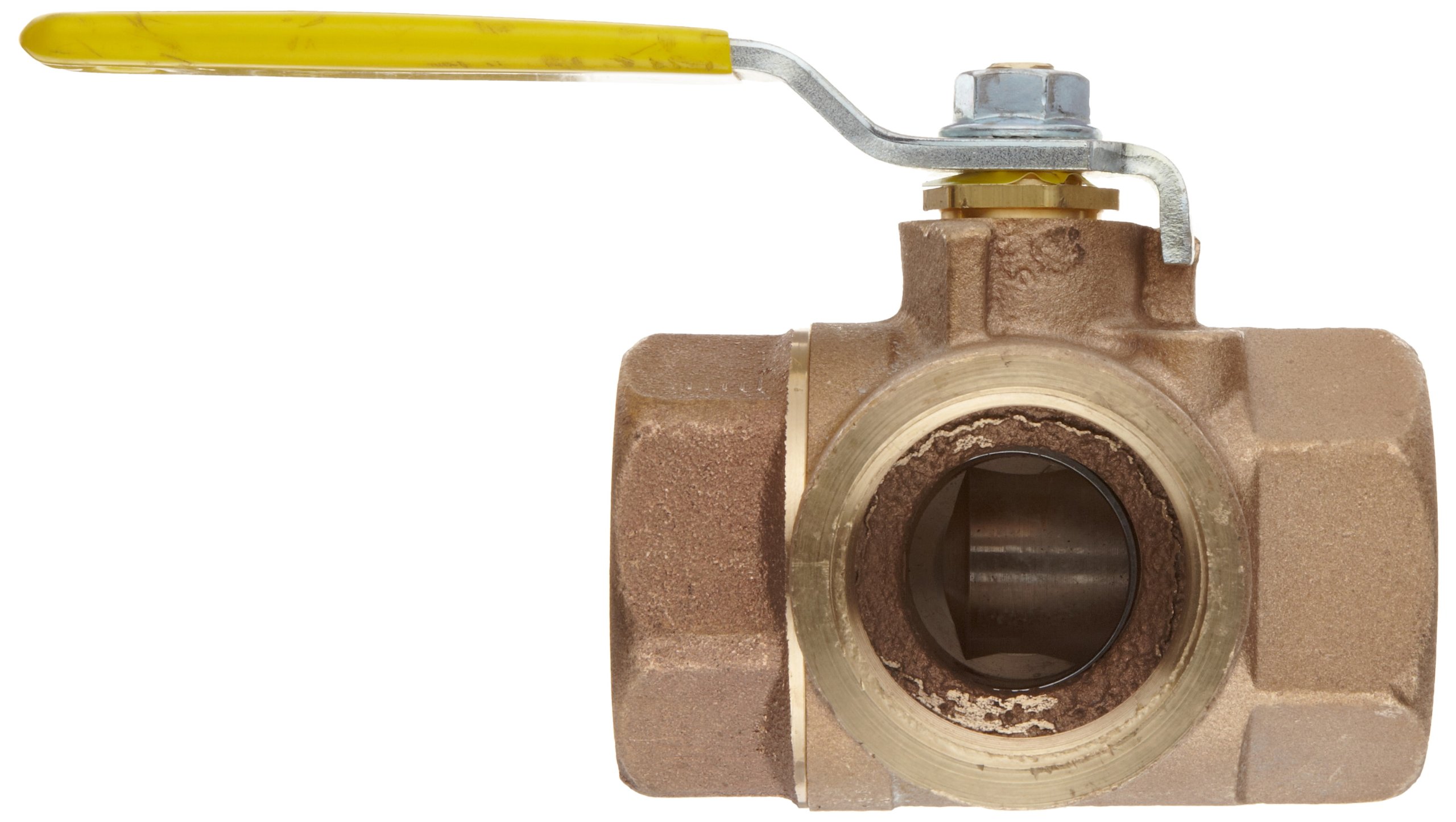

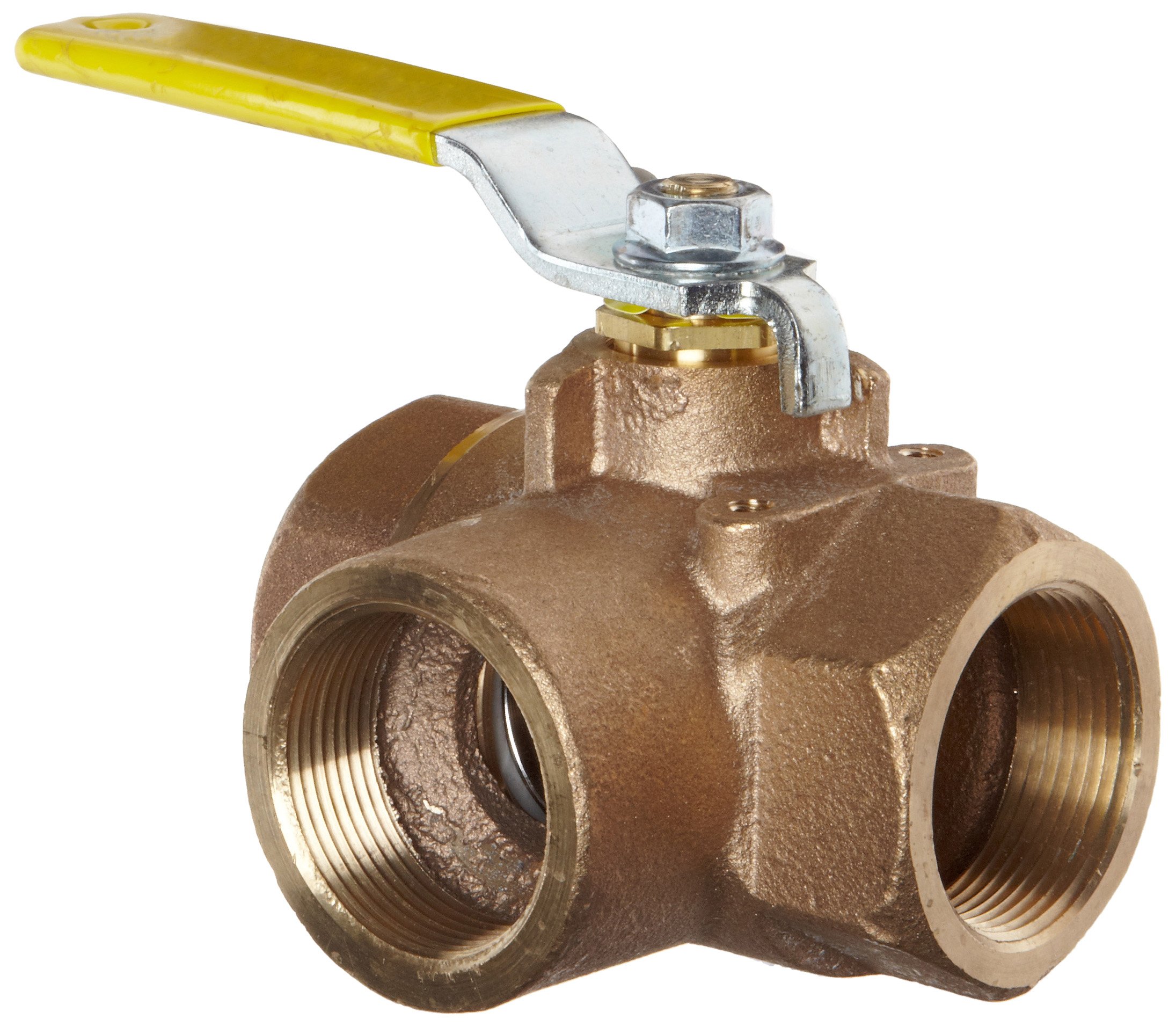

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Apollo 70-600 Series Bronze Ball Valve, Two Piece, 3-Port Diverting, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
RPTFE
Item Shape
3-Port Diverting
Seat Material Type
RPTFE
Material Type
Bronze
Construction Type
Standard Port
Operation Mode
Manual
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Manufacturer Series Number
70-600
Ball Material Type
Brass
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Maximum Pressure
400  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 11 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
2.25 inches 1 70-601-01 B0062RY3EE yes $18.69 Buy Options
2.25 inches 1 70-602-01 B0062RY54C yes $18.69 Buy Options
2.25 inches 1 70-603-01 B000R8EZSS yes $19.83 Buy Options
2.97 inches 1 70-604-01 B0062RY74U yes $27.38 Buy Options
3.20 inches 1 70-605-01 B0062RY8T4 yes $34.16 Buy Options
3.98 inches 1 70-606-01 B0062RYA06 yes $54.01 Buy Options
4.38 inches 1 70-607-01 B000R8B5F4 yes $63.06 Buy Options
4.66 inches 1 70-608-01 B0062RYBL4 yes $105.95 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Zinc-plated steel lever handle with vinyl sleeve for manual control
  • Three-port diverting valve to regulate flow among three sections of pipe
  • Pounds per square inch (gauge) (psig) rating of 400 for water, oil, and gas (WOG)
  • Female National Pipe Taper (NPT) threads on both ends for use with male threaded pipes

Product Description

The Apollo 70-600 series two-piece three-port diverting ball valve is made of bronze and has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of bronze for higher strength and corrosion resistance than brass and has a zinc-plated steel lever handle with a vinyl sleeve for manual control. This ball valve is three-port diverting to regulate flow among three sections of pipe. Its maximum pressure is 400 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG). It has NPT threads on both ends for creating tighter seals than straight threads. Reinforced polytetrafluoroethylene (RPTFE) seats and a PTFE seal reduce the risk of valve leakage. This ball valve is standard (or regular) port for reduced valve size and cost and has a working temperature range of -20 to 450 degrees Fahrenheit. This valve is for use in water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
