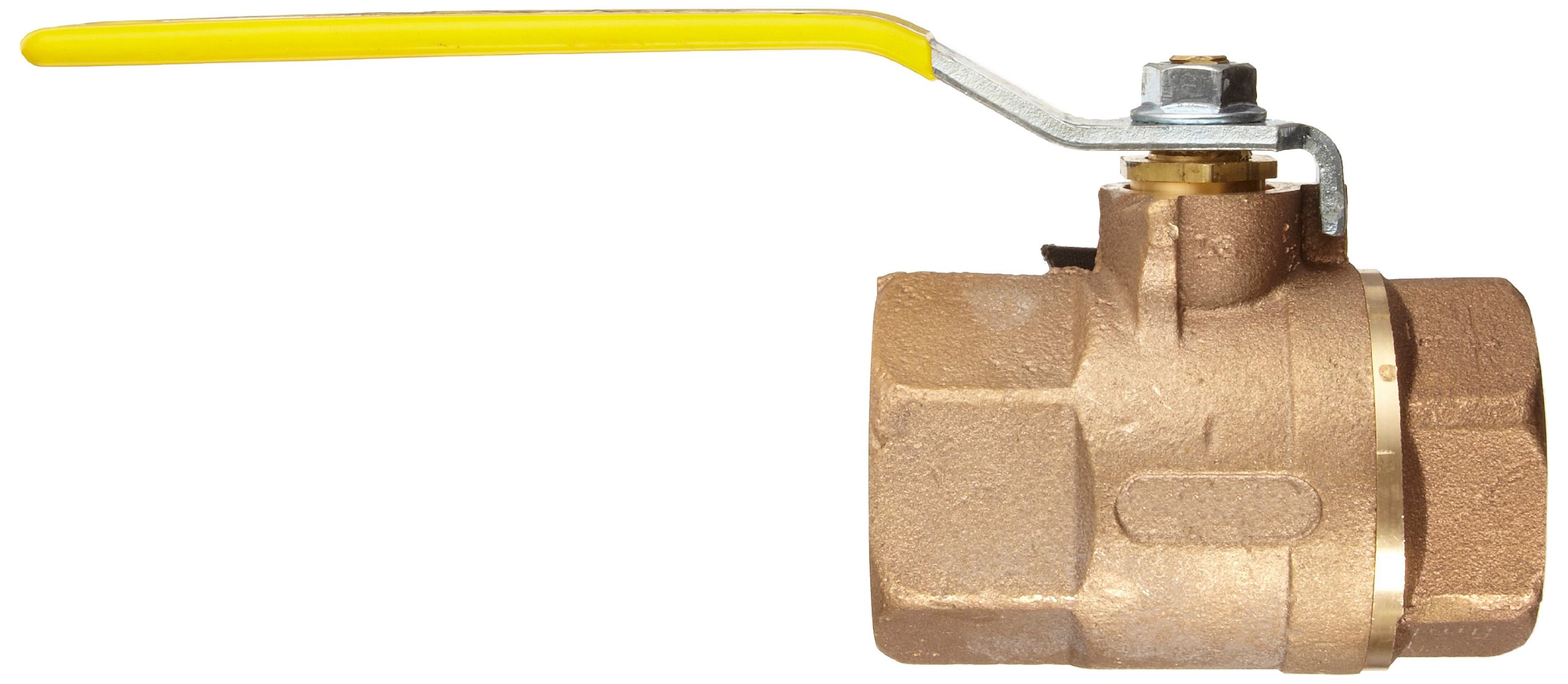

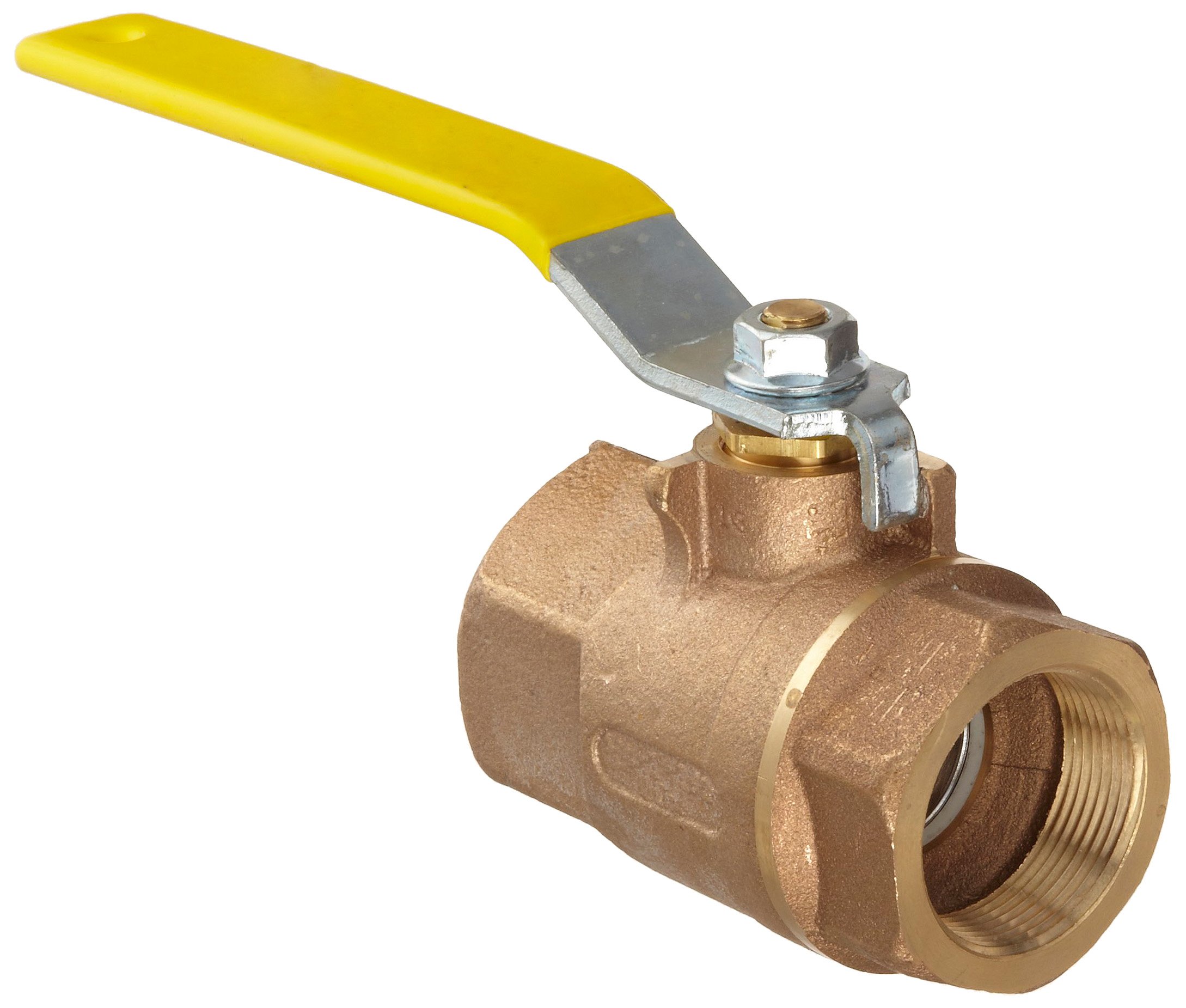

Apollo 70-100 Series Bronze Ball Valve, Two Piece, Inline, Lever, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
RPTFE
Item Shape
Inline
Seat Material Type
RPTFE
Material Type
Bronze
Construction Type
Standard Port
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Two Piece
Handle Type
Lever
Brand Name
Apollo Valve
Maximum Temperature
500  Degrees Fahrenheit
Manufacturer Series Number
70-100
Ball Material Type
Brass
Upper Temperature Range
500  Degrees Fahrenheit
Specification Met
MSS SP-110 , WW-V-35C
Maximum Pressure
600  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 16? Order in-stock items in the next 13 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-11 of 11
2.06 inches 1 7010101 B001C22M8I yes $7.42 Buy Options
2.06 inches 1 7010201 B001C22MBA yes $10.11 Buy Options
2.25 inches 1 7010301 B000KKS9IK yes $10.11 Buy Options
3.00 inches 1 7010401 B000KKQ90U yes $14.92 Buy Options
3.37 inches 1 7010501 B000KKS9JY yes $20.83 Buy Options
4.00 inches 1 7010601 B001C239XA yes $35.37 Buy Options
4.37 inches 1 7010701 B004KS9KDQ yes $35.90 Buy Options
4.68 inches 1 7010801 B001C23Q5Q yes $59.95 Buy Options
6.25 inches 1 7010901A B001C23D4K yes $299.18 Buy Options
6.75 inches 1 7010001 B001C235P2 yes $317.95 Buy Options
7.37 inches 1 7010A01 B001C23DDG yes $447.45 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Zinc-plated steel lever handle with vinyl sleeve for manual on/off control
  • Pounds per square inch (gauge) (psig) rating of 600 for water, oil, and gas (WOG) and 150 for saturated steam
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes
  • Polytetrafluoroethylene (PTFE) reinforced seats and seals reduce the risk of valve leakage

Product Description

The Apollo 70-100 series two-piece inline ball valve is made of bronze and has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of bronze for higher strength and corrosion resistance than brass and has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. The maximum pressure is 600 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) and 150 for saturated steam. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Polytetrafluoroethylene (PTFE) reinforced seats and seals reduce the risk of valve leakage. This ball valve is standard (or reduced or regular) port for reduced valve size and cost and has a working temperature range of 0 - 500 degrees Fahrenheit. This valve is for use in water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Conbraco Industries, Inc. manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices under the Apollo Valves brand. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard ISO/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
