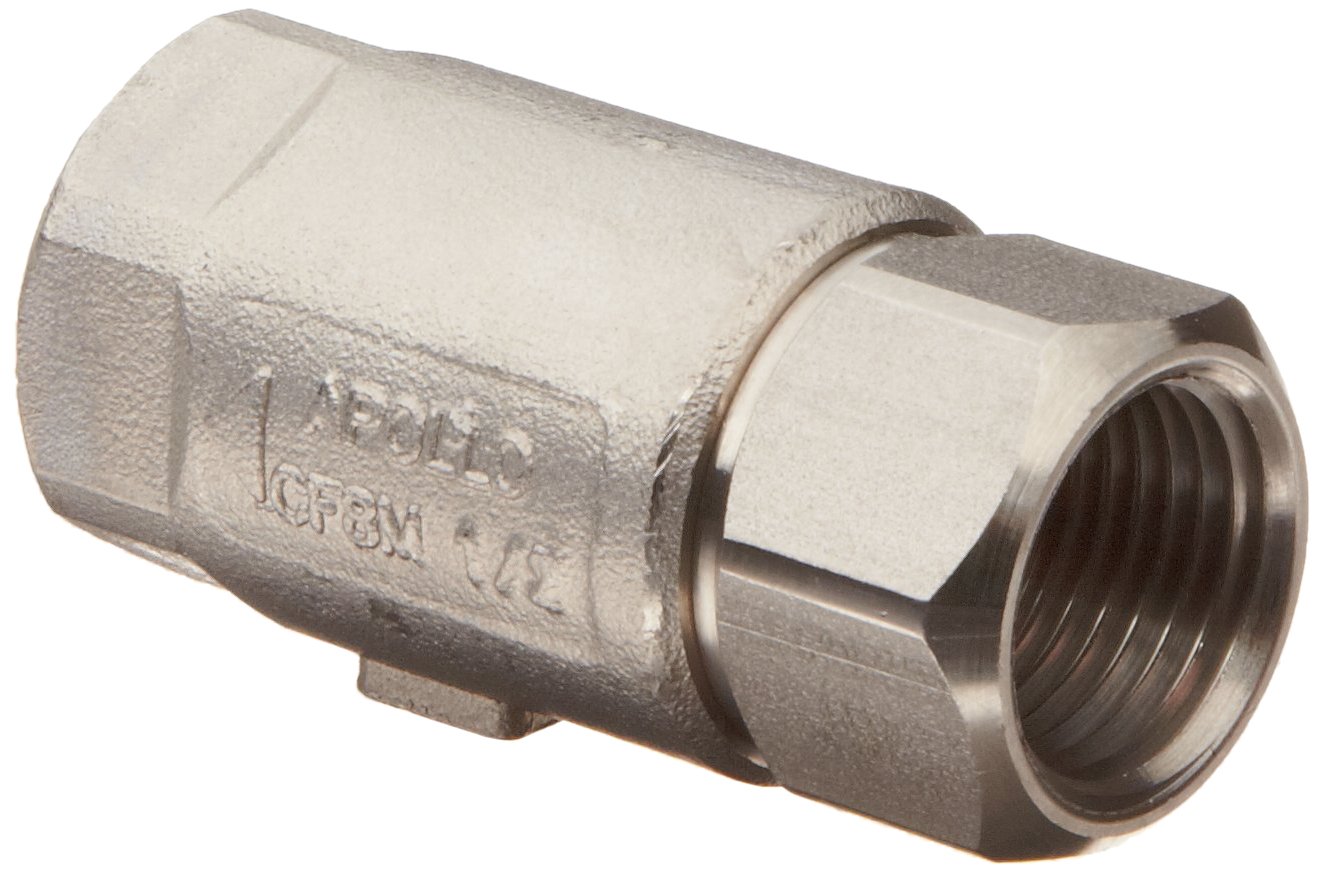

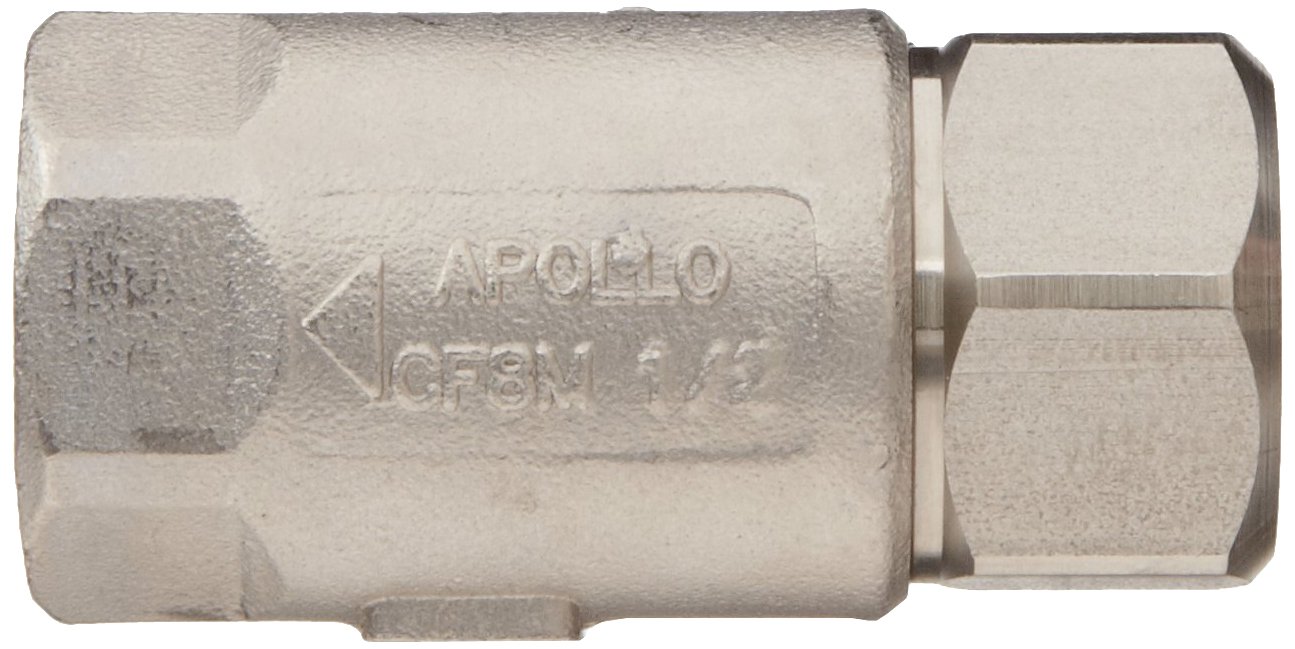

Apollo 62-100 Series Stainless Steel Check Valve, Ball Cone, NPT Female

Be the first to review this item

Product Specifications
Maximum Temperature
350  Degrees Fahrenheit
Manufacturer Series Number
62-100
Item Shape
Inline
Material Type
Stainless Steel
Style Name
Threaded
UNSPSC Code
40141600
Maximum Working Pressure
400  PSI
Brand Name
Apollo Valve
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 28? Order in-stock items in the next 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connector type Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
NPT Female 2.06 inches 6210101 B005LSLDCK Usually ships in 2 to 3 weeks $39.90 Buy Options
NPT Female 2.12 inches 6210201 B005LSLEP6 yes $45.48 Buy Options
NPT Female 2.31 inches 6210301 B000R86Q12 yes $57.69 Buy Options
NPT Female 2.87 inches 6210401 B005LSLFSW yes $82.26 Buy Options
NPT Female 3.5 inches 6210501 B000R84RZO yes $116.46 Buy Options
NPT Female 4.18 inches 6210601 B001C23TU8 yes $156.90 Buy Options
NPT Female 4.93 inches 6210701 B001C1YAHA yes $218.22 Buy Options
NPT Female 6 inches 6210801 B001C22FZ8 yes $352.98 Buy Options

Key Features

  • Ball cone check valve restricts flow control to one direction, blocking reverse flow
  • Valve body made of ASTM A-351 cast stainless steel for longer life in severe environments
  • 400 pounds per square inch (gauge) (psig) rating for cold working pressure (CWP) and 125 for steam working pressure (SWP)
  • Cracking pressure of 0.5 psi
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

The Apollo 62-100 series stainless steel ball cone check valve with female National Pipe Taper (NPT) threads on both ends is a class 125 valve used for restricting flow to one direction. It has a spring-loaded ball check cone made of reinforced polytetrafluoroethylene (RPTFE) for fast seating action that is center-guided so that radial alignment is not needed, and it sits against the seat of the valve to block reverse flow. The straight-through flow minimizes velocity change. This check valve's body is made of American Society of Testing and Materials (ASTM) A-351 cast stainless steel for longer life in corrosive environments. This valve has maximum pressure ratings of 400 pounds per square inch (gauge) (psig) for cold working pressure (CWP)and 125 psig for steam working pressure (SWP), and a cracking pressure of 0.5 psi. It has female NPT threads on both ends for connecting to male threaded pipes with tighter seals than straight threads. This class 125 check valve is suited for applications in corrosive environments, including chemical processing, pulp, paper, and other process industries, and meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
