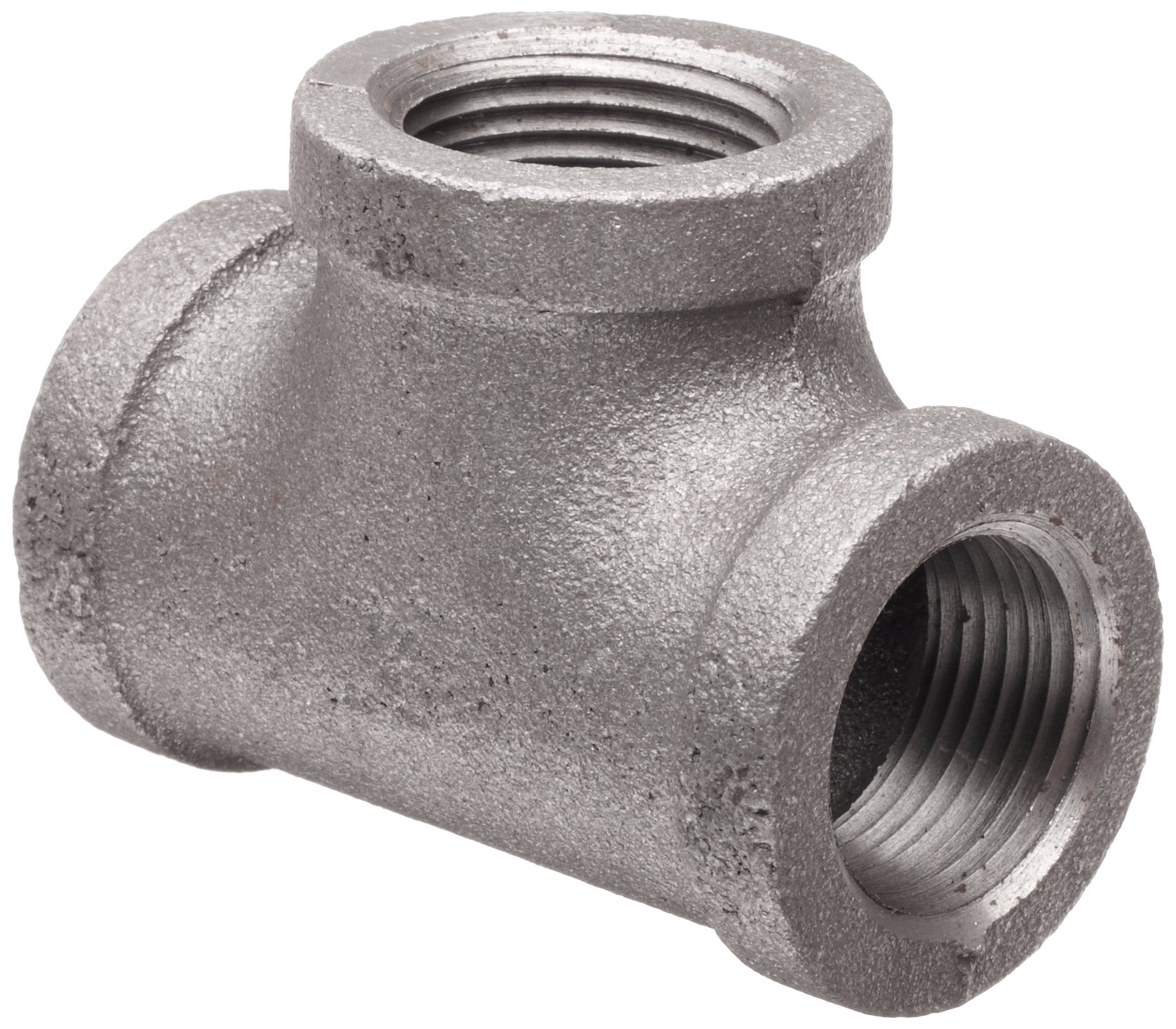

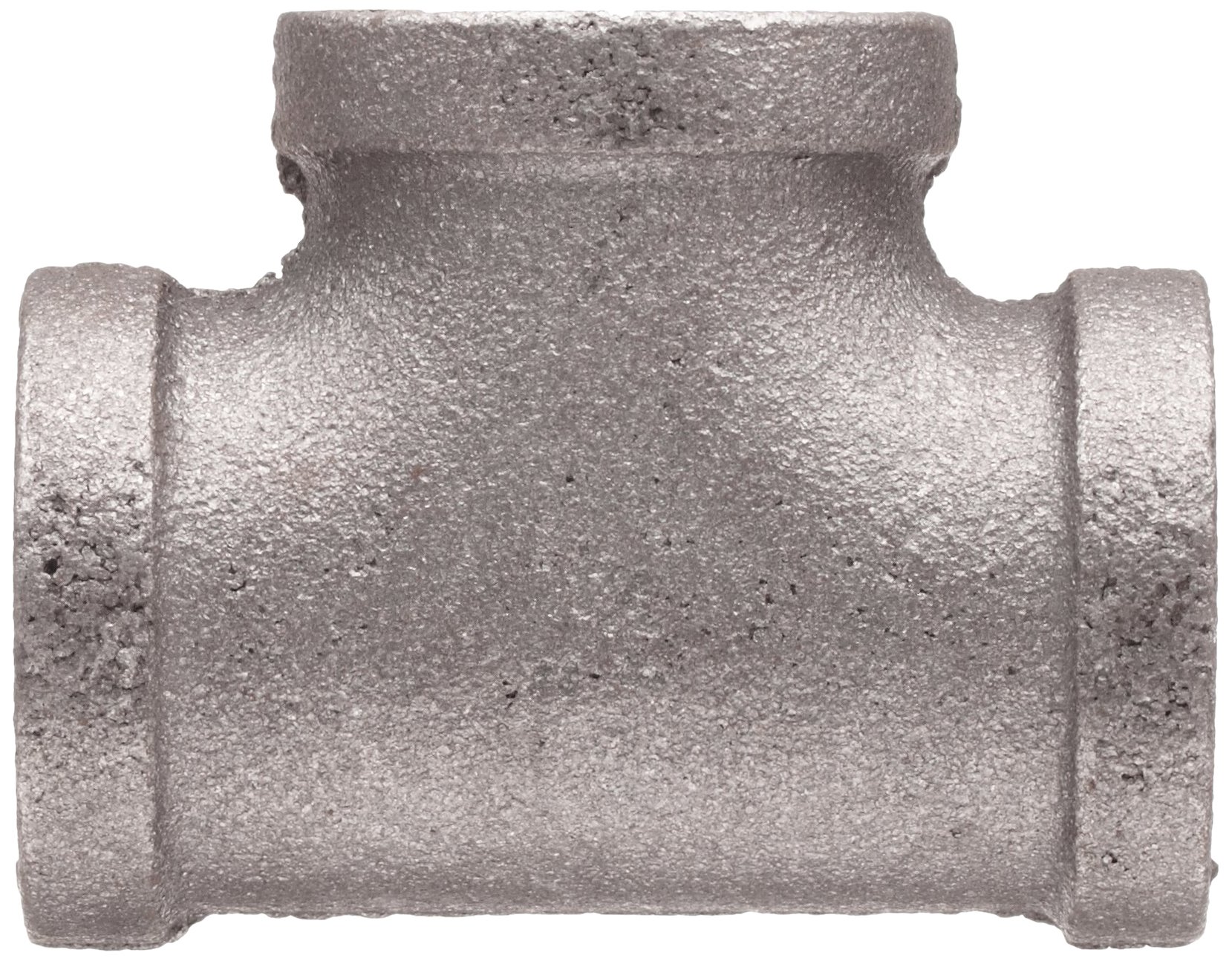

Anvil Malleable Iron Pipe Fitting, Class 150, Tee, NPT Female, Black Finish

Be the first to review this item

Product Specifications
Item Shape
Tee
Material Type
Iron
Pressure Rating Class
150
Color Name
Black
Style Name
Threaded
Brand Name
Anvil International
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 16 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-12 of 12
1/8" 1-3/8" 1 B0058DGAOY 13 $7.63 Buy Options
1/4" 1-39/64" 1 B0058DGC4W 3 $4.51 Buy Options
3/8" 1-57/64" 1 B0058DGCT2 1 $4.88 Buy Options
1/2" 2-15/64" 1 B0058DGD7S 66 $5.80 Buy Options
3/4" 2-39/64" 1 B0058DGECW 28 $5.31 Buy Options
1" 3" 1 B0058DGEWM 31 $8.39 Buy Options
1-1/4" 3-1/2" 1 B0058DGFSA 7 $9.71 Buy Options
1-1/2" 3-7/8" 1 B0058DGGJ8 1 $10.23 Buy Options
2" 4-1/2" 1 B0058DGGP2 5 $13.87 Buy Options
2-1/2" 5-25/64" 1 B0058DGHE2 2 $25.14 Buy Options
3" 6-5/32" 1 B0058DGHVU 2 $42.69 Buy Options
4" 7-37/64" 1 B0058DGIAU 3 $95.77 Buy Options

Key Features

  • Tee to connect and branch three pieces of pipe
  • Female National Pipe Taper (NPT) threads on all three ends for connecting to male pipes
  • Made from malleable iron for tensile strength
  • National Pipe Taper (NPT) threads for creating tighter seals than straight threads
  • Black finish resists rust in oil and gas applications

Product Description

The Anvil tee is a class 150 malleable iron pipe fitting with female National Pipe Taper (NPT) threads on all three ends for connecting and branching three pieces of pipe. This tee has NPT threads on all three ends for creating tighter seals than straight threads. It is made of malleable iron, which has high tensile strength, and has a black finish that resists rust in oil and gas applications. This class 150 fitting meets standards ASTM A-197, ASME B 1.20.1, and ASME B 16.3 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anvil International provides pipe products and design services. The company, founded in 1850 and headquartered in Portsmouth, NH, meets International Organization for Standardization (ISO) 9001:2000 standards and is certified by the American Petroleum Institute (API). Its fittings meet American Society for Testing and Materials (ASTM) and American Society of Mechanical Engineers (ASME) specifications.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
