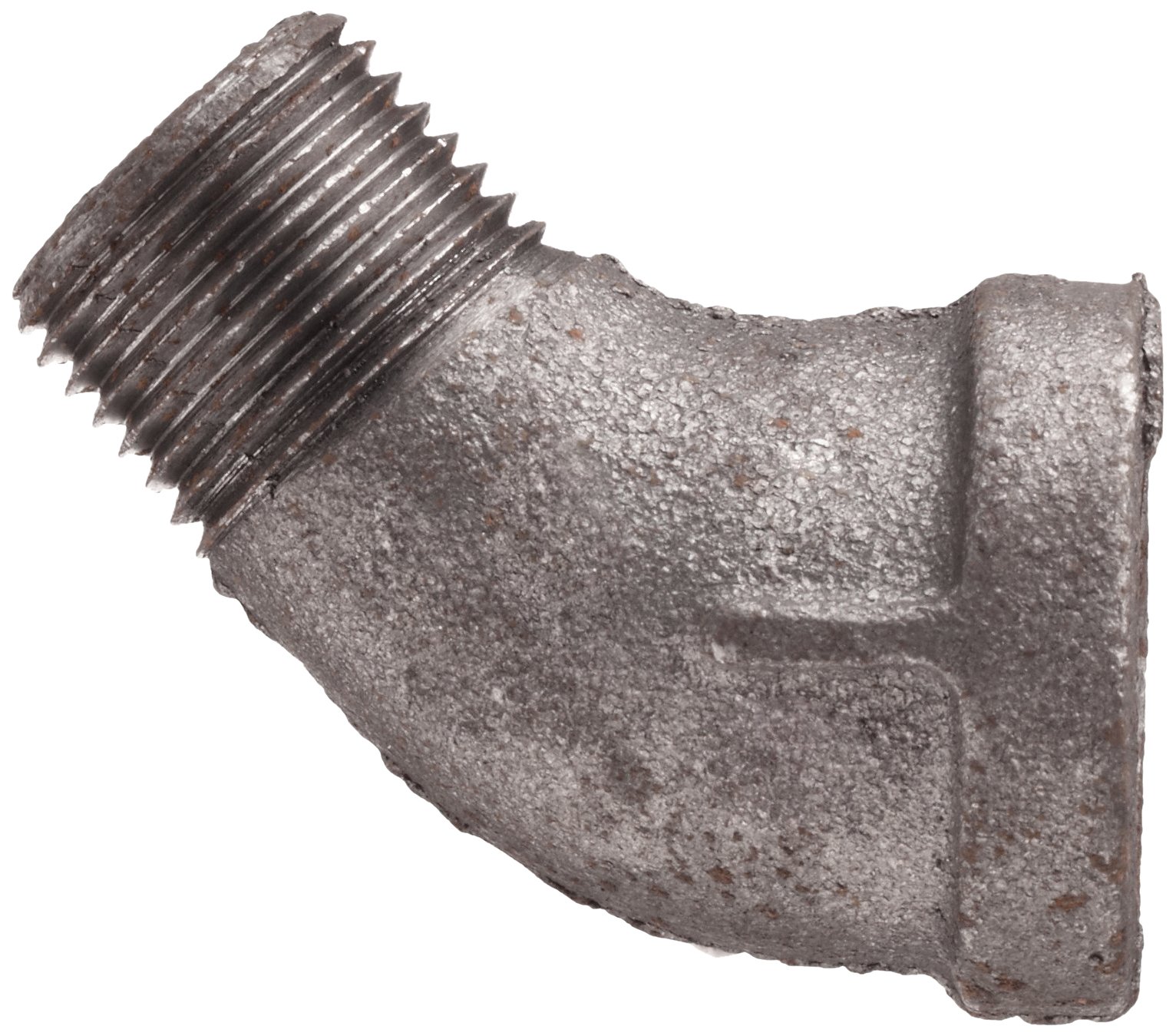

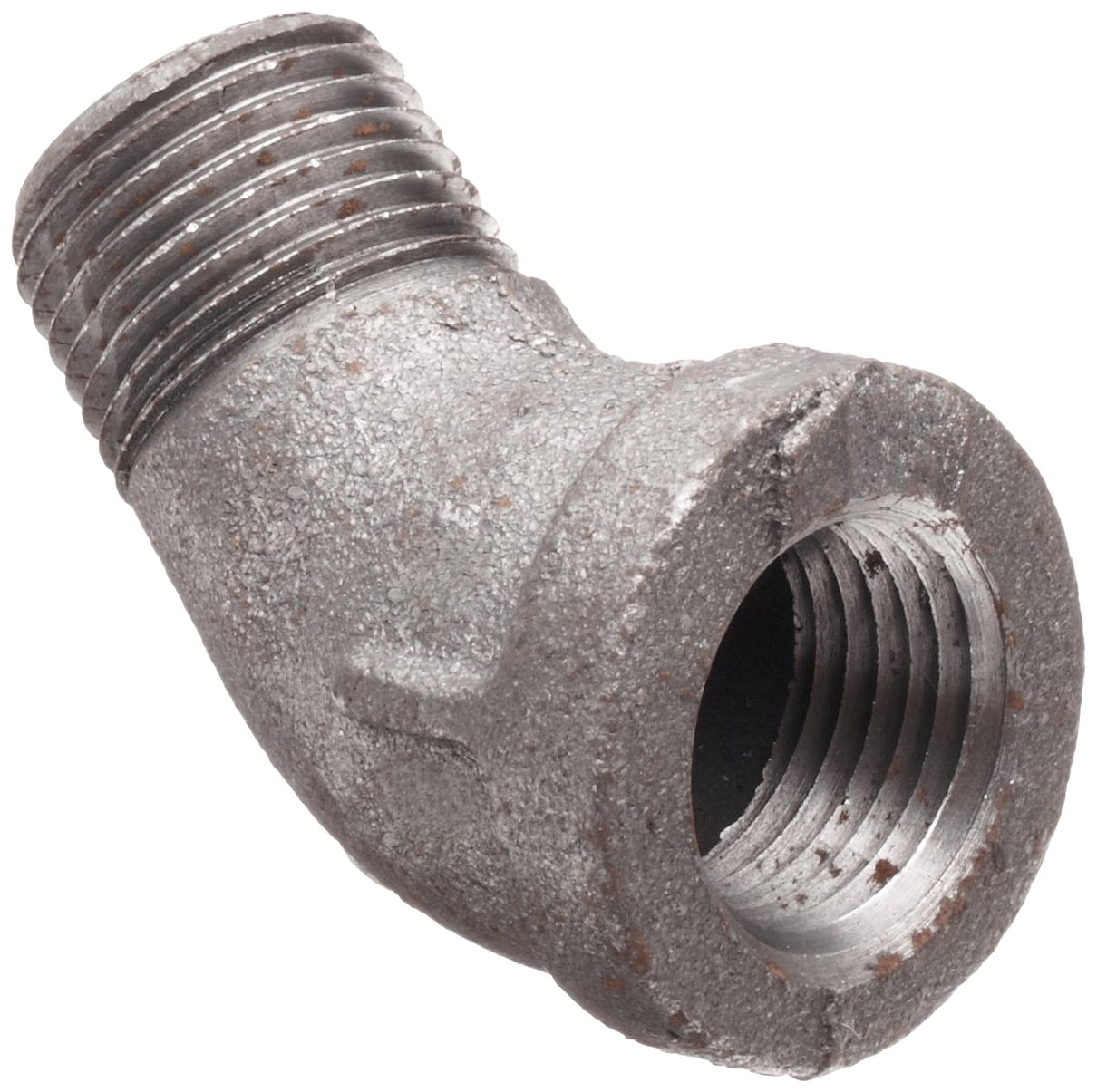

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Anvil Malleable Iron Pipe Fitting, Class 150, 45 Degree Street Elbow, NPT Male x NPT Female, Black Finish

Be the first to review this item

Product Specifications
Item Shape
45 Degree Elbow
Color Name
Black
Pressure Rating Class
150
Material Type
Iron
UNSPSC Code
40170000
Style Name
Threaded
Brand Name
Anvil International
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 13 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-9 of 9
1/8" 1-19/32" 1 B0058DHQBU yes $6.16 Buy Options
1/4" 1-11/16" 1 B0058DHQE2 yes $7.71 Buy Options
3/8" 1-53/64" 1 B0058DHQII yes $6.32 Buy Options
1/2" 2-1/64" 1 B0058DHQKQ yes $5.06 Buy Options
3/4" 2-17/64" 1 B0058DHQOM yes $8.38 Buy Options
1" 2-37/64" 1 B0058DHQRO yes $7.59 Buy Options
1-1/4" 3" 1 B0058DHQVU yes $10.87 Buy Options
1-1/2" 3-19/64" 1 B0058DHR32 yes $12.28 Buy Options
2" 3-57/64" 1 B0058DHR8W yes $19.14 Buy Options

Key Features

  • 45-degree elbow for changing flow direction
  • Male National Pipe Taper (NPT) threads on one end and female NPT threads on the other for connecting different types of pipes
  • Made from malleable iron for tensile strength
  • National Pipe Taper (NPT) threads for creating tighter seals than straight threads
  • Black finish resists rust in oil and gas applications

Product Description

The Anvil 45-degree street elbow is a class 150 malleable iron pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end to connect and change the flow direction between two pipes. The elbow has NPT threads for creating tighter seals than straight threads. It is made of malleable iron, which has high tensile strength, with a black finish that resists rust in oil and gas applications. This class 150 fitting meets standards ASTM A-197, ASME B 1.20.1, and ASME B 16.3 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anvil International provides pipe products and design services. The company, founded in 1850 and headquartered in Portsmouth, NH, meets International Organization for Standardization (ISO) 9001:2000 standards and is certified by the American Petroleum Institute (API). Its fittings meet American Society for Testing and Materials (ASTM) and American Society of Mechanical Engineers (ASME) specifications.
