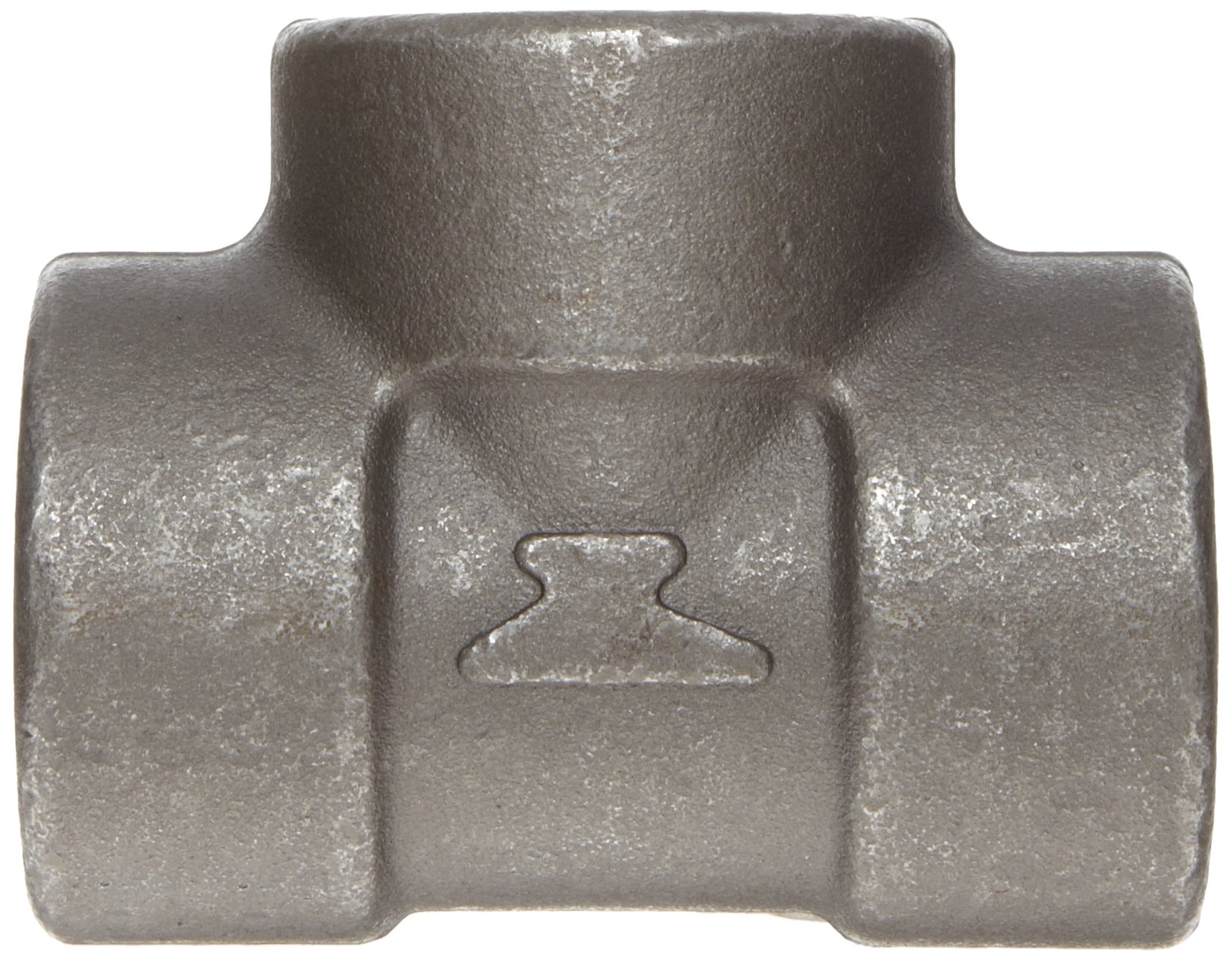

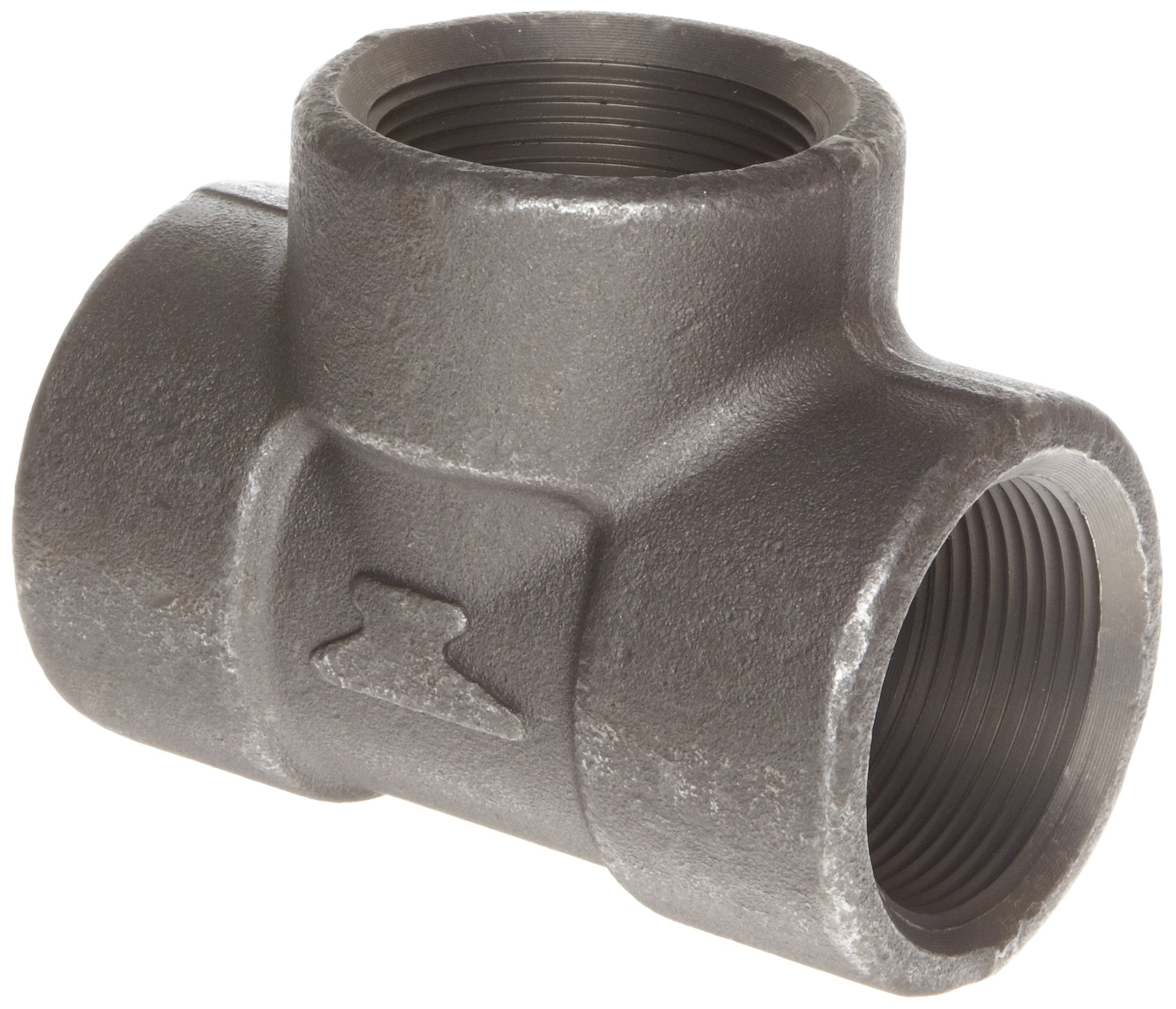

Anvil 2103 Forged Steel Pipe Fitting, Class 2000, Tee, NPT Female

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Tee
Material Type
Steel
Pressure Rating Class
2000
Part Number
ANVIL10024
Brand Name
Anvil International
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
300  PSI
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 6 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Pipe Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-11 of 11
1/4" B006N2LJDQ 14 $6.49 Buy Options
3/8" B006N2LKMG 25 $7.38 Buy Options
1/2" B006N2LLOI 1 $6.40 Buy Options
3/4" B006N2LN0U 21 $8.46 Buy Options
1" B006N2LOBI 12 $11.89 Buy Options
1-1/4" B006N2LPKI 9 $17.31 Buy Options
1-1/2" B006N2LQQ6 5 $23.69 Buy Options
2" B006N2LS0K 4 $28.79 Buy Options
2-1/2" B006N2LSZA 1 $65.17 Buy Options
3" B006N2LUHG 1 $105.75 Buy Options
4" B006N2LVNE Usually ships in 1 to 2 months $219.45 Buy Options

Key Features

  • Tee with three openings for connecting and branching three pipes
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • Forged steel for weldability, rust resistance, and durability
  • Class 2000 fitting for use in moderate-pressure applications
  • Meets specifications ASTM A105 and ASME/ANSI B16.11 for quality assurance

Product Description

The Anvil 2103 class 2000 tee pipe fitting is made of forged steel and has female National Pipe Taper (NPT) threaded connections. This tee fitting is T-shaped and has three openings to connect and branch three pipes, two on the main run and one branch at a 90-degree angle from the middle of the tee. Pipe dimensions for tees are represented as A x B x C. "A" and "B" indicate the main run on the fitting, and "C" indicates the branch. It has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. This fitting is made of steel for weldability and rust resistance and is forged to increase the material's strength and resistance to mechanical shock and vibration. This class 2000 fitting is suitable for use in piping systems under moderate pressure. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This fitting meets American Society for Testing and Materials (ASTM) A105 and American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.11 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anvil International provides pipe products and design services. The company, founded in 1850 and headquartered in Portsmouth, NH, meets International Organization for Standardization (ISO) 9001:2000 standards and is certified by the American Petroleum Institute (API). Its fittings meet American Society for Testing and Materials (ASTM) and American Society of Mechanical Engineers (ASME) specifications.
