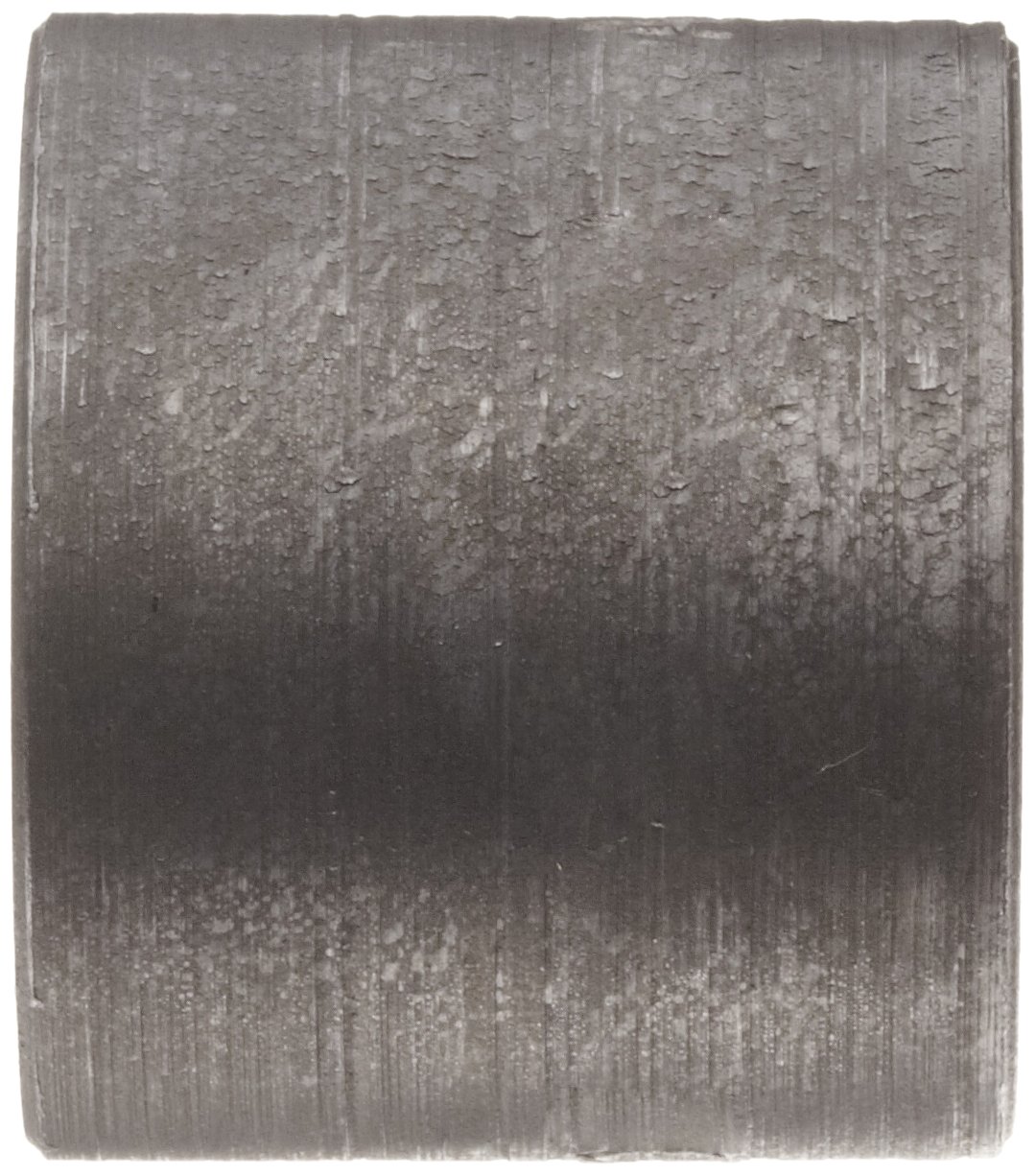

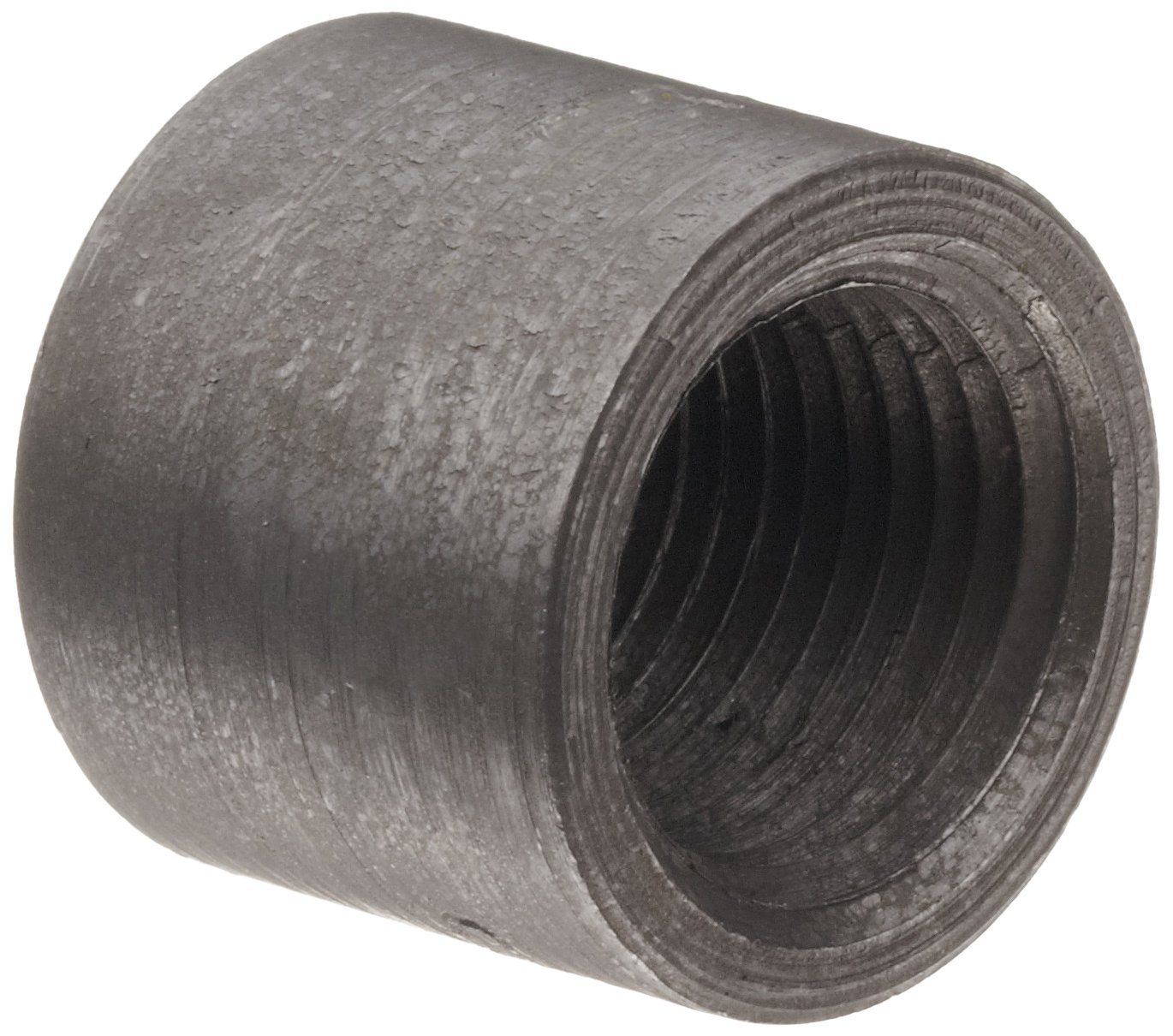

Anvil 2119 Forged Steel Pipe Fitting, Class 3000, Half Coupling, NPT Female

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Coupling
Material Type
Steel
Pressure Rating Class
3000
Part Number
ANVIL10121
Brand Name
Anvil International
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
300  PSI
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 20 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Pipe Size Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-11 of 11
1/8" 5/8" B006N2OVNG yes $3.61 Buy Options
1/4" 11/16" B006N2OWLC yes $3.14 Buy Options
3/8" 3/4" B006N2OXHU yes $1.66 Buy Options
1/2" 15/16" B006N2OYKQ yes $1.53 Buy Options
3/4" 1" B006N2P068 yes $2.68 Buy Options
1" 1-3/16" B006N2P14Y Temporarily out of stock. Order now and we'll deliver when available. $5.01 Buy Options
1-1/4" 1-5/16" B006N2P28E yes $5.48 Buy Options
1-1/2" 1-9/16" B006N2P338 yes $6.73 Buy Options
2-1/2" 1-13/16" B006N2P4S2 yes $20.08 Buy Options
3" 2-1/8" B006N2P5OK Temporarily out of stock. Order now and we'll deliver when available. $41.25 Buy Options
4" 2-3/8" B006N2P6Q2 yes $55.63 Buy Options

Key Features

  • Half coupling for connecting a threaded and unthreaded pipe with the same diameter
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • Forged steel for weldability, rust resistance, and durability
  • Class 3000 fitting for use in high-pressure applications
  • Meets specifications ASTM A105 and ASME/ANSI B16.11 for quality assurance

Product Description

The Anvil 2119 class 3000 half coupling pipe fitting is made of forged steel and has female National Pipe Taper (NPT) threaded connections. This half coupling fitting connects a threaded and an unthreaded pipe going in the same direction with the same diameter. It has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. This fitting is made of steel for weldability and rust resistance and is forged to increase the material's strength and resistance to mechanical shock and vibration. This class 3000 fitting has thick walls for resisting cracks and leaks in piping systems under high pressure. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This fitting meets American Society for Testing and Materials (ASTM) A105 and American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.11 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anvil International provides pipe products and design services. The company, founded in 1850 and headquartered in Portsmouth, NH, meets International Organization for Standardization (ISO) 9001:2000 standards and is certified by the American Petroleum Institute (API). Its fittings meet American Society for Testing and Materials (ASTM) and American Society of Mechanical Engineers (ASME) specifications.
