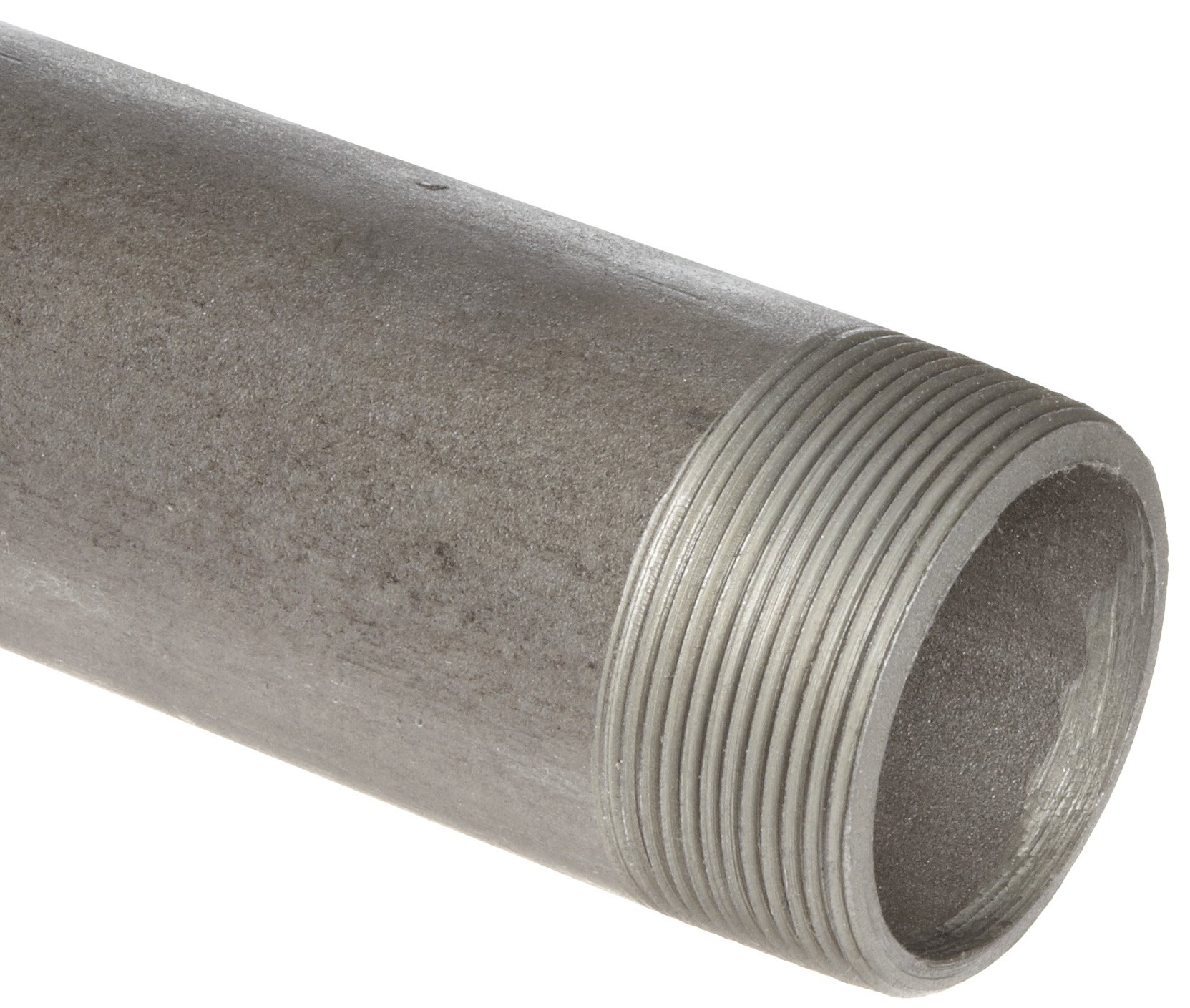

Anvil 325 Steel Pipe Fitting, Schedule 80, Seamless Nipple, NPT Male, Extra Heavy, Black Finish

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Nipple
Material Type
Steel
Pressure Rating Class
Not Rated
Part Number
ANVIL10508
Brand Name
Anvil International
Schedule
80
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
300  PSI
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 22 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 162 Next 20 »
Pipe Size Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 162 Next 20 »
1/8" 6" B006N2VZI0 yes $8.83 Buy Options
1/8" 10" B006N2VZYY yes $11.47 Buy Options
1/8" 8" B006N2VZQC yes $10.09 Buy Options
1/8" 5-1/2" B006N2VZ80 yes $8.24 Buy Options
1/8" 5" B006N2VYZY yes $7.68 Buy Options
1/8" 4-1/2" B006N2VXLY yes $5.59 Buy Options
1/8" 4" B006N2VXCI yes $5.16 Buy Options
1/8" 3-1/2" B006N2VX0U yes $4.65 Buy Options
1/8" 3/4" B006N2VVNY yes $4.54 Buy Options
1/8" 3" B006N2VWT2 yes $4.26 Buy Options
1/8" 2-1/2" B006N2VWLA yes $3.82 Buy Options
1/8" 2" B006N2VW5Q yes $3.52 Buy Options
1/8" 1-1/2" B006N2VVY8 yes $3.28 Buy Options
1/4" 12" B006N2W318 yes $14.80 Buy Options
1/4" 2-1/2" B006N2W0W0 yes $4.49 Buy Options
1/4" 3" B006N2W15G yes $4.98 Buy Options
1/4" 10" B006N2W2SM yes $13.49 Buy Options
1/4" 6" B006N2W2LO yes $10.65 Buy Options
1/4" 5-1/2" B006N2W2D2 yes $9.99 Buy Options
1/4" 3-1/2" B006N2W1EW yes $5.54 Buy Options

Key Features

  • Seamless nipple for connecting two pipes in high pressure applications
  • Male National Pipe Taper (NPT) threads for connecting to female threaded pipes
  • Steel for weldability and rust resistance with a black finish for a protective coating
  • Schedule 80 fitting for a thicker wall than schedule 40 fittings and an extra-heavy design for use in heavy-duty applications
  • Meets specifications ASTM A733 and A106 for grade B seamless pipe

Product Description

The Anvil 325 schedule 80 extra-heavy seamless nipple pipe fitting is made of steel with a black finish and has male National Pipe Taper (NPT) threaded connections. This seamless nipple fitting is a length of pipe with threaded ends for connecting threaded pipes. Seamless pipe is produced from a solid piece of metal that is heated and moved over a form until the steel is shaped into a hollow tube. It can withstand pressure better than ductile or welded pipes. It has male NPT threads for connecting to female threaded pipes, creating a tighter seal than straight threads. This schedule 80 (thick wall) fitting is made of steel for weldability and greater rust resistance than iron, and it has a black finish for increased resistance to corrosion in oil and gas applications. This schedule 80 fitting has a thicker wall and is more rigid than a schedule 40 fitting, and is extra heavy for use in heavy-duty applications. This fitting meets American Society for Testing and Materials (ASTM) A733 and A106 for grade B seamless pipe.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anvil International provides pipe products and design services. The company, founded in 1850 and headquartered in Portsmouth, NH, meets International Organization for Standardization (ISO) 9001:2000 standards and is certified by the American Petroleum Institute (API). Its fittings meet American Society for Testing and Materials (ASTM) and American Society of Mechanical Engineers (ASME) specifications.
