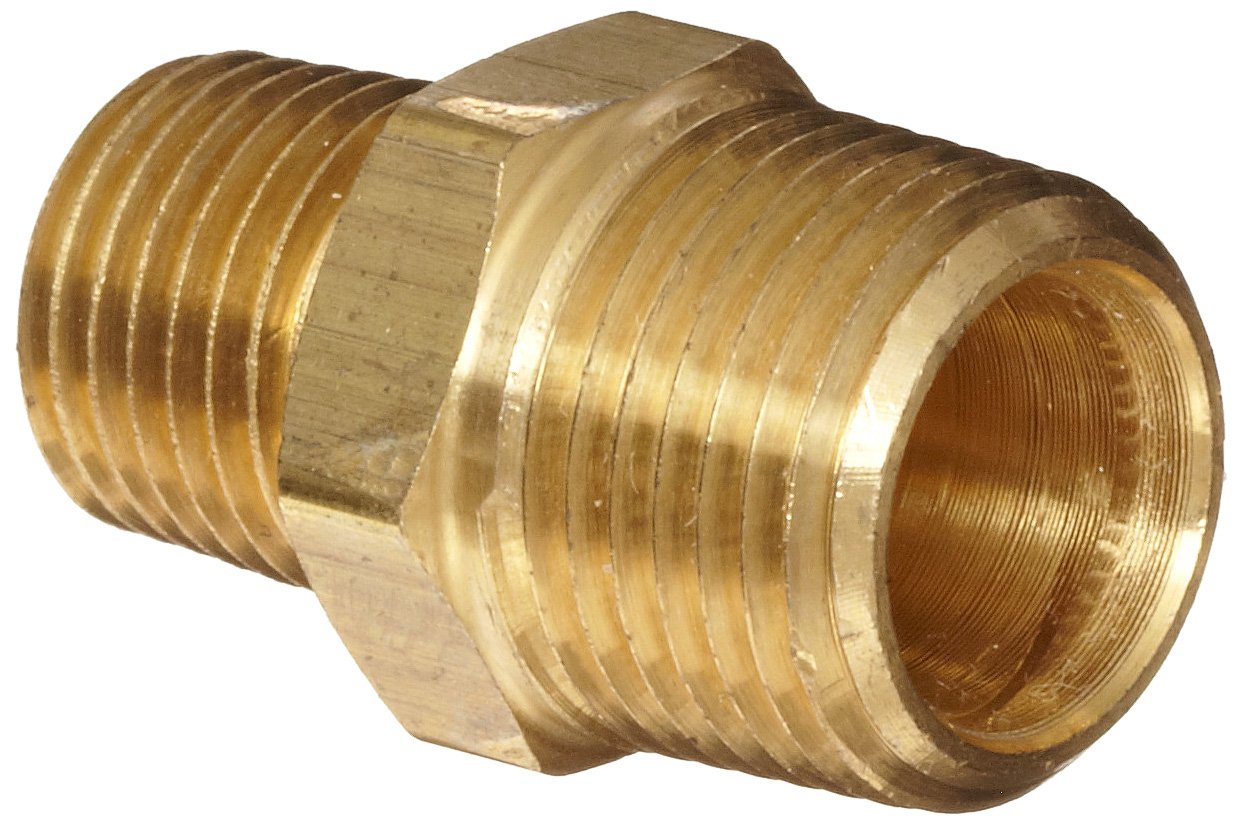

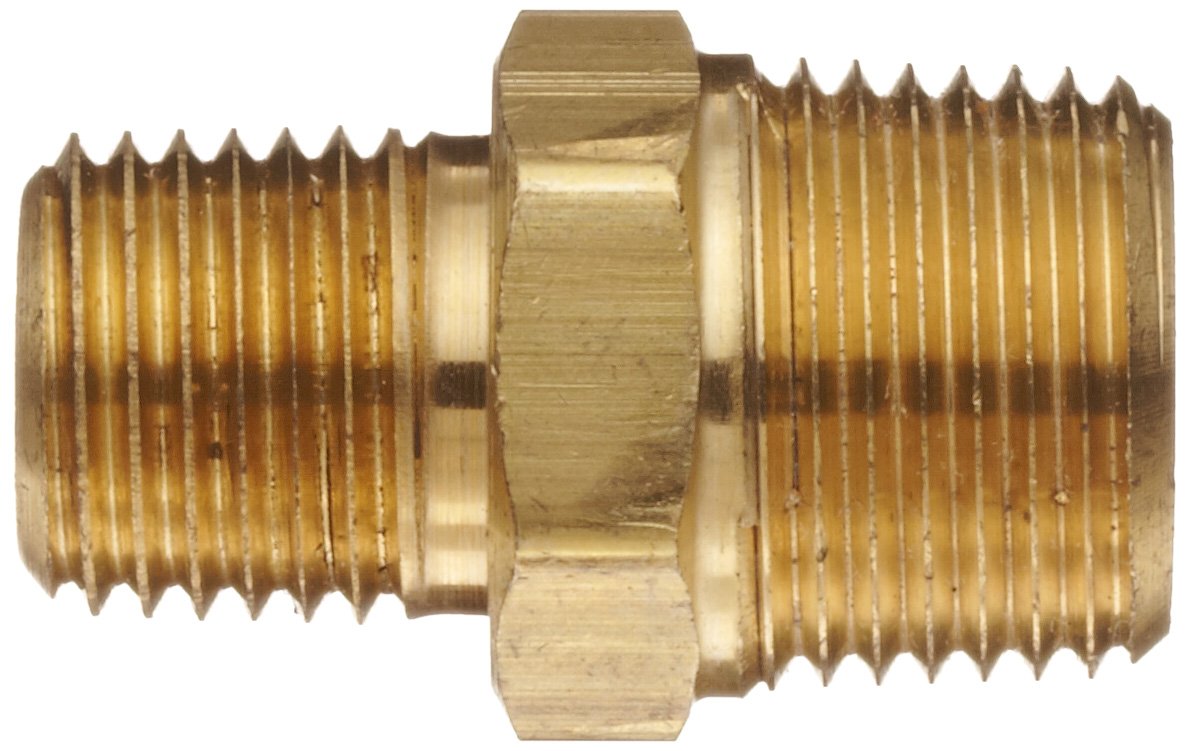

Anderson Metals Brass Pipe Fitting, Reducing Hex Nipple, NPT Male

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Nipple
Material Type
Brass
Pressure Rating Class
1000
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Anderson Metals
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 2 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Pipe Size Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/4" x 1/8" 1-5/64" B002SAO7QI yes $2.85 Buy Options
3/8" x 1/8" 1-1/8" B006PKKW84 yes $3.93 Buy Options
3/8" x 1/4" 1-13/64" B000BO6OLY yes $3.81 Buy Options
1/2" x 1/4" 1-5/16" B000BQUGIY yes $7.43 Buy Options
1/2" x 3/8" 1-11/32" B0044F36UI yes $5.51 Buy Options
3/4" x 1/2" 1-33/64" B000LNKG50 yes $8.63 Buy Options

Key Features

  • Reducing hex nipple for connecting two threaded pipes with different diameters
  • Male National Pipe Taper (NPT) threads for connecting to female threaded pipes
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F)
  • Meets specifications ASTM B584 and ASME/ANSI B16 for quality assurance

Product Description

The Anderson Metals reducing hex nipple pipe fitting is made of brass and has male National Pipe Taper (NPT) threaded connections. This reducing hex nipple fitting has one end smaller than the other for connecting two threaded pipes with different diameters, and it has a hexagonal head for an increased bearing surface when adjusting the fitting with a wrench. It has male NPT threads for connecting to female threaded pipes, creating a tighter seal than straight threads. This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. The operating temperatures for this fitting range from -53 to 121 degrees C (-65 to 250 degrees F). This fitting meets American Society for Testing and Materials (ASTM) B584 and American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anderson Metals manufactures brass fittings, valves, and pipe nipples. The company, founded in 1951, is headquartered in Kansas City, MO.
