Anderson Metals Brass Barstock Pipe Fitting, Tee, NPT Female

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Tee
Material Type
Brass
Pressure Rating Class
1000
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Anderson Metals
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 8 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Pipe Size Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-4 of 4
1/8" x 1/8" x 1/8" 1-5/16" B004WAF2IE yes $4.42 Buy Options
3/8" x 3/8" x 3/8" 2-1/32" B000BODVGK yes $9.11 Buy Options
1/2" x 1/2" x 1/2" 2-29/64" B006PKKP18 yes $11.60 Buy Options
3/4" x 3/4" x 3/4" 2-23/32" B006PKKPH2 yes $14.20 Buy Options

Key Features

  • Tee with three openings for connecting and branching three pipes
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F)
  • Meets specifications ASTM B584 and ASME/ANSI B16 for quality assurance

Product Description

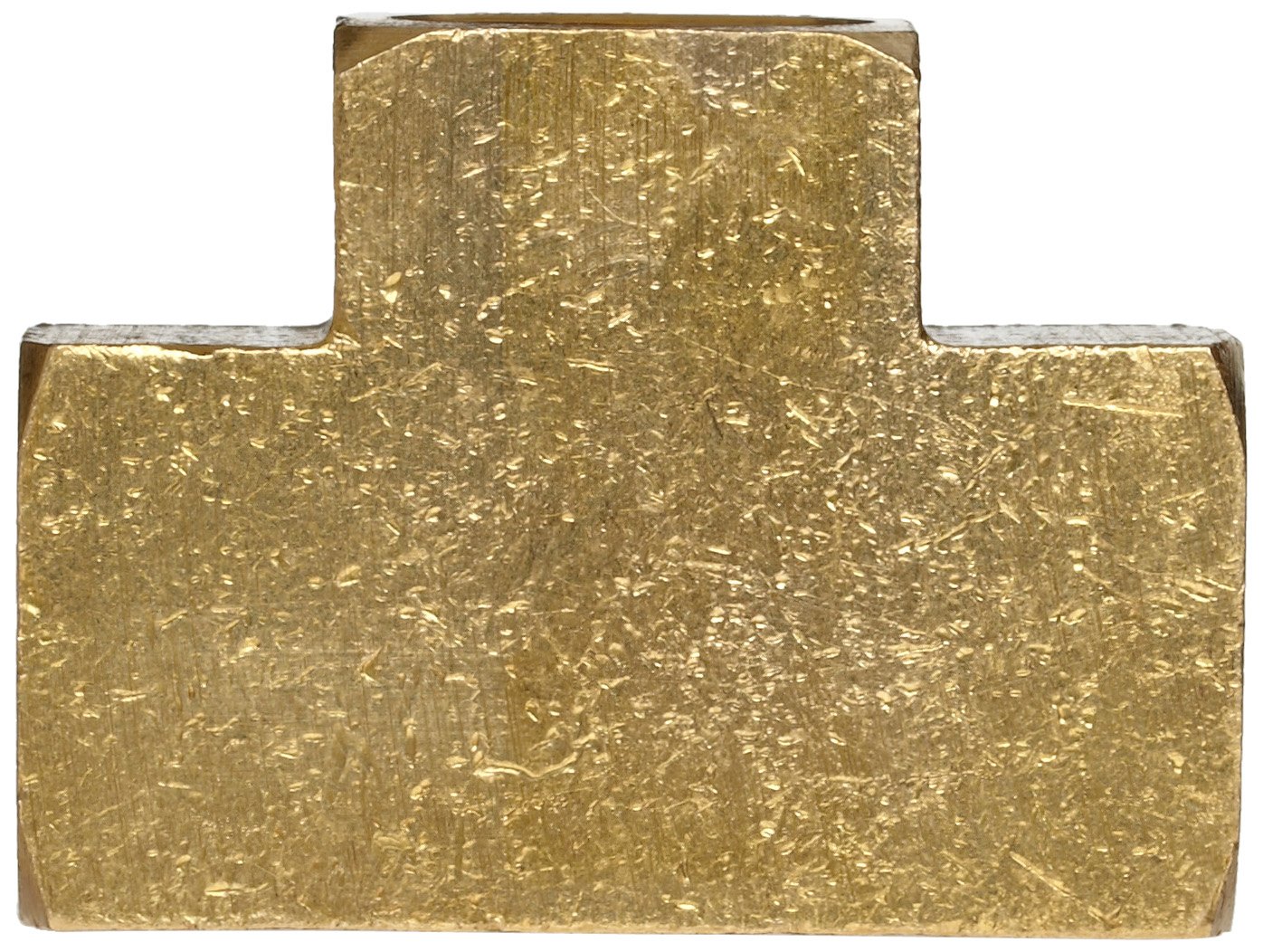

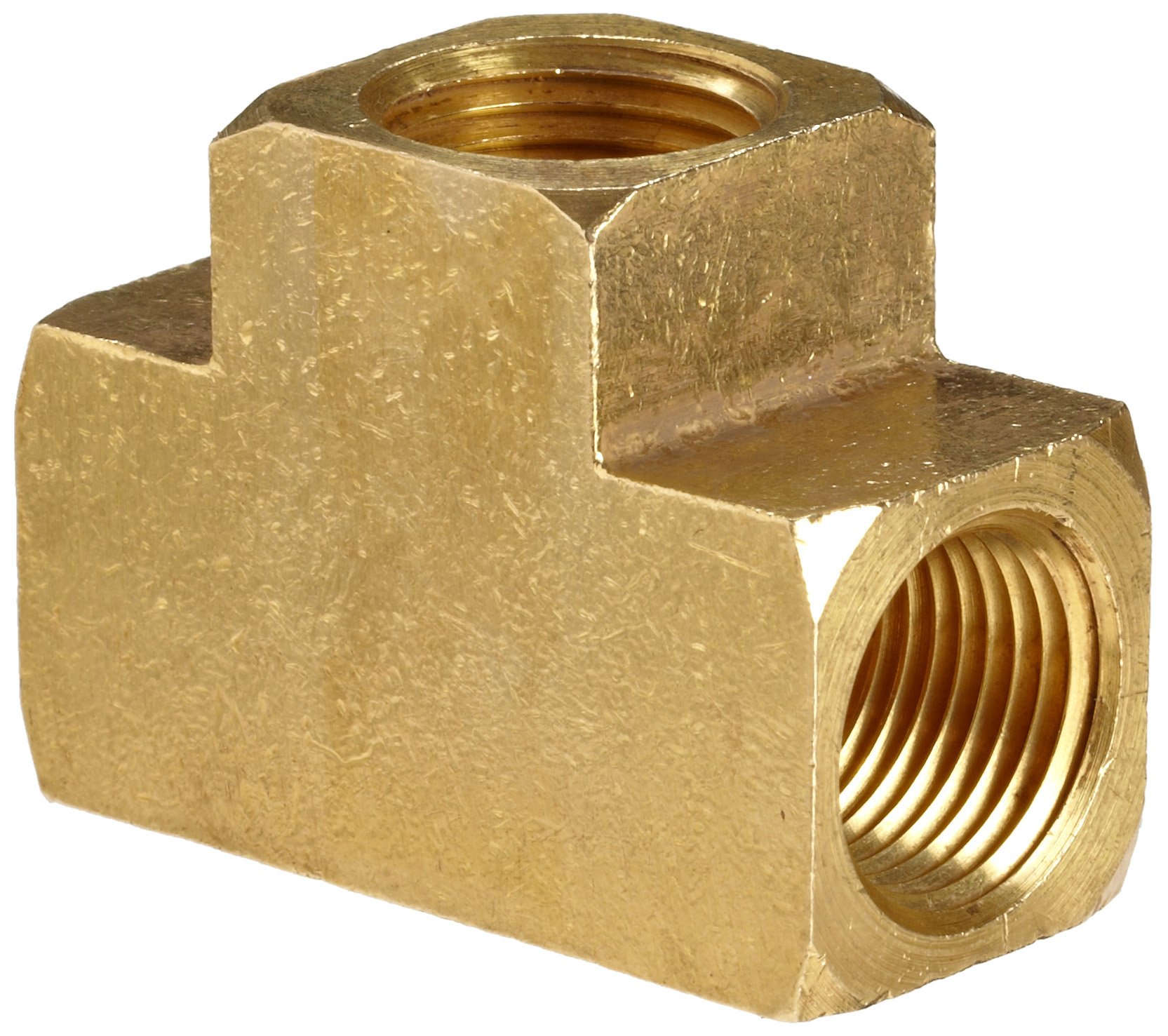

The Anderson Metals tee pipe fitting is made of brass barstock and has female National Pipe Taper (NPT) threaded connections. This tee fitting is T-shaped and has three openings to connect and branch three pipes, two on the main run and one branch at a 90-degree angle from the middle of the tee. Pipe dimensions for tees are represented as A x B x C. "A" and "B" indicate the main run on the fitting, and "C" indicates the branch. It has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. This fitting is made from brass barstock for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass barstock is machined to creating a seamless, dense material that resists splitting and leaking. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. The operating temperatures for this fitting range from -53 to 121 degrees C (-65 to 250 degrees F). This fitting meets American Society for Testing and Materials (ASTM) B584 and American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anderson Metals manufactures brass fittings, valves, and pipe nipples. The company, founded in 1951, is headquartered in Kansas City, MO.
