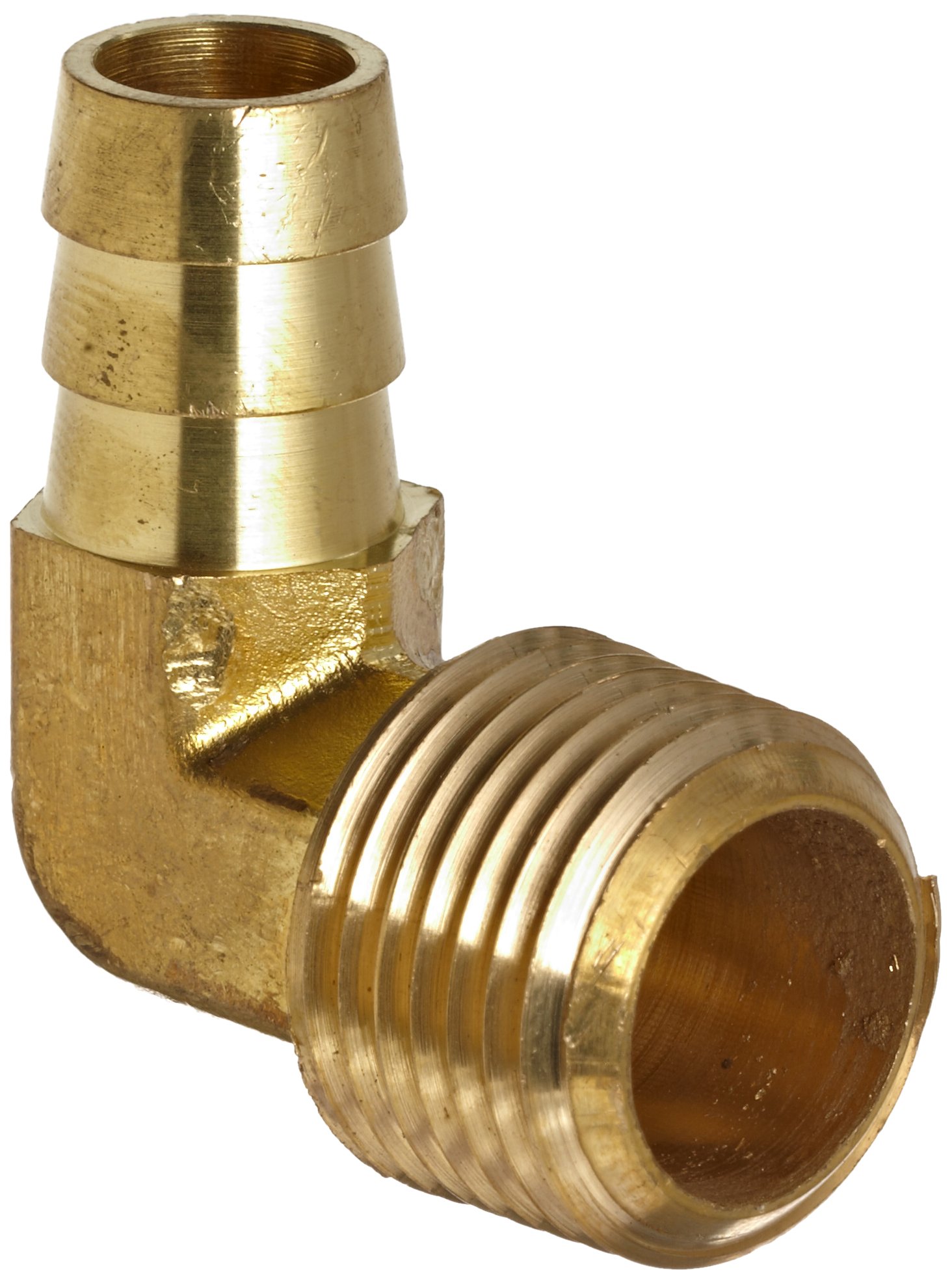

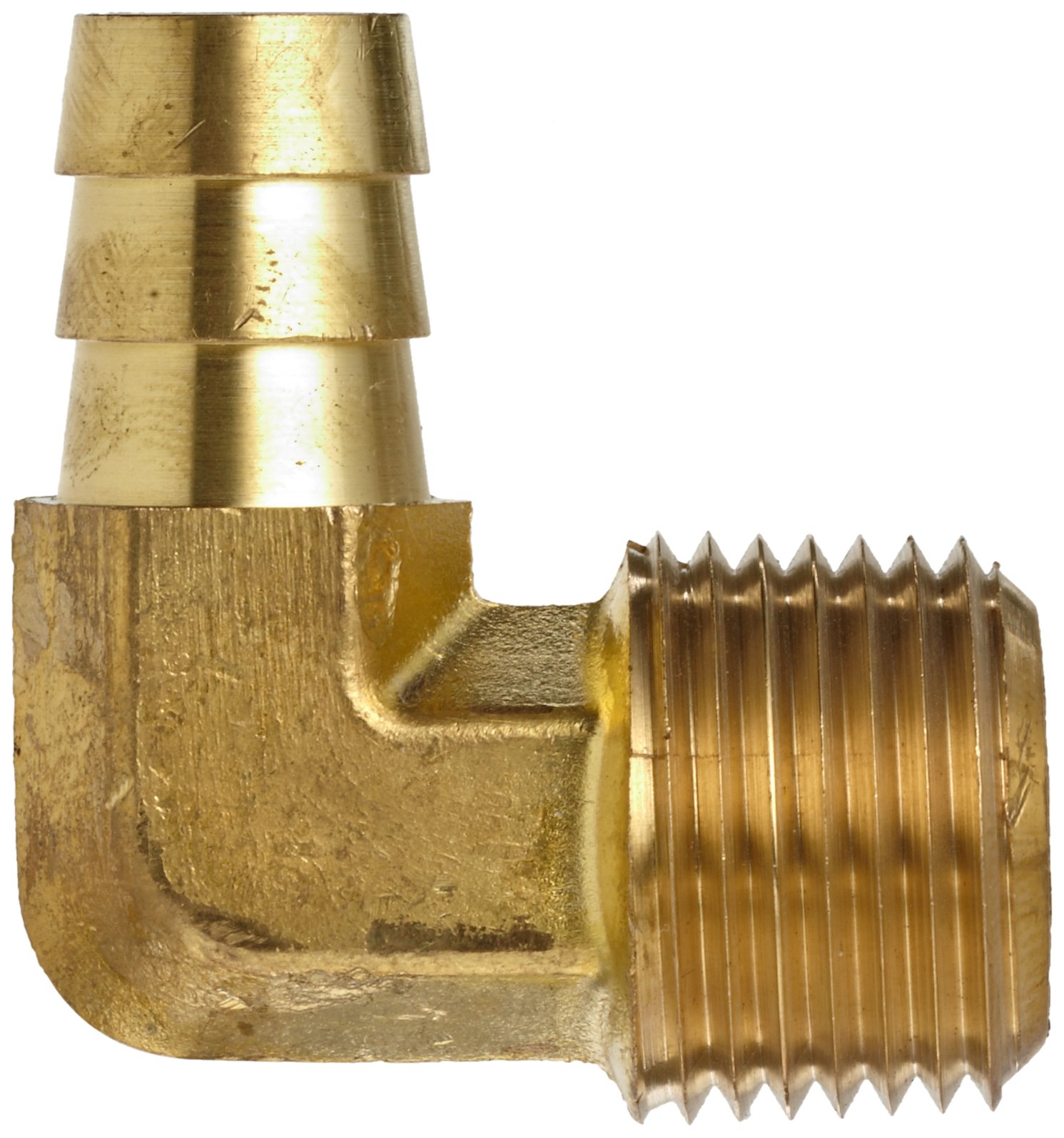

Anderson Metals Brass Hose Fitting, 90 Degree Elbow, Barb x NPT Male

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
90 Degree Elbow
Material Type
Brass
UNSPSC Code
40141734
Brand Name
Anderson Metals

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 21 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Pipe Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-12 of 12
1/4" Barb x 1/8" NPT Male B006PKLBRU yes $7.72 Buy Options
1/4" Barb x 1/4" NPT Male B003CEN8CS yes $6.03 Buy Options
5/16" Barb x 1/8" NPT Male B006PKLC2Y yes $7.19 Buy Options
5/16" Barb x 1/4" NPT Male B006PKLC9M yes $7.43 Buy Options
3/8" Barb x 1/8" NPT Male B006PKLCNI yes $7.10 Buy Options
3/8" Barb x 1/4" NPT Male B0045LNDP4 yes $5.94 Buy Options
3/8" Barb x 5/16" NPT Male Pip B006PKLCG0 yes $8.12 Buy Options
3/8" Barb x 3/8" NPT Male B003CEQROO yes $5.61 Buy Options
1/2" Barb x 1/4" NPT Male B006PKLD4Q yes $9.55 Buy Options
1/2" Barb x 1/2" NPT Male B006PKLDL4 yes $11.62 Buy Options
5/8" Barb x 3/8" NPT Male B006PKLDX2 yes $8.45 Buy Options
5/8" Barb x 1/2" NPT Male B006PKLEOK yes $8.36 Buy Options

Key Features

  • 90-degree elbow for connecting hose to threaded pipe at an angle
  • Fitting connects to hose on one end and has an NPT male connector on the other
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • Barbed fitting creates a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately)
  • For use with plastic or rubber hose

Product Description

This Anderson Metals hose fitting is made of brass and has a 90-degree elbow shape for connecting hose to threaded pipe conforming to the National Pipe Thread (NPT) standard at an angle. This adapter is for a fixed connection between plastic or rubber hose and pipe made of copper, nylon, or plastic. A barbed fitting on one end creates a tight seal on flexible or semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately), and a male NPT connector on the other end connects to threaded pipe. This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. The fitting has a temperature range of 32 to 200 degrees F.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Anderson Metals manufactures brass fittings, valves, and pipe nipples. The company, founded in 1951, is headquartered in Kansas City, MO.
