Amprobe TX900 Microwave Leakage Detector

Be the first to review this item

ASIN B00460RXIM

Specifications for this item
Number of Items
1
Overall Height
70  millimeters
Overall Width
105  millimeters
Part Number
3390352
Item Weight
0.33 pounds
UPC
095969486576
Brand Name
Amprobe
EAN
0095969486576
UNSPSC Code
41111809
Display
Liquid Crystal Display (LCD)
Overall Length
235  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 1 hr 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures for wave leakage and tests oven power
  • 8 dipole sensors - allows detection of plane wave signals of any polarization
  • Temperature compensation - accurate reading regardless of ambient temperature changes
  • Analog Bar Graph
  • Accessories supplied: Two 500 ml Plastic Beakers, Spirit
  • Measures radio frequency (RF) power leakage from microwave ovens
  • Eight dipole sensors detect plane wave signals of any polarization
  • Temperature compensation helps ensure ambient temperature does not interfere with measurements
  • Display automatically zeroes at start-up to help improve accuracy
  • Liquid crystal display (LCD) shows readings both in digits and on a bar graph

Package Details

Shipping Weight: 2.3 pounds
Package Size: 12.4 x 10.5 x 4.6 inches

Product Description

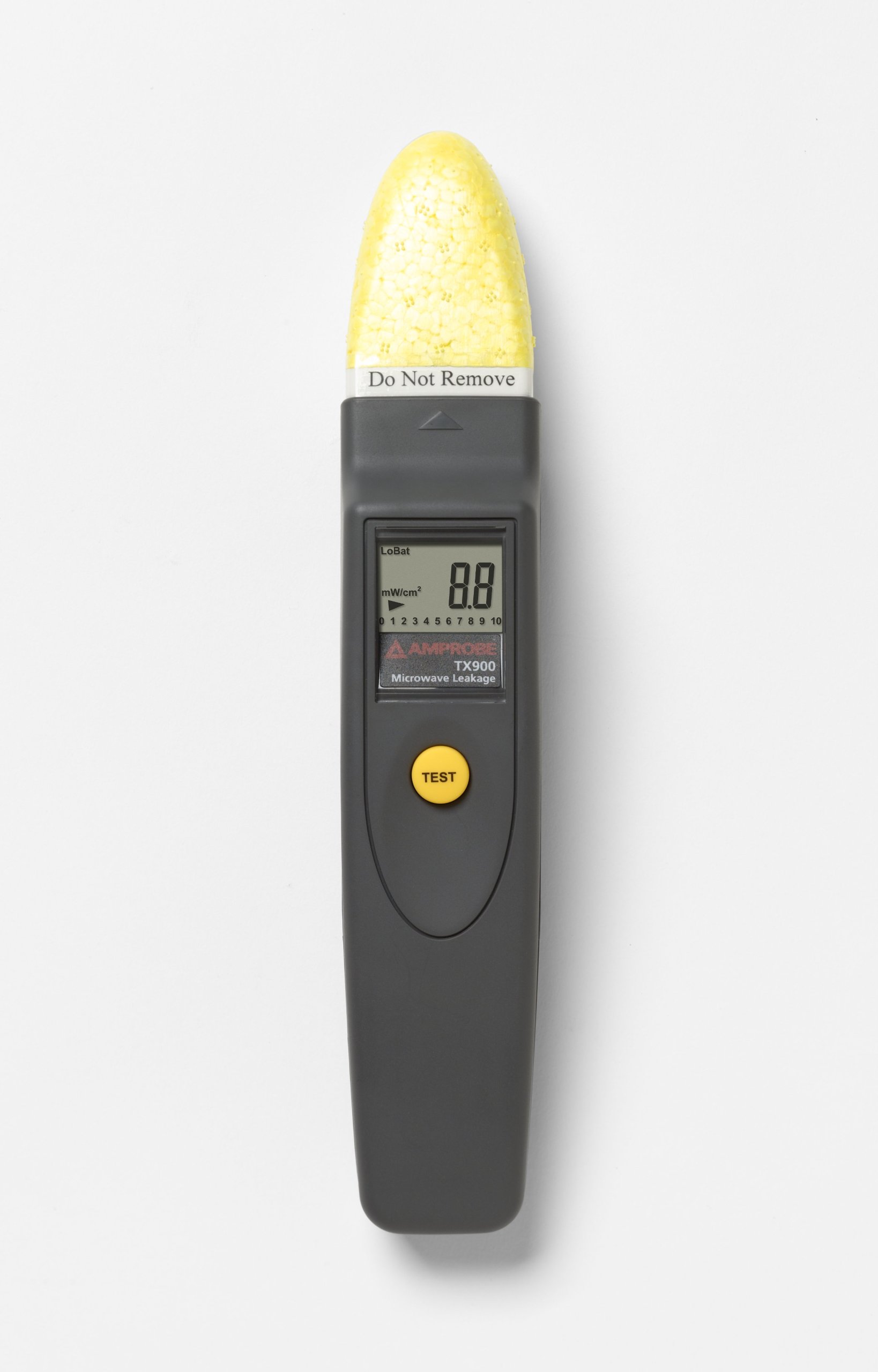

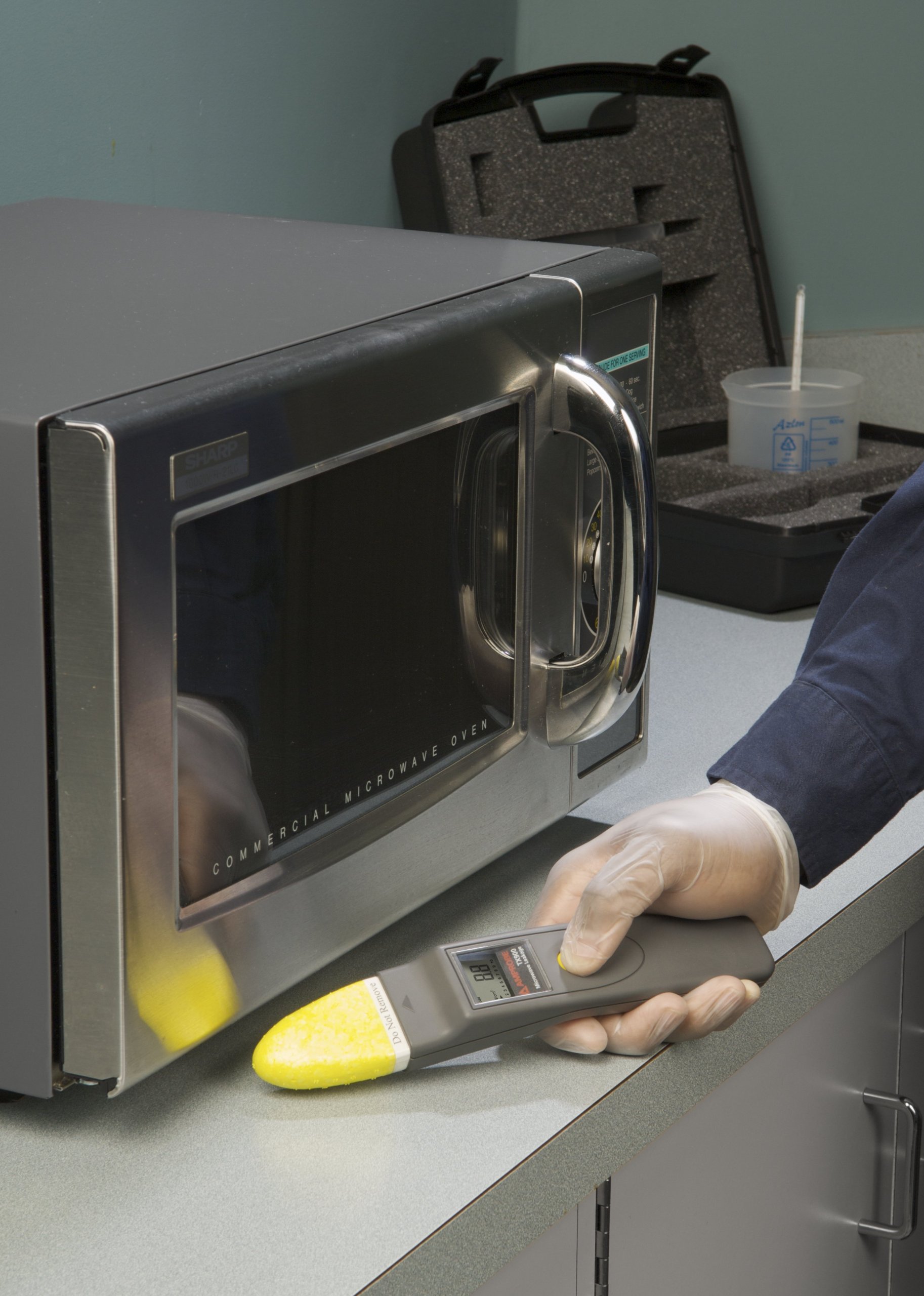

The Amprobe TX900 microwave leak detector measures radio frequency (RF) power leakage from microwave ovens in home, commercial, and industrial maintenance applications. The detector's eight dipole sensors detect plane wave signals of any polarization. The temperature compensation feature helps ensure that the ambient temperature of the testing area does not interfere with measurements. The unit automatically zeroes the display when it is powered on, helping to improve measurement accuracy. It has a 2-1/2 digit liquid crystal display (LCD) that shows readings both in digits and on a 10-segment bar graph. The unit comes with two glass beakers that, when filled with water, act as a load for the microwave during testing. A set of labels is included for marking the highest level of RF radiation detected during testing. A low-battery indicator signals when the meter's batteries need to be replaced. The unit comes with a hard plastic carrying case that helps protect the leak detector from damage during transportation and storage.

Specifications

Operating temperature0 to 50 degrees Celsius/32 to 122 degrees Fahrenheit
Detection range, radio frequency (RF) power0 to 10 milliwatts per centimeter squared
Power supply9V NEDA 1604A or IEC 6LR61 battery (one, included)
Standards metEuropean Conformity (CE); Australia N10140
Weight0.33 lb./0.15 kg
Dimensions9.1 x 1.7 x 1.7 inches/230 x 42 x 44 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Leak detectors are used in mechanical, automotive, petrochemical, wastewater treatment, plumbing, electrical, and heating, ventilation, and air conditioning (HVAC) applications to locate the source of a leaking gas or liquid. Simple leak detectors use dyes, pH- or chemically reactive indicators, or a foaming substance to find leaks in pipes, tubes, fittings, tanks, and cylinders. More complex leak detectors have electronic sensors that measure the concentration of leaked gas or liquid in an area to pinpoint the source of leaks, determine the type of gas present, monitor air quality, and detect electrical corona or failing valves, bearings, and solenoids.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

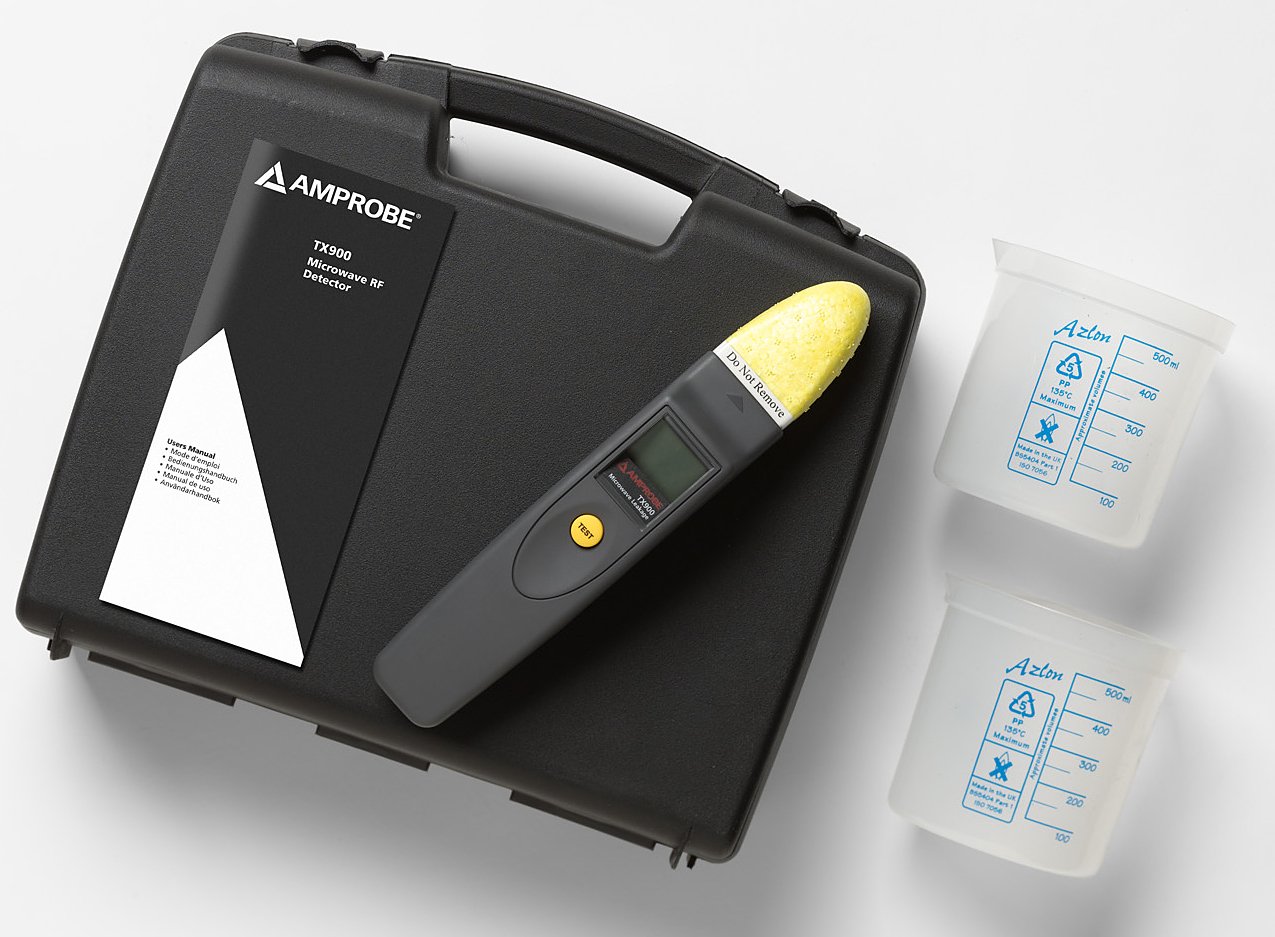

What’s in the Box?

  • TX900 microwave leakage detector
  • (2) 500 ml plastic beakers
  • (1) Spirit (alcohol) glass thermometer
  • (1) 9V battery (installed)
  • (1) Carrying case
  • (1) Set of RF emission labels
  • (1) Certificate of conformance
  • Instructions
