Amprobe TMD-53 Thermocouple Thermometer K/J-Type

Be the first to review this item

ASIN B005HAAD82

Specifications for this item
Number of Items
1
Overall Height
76.2  millimeters
Overall Width
157.98  millimeters
Part Number
3730085
UPC
095969556774
Brand Name
Amprobe
EAN
0095969556774
Measurement Accuracy
+/- 5 degrees_centigrade
UNSPSC Code
42182200
Display
Liquid Crystal Display (LCD)
Special Features
Automatic, positive implied, negative polarity indication
Overall Length
241.3  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 2 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Portable, dual-input thermometer for reading temperatures from two sources simultaneously, and is used in quality control and HVAC, electrical, industrial, and automotive maintenance
  • Accepts K- and J-type thermocouples
  • Dual-scale temperature readings range from -328 to 2,498 degrees F (-200 to 1,370 degrees C)
  • Dual-input thermocouples for superheat and subcool applications, and cut-out and cut-in temperature measurements, and offset mode compensates for thermocouple error
  • Backlit LCD screen with a data hold feature to save temperature readings for later viewing, maximum and minimum temperature with elapsed time, average and relative temperature calculations, and low battery indicator

Package Details

Shipping Weight: 1 pounds
Package Size: 9.6 x 6.6 x 2.6 inches

Product Description

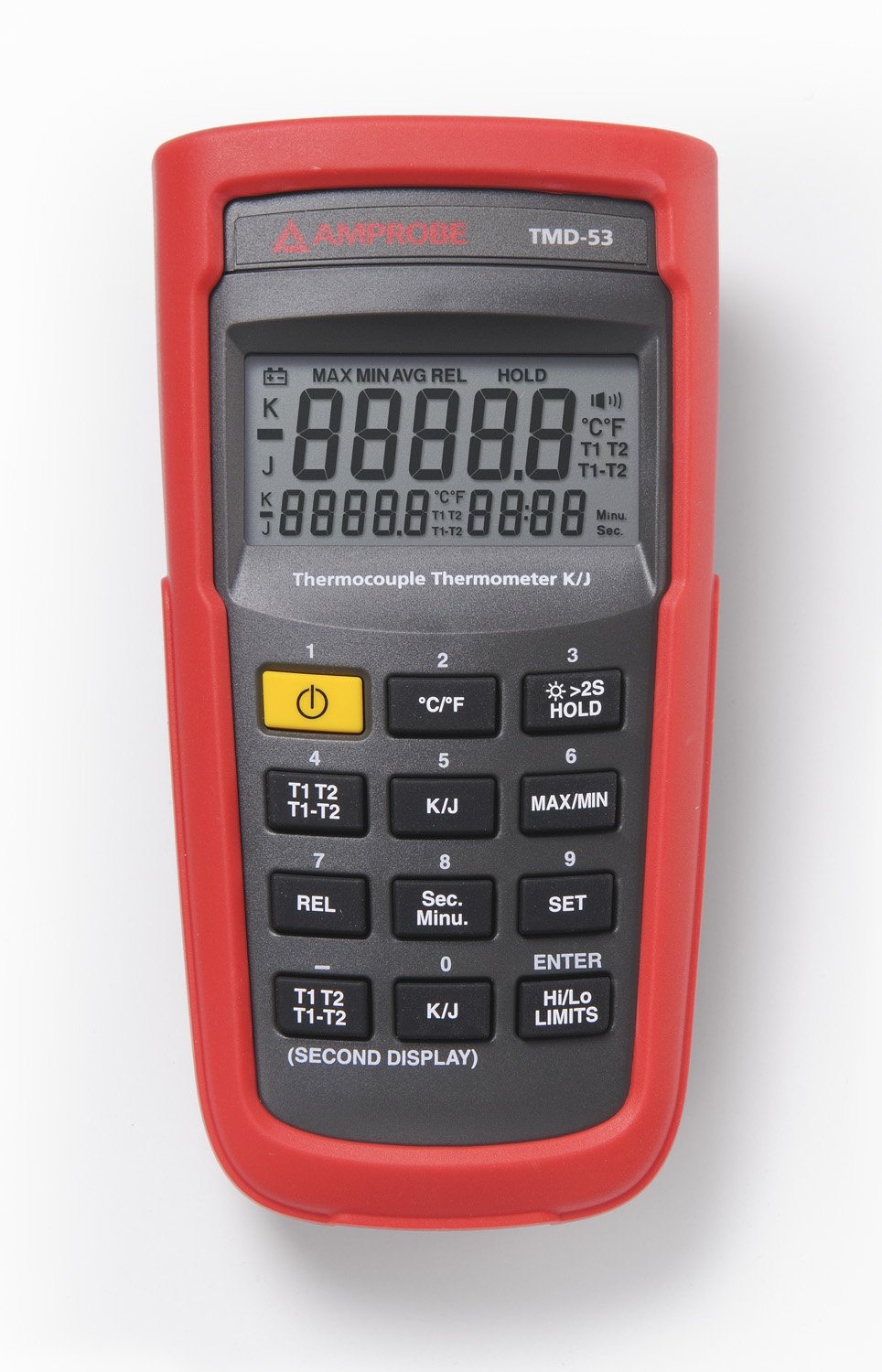

The Amprobe TMD-53 dual-input thermometer accepts two K- or J-type thermocouples, and is designed to measure two temperatures simultaneously in a variety HVAC, electrical, industrial, and automotive maintenance applications. The thermocouples support superheat and subcool applications, and cut-out and cut-in temperature measurements. The meter has an offset mode that can be used to compensate for thermocouple error. Dual-scale temperature readings range from -328 to 2,498 degrees F (-200 to 1,370 degrees C).

The meter has a back-lit LCD screen with data hold to save readings for later viewing, and displays minimum and maximum temperature with elapsed time, and average and relative temperature calculations. The device operates on one 9V battery (included), which provides approximately 200 hours of use. The auto-power-off feature turns the meter off after approximately 15 minutes, and can be disabled. A low battery indicator helps prevent false readings. The meter includes two K-type thermocouples, a carrying case, one 9V battery, and instructions.

Specifications

Display resolution 0.2 degree F (0.1 degree C)
Accuracy (with ambient operating temperature of 64 to 82 degrees F, not including thermocouple error) For temperatures -325 to -58 degrees F, accuracy is + or -(0.05 percent of reading + 0.6 degrees F), for temperatures -58 to 2498 degrees F, accuracy is + or -(0.05 percent of reading + 1.4) degrees F
Accuracy (with ambient operating temperature of 18 to 28 degrees C, not including thermocouple error) For temperatures -200 to -50 degrees C, accuracy is + or -(0.05 percent of reading + 0.7 degrees C), for temperatures -50 to 1370 degrees C, accuracy is + or -(0.05 percent of reading + 0.3) degrees C
K-type thermocouple temperature range -328 to 2498 degrees F (-200 to 1370 degrees C)
Measurement rate 1 time/second
Operating temperature 32 to 122 degrees F (0 to 50 degrees C), at less than 80 percent relative humidity
Operating environment Indoors at altitudes below 2000 meters
Storage temperature -4 to 140 degrees F (-20 to 60 degrees C), at less than 80 percent relative humidity
Dimensions Approximately 6.3 x 3.3 x 1.5 inches (160 x 83 x 38 mm) (H x W x D)
Weight Approximately 0.6 lb. (270g), with batteries installed

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Thermometers are used to measure temperature for various applications such as education, general purpose Quality Control (QC) labs and research lab testing, and for biological process monitoring.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA

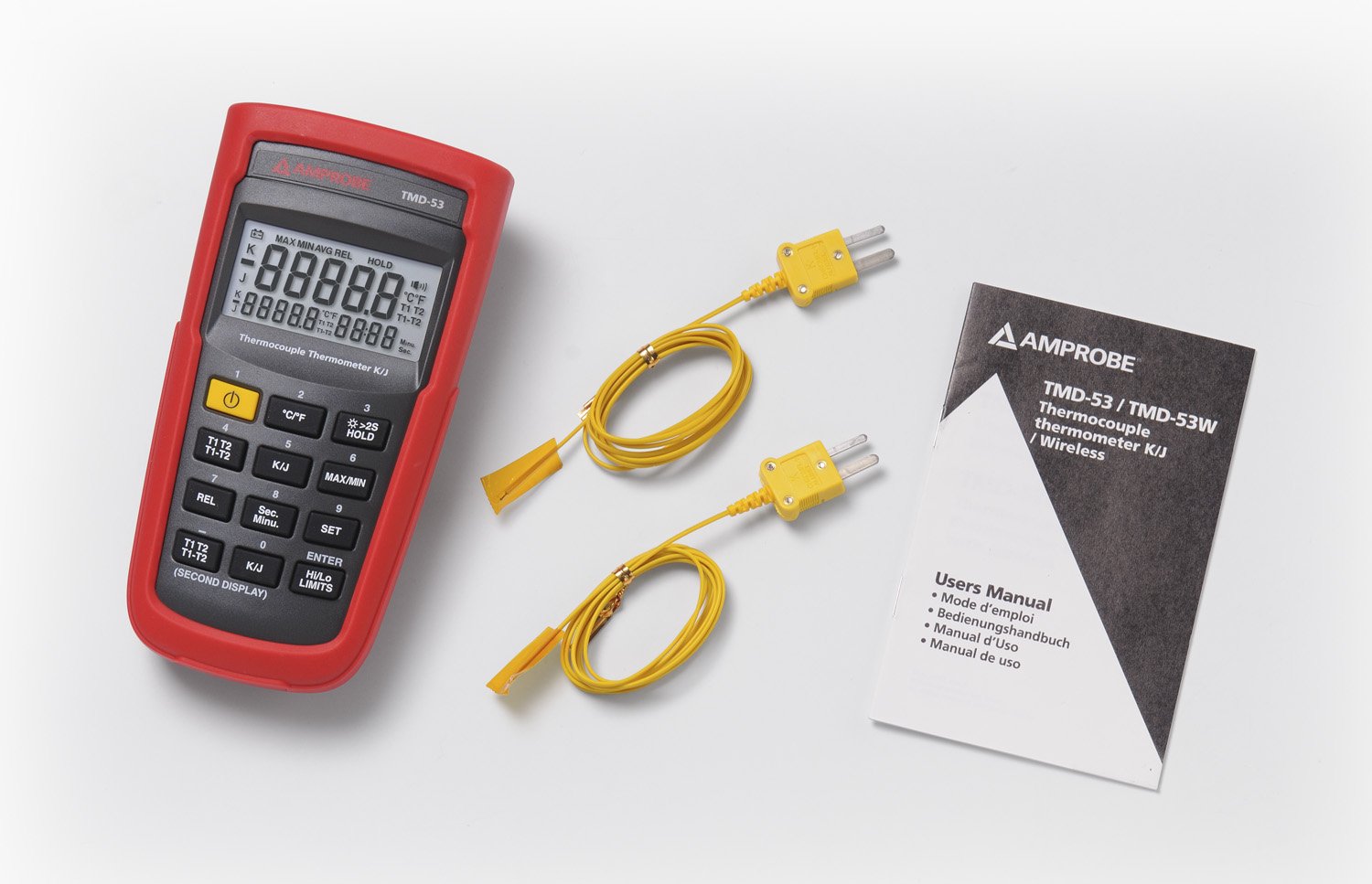

What’s in the Box?

  • TMD-53 dual temperature meter
  • K-type thermocouple (2)
  • 1.5V AAA batteries (4)
  • White box
  • Instructions
