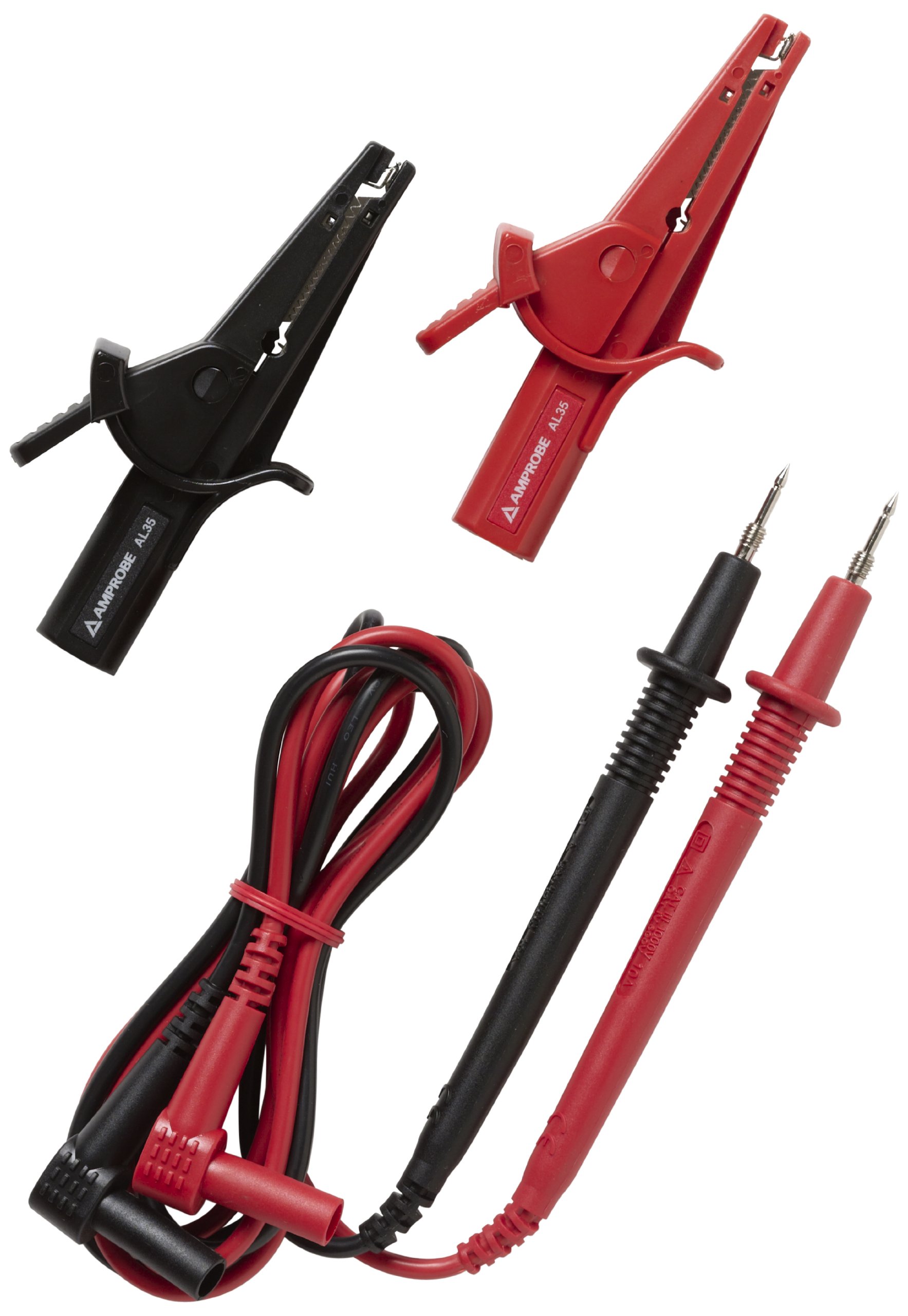

Amprobe TL35B Test Lead with Alligator Clips

Be the first to review this item

ASIN B0029XJANE

Specifications for this item
Number of Items
1
Part Number
3068232
UPC
095969425124
Brand Name
Amprobe
EAN
0095969425124
UNSPSC Code
32000000

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 6 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Test lead set connects a compatible electrical test meter to a device for testing
  • Set includes two lead wires, two threaded test probe tips, and two alligator clips
  • Polyvinyl chloride (PVC) insulation
  • Threaded alligator clips have 0.60" jaw opening and teeth that grip the conductor to provide a more secure, hands-free connection than probe tips
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V

Package Details

Shipping Weight: 0.45 pounds
Package Size: 2.7 x 0.9 x 0.1 inches

Product Description

The Amprobe TL35B test lead set contains two polyvinyl chloride (PVC) insulation lead wires with two threaded probe tips and two threaded alligator clips for connecting a compatible electrical test meter to a device in electrical testing applications. The lead wires are 40" and have standard probe tips that are held against the conductor during testing. The alligator clips (also called crocodile clips) screw onto the probe tips and have teeth that grip the conductor to provide a more secure, hands-free connection than the test probe tips. The clips have two jaws with a 0.60" jaw opening. The probe tips and the included alligator clips are threaded, allowing for a more secure connection than non-threaded tips and clips. The lead wires can be used with testing devices that have universal 4 mm jacks. The set meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). It conforms to applicable European Conformity (CE) directives.

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • (2) test leads
  • (2) alligator clips
