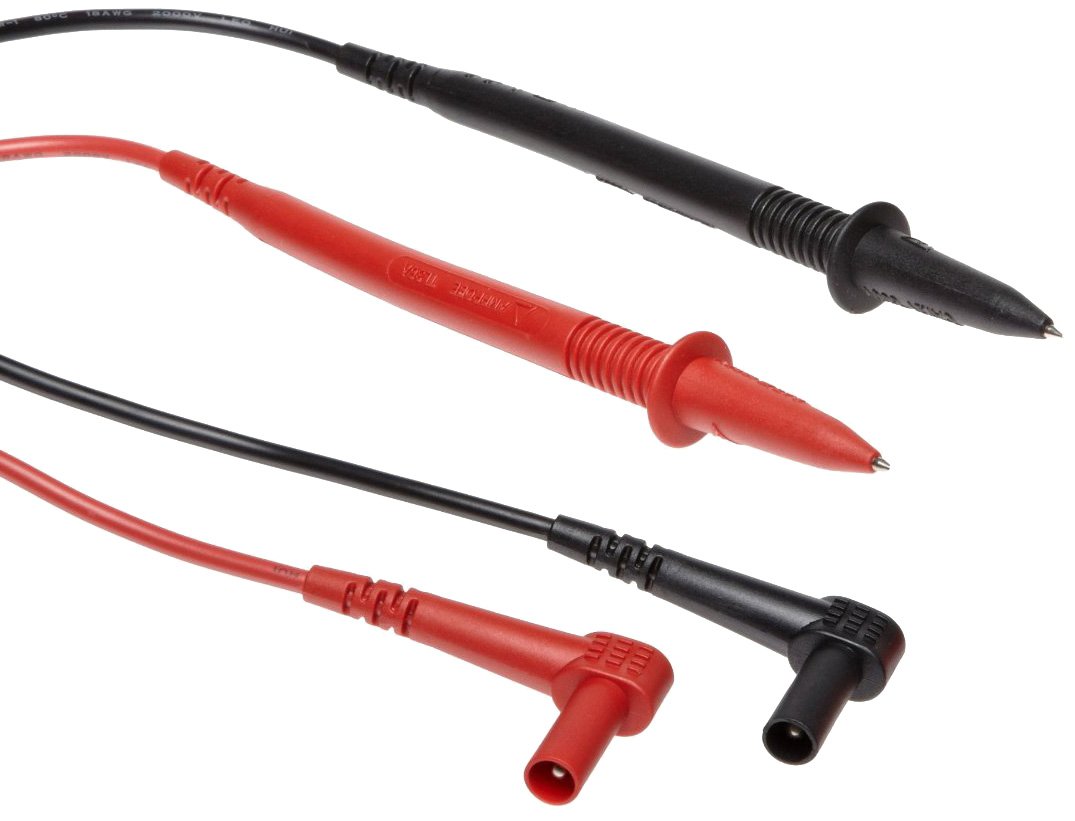

Amprobe TL245A Test Leads

Be the first to review this item

ASIN B0029KANDS

Specifications for this item
Number of Items
1
Part Number
3068215
UPC
095969425100
Brand Name
Amprobe
EAN
0095969425100
UNSPSC Code
41111905

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 21 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Test leads connect a compatible electrical test meter to a device for testing
  • Set includes two 48" lead wires with two standard probe tips
  • Silicone insulation on lead wires protects hands from shock and heat, resists melting or becoming brittle in hot or cold environments, and maintains flexibility better than PVC insulation
  • Lead wires connect to 4 mm jacks
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V

Package Details

Shipping Weight: 0.25 pounds
Package Size: 5.9 x 3.8 x 1 inches

Product Description

The Amprobe TL245A test leads are two silicone-insulated lead wires with two standard probe tips for connecting a compatible electrical test meter to a device in electrical testing applications. The 48" lead wires have silicone insulation to protect hands from shock and heat. The silicone insulation resists melting in hot environments and becoming brittle in cold ones, and it maintains flexibility better than polyvinyl chloride (PVC) insulation. The standard probe tips are held against the conductor during testing. The lead wires can be used with testing devices that have universal 4 mm jacks. The lead wires meet International Electrotechnical Commission (IEC) safety standard 61010 and are certified for category III installations up to 1,000V, which covers items used with enclosed building circuit installations (service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). They also conform to applicable European Conformity (CE) directives.

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.
