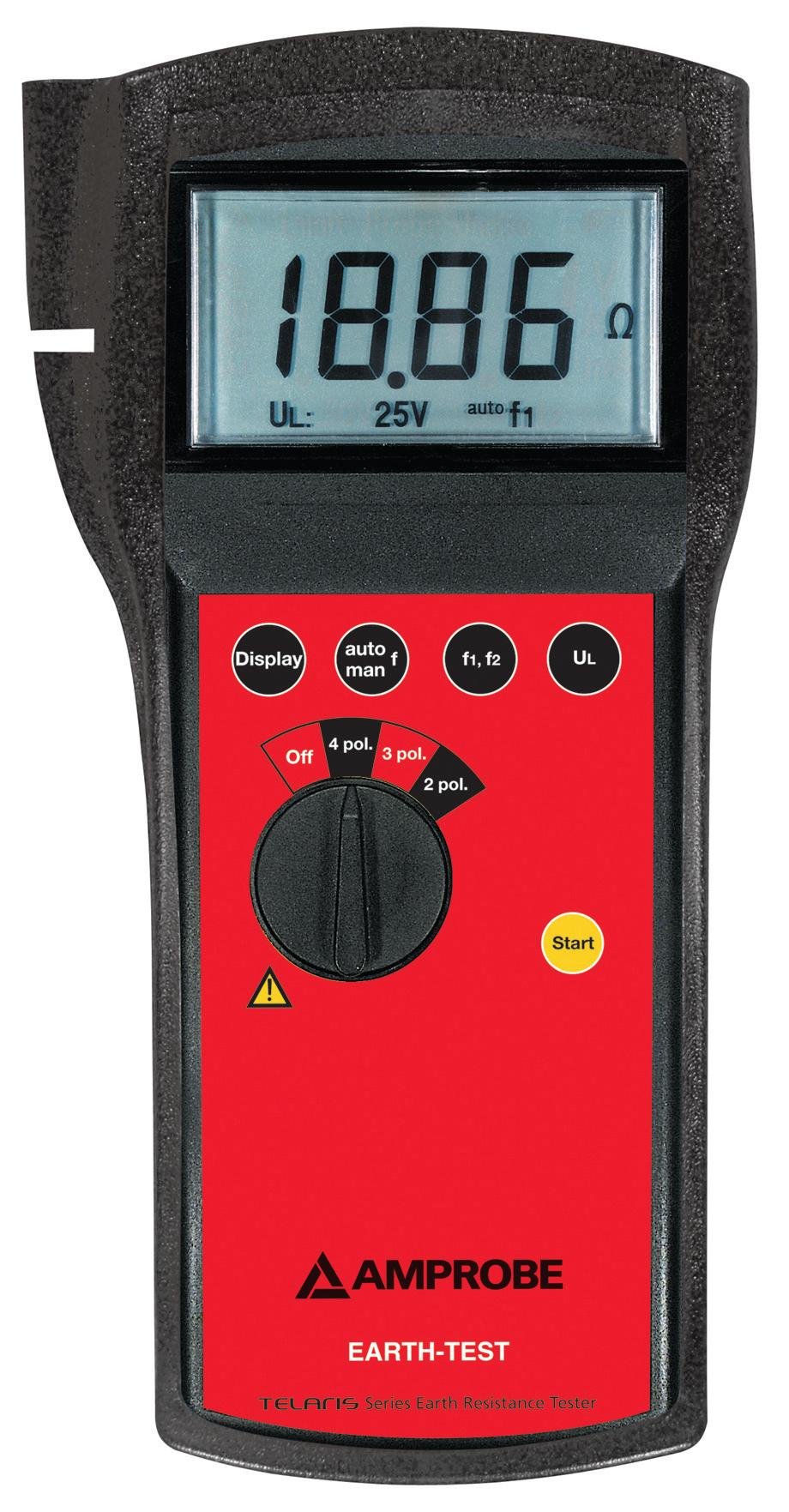

Amprobe TELARIS EARTH-TEST Earth Resistance Tester

Be the first to review this item

ASIN B0029XMTWS

Specifications for this item
Number of Items
1
Overall Height
33  millimeters
Overall Width
69.85  millimeters
Catalog Number
EARTH-TEST
Part Number
3087226
Temperature Range
-10/60  Degrees Celsius
UPC
095969436199
Brand Name
Amprobe
EAN
0095969436199
Warranty
Two Year Limited Warranty
Display
Liquid Crystal Display (LCD)
Overall Length
175  millimeters

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Ground resistance meter to measure earth ground resistance to evaluate system safety
  • Automatic and manual frequency selection for noise reduction
  • Selectable 25 or 50V AC test voltage with 12mA test current
  • Measures earth resistance from 0 to 1,999 ohms
  • Safety rated to European Standard EN 61010-1 Category III 300V

Package Details

Shipping Weight: 3.75 pounds
Package Size: 15.1 x 11.2 x 4.2 inches

Product Description

From the Manufacturer

Amprobe began life in Long Island, NY in the late 1940's under the name Pyramid Instrument Company. In 1960 the company name was formally changed to Amprobe Instrument Corporation. Amprobe continued to design, engineer, manufacture and distribute product from its Lynbrook, NY location until it was merged to form ATP and relocated to South Florida in late 1999. The Amprobe Telaris Earth Test can test the ability of soil and grounding connection to conduct electricity and provide an electrical reference point. Good soil conductivity is needed to limit static electricity charge in potentially flammable situations and minimize the voltage difference between power return and earth ground for personal safety. Resistance testing is done by 2 wire, 3 wire or 4 wire testing methods.

Product Description

The Amprobe Telaris EARTH-TEST ground resistance meter measures earth ground resistance to evaluate the safety and integrity of electrical systems. Automatic and manual frequency selection reduces electromagnetic noise. The tester uses a selectable 25 or 50V alternating current (AC) test voltage and a 12mA maximum test current. The unit measures earth resistance from 0 to 1,999 ohms. It is safety rated to European Standard EN 61010-1, Category III 300V. It is powered by six alkaline or rechargeable AA batteries and has an auto-off function. The EARTH-TEST is designed for use by electricians and electrical contractors.

Specifications

Power supply (6) AA batteries
Ground resistance range 0 to 1,999 ohms
Test voltage range 25 or 50V AC
Test current range <12mA
Weight (including batteries) 640g/1.4 lb.
Safety standards met International Electrotechnical Commission (IEC)/European Standards (EN) 61010-1 Cat III 300V
Dimensions 235 x 105 x 68mm/9.3 x 4.1 x 2.7 inches (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Electrical test meters report electrical circuit properties, such as voltage, resistance, capacitance, and continuity. Available in handheld or benchtop form, they detect electrical problems in equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Single-function meters, such as battery testers and voltage testers, measure one property of a circuit, and multimeters measure multiple properties. Electrical test meters display information either in analog form using a needle that moves on a calibrated scale, or in digital form using digits or a graphic representation on an LED screen. Meters have electrical properties that are to be measured and the anticipated range of results, and should have a rating that is higher than the maximum value of the anticipated range. An electrical test meter has multiple settings corresponding to potential ranges of values for the properties it can measure. A manual ranging meter requires the operator to flip through different settings until the correct range is reached. An autoranging meter cycles through range settings automatically until it reaches the correct range.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • Telaris EARTH-TEST Earth Resistance Tester
  • Connection Cables
  • Carrying case
  • (6) AA batteries (installed)
  • Instructions
