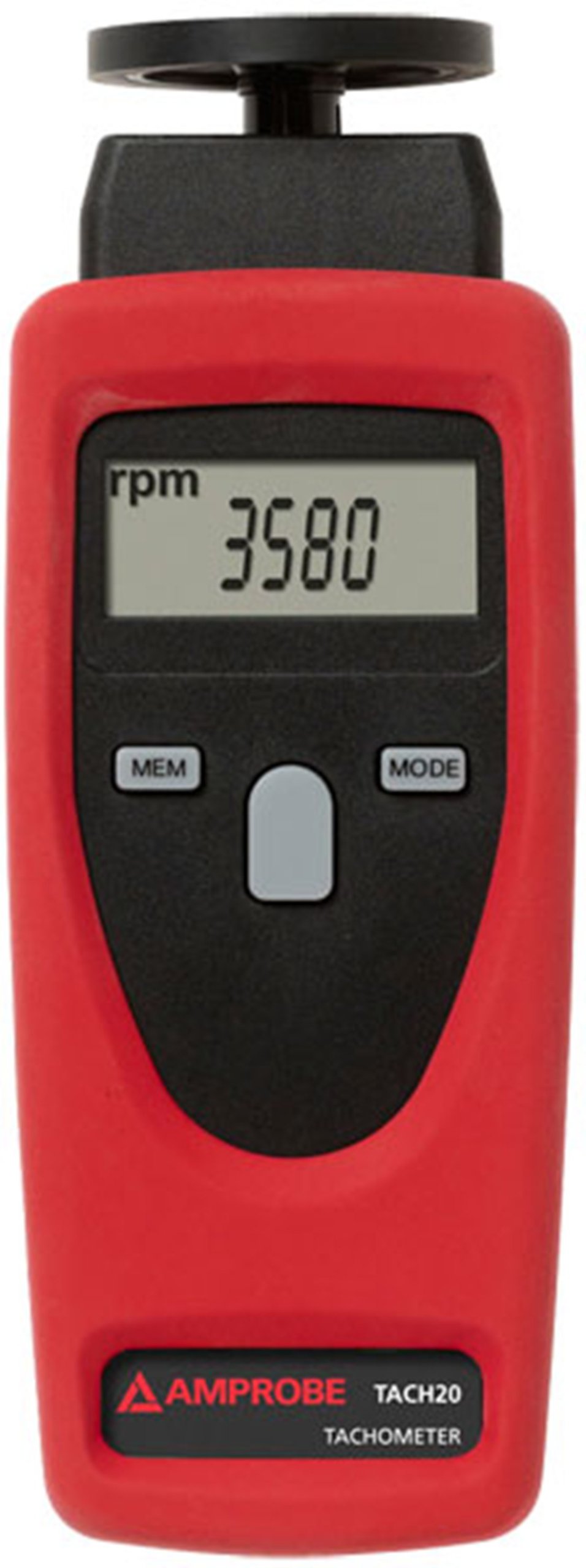

Amprobe TACH-20 Contact and Non-Contact Tachometer

Be the first to review this item

ASIN B005E0Y3X6

Specifications for this item
Number of Items
1
Overall Height
76.2  millimeters
Overall Width
157.98  millimeters
Part Number
3311961
Temperature Range
0/50  Degrees Celsius
UPC
095969463881
Brand Name
Amprobe
EAN
0095969463881
Measurement Accuracy
+/- 5 C
UNSPSC Code
41112802
Display
Liquid Crystal Display (LCD) with a maximum reading of 19999
Special Features
Automatic, positive implied, negative polarity indication.
Overall Length
241.3  millimeters

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures rotational and surface speed
  • Easy to select units and mode functions
  • Contact and non-contact measurement
  • Built-in memory
  • Combination contact and non-contact measurements for measuring rotational speed of motors, conveyor belts, and other moving and rotational systems
  • Contact measurements in RPM, m/min, m/ sec, ft./min, ft./sec, in./min, m, ft., or in. and non-contact measurement in RPM for flexibility of use
  • Measurements accurate to + or - 0.02%
  • LCD display measures 15 x 33mm (0.6 x 1.3 inches) for readability

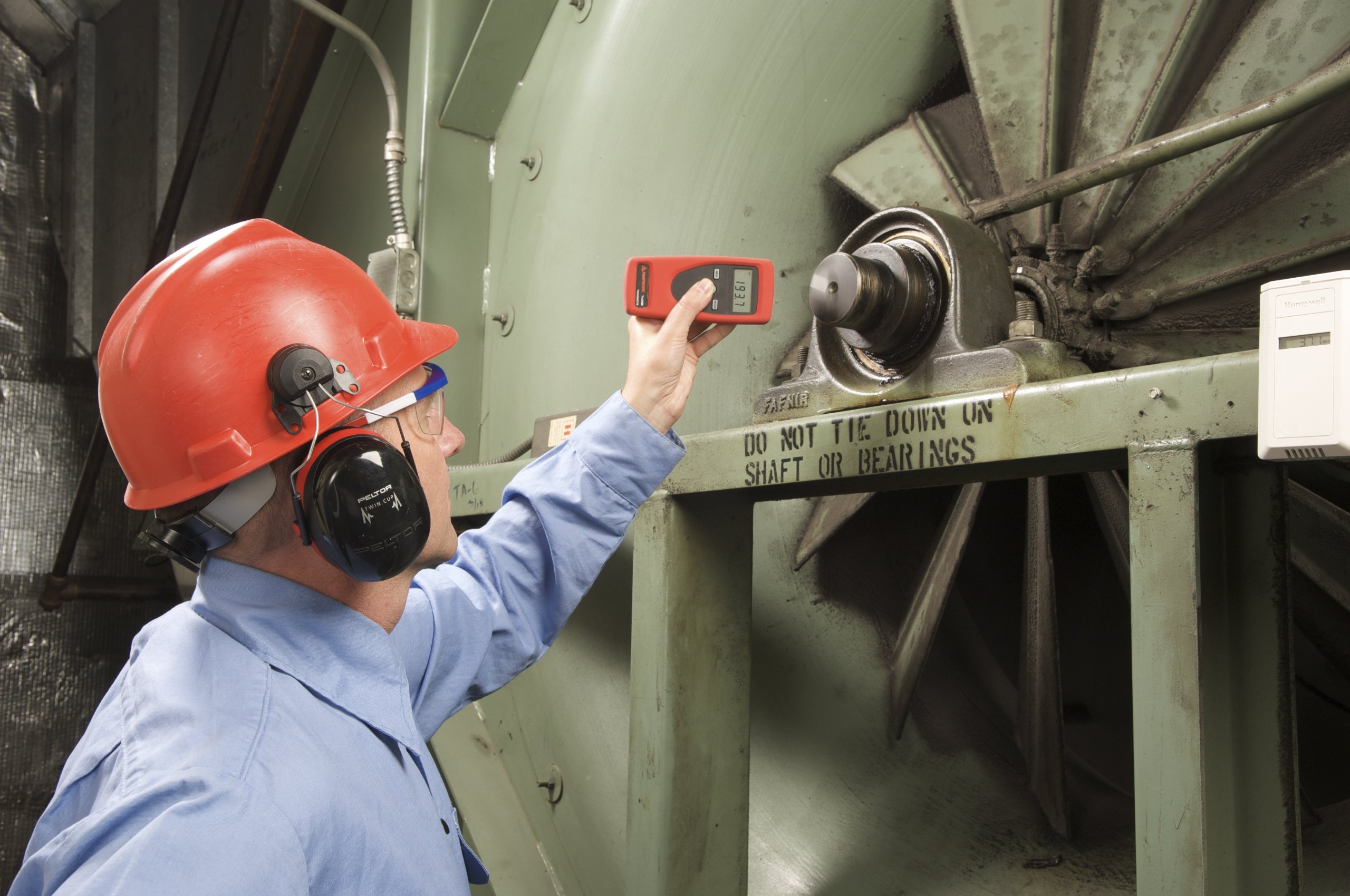

  • Non-contact measurements using infrared beam function at a distance of 5 to 600mm (2 to 24 inches)

Package Details

Shipping Weight: 1.1 pounds
Package Size: 9 x 7.6 x 1.9 inches

Product Description

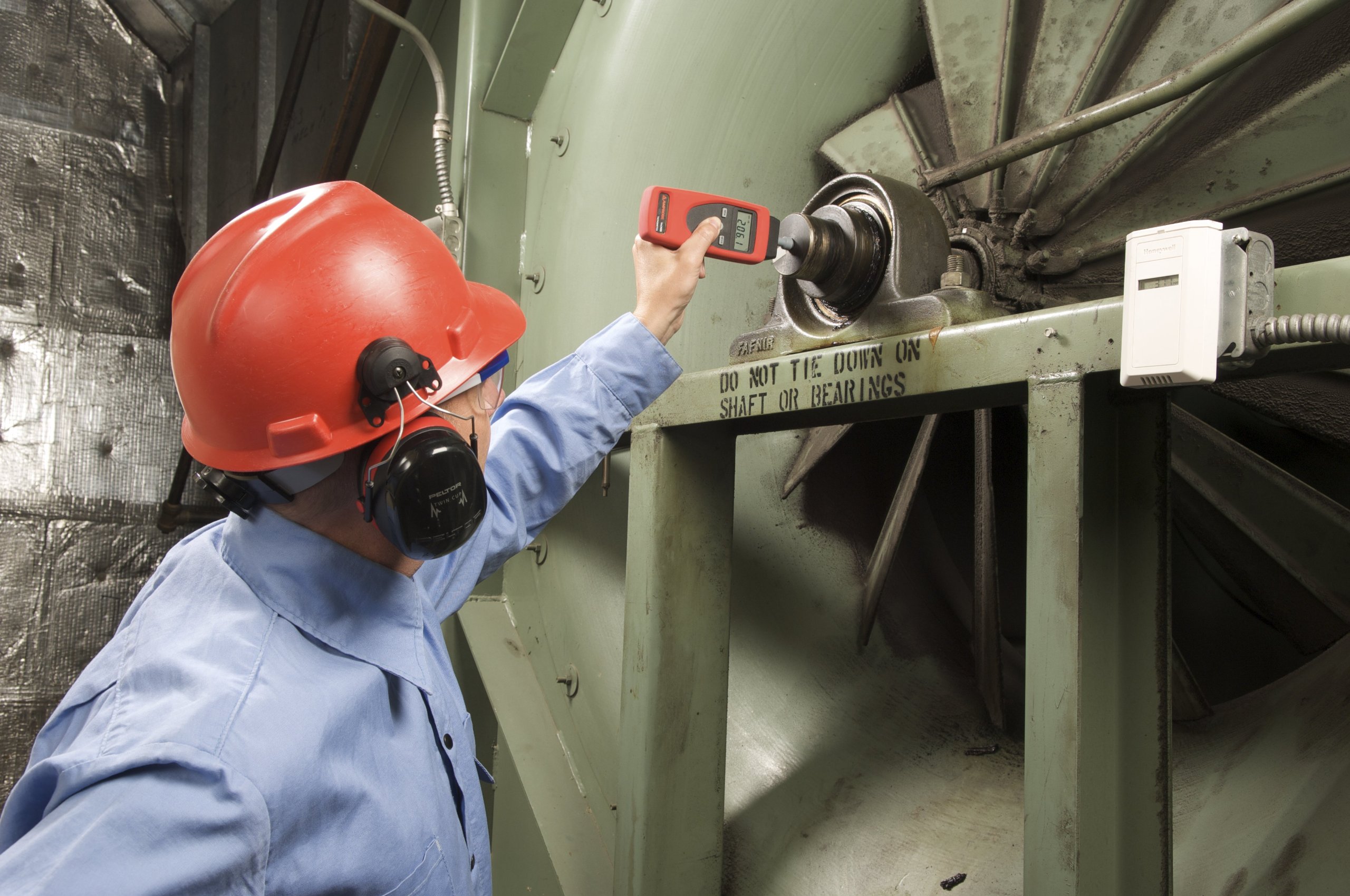

The Amprobe TACH-20 combination contact and non-contact tachometer measures rotational and surface speed of motors, conveyor belts, and other moving systems. Contact measurements can be taken in revolutions per minute (RPM), meters per minute, meters per second, feet per minute, feet per second, inches per minute, meters, feet, or inches, while non-contact measurements can be taken in RPM. All measurements are accurate to + or - 0.02%. The tachometer has a 15 x 33mm (0.6 x 1.3 inches) LCD display that presents test results and unit of measurement. Non-contact measurements are taken using an infrared beam function that works at a distance of 5 to 600mm (2 to 24 inches) from the target. The unit comes with six different contact tips for measuring shafts with center holes and flat-end surfaces. The TACH-20 is designed for use by mechanics, mechanical engineers, and industrial equipment operators.

Specifications

Power supply (1) 9V battery
Non-contact rotation range 10 to 99,999 RPM
Contact rotation range 10 to 19,999 RPM
Contact surface speed ranges (1m diameter) 0.10 to 1,999.9 m/min, 0.40 to 6,550 ft./min, 4 to 78,700 in./min, 0.10 to 33.30 m/sec,0.10 to 109 ft./sec
Length range 0 to 99,999m, 0 to 99,999 ft., 0 to 99,999 in.
Dimensions 175 x 60 x 28mm/7 x 2.5 x 1 inches (H x W x D)
LCD dimensions 15 x 33mm/0.6 x 1.3 inches
Weight (including batteries) 250g (0.55 lb.)
Safety standard met International Electrotechnical Commission (IEC)/European Standards (EN) 61010-1 Cat III 1000V and Cat IV 600V

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Tachometers measure the rate of rotation or surface speed of motors, conveyor belts, and other moving systems. Tachometers are installed in cars, boats, and other motor vehicles to monitor the engine’s RPM. Handheld tachometers verify the accuracy of these installed tachometers. Tachometers may take contact or non-contact measurements. Contact tachometers take measurements through direct contact with the moving surface, while non-contact tachometers take measurements from a distance using a beam of infrared light. Contact tachometers can measure both RPM and surface speed. Non-contact tachometers only calculate RPM but are safer because they do not require the operators to be in close contact with the moving surface. Contact tachometers typically come with a range of tips that can be used to measure speed on different kinds of rotary systems. These may include tips used for measuring shafts with a central hole or flat end surfaces, and rotary wheels for measuring conveyor belts. Tachometers are used in applications such as automobile maintenance, mechanical engineering, and maintenance of industrial equipment.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • TACH-20 Contact and Non-Contact Tachometer
  • Reflective tape
  • (1) 9V battery (installed)
  • Instructions
