Amprobe SOLAR-500 Solar Power Analyzer

Be the first to review this item

ASIN B00460SONU

Specifications for this item
Number of Items
1
Overall Height
76.2  millimeters
Overall Width
158  millimeters
Part Number
3474987
UPC
095969499224
Item Weight
3 pounds
Brand Name
Amprobe
EAN
0095969499224
Measurement Accuracy
+/- 5 C
UNSPSC Code
41113708
Display
Liquid Crystal Display (LCD) with a maximum reading of 19999
Special Features
Automatic, positive implied, negative polarity indication
Overall Length
241.3  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 16? Order in-stock items in the next 14 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Evaluates energy output, efficiency, and placement of solar panels, helps determine proper inverter size in solar power systems, and identifies malfunctioning solar cells
  • Measures maximum power (Pmax), maximum voltage at maximum power (Vmaxp), and maximum current at maximum power (Imaxp) to determine actual power output of a solar panel in normal operating conditions
  • Choice of auto scan, for an overview of the power characteristics of a solar panel, or manual scan, for focusing on a particular operating range or single test point for measurements
  • Test results can be stored in the meter's memory for future reference
  • Alarm sounds when power measurements drop below a user-adjustable preset threshold

Package Details

Shipping Weight: 5.2 pounds
Package Size: 11.3 x 8 x 7.4 inches

Product Description

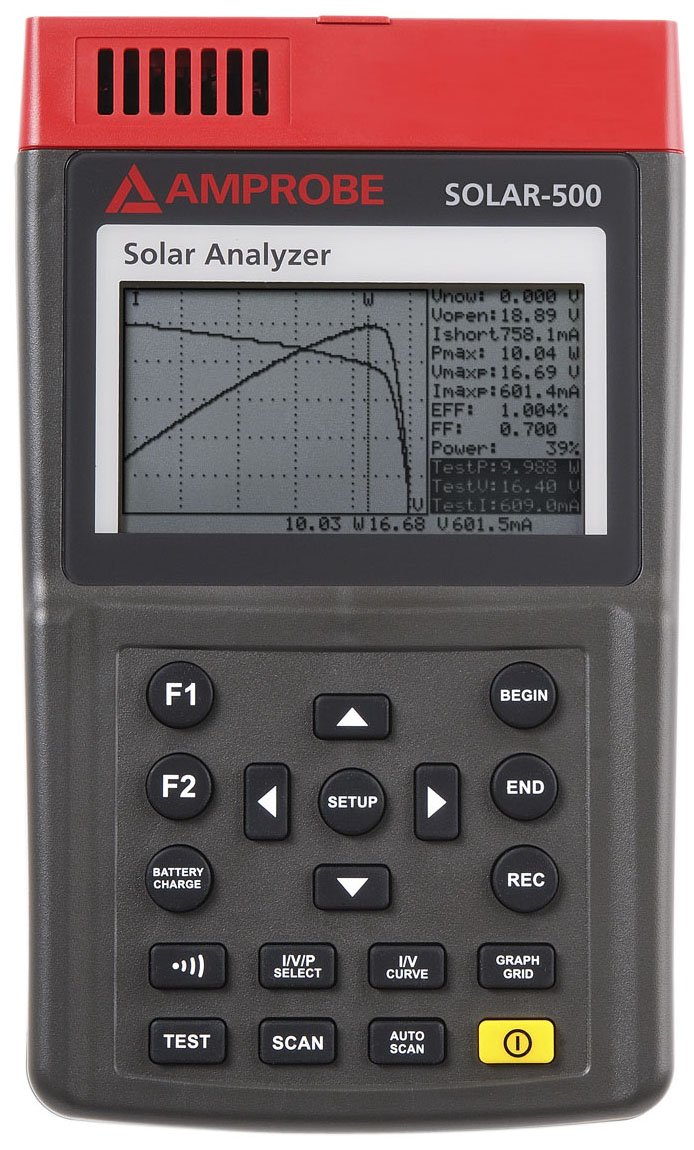

The Amprobe Solar-500 solar power analyzer evaluates the energy output, efficiency, and placement of solar panels, helps determine the proper inverter size in solar power systems, and identifies malfunctioning cells on solar panels. It measures maximum power (Pmax), maximum voltage at maximum power (Vmaxp), maximum current at maximum power (Imaxp), voltage at open circuit, voltage present in system, current at short circuit, and percent efficiency to determine the actual power output of a solar panel in normal operating conditions. The operator can choose between an auto scan mode, for an overview of the power characteristics of a solar panel, or a manual scan mode, for focusing on a particular operating range or single test point for measurements. The operator can store readings in the meter's memory for future reference. An alarm sounds when power measurements drop below a user-adjustable preset threshold. A built-in calendar and clock track the timing of recorded events, such as power measurements. The meter's liquid crystal display (LCD) shows readings both in digits and as a curve on a graph. The meter comes with a set of test leads and two Kelvin clips for secure, hands-free connection to a conductor. The meter operates on eight rechargeable batteries (installed) and comes with a built-in battery charger with an external power adaptor. The meter's low-battery indicator signals when the batteries need to be charged. The meter has a USB port and comes with a data cable for connecting the meter to a computer. It also comes with software that provides a graphical user interface for transferring data from the meter to a computer running the Windows Vista, XP, or 2000 operating system. A tilt stand on the back of the meter allows it to be propped on a surface for hands-free operation. The unit comes with a nylon carrying case with shoulder strap to help protect against bumps and abrasions during transport and storage.

Specifications

Maximum direct current (DC) input6 amp
Maximum DC current simulation6 amp
Current accuracy+ or - 1% of + or - (1% of Ishort + or - 0.9 milliamp), to + or - 1% of + or - (1% of Ishort + or - 9 milliamp)
Current resolutionfrom 0.1 to 1 amp
Maximum DC voltage60 volts (V)
Voltage accuracy+ or - 1% of + or - (1% of Vopen + or – 9 millivolts), to + or - 1% of + or - (1% of Vopen + or - 0.09V)
Voltage resolutionfrom 0.001 to 0.01V
Maximum power360 watts (W)
Operating temperature and humidity 0 to 50 degrees Celsius/32 to 122 degrees Fahrenheit, with less than 85% relative humidity
Temperature coefficient0.1% of full scale/degrees C, at less than 18 degrees C or greater than 28 degrees C
Scan delay setting range0 to 3,000 milliseconds
Solar panel area setting range0.001 to 9,999 square meters
Standard light source setting range10 to 1,000 watts per meter squared (W/m2)
Fuse5 amp/250V (installed)
Power supplyRechargeable AA batteries (eight, installed)
Standards metEuropean Conformity (CE); N10140 Australian
Weight40 oz. (1,160 g)
Meter dimensions10.1 x 6.1 x 2.2 inches/257 x 155 x 57 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Industrial power meters measure electrical properties such as voltage, current, power, and energy to monitor the efficiency and performance of a power system. They are used for designing, installing, and maintaining industrial, commercial, and residential power supply systems. More advanced models have features for comparing and recording multiple measurements taken at different times and in different areas.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

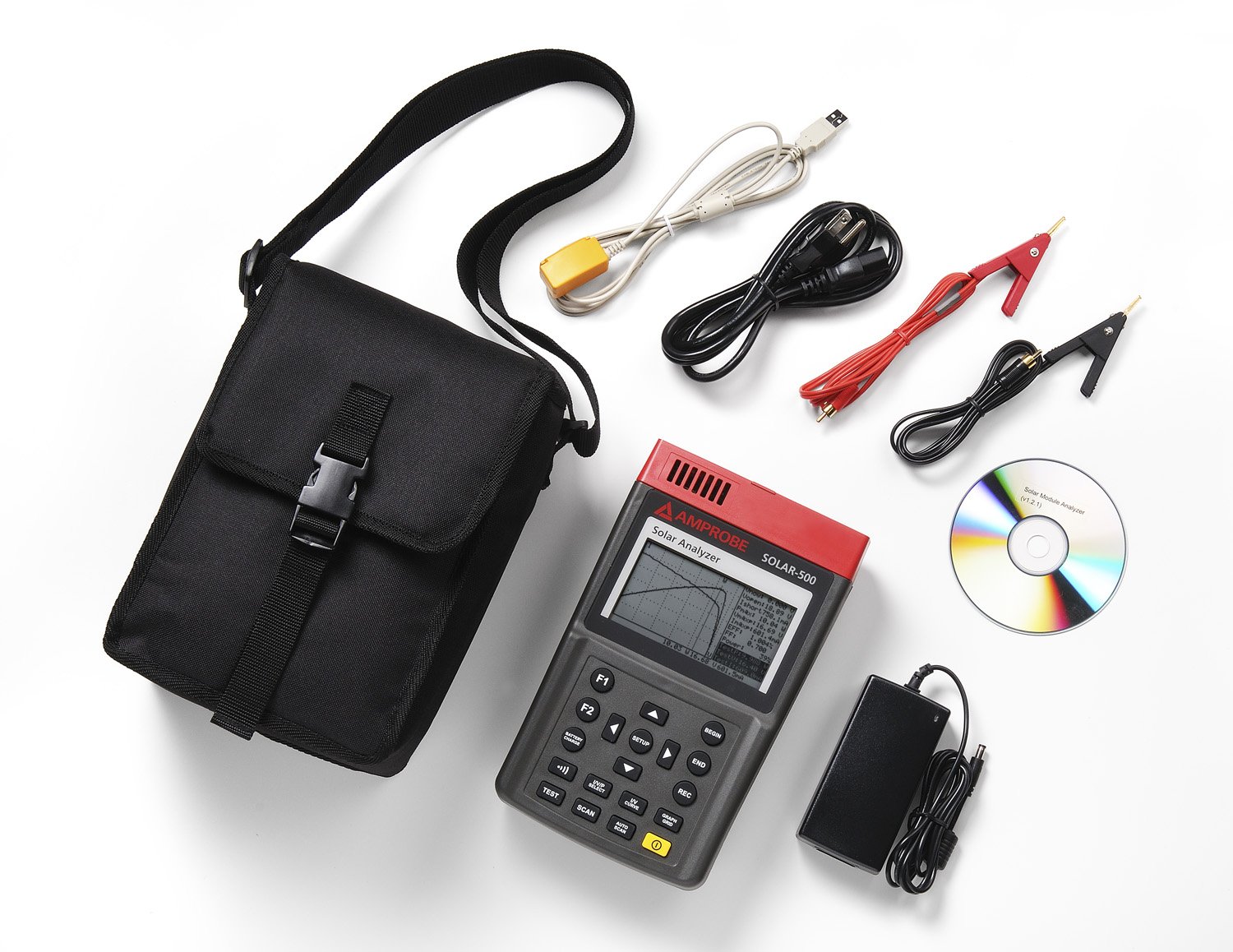

What’s in the Box?

  • Amprobe Solar-500 solar analyzer
  • (2) Kelvin clips
  • (8) rechargeable AA batteries (installed)
  • Power adaptor
  • Software CD
  • Software manual
  • RS232C data cable
  • Carrying case
  • Instructions
