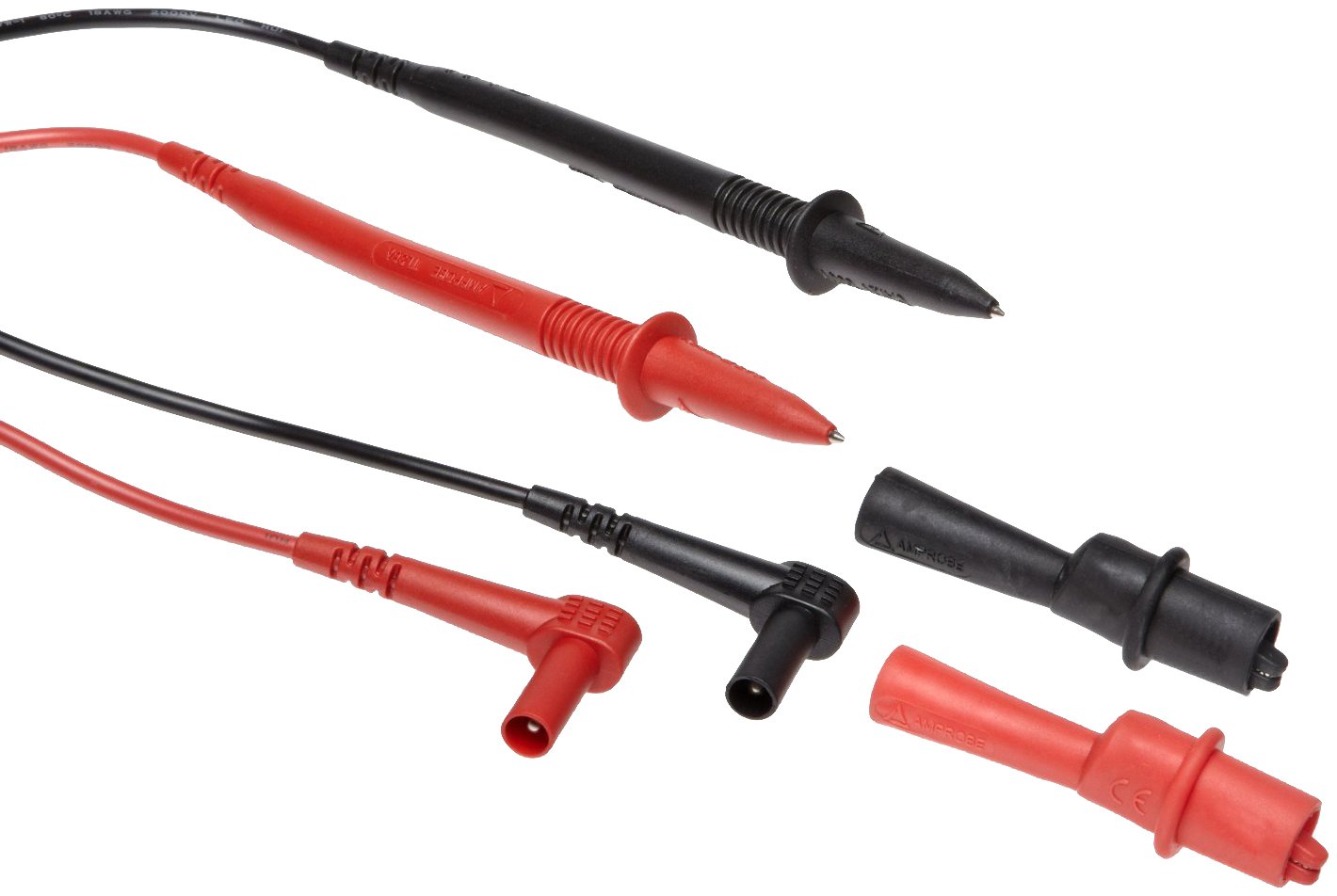

Amprobe MTL-90B PVC Test Leads

Be the first to review this item

ASIN B0029XL596

Specifications for this item
Number of Items
1
Overall Height
660  millimeters
Overall Width
99  millimeters
Part Number
2733170
Temperature Range
-40/55  Degrees Celsius
UPC
095969368223
Brand Name
Amprobe
EAN
0095969368223
UNSPSC Code
41111905
Display
Digital Display
Overall Length
252  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 13 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Test lead set connects a compatible electrical test meter to a device for testing
  • Set includes two 48" lead wires with standard probe tips and two alligator clips
  • 2.67" alligator clips have 0.30" jaw opening and teeth that grip the conductor to provide a more secure, hands-free connection than probe tips
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V

Package Details

Shipping Weight: 0.2 pounds
Package Size: 8.9 x 3.8 x 0.9 inches

Product Description

The Amprobe MTL-90B test lead set contains two PVC-insulated lead wires with standard probe tips and two alligator clips for connecting a compatible electrical test meter to a device in electrical testing applications. The 48" lead wires have PVC insulation to protect hands from shock and heat. The lead wires have standard probe tips that are held against the conductor during testing. The alligator clips (also known as crocodile clips) fit onto the probe tips and have teeth that grip the conductor to provide a more secure, hands-free connection than the probe tips. The clips are 2.67" long and have a 0.30" jaw opening. The lead wires can be used with testing devices that have universal 4 mm jacks. The set meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V, which covers items used with enclosed building circuit installations (service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). It also conforms to applicable European Conformity (CE) directives.

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • (2) test leads
  • (2) standard probe tips
