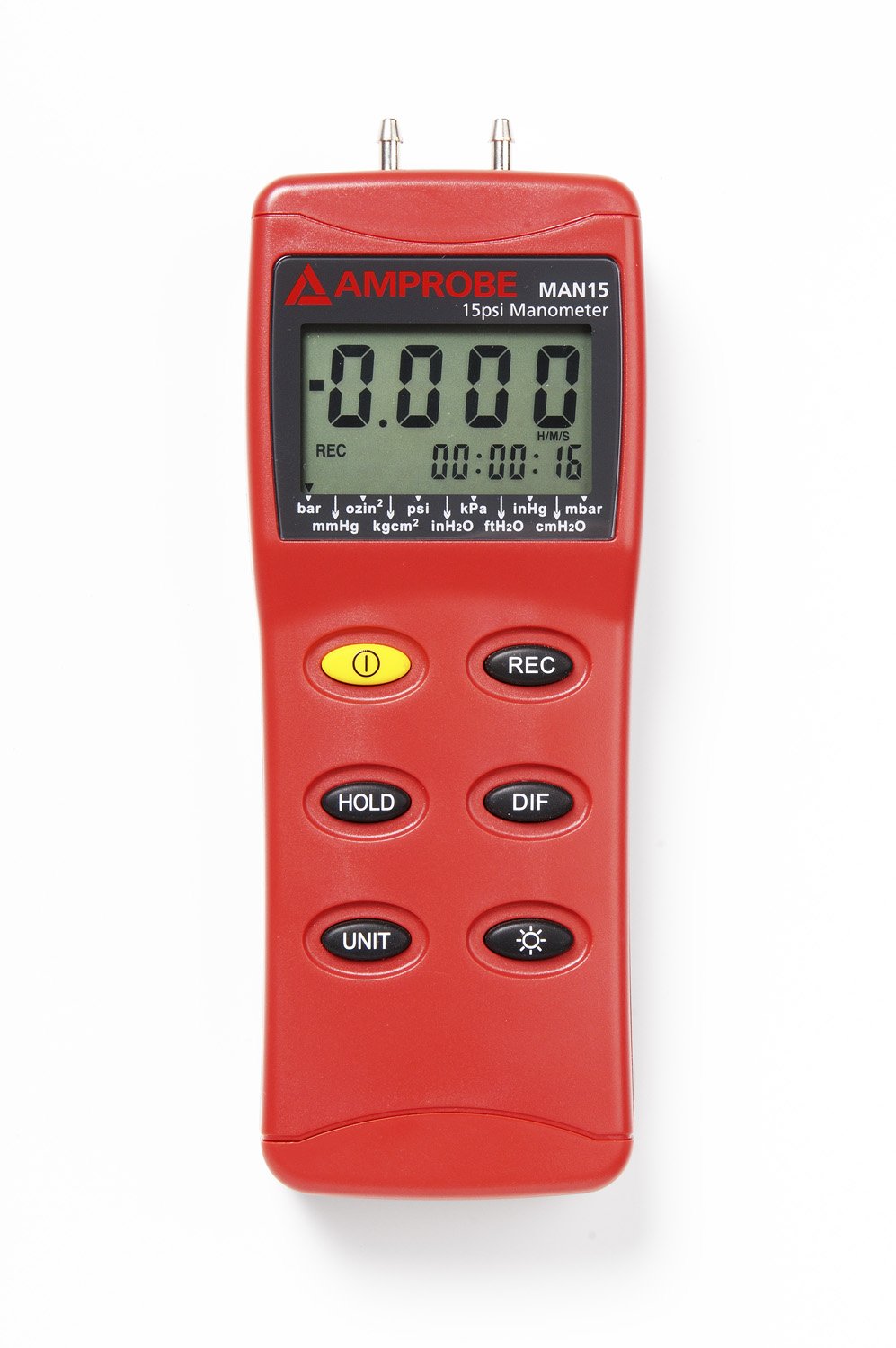

Amprobe MAN15 Differential Pressure Manometer, 0-15 psi

Be the first to review this item

ASIN B005GUF8EW

Specifications for this item
Number of Items
1
Overall Height
16  millimeters
Overall Width
42  millimeters
Part Number
3474993
Temperature Range
-20/70  Degrees Celsius
UPC
095969499231
Brand Name
Amprobe
EAN
0095969499231
UNSPSC Code
41103311
Display
Liquid Crystal Display (LCD)
Overall Length
175  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 13 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures gauge or differential pressure up to 15 pounds per square inch (psi) in heating, ventilation, and air-conditioning (HVAC) applications and in devices with valves and pneumatic controls, such as medical equipment
  • Choice of 11 units of measurement
  • Hold function keeps a reading on display, even after meter is disconnected or pressure measurement changes
  • Record function stores the maximum and minimum readings in each session to track sudden increases and decreases in pressure
  • Clock keeps track of the time of measurement events so that pressure measurements can be analyzed in relation to other concurrent events and pressure fluctuation patterns can be spotted

Package Details

Shipping Weight: 1.5 pounds
Package Size: 11.9 x 7.9 x 2.7 inches

Product Description

The Amprobe Man15 digital manometer with USB port measures gauge or differential pressure up to 15 pounds per square inch (psi) in heating, ventilation, and air-conditioning (HVAC) applications and in devices with valves and pneumatic controls, such as medical equipment. It provides readings in feet of water (ftH2O), inches of water (inH2O), centimeters of water (cmH2O), millimeters of water (mmH2O), inches of mercury (inHg), millimeters of mercury (inHg), pounds per square inch (psi), ounces per square inch (ozin2), kilograms per square centimeter (kgcm2), kilopascals (kPa), bar, and millibar (mbar). The meter's hold function keeps a reading on display, even after the meter is disconnected or the pressure measurement changes. The record function stores the maximum and minimum reading in each session to track sudden increases and decreases in pressure. A clock keeps track of the time of measurement events, such as maximum or minimum readings, so that pressure measurements can be analyzed in relation to other concurrent events and patterns in pressure fluctuations can be spotted. The manual zero function sets the display to zero when no pressure is applied to the connectors. The meter's backlit liquid crystal display (LCD) is readable in low light. Two connection hoses are included for connecting the meter to the system to be measured. The meter has a USB port for connecting the meter to a computer using a data cable (not included) in order to transfer data and record continuous measurements. The meter operates on one 9V battery (installed), and it automatically turns off after 20 minutes of non-use to conserve battery life. It weighs 0.485 lb. (220 g) and measures 7.16 x 2.83 x 1.18 inches (182 x 72 x 30 mm, H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). The meter comes with a hard carrying case to help protect it against bumps and abrasions during storage and transport. It meets European Conformity and Australia N10140 standards.

p>Manometers measure the pressure of a liquid or gas. They are used in laboratory, medical equipment, engineering, automotive, and heating, ventilation, and air-conditioning applications. Manometers measure any combination of gauge, absolute, or differential pressures. Gauge pressure is the amount of pressure in a system relative to the ambient pressure, absolute pressure is the amount of pressure in a system relative to an absolute vacuum, and differential pressure is the difference between two pressures. Analog manometers are composed of columns of liquid, and they use gravity and the liquid's density to calculate pressure. Because they have no moving parts, analog manometers do not require re-calibration. Digital manometers have pressure sensors that are connected to a system with a hose to provide a digital readout of the amount of pressure present in a system. They use microprocessors to calculate pressure, and they require periodic calibration to help ensure accuracy.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

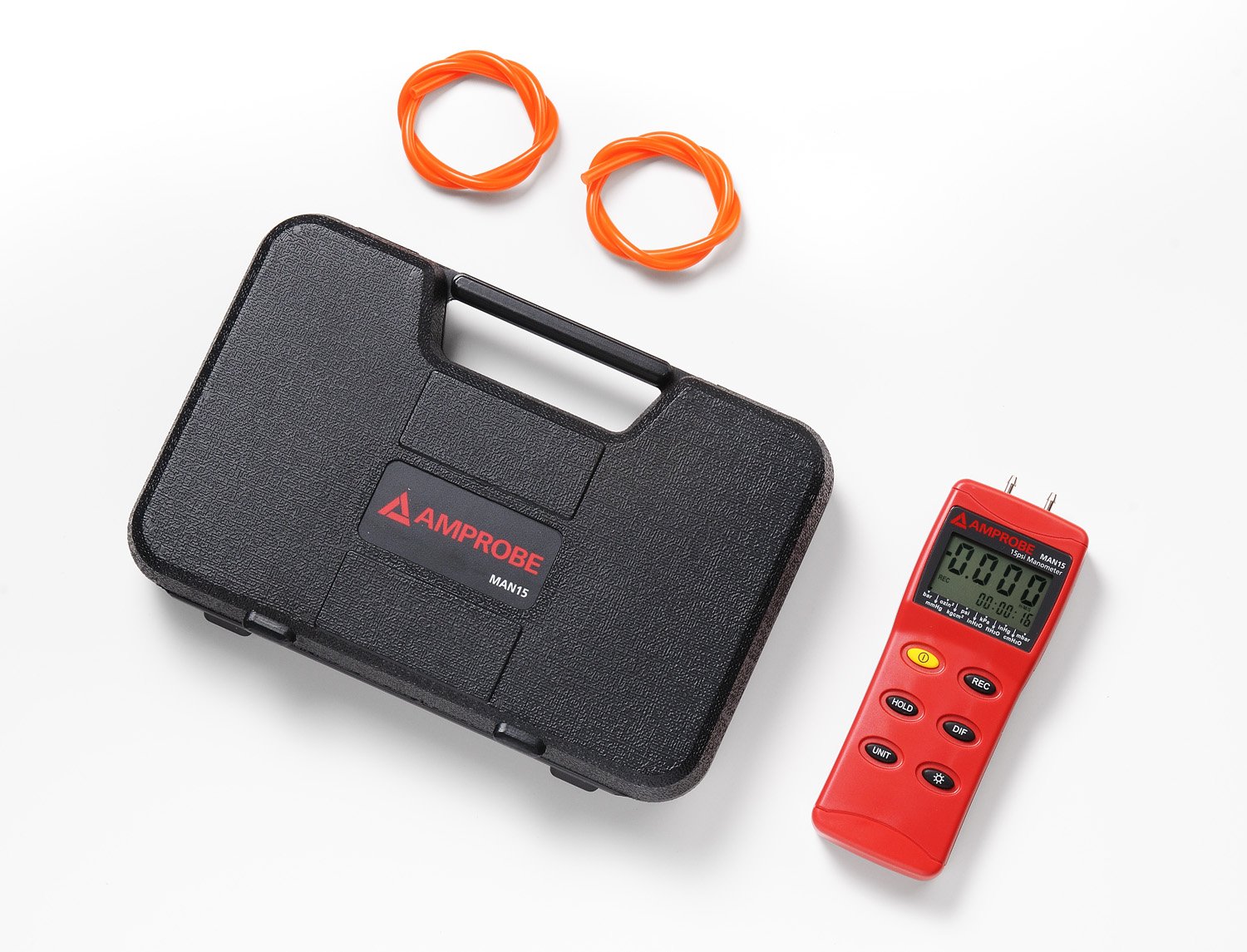

What’s in the Box?

  • Man15 digital manometer
  • (2) connection hoses
  • (1) 9V NEDA 1604A or IEC 6LR61 battery (installed)
  • Carrying case
  • Instructions
