Amprobe LM-200 LED Light Meter, Silicon Photodiode and Filter

Be the first to review this item

ASIN B005E0Y1KG

Specifications for this item
Number of Items
1
Overall Height
38  millimeters
Overall Width
63  millimeters
Part Number
3730217
Temperature Range
0/40  Degrees Celsius
UPC
095969556897
Brand Name
Amprobe
EAN
0095969556897
Measurement Accuracy
+/- 3%s
UNSPSC Code
41115300
Display
Liquid Crystal Display (LCD)
Overall Length
130  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 17 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Dual-scale meter measures light output from LED light sources up to 400,000 lumens per square meter (lux) or 40,000 footcandles (fc)
  • Silicon diode sensor and filter are designed for indoor use at altitudes below 2,000 meters
  • Built-in memory stores up to 99 records, data hold freezes readings on the display, maximum recording displays the highest reading, and angled light cosine correction corrects for angled light
  • Complies with Japanese Industrial Standard (JIS) C1609:1993 and CNS 5119 general A-class specifications, and European Community Directives: 89/336/EEC (Electromagnetic Compatibility) and 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE Marking)
  • Powered by a 9V battery (included), and includes a 1.5-meter wire for positioning light sensor, and a protective sensor cap

Package Details

Shipping Weight: 1 pounds
Package Size: 11.3 x 6.2 x 2.8 inches

Product Description

The Amprobe LM-200LED light meter measures up to 400,000 lumens per square meter (lux) or 40,000 footcandles (fc) of light output from LED light sources, has a silicon diode sensor and filter, and is designed for indoor operation at altitudes below 2,000 meters. The dual-scale meter also features built-in memory that stores up to 99 records, a data hold feature that freezes readings on the display, a maximum recording option to display the highest reading, and angled light cosine correction to calculate the amount of light, regardless of the light's angle.

The meter is powered by a 9V battery (included) which has an average life of 200 hours. The sensor has a 1.5-meter wire for positioning the light sensor, and a protective sensor cap.

Specifications

Range 40 lux, 400 lux, 4,000 lux, 40,000 lux, 400,000 lux, 40 fc, 400 fc, 4,000 fc, 40,000 fc
Sampling rate 2.5 times per second for digital display
Accuracy + or - 3 percent (calibrated to standard incandescent lamp at 2,856 degrees K), + or - 6 percent for other visible light sources
Angle deviation from cosine, 30 degrees + or - 2 percent
Angle deviation from cosine, 60 degrees + or - 6 percent
Angle deviation from cosine, 80 degrees + or - 25 percent
Polarity Automatic, positive implied, negative polarity indication
Operating temperature 14 to 104 degrees F (-10 to 40 degrees C) at less than 80 percent relative humidity
Storage temperature 14 to 122 degrees F (-10 to 50 degrees C) at 0 to 70 percent relative humidity
Dimensions Base is 5.1 x 2.5 x 1.5 inches/130 x 63 x 38 mm, sensor is 3.2 x 2.2 x 1.1 inches/80 x 55 x 29 mm (H x W x D)
Weight .48 lb. (220 g) (including battery)
Standards Japanese Industrial Standard (JIS) C1609:1993 and CNS 5119 general A-class specifications, and European Community Directives: 89/336/EEC (Electromagnetic Compatibility) and 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE Marking)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Light meters measure luminous intensity, or light, and are commonly used in a wide range of industries and settings including photography, video filming, galleries, schools, laboratories, and greenhouses to help determine the brightness of light.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

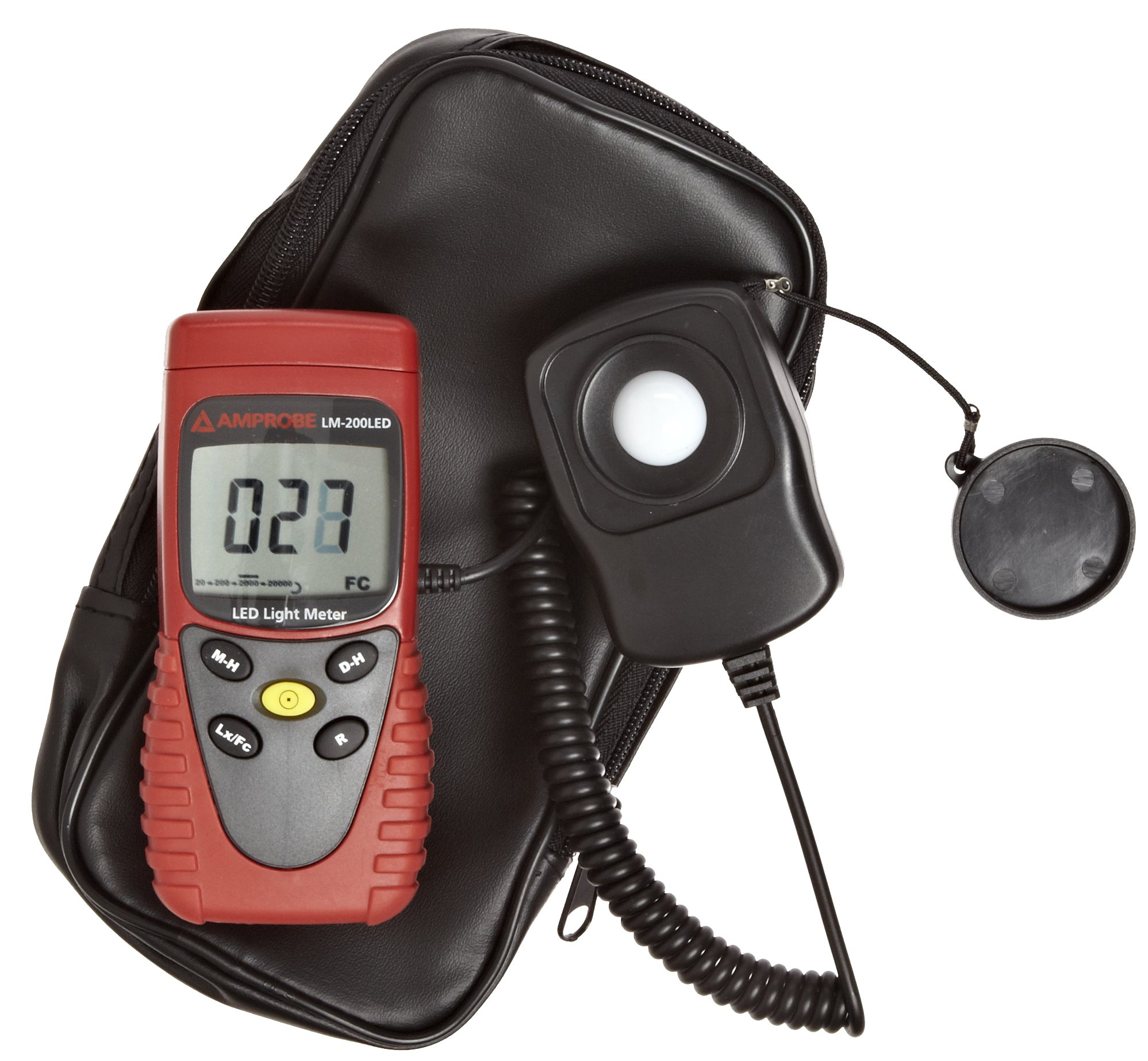

What’s in the Box?

  • LM-200LED light meter and sensor
  • 9V battery
  • Carrying case
  • Instructions
