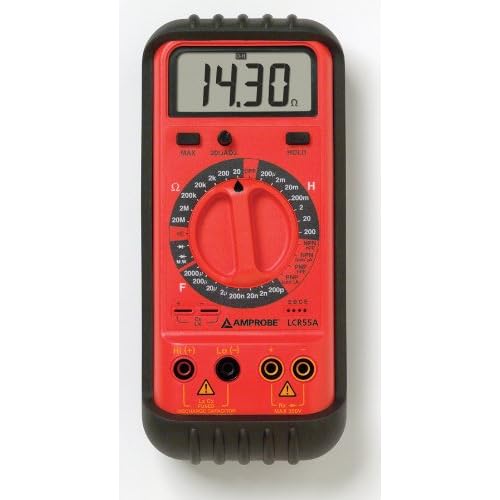

Amprobe LCR55A Inductance, Capacitance, and Resistance Tester

Be the first to review this item

ASIN B003AHAOU6

Specifications for this item
Number of Items
1
Overall Height
38  millimeters
Overall Width
71  millimeters
Catalog Number
LCR55A
Part Number
3026976
Temperature Range
32/122  Degrees Fahrenheit
UPC
095969414753 , 013227020461
Brand Name
Amprobe
EAN
0013227020461 , 0095969414753
Display
Liquid Crystal Display (LCD)
Overall Length
181  millimeters
List price:
$212.95
Price:
$172.30
You save:
$40.65 (19%)
Quantity:

In Stock (6)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 7 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Tests capacitance, resistance, and inductance, and checks transistors and diodes to verify functionality and compatibility of electrical circuits and devices
  • Zero-adjust pots help eliminate stray capacitance, resistance, and inductance for more accurate readings
  • Comes with a set of detachable test leads with test probe tips and two alligator clips for a more secure, hands-free connection than probe tips
  • Diode and transistor test checks for proper functioning of the circuit's diodes and transistors, including microwave diodes
  • Audible continuity buzzer confirms that a circuit is capable of conducting current

Package Details

Shipping Weight: 1.1 pounds
Package Size: 8.4 x 8.2 x 1.9 inches

Product Description

The Amprobe LCR55A digital inductance, capacitance, and resistance tester checks functionality and compatibility of electrical circuits and devices in home and industrial maintenance applications. When set to the low resistance, low capacitance, or low inductance ranges, the unit's zero-adjust pots help eliminate stray capacitance, resistance, and inductance for more accurate readings. The included set of detachable test leads have test probe tips that are held against the conductor during use and shrouded banana plugs that help prevent shock if the plugs accidentally pull out of the meter while in use. The meter also comes with two alligator clips that fit onto the test probe tips to provide a more secure, hands-free connection than the probe tips. The meter's diode and transistor test checks for proper functioning of a circuit's diodes and transistors, including microwave diodes. An audible continuity buzzer confirms that a circuit is capable of conducting current. The maximum reading mode displays the highest reading in a session to track a sudden increase or decrease in readings. The hold function keeps a reading on the display even after meter is disconnected. The Amprobe LCR55A is a manual-ranging meter and requires that the operator choose the appropriate operating range. The liquid crystal display (LCD) has a 2,000-count resolution, meaning it can display up to 1,999 units (3-1/2 digits) before the operating range needs to be changed. A low-battery indicator signals when the batteries need to be replaced. The meter comes with a carrying holster.

Specifications

Maximum resistance detected20 megaohms
Maximum capacitance detected2,000 microfarads
Maximum inductance detected200 henrys (H)
Power supply9V NEDA 1604, JIS 006P, or IEC 6F22 transistor battery (one, installed)
Fuse0.1 amp/250V fuse (one installed, one spare)
Standards metEuropean Conformity (CE), International Electrotechnical Commission (IEC) and European Normal (EN) 61010-1, N10140 Australia
Weight11 oz./311 g
Dimensions7.2 x 3.1 x 1.5 inches/183 x 79 x 38 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • LCR55A inductance, capacitance, and resistance tester
  • (1) Set of test leads
  • (2) Alligator clips
  • (1) 9V battery (installed)
  • (2) 0.1 amp/250V fuse (one installed, one spare)
  • Carrying holster
  • Instructions
