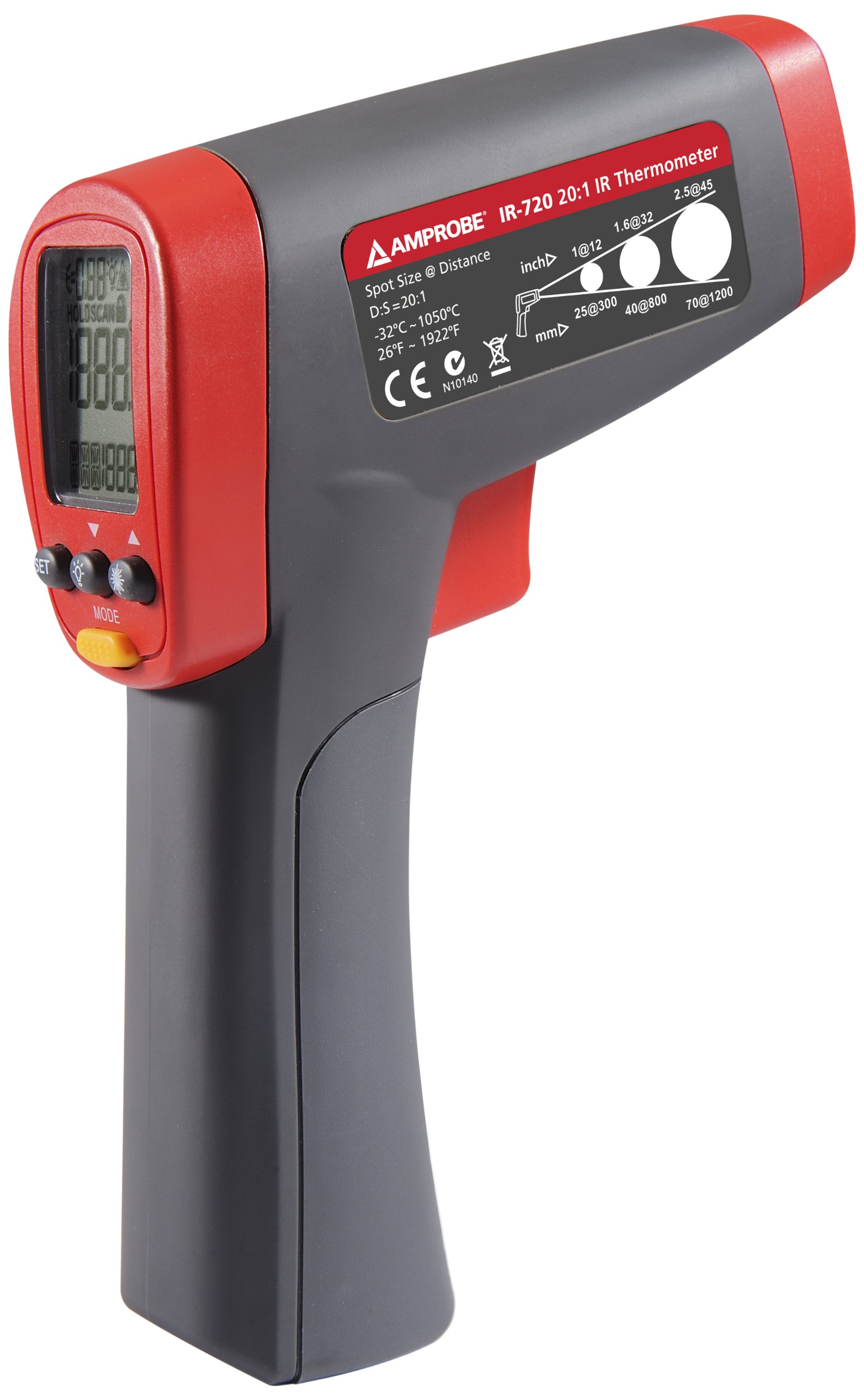

Amprobe IR-720 Infrared Thermometer, -26F to 1922F Range, 20:1 Ratio

Be the first to review this item

ASIN B006K3M8UQ

Specifications for this item
Number of Items
1
Overall Height
30  millimeters
Overall Width
72  millimeters
Catalog Number
IR-720 , IR720
Part Number
4109575
Temperature Range
0/50  Degrees Celsius
UPC
095969614337
Brand Name
Amprobe
EAN
0095969614337
Measurement Accuracy
+/- 0.3 %
Display
Liquid Crystal Display (LCD)
Overall Length
182  millimeters
List price:
$129.95
Price:
$102.13
You save:
$27.82 (21%)
Quantity:

In Stock (22)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 16 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Infrared thermometer with 20:1 Distance-to-Spot (D:S) ratio, and a minimum spot size of 25mm is used in quality control and HVAC, industrial, and automotive maintenance
  • Dual-scale temperature readings range from -26 to 1,922 degrees F (-32 to 1,050 degrees C)
  • Single laser pointer for more accurate targeting
  • Emissivity is digitally adjustable from 0.10 to 1.00, in increments of 0.01, for testing a variety of materials
  • Backlit LCD screen has eight-second display hold for reading temperature, maximum and minimum temperature display, and low battery indicator

Package Details

Shipping Weight: 1.25 pounds
Package Size: 11.1 x 7.3 x 2.9 inches

Product Description

The Amprobe IR-720 infrared thermometer is designed to measure temperature in a variety of HVAC, electrical, automotive, industrial maintenance, quality control, and fire prevention applications. The meter has a 20:1 distance-to-spot (D:S) ratio, and a minimum spot size of 25mm. Emissivity is digitally adjustable from 0.10 to 1.00, in increments of 0.01, for testing a variety of materials. A single laser pointer helps ensure more accurate targeting. The backlit LCD display has an eight-second hold for reading temperature, and a low battery indicator to help prevent false readings. The meter also displays maximum, minimum, average, and difference temperature A tripod mount stabilizes the meter for reading that require extended time.

Dual-scale temperature readings range from -26 to 1,922 degrees F (-32 to 1050 degrees C), with a resolution of 0.1 degrees F (0.1 degrees C). The device operates on one 9V alkaline battery, which provides approximately 10 hours of use with the laser and backlight on, or 30 hours of use with the laser and backlight off.

Specifications

Accuracy (with ambient operating temperature of 70 to 77 degrees F) For temperatures -26 to 32 degrees F, accuracy is + or - 1.8 percent + 2 degrees F, or + or - 6 degrees F, whichever is greater; for temperatures 32 to 1922 degrees F, accuracy is + or - 1.8 percent, or + or - 4 degrees F, whichever is greater
Accuracy (with ambient operating temperature of 21 to 25 degrees C) For temperatures -32 to 0 degrees C, accuracy is + or - 1.8 percent + 1 degrees C, or + or - 2.8 degrees C, whichever is greater; for temperatures 0 to 1050 degrees C, accuracy is + or - 1.8 percent, or + or - 1.8 degrees C, whichever is greater
Repeatability + or - 0.5 percent of reading, or + or - 1 degree F (0.5 degree C), whichever is greater
Spectral response 8 to 14 microns
Laser sighting and power Single-point laser with output greater than 1 milliwatt Class 2, wavelength is 630 to 670 nanometers
Response time (95%) 500 milliseconds
Operating temperature 32 to 104 degrees F (0 to 40 degrees C), at less than 75 percent relative humidity (non-condensing)
Storage temperature -4 to 150 degrees F (-20 to 65 degrees C)
Dimensions Approximately 6.7 x 5.4 x 2.1 inches (169 x 138 x 53 mm) (H x W x D)
Weight Approximately 0.64 lb. (290g), with battery installed

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Thermometers are used to measure temperature for various applications such as education, general purpose Quality Control (QC) labs and research lab testing, and for biological process monitoring.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA

What’s in the Box?

  • IR-720 Thermometer
  • 9V alkaline battery
  • Carrying bag
  • Instructions
