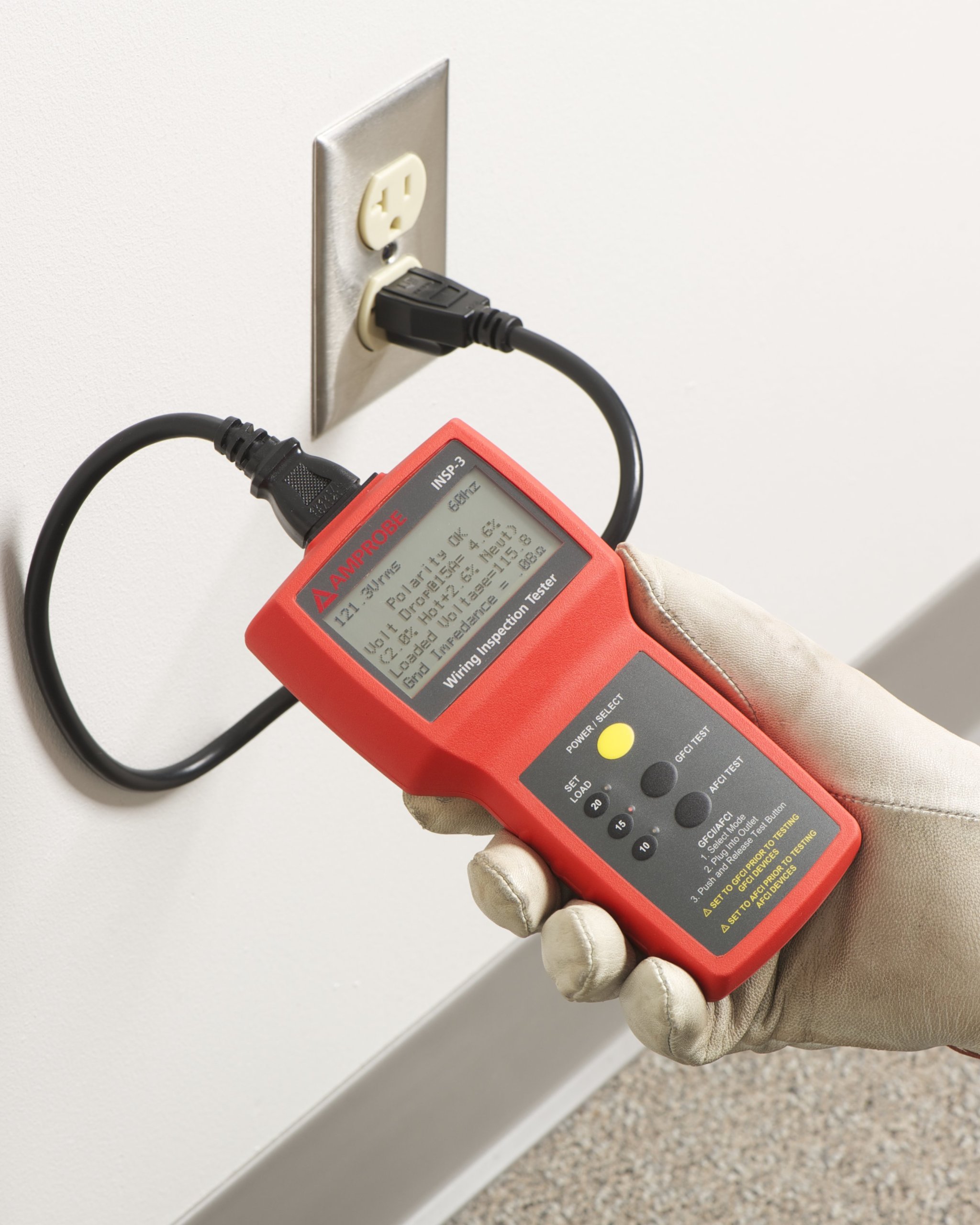

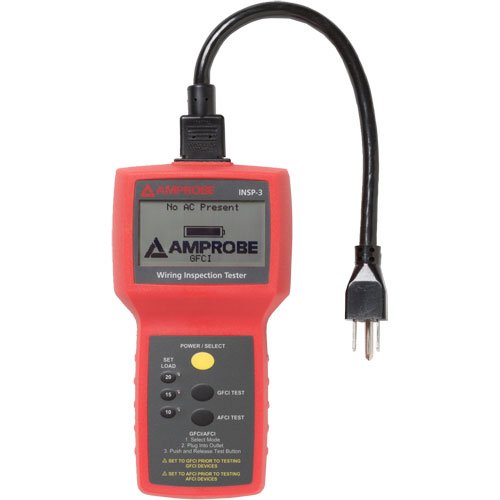

Amprobe INSP-3 Wiring Inspector Circuit Tester

Be the first to review this item

ASIN B005E0XSR8

Specifications for this item
Number of Items
1
Part Number
3503207
UPC
095969516181
Brand Name
Amprobe
EAN
0095969516181
Measurement Accuracy
±2%
UNSPSC Code
43222643

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 17 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Testing efficiency-relevant test data voltage, voltage drop, hot and neutral voltage drop, voltage with load
  • Verifies if wiring is tested for load carrying ability that it meets electrical code recommendations for voltage drop under load
  • Incorrect wiring, undersized wiring, faulty GFCI, faulty or incorrectly wired AFCI
  • Measure fault currents
  • Tests GFCI and AFCI operations
  • Circuit tester for measuring, voltage, ground impedance, and voltage drop under load to verify building wiring compliance to code
  • Digital tester with constant 10, 15, or 20A simulation regardless of line voltage
  • Tests GFCI and AFCI protected circuits
  • Compatible with standard 95 to 140V AC circuits
  • Safety rated to European Standard 61010-1 Category II 120V

Package Details

Shipping Weight: 1.05 pounds
Package Size: 10.2 x 6.2 x 2.9 inches

Product Description

Rugged circuit tester designed to verify building wiring compliance to electrical code
Test without tripping circuit breakers or blowing fuses
Large display shows all relevant test data, no scrolling or switching screens needed
Save Time and Money

The INSP-3 Wiring Inspector Tester is a rugged tester designed to verify building wiring compliance to electrical code, especially voltage under load. Testing electrical lines under load provides information on line conditions, which can diagnose issues such as high voltage drop and high ground impedance. Voltage drop relates not only to safety, but also to the function and reliability of electrical systems. Checking voltage drop under load assures that lines are in good condition, safe and will hold up for years of efficient operation. The INSP-3 saves time and money by eliminating the guess work associated with remodeling, new construction and maintaining wiring systems.

Packed with Features

The INSP-3 applies a constant 10, 15, or 20 AMP simulation current regardless of the voltage on the line tested. The unit tests ground fault circuit interrupter (GFCI) and arc-fault circuit interrupter (AFCI) protected circuits and non-protected circuits. The tester can be used on 95 to 140 VAC. Incorrect wiring or voltage test failure is clearly indicated by flashing values on the screen. The LCD displays all relevant test data (voltage, voltage drop, hot and neutral voltage drop, voltage with load, ground impedance) on a single large display to save the operator time. The device will not trip circuit breakers or blow fuses during testing.

A Wide-Range of Applications

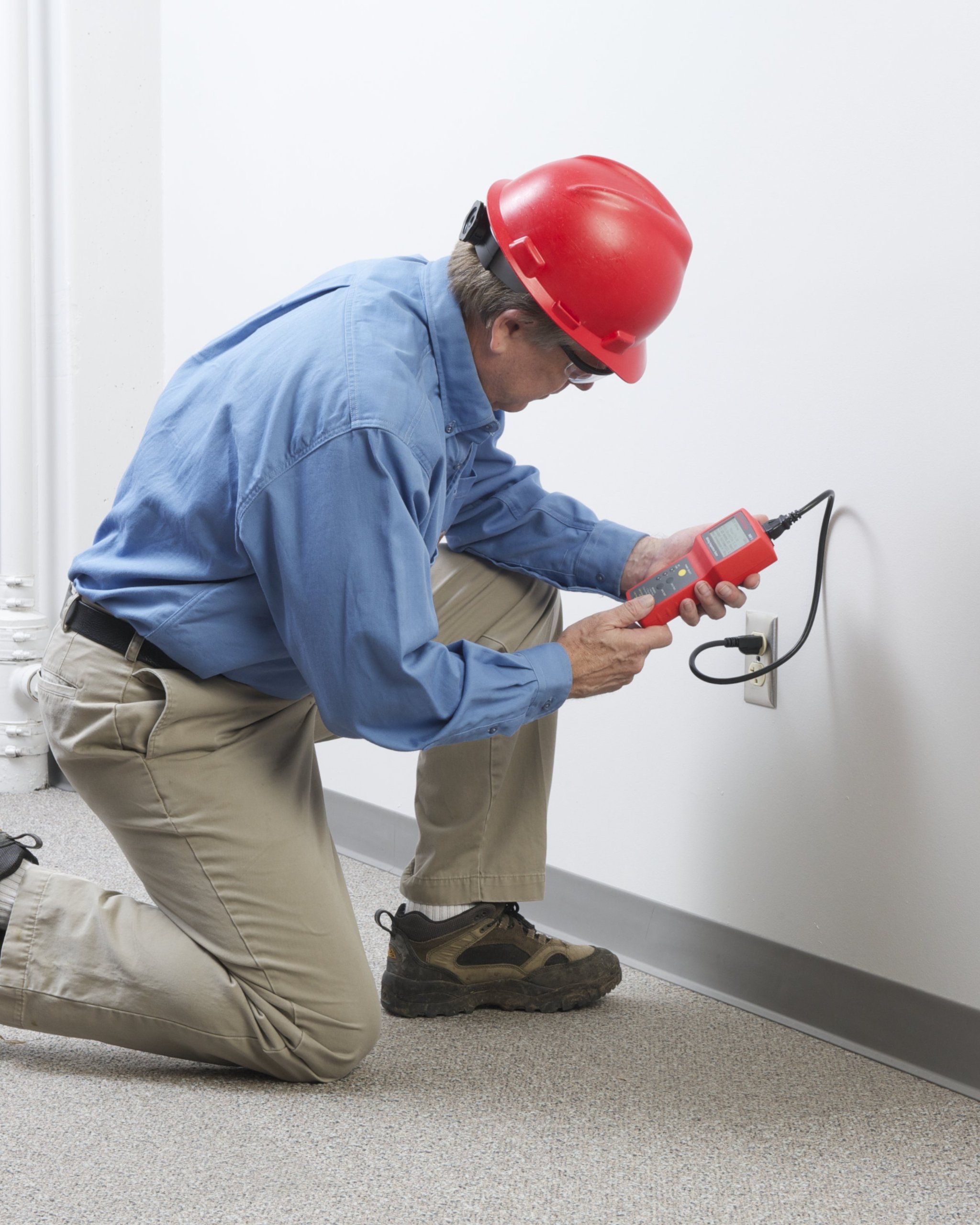

The INSP-3 verifies that wiring meets electrical code recommendations for voltage drop under load. It will show how much specific drop is on the hot and neutral conductor. This is a great way to check splices, connections and conductor quality, which is crucial to safety and performance of computers and sensitive electrical equipment. Find faulty wiring that needs repair without removing outlet cover plates or panel covers, including faulty splices and connections, incorrect wiring, undersized wiring, faulty or incorrectly wired AFCIs/GFCIs, incorrect line voltage and poor ground quality. This is the tool of choice for hospitals, offices, homes, server data banks, RV parks and anywhere where proper receptacle wiring is critical for safety and performance. The INSP-3 is often used for home inspections and post wiring installation inspections to verify compliance with National Electrical Code (NEC).

What’s In the Box?

INSP-3 Wiring Inspector Circuit Tester – Power Cord – (1) 9V battery (installed) - Carrying case – User’s manual

Product Features
  • Rugged circuit tester designed to test whether a building’s wiring is in compliance with electrical code in seconds, especially voltage drop under load
  • Large display shows all relevant test data, no scrolling or switching screens needed
  • Clearly indicates fault conditions with flashing values (incorrect wiring, voltage drop test failure or improper grounding)
  • Test without tripping circuit breakers or blowing fuses with user selectable 10, 15 and 20 amp loads
  • Check grounding for safety and ability to support sensitive electronic equipment
  • Made in the USA
