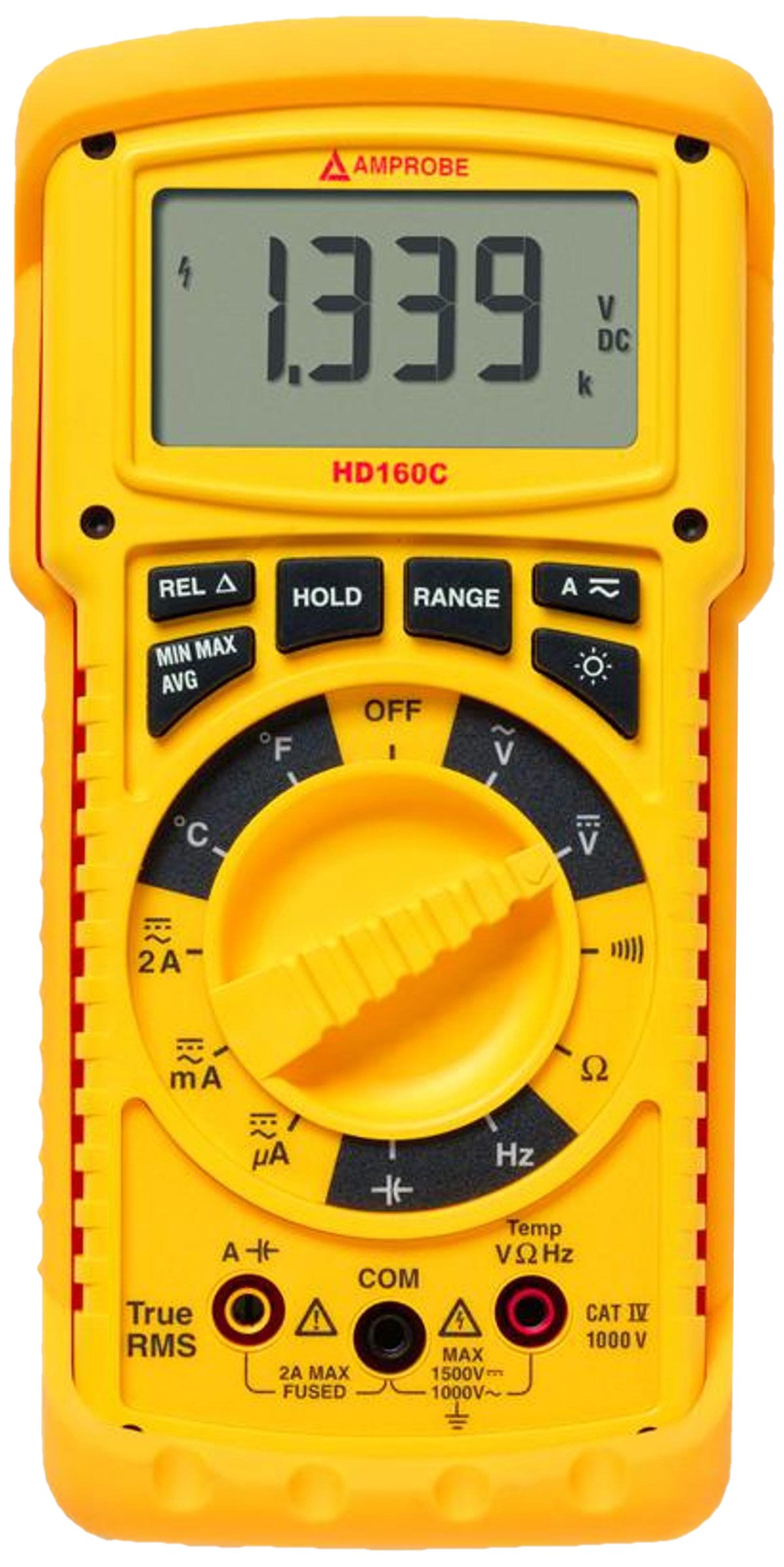

Amprobe HD160C IP67 Heavy Duty True-RMS Multimeter with Temperature

Be the first to review this item

ASIN B0047D1IHA

Specifications for this item
Number of Items
1
Overall Height
40  millimeters
Overall Width
78  millimeters
Part Number
2670787
Temperature Range
0/40  Degrees Celsius
UPC
095969353267
Brand Name
Amprobe
EAN
0095969353267
UNSPSC Code
41113600
Display
Liquid Crystal Display (LCD)
Special Features
Automatic
Overall Length
224  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 5 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Special sealing for environment and water resistance. IP67 rated
  • Magne-Grip holster, frees both hands for work
  • Includes high voltage test leads with threaded alligator clips
  • Temperature measurement built-in, Frequency and capacitance, Digi-Glo bright backlight
  • Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bar graph.
  • Digital multimeter measures alternating current (AC) and direct current (DC) to 2 amp, AC voltage to 1,000 volts (V), DC voltage to 1,500V, resistance to 40 megaohms, capacitance to 400 microfarads, and frequency to 10 megahertz (MHz)
  • True RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, where the current or voltage has a sinusoidal or nonsinusoidal waveform
  • K-type thermocouple probe measures temperature
  • Molded plastic case helps protect meter from fire, chemicals, grease, falls, impacts, and abrasions and is sealed to prevent water and dirt from entering the case
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category IV installations up to 1,000V

Package Details

Shipping Weight: 2.5 pounds
Package Size: 9.7 x 7.6 x 2.8 inches

Product Description

The Amprobe HD160C IP67 digital multimeter with included temperature probe is a true RMS (root mean square) sensing, auto- or manual-ranging meter for measuring current, voltage, resistance, capacitance, and frequency in electrical testing applications with high voltage and harsh environmental conditions. The meter measures alternating current (AC) and direct current (DC) to 2 amp, AC voltage to 1,000 volts (V), DC voltage to 1,500V, resistance to 40 megaohms, capacitance to 400 microfarads, and frequency to 10 megahertz (MHz). The meter comes with a K-type thermocouple probe and adaptor plug for measuring temperature. The meter's molded plastic case is made from flame-retardant thermoplastic to help protect against fire, chemicals, grease, falls, impacts, and abrasions. The case is sealed to prevent water and dirt from entering and it has an ingress protection rating of IP67, meaning it provides complete protection against dust and is waterproof when submerged up to 1 meter. The meter comes with a set of detachable high-voltage test leads and two threaded alligator clips for connecting to high-voltage conductors. A liquid crystal display (LCD) shows readings both in digits and on a 41-segment bar graph. The display is backlit for visibility in low light. The relative zero mode stores a reading in memory to use as a zero point for subsequent readings, allowing for quick comparison of readings. The maximum or minimum reading mode displays the highest or lowest reading in a session to track a sudden increase or decrease in readings, and the average function displays the average of the recorded maximum or minimum values. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects whether the circuit's diodes work properly. The hold function keeps a reading on the display, even after the meter is disconnected. An auto power-off mode turns off the unit after 30 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced.

This true RMS (root mean square) sensing meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform, or non-linear loads, such as electronic devices or motors, where the current or voltage has a sinusoidal non-sinusoidal waveform. Two ranging modes (auto or manual) offer a range of operator control when taking readings. When turned on, the meter is in auto-ranging mode and automatically selects the correct operating range for the property being measured. It can be switched to manual-ranging mode, which allows the operator to choose the appropriate operating range. The meter has a 10,000-count resolution, meaning it can display up to 9,999 units (4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category IV installations up to 1,000V, which covers measurements at the source of the low-voltage supply, such as electricity meters and overcurrent protection devices. The meter comes with a with a magnetic strap that can be used to hang the meter on metal doors or fixtures and a hex wrench to open the battery compartment door.

Specifications

Maximum alternating current (AC) input2 amp
Maximum direct current (DC) input2 amp
Maximum AC voltage input1,000 volts (V)
Maximum DC voltage input1,500V
Maximum resistance detected40 megaohms
Power supply9V NEDA 1604, JIS 006P, or IEC 6F22 battery (one, installed)
Maximum capacitance detected400 microfarads
Maximum frequency detected10 megahertz (MHz)
Temperature measurement range-4 to 2,372 degrees Fahrenheit (F), -20 to 1,300 degrees Celsius (C)
Fuse2 amp, 1,500V fast-blow ceramic fuse (one, installed)
Standards metEuropean Conformity (CE), International Electrotechnical Commission (IEC) and European Normal (EN) 61010-1, N10140 Australia, Canadian Standards Association (CSA)
Weight1.4 lb./642 g
Dimensions7.9 x 4.0 x 2.3 inches/200 × 102 × 59 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • Amprobe HD160C IP67 TRMS digital multimeter
  • (1) Set test leads
  • (2) Threaded alligator clips
  • (1) 9V battery (installed)
  • (1) 2 amp/1,500V fast-blow ceramic fuse (installed)
  • (1) Hex wrench
  • (1) Magnetic strap holster
  • (1) Type-K thermocouple probe
  • (1) Temperature probe adaptor plug
  • Instructions
