Amprobe DL243D Essential Test Lead Kit

Be the first to review this item

ASIN B0029XL78K

Specifications for this item

Brand Name: Amprobe
Catalog Number: DL243D
Display Type: Liquid Crystal Display (LCD)
EAN: 0095969414630
Number of Items: 1
Overall Height: 76.2 millimeters

Overall Length: 317.5 millimeters
Overall Width: 177.8 millimeters
Part Number: 3026853
Temperature Range: 0/45 Degrees Celsius
UPC: 095969414630

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, May 23? Order in-stock items in the next 18 hours 27 minutes and choose One-Day Shipping at checkout.

Key Features

Test lead kit connects a compatible electrical test meter to a device for testing
Kit includes two 48" lead wires, two standard probe tips, two alligator clips, and two spade lugs for connecting to a variety of conductors
Silicone insulation on lead wires protects hands from shock and heat, resists melting or becoming brittle in hot or cold environments, and maintains flexibility better than PVC insulation
2.25" alligator clips have 0.30" jaw opening and teeth that grip the conductor to provide a more secure, hands-free connection than probe tips
Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category III installations up to 1,000V (alligator clips are certified for category II installations up to 300V)

Package Details

Shipping Weight: 0.45 pounds
Package Size: 9.3 x 4.8 x 0.7 inches

Product Description

The Amprobe DL243D test lead kit contains two silicone-insulated lead wires, two standard probe tips, two alligator clips, and two spade lugs for connecting a compatible electrical test meter to a device in electrical testing applications. The 48" lead wires have silicone insulation to protect hands from shock and heat. The silicone insulation resists melting in hot environments and becoming brittle in cold ones, and it maintains flexibility better than polyvinyl chloride (PVC) insulation. The standard probe tips are held against the conductor during testing. The alligator clips (also called crocodile clips) have teeth that grip the conductor to provide a more secure, hands-free connection than the test probe tips. The clips are 2.25" long and have a 0.30" jaw opening. The spade lugs clamp to conductors with compression nuts or screws. The lead wires can be used with testing devices that have universal 4 mm jacks. The kit meets International Electrotechnical Commission (IEC) safety standard 61010. The test leads, probe tips, and spade lugs are certified for category III installations up to 1,000V, which covers items used with enclosed building circuit installations (service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). The alligator clips are certified for category II installations up to 300V, which covers large household appliances and devices connected to a fixed power supply, such as refrigerators and air conditioners). The kit also conforms to applicable European Conformity (CE) directives. It comes with a soft folding carrying case with a Velcro closure and pockets for organizing probes and wires. Folded, the pouch measures 4.5 x 7.0 x 0.25 inches (H x W x D). Unfolded, it measures 4.5 x 16.0 x 0.25 inches. (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

A test probe, test lead, test prod, or scope probe transmits an electrical signal to a testing device for display and analysis. Designs range from simple test leads with probe-style or clamp-on tips to more complex oscilloscope probes and current detectors. Some test probes, such as basic test leads, have wires with tips for connecting to test equipment. Other test probes, such as voltage detectors, are built into the meter. Depending on what is to be tested, the probe might either be passive or have active parts that require external power to operate. Some probes require contact for testing, while some are capable of taking measurements from a distance. Some also have finger barriers, insulation, or other features to help protect the operator's hand from electrical shock and burns. Test probes are rated according to the amount of voltage, current, temperature, or other input they can measure. When choosing a test probe, the maximum amount of input that the probe can measure should match or exceed both the maximum amount that can be tested by the test equipment, as well as that of the property expected to be present in the application.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

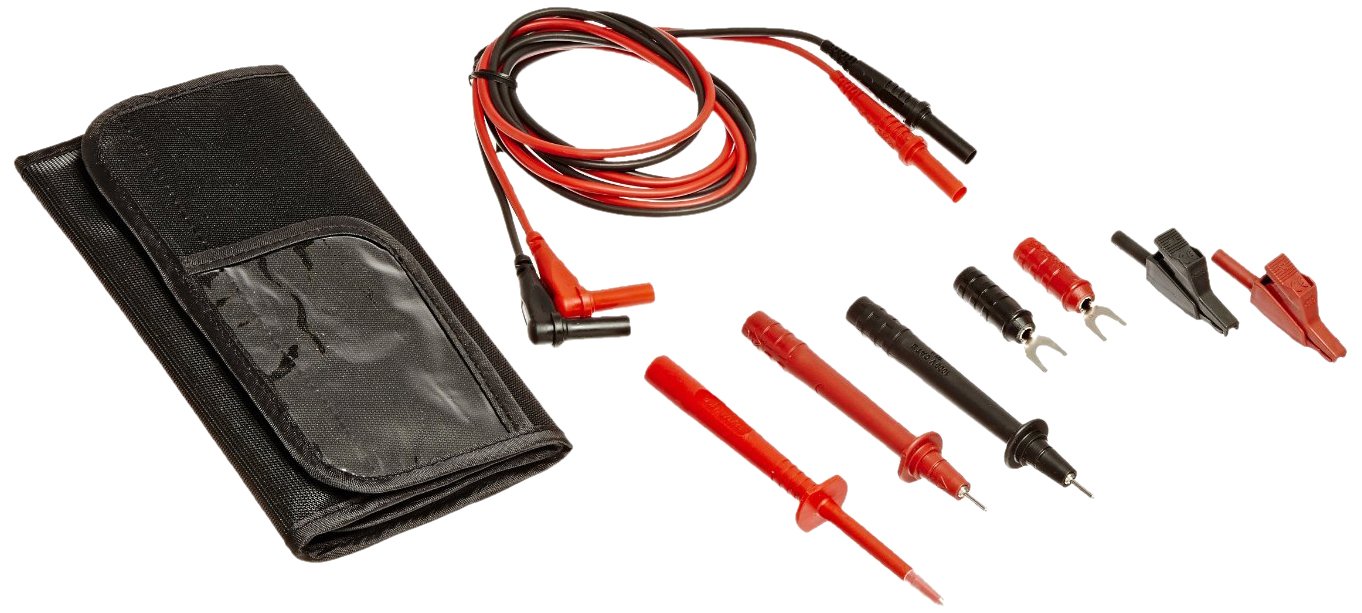

What’s in the Box?

(2) test leads
(2) standard probe tips
(2) alligator clips
(2)spade lugs
carrying case
