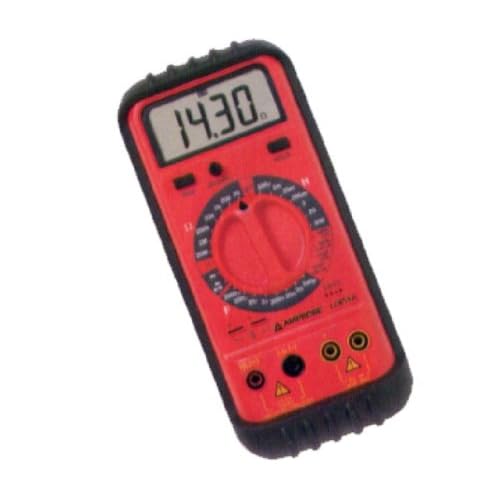

Amprobe CR50A Capacitance and Resistance Tester

Be the first to review this item

ASIN B001C9ZLS4

Specifications for this item
Number of Items
1
Part Number
3026965
UPC
095969414746
Brand Name
Amprobe
EAN
0095969414746
Warranty
One Year Limited Warranty
UNSPSC Code
41113623

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 16 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Resistance: 20 , 200 , 2 k, 20 k, 200 k, 2 M, 20 M
  • Resolution: 0.01 in 20
  • Open Circuit Voltage: 20 and 200
  • All Other Ranges: 0.3 VDC
  • Display Update Rate: 2/sec, nominal
  • Tests capacitance and resistance to check functionality and compatibility of electrical circuits and devices
  • Zero-adjust pots help eliminate stray resistance and capacitance for more accurate readings
  • Comes with a set of detachable test leads with test probe tips and two alligator clips for a more secure, hands-free connection than probe tips
  • Diode test checks for proper functioning of the circuit's diodes
  • Audible continuity buzzer confirms that a circuit is capable of conducting current

Package Details

Shipping Weight: 1.2 pounds
Package Size: 10.2 x 7.2 x 1.8 inches

Product Description

The Amprobe CR50A digital capacitance and resistance tester checks functionality and compatibility of electrical circuits and devices in home and industrial maintenance applications. When set to the low resistance or low capacitance ranges, the unit's zero-adjust pots help eliminate stray resistance and capacitance for more accurate readings. The included set of detachable test leads have test probe tips that are held against the conductor during use and shrouded banana plugs that help prevent shock if the plugs accidentally pull out of the meter while in use. The meter also comes with two alligator clips that fit on to the test probe tips to provide a more secure, hands-free connection than the probe tips. The meter's diode test checks for proper functioning of a circuit's diodes, and an audible continuity buzzer confirms that a circuit is capable of conducting current. The Amprobe CR50A is a manual-ranging meter and requires that the operator choose the appropriate operating range. The liquid crystal display (LCD) has a 2,000-count resolution, meaning it can display up to 1,999 units (3-1/2 digits) before the operating range needs to be changed. A low-battery indicator signals when the batteries need to be replaced. The meter comes with a carrying holster.

Specifications

Maximum resistance detected20 megaohms
Maximum capacitance detected20 millifarads
Power supply9V NEDA 1604, JIS 006P, or IEC 6F22 transistor battery
Fuse0.1 amp/250V fuse (one installed, one spare)
Standards metEuropean Conformity (CE), International Electrotechnical Commission (IEC) and European Normal (EN) 61010-1, N10140 Australia
Weight200 g/8 oz.
Dimensions6.1 x 2.8 x 1.3 inches/151 x 70 x 38 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • CR50A capacitance and resistance tester
  • (1) Set of test leads
  • (2) Alligator clips
  • (1) 9V battery (installed)
  • (2) 0.1 amp/250V fuse (one installed, one spare)
  • Carrying holster
  • Instructions

From the Manufacturer

Amprobe began life in Long Island, NY in the late 1940's under the name Pyramid Instrument Company. In 1960 the company name was formally changed to Amprobe Instrument Corporation. Amprobe continued to design, engineer, manufacture and distribute product from its Lynbrook, NY location until it was merged to form ATP and relocated to South Florida in late 1999. The Amprobe CR50A Red & Black Component Tester sorts, matches, inspects and verifys the components. You are able to check circuits with this full range capacitance and resistance meter and its oversized, read at-a-glance display. It has dual zero adjustment pots to null strays and test leads and a special “Low Ohms” range. Also the Amprobe CR50A Red & Black Component Tester comes with premium test leads with alligator clips and a low battery indication.
