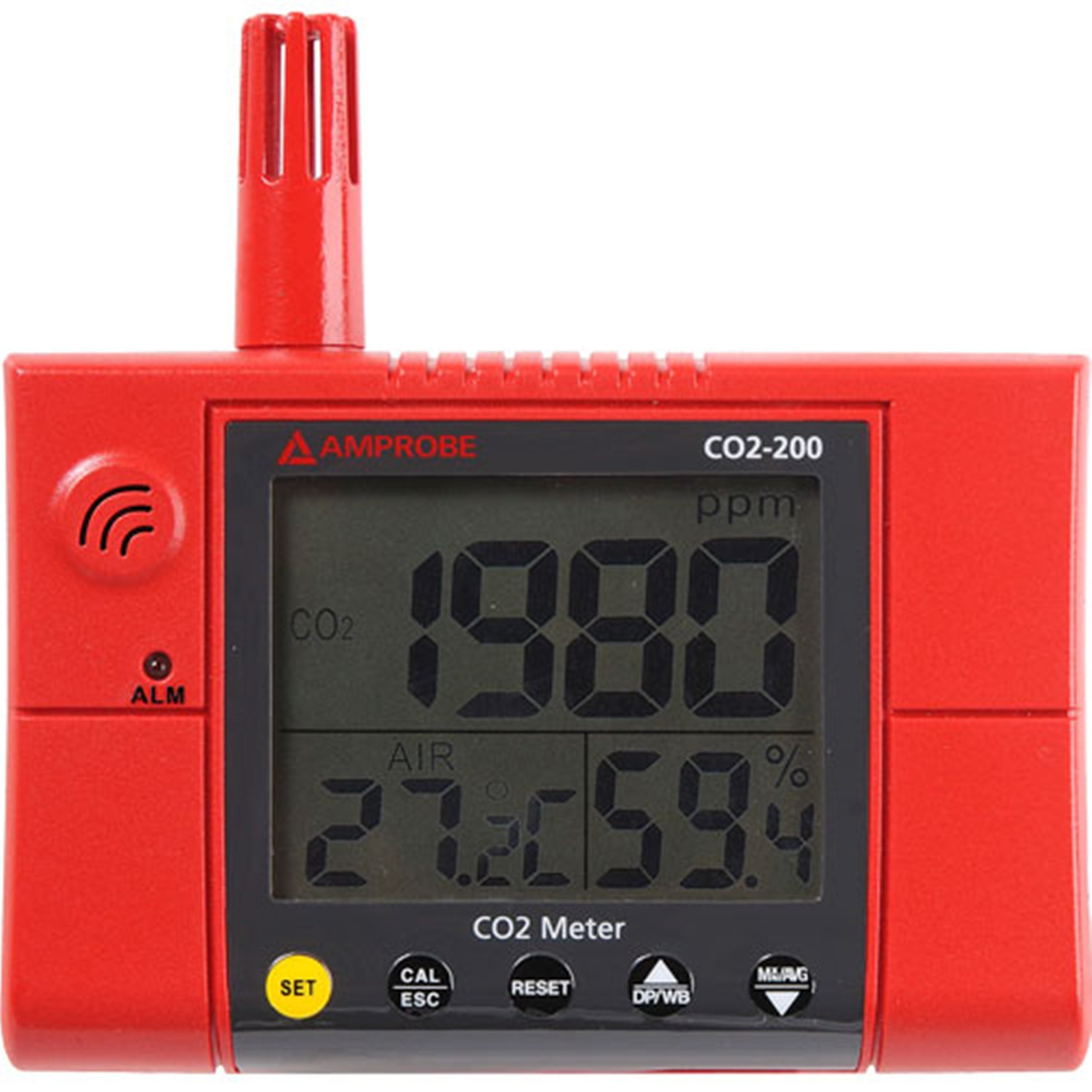

Amprobe CO2-200 Wall-Mounted CO2 Meter

Be the first to review this item

ASIN B005BJGT3C

Specifications for this item
Number of Items
1
Part Number
3475100
UPC
095969499347
Brand Name
Amprobe
EAN
0095969499347
UNSPSC Code
41103417

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 22 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • CO2 measurement up to 9999 ppm, temperature, relative humidity, dew point and wet bulb
  • High performance low drift sensor designed with NDIR (non-dispersive infrared) waveguide technology with automatic background calibration
  • Audible alarm threshold setting to setup warning against carbon dioxide level with output drive relay to control air flow system
  • Recording of maximum, minimum and average values with recall function
  • Meter, manual, power adapter 100-240V AC
  • Wall-mounted digital meter measures ambient level of carbon dioxide (CO2) to monitor indoor air quality and performance of heating, ventilation, and air-conditioning (HVAC) systems
  • Displays current CO2 levels, long-term average CO2 levels measured over an 8-hour period, and short-term average CO2 levels measured over a 15-minute period
  • Alarm notifies operator when CO2 levels reach or exceed a preset threshold
  • When connected to a building's HVAC system, the meter's built-in relay activates the HVAC system if CO2 levels reach or exceed the alarm's upper-limit threshold
  • Liquid crystal display (LCD) shows ambient CO2 levels, as well as air, wet bulb, or dew point temperature and humidity

Package Details

Shipping Weight: 0.65 pounds
Package Size: 7 x 5.7 x 2.7 inches

Product Description

The Amprobe CO2-200 digital carbon dioxide wall-mounted meter measures ambient level of carbon dioxide (CO2) to monitor both indoor air quality and the performance of heating, ventilation, and air-conditioning (HVAC) systems. Initially, the meter displays current CO2 levels from 0 to 9,999 parts per meter (ppm). It can be set to display long-term average CO2 levels measured over an 8-hour period and short-term average CO2 levels measured over a 15-minute period. The alarm has two user-adjustable thresholds. An upper-limit threshold can be set to sound the alarm when CO2 levels reach or exceed a preset level between 100 and 9,900 ppm. A lower-limit threshold can be set to turn off the alarm when CO2 levels fall below a preset level that is less than the upper-limit threshold. The meter can be connected to a building's HVAC system, and it has a built-in relay that activates the HVAC system when detected CO2 levels reach or exceed the alarm's upper-limit threshold. The meter's backlit LCD screen is readable in low light and displays ambient CO2 levels as well as air, wet bulb, or dew point temperature and humidity. The unit offers a choice of automatic baseline calibration (ABC) or manual calibration to help ensure accurate readings in a range of environments. The hold function keeps a reading on the display. The maximum and minimum reading mode displays the highest or lowest reading in a session to track sudden increases or decreases in measurements. The meter weighs 0.43 lb. (193 g) and measures 5.1 x 3.3 x 2.4 inches (130 x 85 x 60 mm, H x W x D, where H is height, the vertical distance from the lowest to highest point, W is width, the horizontal distance from left to right, and D is depth, the horizontal distance from front to back), and it can be mounted on a wall for continuous monitoring of CO2 levels in an area. The meter has a USB port for connecting the meter to a computer (software and cable not included). The meter operates on a 12-volt power adaptor (included) that plugs into the unit. The meter automatically turns off after 20 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. It meets applicable European Conformity (CE) directives and Australia N10140 standards. The meter comes with a hard plastic carrying case to help protect against bumps and abrasions during transport and storage.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

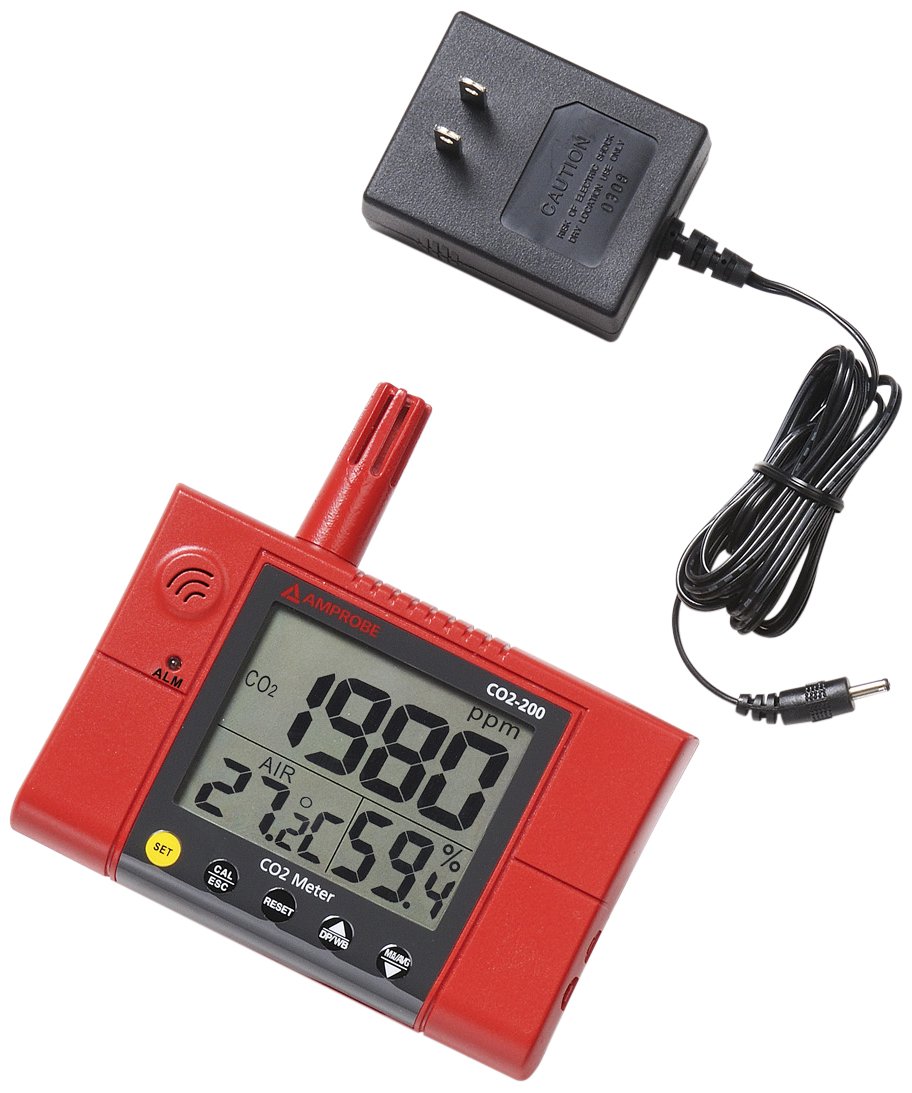

What’s in the Box?

  • CO2-200 carbon dioxide meter
  • (1) 12-volt power adaptor
  • Instructions
