Amprobe BT-250 Circuit Breaker Tester

Be the first to review this item

ASIN B000XMMVRK

Specifications for this item
Number of Items
1
Overall Height
34  millimeters
Overall Width
54  millimeters
Part Number
2731177
Temperature Range
0/40  Degrees Celsius
UPC
095969366274
Brand Name
Amprobe
EAN
0095969366274
UNSPSC Code
43222643
Display
Dual Liquid Crystal Display (LCD)
Overall Length
240  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 16? Order in-stock items in the next 17 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Circuit breaker tracer identifies circuit breakers on energized electrical systems
  • Automatic sensitivity adjustment and automatic polarity selection for accuracy
  • Indicates circuit breaker with buzzer and indicator light
  • Compatible with standard 90 to 280V AC 40 to 70Hz breaker system
  • UL listed and complies with European Standard EN61010B-1: 2001, Category II 280V

Package Details

Shipping Weight: 0.9 pounds
Package Size: 9.6 x 6.6 x 2 inches

Product Description

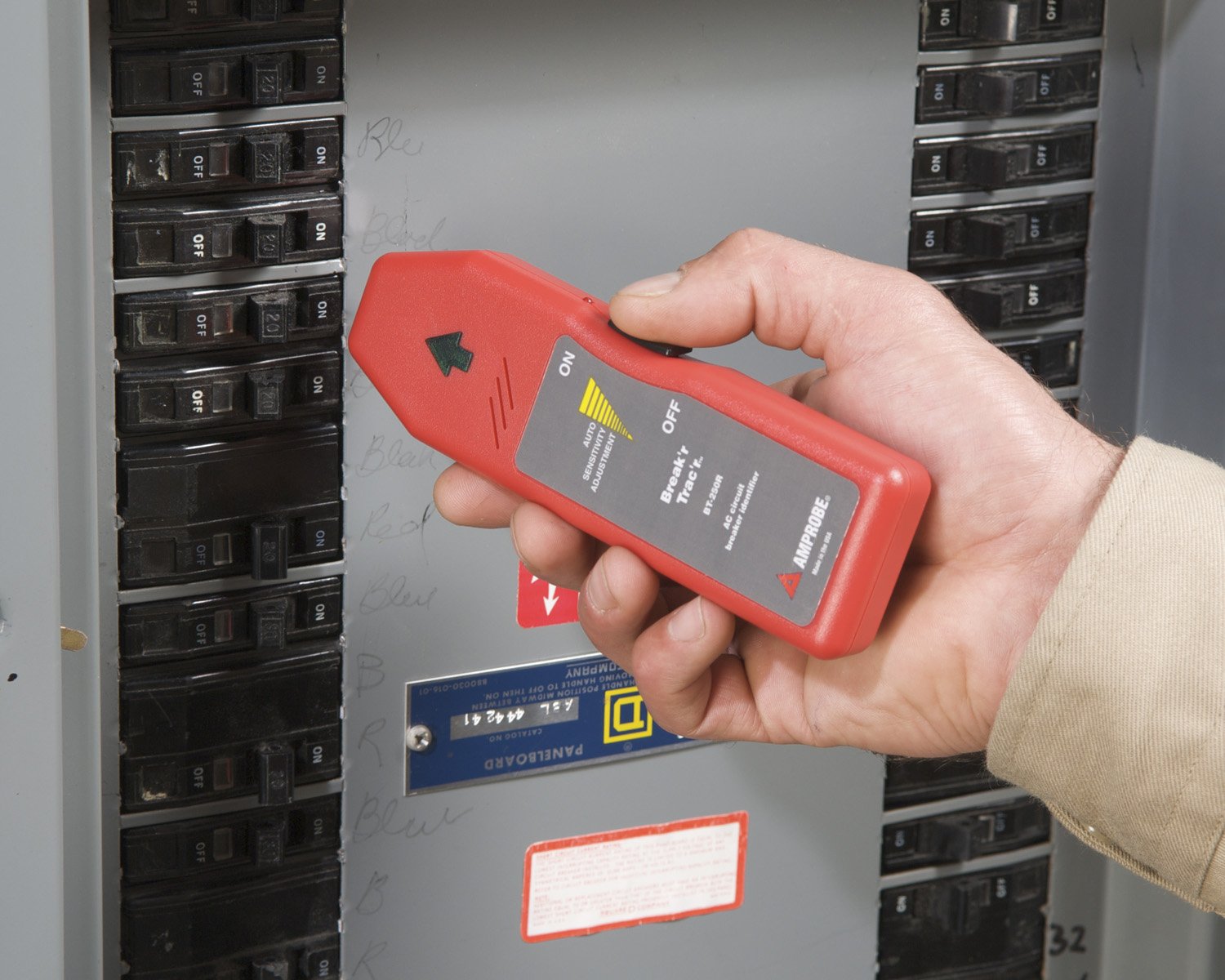

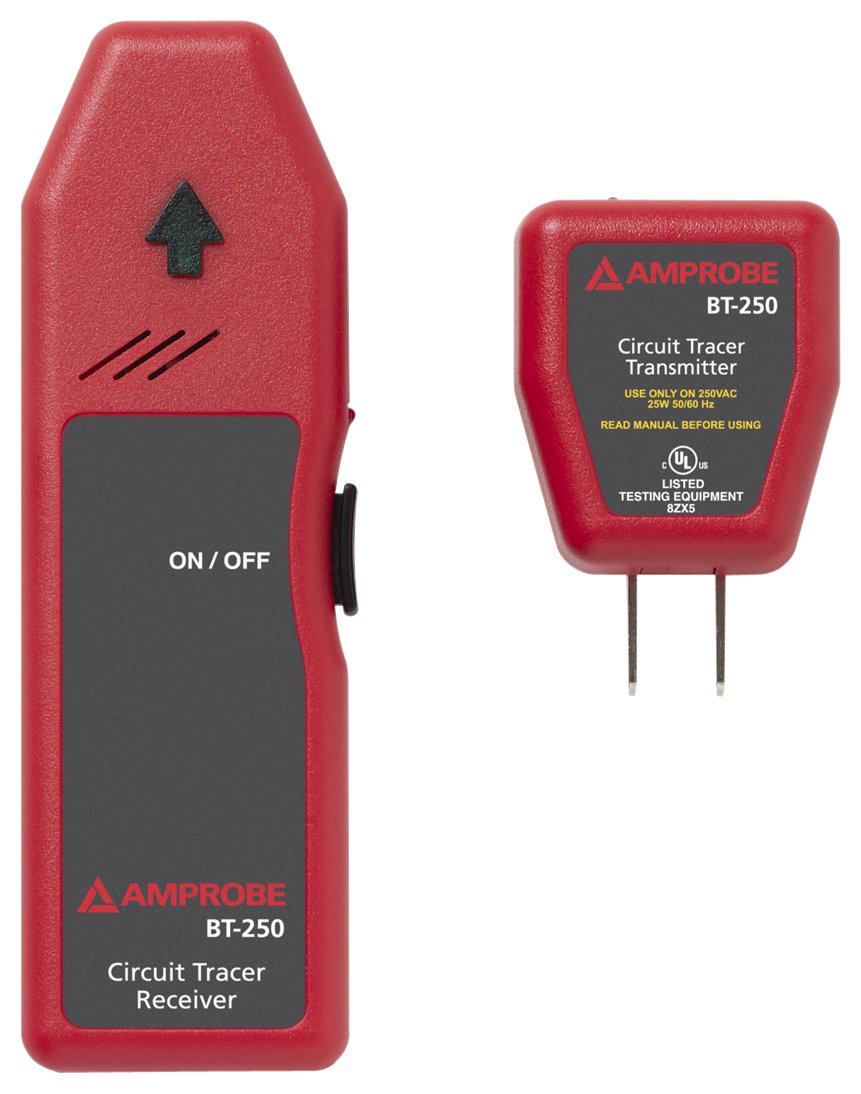

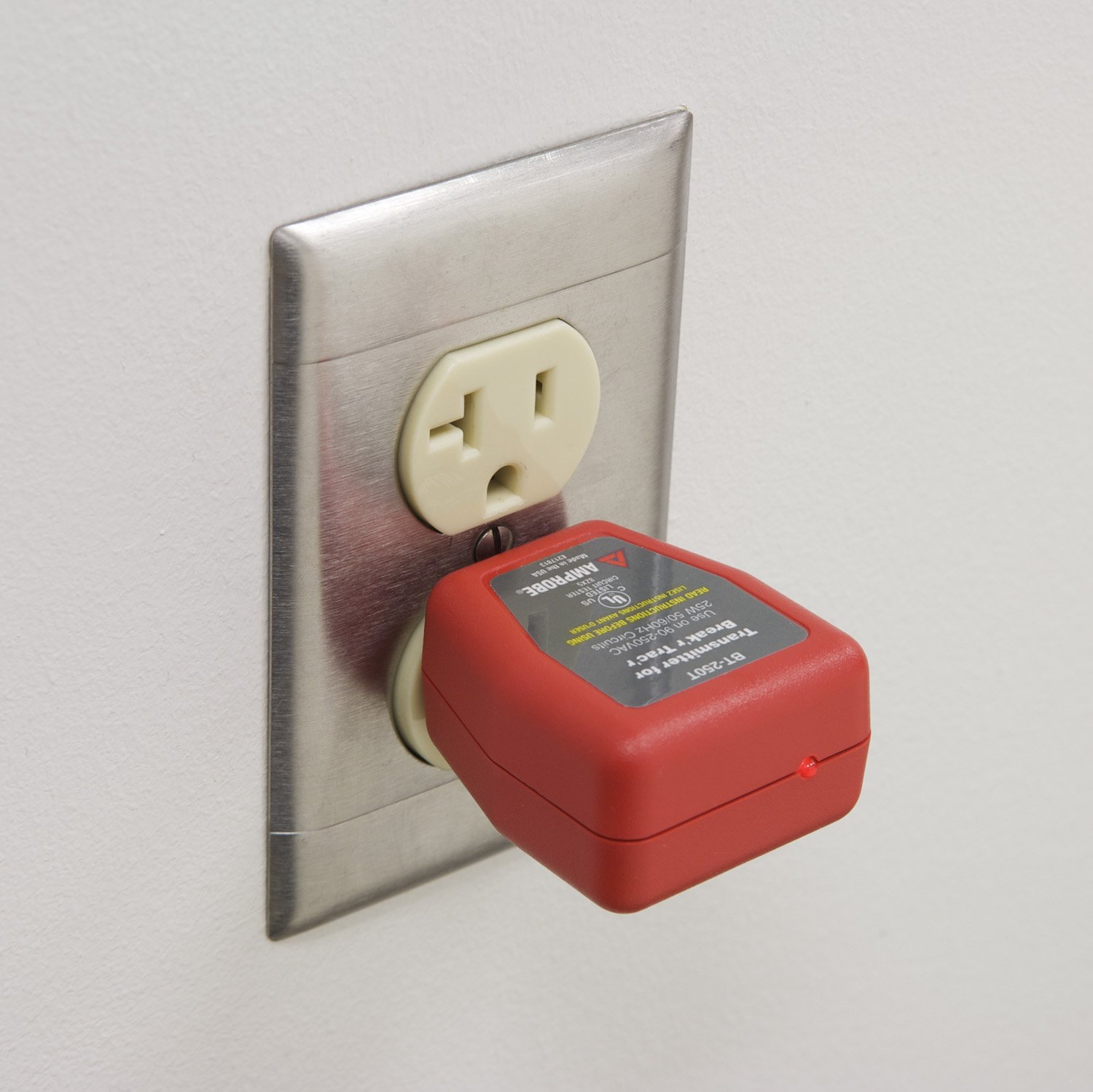

The Amprobe BT-250 circuit breaker tester identifies circuit breakers on energized electrical systems. Automatic sensitivity adjustment and automatic polarity selection remove ambiguity about readings. The tester indicates the presence of a circuit breaker with a buzzer and an indicator light. The tester includes a transmitter, which is plugged into an electrical outlet, and a receiver, which is powered by a 9V battery. It is compatible with standard 90 to 280V AC and 40 to 70Hz breaker systems. The unit is UL listed and complies with European Standard EN61010B-1: 2001, CAT II, 280V. The BT-250 is designed for use by electricians and electrical contractors.

Specifications

Power supply (1) 9V battery
Voltage range 90 to 280V AC
Dimensions 9.5 x 2.1 x 1.4 inches (H x W x D)
Weight (including batteries) 0.15 lb.
Safety standards met International Electrotechnical Commission (IEC)/European Standards (EN) 61010B-1 Cat II 280V, UL Listed

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Circuit breaker tracers identify and locate the correct circuit breaker for a particular electrical outlet. The tracers usually include a transmitter, which plugs into the outlet that is being tested, and a receiver, which is a handheld device used to identify the proper circuit breaker in the fuse box. The correct circuit breaker is indicated by LED lights. These tracers may have automatic or manual sensitivity adjustment for use on different kinds of circuits. Breaker tracers may also include additional features, like non-contact voltage detection, which allows it to detect the presence of voltage without being plugged in, and the ability to test ground-fault circuit interrupter (GFCI) and arc-fault circuit interrupter (AFCI) protected circuits.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • BT-250 Circuit Breaker Tester
  • (1) Transmitter
  • (1) Receiver
  • Carrying case
  • Connection cable
  • Light fixture adapter
  • (1) 9V battery
  • Instructions
