Amprobe AMC-2 Hand Cranked Insulation Tester

Be the first to review this item

ASIN B000MARP2E

Specifications for this item
Number of Items
1
Overall Height
31  millimeters
Overall Width
60  millimeters
Part Number
2731060
Temperature Range
0/40  Degrees Celsius
UPC
095969366168
Brand Name
Amprobe
EAN
0095969366168
Measurement Accuracy
+/- 1 C
UNSPSC Code
41113631
Display
Liquid Crystal Display (LCD)
Overall Length
145  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 12 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Insulation resistance meter measures insulation resistance on wires, cables, transformers, and electrical motors
  • Analog meter does not require external power source
  • Test voltage produced by hand-cranked constant voltage generator
  • Measures insulation resistance from 0 to 100 ohms with 500V DC test voltage
  • Guard terminal prevents surface leakage from affecting readings

Package Details

Shipping Weight: 3.5 pounds
Package Size: 10.5 x 6.9 x 5.8 inches

Product Description

The Amprobe AMC-2 hand cranked insulation tester is an analog meter to measure insulation resistance on wires, cables, transformers, and electrical motors. The unit measures insulation resistance from 0 to 100 ohms using a 500V direct current (DC) test voltage. The test voltage is produced by a hand-cranked constant voltage generator, so the unit never needs batteries. A guard terminal prevents surface leakage from affecting the instrument's readings. The AMC-2 is designed for use by electricians and electrical contractors.

Specifications

Power supply Hand-cranked constant voltage generator
Insulation resistance range 0 to 100 ohms
DC test voltage 500V
Weight (including batteries) 2.5 lb./1.13kg
Dimensions 7 x 4 x 3.6 inches/177.8 x 101.6 x 92.1mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Electrical test meters report electrical circuit properties, such as voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, they detect electrical problems in equipment, wiring, and power supplies. A variety of probes, clamps, or leads connect the meter to a circuit or device. Single-function meters, such as battery testers and voltage testers, measure one property of a circuit; multimeters measure multiple properties. Electrical test meters display information either in analog form using a needle that moves on a calibrated scale, or in digital form using digits or a graphic representation on an LED screen. Meter choice includes the electrical properties to be measured and the anticipated range of results, and should have a rating that is higher than the maximum value of the anticipated range. An electrical test meter has multiple settings that correspond to potential ranges of values for the properties it can measure. A manual ranging meter requires the operator to flip through different settings until the correct range is reached. An autoranging meter cycles through range settings automatically until it reaches the correct range.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

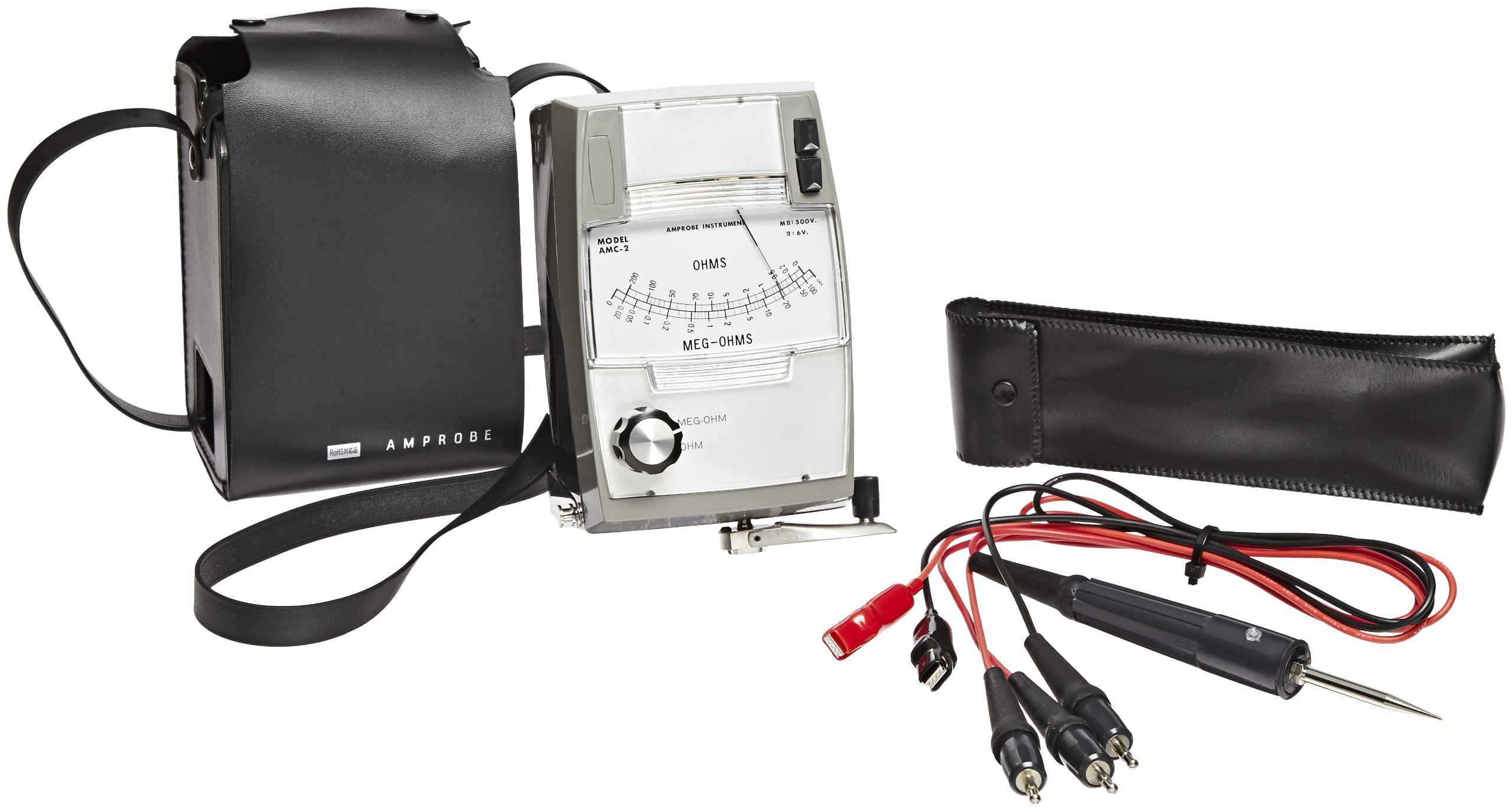

What’s in the Box?

  • AMC-2 Hand-Cranked Insulation Tester
  • Carrying case
  • (1) Set test leads
  • Instructions
