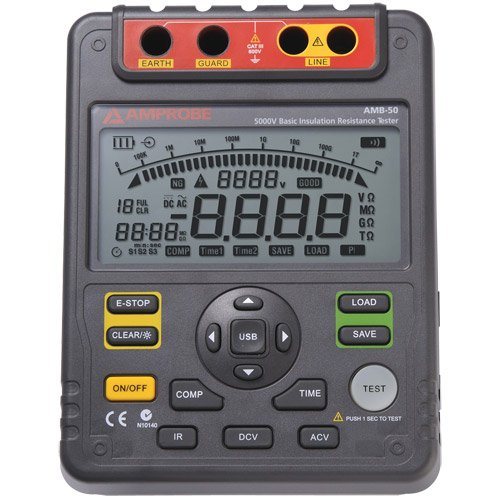

Amprobe AMB-50 Industrial High-Voltage Insulation Tester

Be the first to review this item

ASIN B005BJGSVU

Specifications for this item
Number of Items
1
Overall Height
81.28  millimeters
Overall Width
177.8  millimeters
Part Number
3730288
Temperature Range
0/50  Degrees Celsius
Item Weight
4.4 pounds
UPC
095969556965
Brand Name
Amprobe
EAN
0095969556965
UNSPSC Code
41113623
Display
Liquid Crystal Display (LCD)
Overall Length
266.6  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 23 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Insulation resistance meter with built-in voltmeter to test insulation of wires, cables, transformers, surge arresters, generators, and electrical motors
  • Digital meter with automatic range selection
  • Internal memory stores up to 18 measurements for later download to PC using USB
  • Measures voltage from 30 to 600V AC or DC and insulation resistance from 0 to 1 teraohm with 500, 1,000, 2,500, and 5,000V DC test voltage
  • Safety rated to European Standard EN 61010-1 Category III 600V

Package Details

Shipping Weight: 10.1 pounds
Package Size: 12.8 x 12.6 x 4.9 inches

Product Description

The Amprobe AMB-50 industrial high-voltage insulation resistance tester is a digital meter that measures insulation resistance and voltage to help reduce shock hazards and downtime on electrical systems that include wires, cables, transformers, surge arresters, generators, and electrical motors. The tester has automatic range selection for increased safety. The unit measures 0 to 600V alternating current (AC) or direct current (DC) and insulation resistance from 0 to 1 teraohms using 500, 1,000, 2,500, or 5,000V DC test voltage. A low-resistance range (0 to 4,000 ohms) is used to measure resistance in motor windings. The internal memory holds up to 18 test results for later download to a PC using the included USB cord. The tester is safety rated to European Standard (EN) 61010-1, Category III, 600V. The unit has a programmable timer to perform Dielectric Absorption Ratio Tests, Polarization Index (PI) tests, and comparison tests. The tester is powered by eight C batteries (included). The AMB-50 is designed for use by electricians and electrical contractors.

Specifications

Power supply (8) C batteries (included)
Insulation resistance range 0 to 1 teraohm
Test voltages 500, 1,000, 2,500, or 5,000V DC
AC and DC voltage range 30 to 600V
Weight (including batteries) 4.4 lbs./2kg
Dimensions 202 x 155 x 94mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Electrical test meters report electrical circuit properties, such as voltage, resistance, capacitance, and continuity. Available in handheld or benchtop form, they detect electrical problems in equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Single-function meters, such as battery testers and voltage testers, measure one property of a circuit, and multimeters measure multiple properties. Electrical test meters display information either in analog form using a needle that moves on a calibrated scale, or in digital form using digits or a graphic representation on an LED screen. Meters have electrical properties that are to be measured and the anticipated range of results, and should have a rating that is higher than the maximum value of the anticipated range. An electrical test meter has multiple settings corresponding to potential ranges of values for the properties it can measure. A manual ranging meter requires the operator to flip through different settings until the correct range is reached. An autoranging meter cycles through range settings automatically until it reaches the correct range.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • AMB-50 Industrial High-Voltage Insulation Resistance Tester
  • (1) Set test leads
  • (1) Set large-jaw alligator clips
  • PC software
  • USB cable
  • (8) C batteries (installed)
  • Carrying case
  • Instructions
