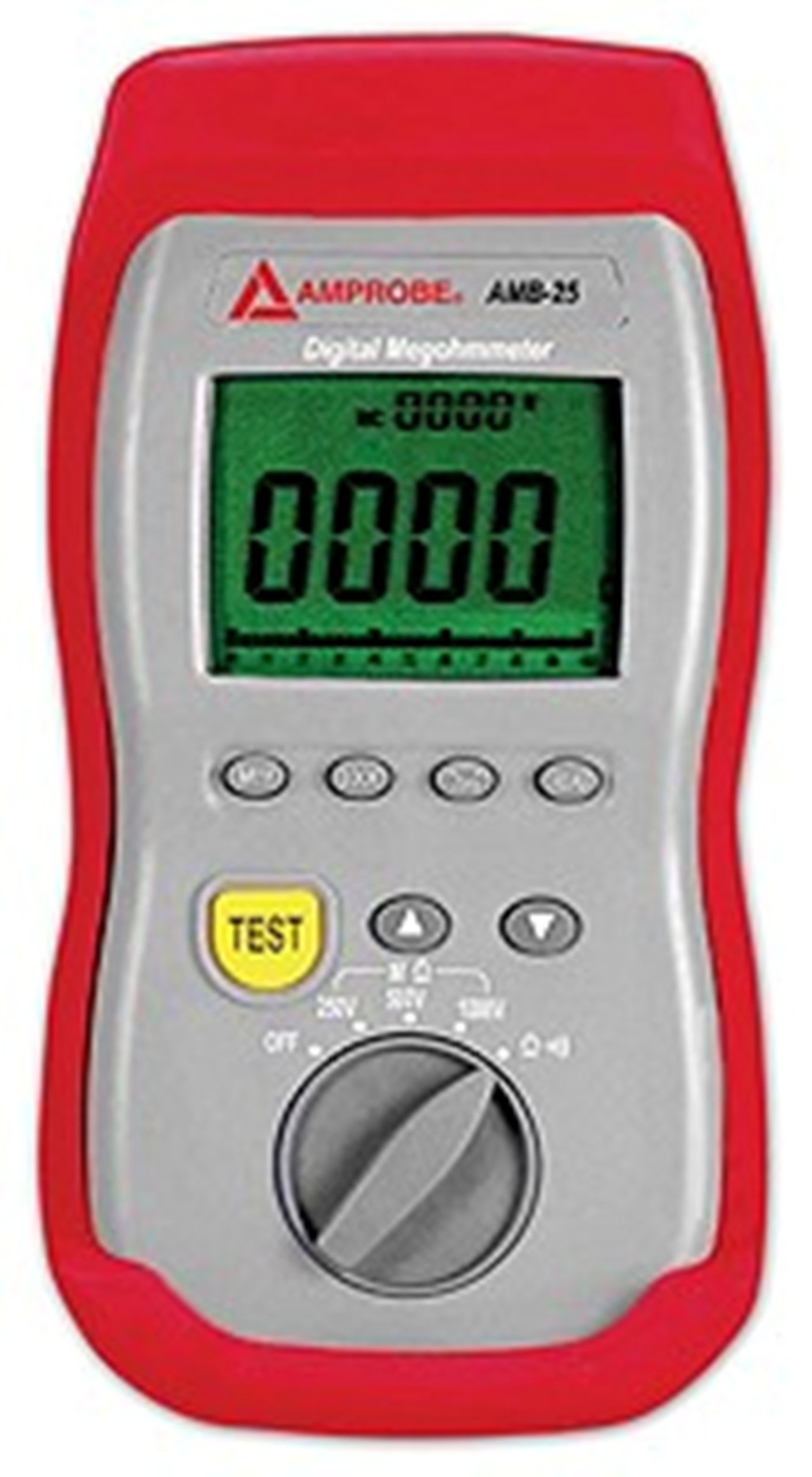

Amprobe AMB-25 Digital Insulation Resistance Tester

Be the first to review this item

ASIN B0046HY8NS

Specifications for this item
Number of Items
1
Part Number
2730991
UPC
095969366090
Brand Name
Amprobe
EAN
0095969366090
UNSPSC Code
41113623
Display
Liquid Crystal Display (LCD)

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 21? Order in-stock items in the next 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Tests insulation of wires, cables, transformers and electrical motors
  • Selectable test voltages 250V, 500V and 1000V
  • Programmable timer to perform the dielectric absorption ratio test
  • Sensitive ohmmeter for checking resistance of motor windings
  • Insulation resistance meter to test insulation of wires, cables, transformers, and electrical motors
  • Digital meter with automatic range selection
  • Internal memory stores up to 9 test results
  • Measures insulation resistance from 0 to 1,000 megaohms with 250, 500, and 1,000V DC test voltage
  • Safety rated to European Standard EN 61010-1 Category III 1,000V

Package Details

Shipping Weight: 2.05 pounds
Package Size: 10.2 x 5.7 x 3.5 inches

Product Description

The Amprobe AMB-25 insulation resistance tester is a digital meter that measures insulation resistance to help reduce shock hazards and downtime on electrical systems that include wires, cables, transformers, and electrical motors. The tester has automatic range selection for increased safety. The unit measures insulation resistance from 0 to 1,000 megaohms using 250, 500, or 1,000V direct current (DC) test voltage. The internal memory holds up to nine test results. The tester is safety rated to European Standard (EN) 61010-1, Category III, 1,000V. The tester is powered by six AA batteries (included). The AMB-25 is designed for use by electricians and electrical contractors.

Specifications

Power supply (6) AA batteries (included)
Insulation resistance range 0 to 1,000 megaohms
Test voltages 250, 500, or 1,000V DC
Weight (including batteries) 1.15 lb./520g
Dimensions 9.3 x 4.6 x 2.1 inches/235 x 116 x 54mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Electrical test meters report electrical circuit properties, such as voltage, resistance, capacitance, and continuity. Available in handheld or benchtop form, they detect electrical problems in equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Single-function meters, such as battery testers and voltage testers, measure one property of a circuit, and multimeters measure multiple properties. Electrical test meters display information either in analog form using a needle that moves on a calibrated scale, or in digital form using digits or a graphic representation on an LED screen. Meters have electrical properties that are to be measured and the anticipated range of results, and should have a rating that is higher than the maximum value of the anticipated range. An electrical test meter has multiple settings corresponding to potential ranges of values for the properties it can measure. A manual ranging meter requires the operator to flip through different settings until the correct range is reached. An autoranging meter cycles through range settings automatically until it reaches the correct range.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • AMB-25 Insulation Resistance Tester
  • (1) Set test leads
  • (6) AA batteries (installed)
  • Instructions
