Amprobe AMB-2 Insulation Resistance Tester

Be the first to review this item

ASIN B0002TIU7Y

Specifications for this item
Number of Items
1
Overall Height
10.2  millimeters
Overall Width
53  millimeters
Part Number
2730984
Temperature Range
0/40  Degrees Celsius
UPC
095969366083
Brand Name
Amprobe
EAN
0095969366083
UNSPSC Code
41113623
Display
Liquid Crystal Display (LCD)
Overall Length
113  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 30? Order in-stock items in the next 9 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Insulation resistance meter with built-in voltmeter to test insulation of wires, cables, transformers, and electrical motors
  • Analog meter with manual range selection
  • Includes low resistance range with 300mV DC for checking resistance of motor windings
  • Measures voltage from 0 to 600V AC/DC and insulation resistance from 0 to 100 megaohms with 300mV, 250V or 500V DC test voltage
  • Automatically discharges instrument capacitance for safe removal of test leads

Package Details

Shipping Weight: 2.4 pounds
Package Size: 11.2 x 8.8 x 7 inches

Product Description

The Amprobe AMB-2 insulation resistance tester is an analog meter that measures insulation resistance to help reduce shock hazards and downtime on electrical systems that include wires, cables, transformers, and electrical motors. A manual range selection knob allows the operator to choose Megaohms or ohms measuring ranges. The unit measures voltage from 0 to 600V alternating current (AC) or direct current (DC) and insulation resistance from 0 to 100 megaohms using 300mV, 250V, or 500V DC test voltage. The low resistance range, which uses a 300mV test voltage, is designed to test the resistance of motor windings. The tester automatically discharges capacitance after use so that the test leads may safely be removed from the device. Test leads and a carrying case are included. The tester is powered by eight AA batteries (included). The AMB-2 is designed for use by electricians and electrical contractors.

Specifications

Power supply (8) AA batteries (included)
Insulation resistance range 0 ohm to 100 megaohms
AC and DC voltage range 0 to 600V
Weight (including batteries) 1.25lb./0.56kg
Dimensions 6.25 x 4.09 x 2.81 inches/158.8 x 104 x 71.4mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Electrical test meters report electrical circuit properties, such as voltage, resistance, capacitance, and continuity. Available in handheld or benchtop form, they detect electrical problems in equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Single-function meters, such as battery testers and voltage testers, measure one property of a circuit, and multimeters measure multiple properties. Electrical test meters display information either in analog form using a needle that moves on a calibrated scale, or in digital form using digits or a graphic representation on an LED screen. Meters have electrical properties that are to be measured and the anticipated range of results, and should have a rating that is higher than the maximum value of the anticipated range. An electrical test meter has multiple settings corresponding to potential ranges of values for the properties it can measure. A manual ranging meter requires the operator to flip through different settings until the correct range is reached. An autoranging meter cycles through range settings automatically until it reaches the correct range.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

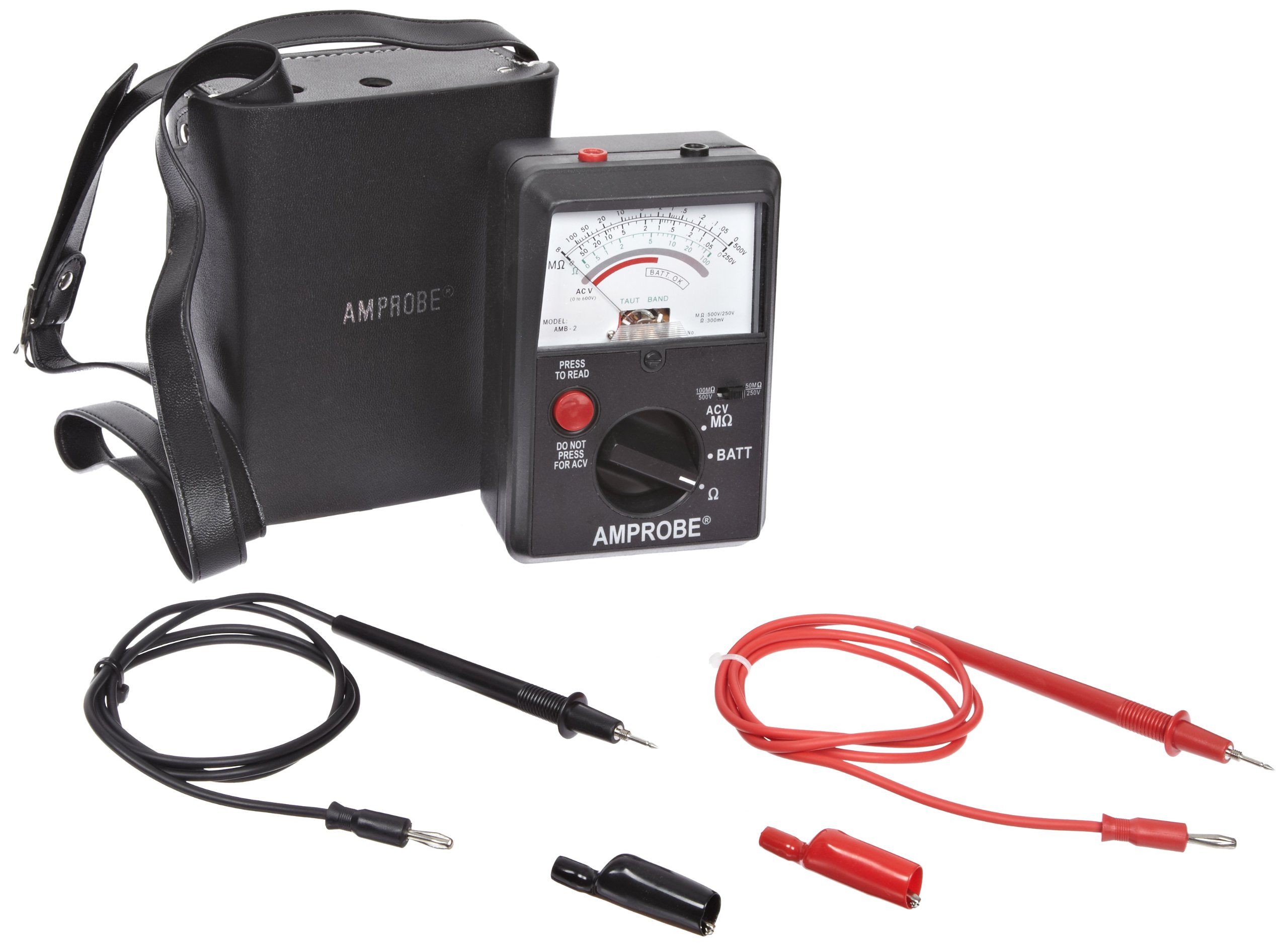

What’s in the Box?

  • AMB-2 Insulation Resistance Tester
  • (1) Set test leads
  • Carrying case
  • (8) AA batteries (installed)
  • Instructions
