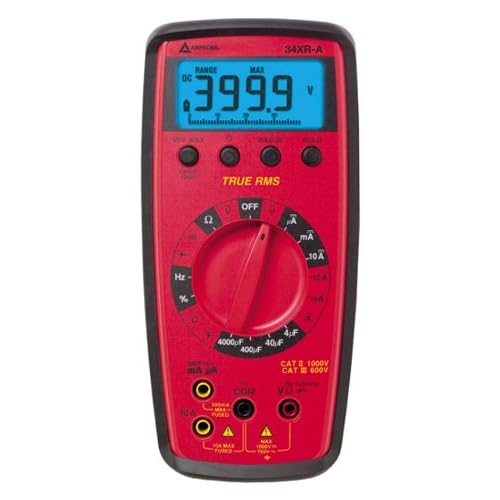

Amprobe 34XR-A TRMS Digital Multimeterwith Temperature

Be the first to review this item

ASIN B0012IYHQC

Specifications for this item
Number of Items
1
Overall Height
155  millimeters
Overall Width
72  millimeters
Part Number
2727795
UPC
095969365383 , 094712965061
Brand Name
Amprobe
EAN
0095969365383 , 0094712965061
Measurement Accuracy
+/- 5 C
Warranty
Three Year Warranty
UNSPSC Code
41113600
Display
Liquid Crystal Display (LCD) with a maximum reading of 1999
Special Features
Automatic, positive implied, negative polarity indication
Overall Length
32  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 13 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Autoranging; Display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
  • Display Update Rate: 2/sec, nominal
  • Operating Temperature: 0 °C to 45 °C at < 70 % R.H
  • True RMS digital multimeter with temperature and backlight
  • Overrange indication
  • Digital multimeter measures alternating current (AC) and direct current (DC) to 10 amp, AC voltage to 750 volts (V), DC voltage to 1,000V, resistance to 40 megaohms, capacitance to 4,000 microfarads, frequency to 1 megahertz (MHz), and duty cycles to 90%
  • True RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, where the current or voltage has a sinusoidal or nonsinusoidal waveform
  • K-type thermocouple probe measures temperature
  • 4,000 microfarad capacitance rating is for testing run/start capacitors on motors
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category II installations up to 1,000V and category III installations up to 600V

Package Details

Shipping Weight: 1.75 pounds
Package Size: 11.2 x 7 x 2.9 inches

Product Description

The Amprobe 34XR-A digital multimeter with included temperature probe is a true RMS (root mean square) sensing, auto- or manual-ranging meter for measuring current, voltage, resistance, capacitance, frequency, and duty cycles in electrical testing and maintenance applications. The meter comes with a set of detachable test leads and two alligator clips for measuring alternating current (AC) and direct current (DC) to 10 amp, AC voltage to 750 volts (V), DC voltage to 1,000V, resistance to 40 megaohms, capacitance to 4,000 microfarads, frequency to 1 megahertz (MHz), and duty cycles to 90%. The meter comes with a K-type thermocouple probe and adaptor plug for measuring temperature. The 4,000 microfarad capacitance rating is for testing run/start capacitors on motors. A liquid crystal display (LCD) shows readings both in digits and on a 41-segment bar graph. The display is backlit for visibility in low light. The maximum or minimum reading mode displays the highest or lowest reading in a session to track a sudden increase or decrease in readings. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects whether the circuit's diodes work properly. The hold function keeps a reading on the display, even after the meter is disconnected. An auto power-off mode turns off the unit after 30 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced.

This true RMS (root mean square) sensing meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform, or non-linear loads, such as electronic devices or motors, where the current or voltage has a sinusoidal non-sinusoidal waveform. Two ranging modes (auto or manual) offer a range of operator control when taking readings. When turned on, the meter is in auto-ranging mode and automatically selects the correct operating range for the property being measured. It can be switched to manual-ranging mode, which allows the operator to choose the appropriate operating range. The meter has a 4,000-count resolution, meaning it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category II installations up to 1,000V (which covers large household appliances and devices connected to a fixed power supply, such as refrigerators and air conditioners), and category III installations up to 600V (which covers items used with enclosed building circuit installations, such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). The meter comes with a magnetic strap that can be used to hang the meter on metal doors or fixtures.

Specifications

Maximum alternating current (AC) input10 amp
Maximum direct current (DC) input10 amp
Maximum AC voltage input750 volts (V)
Maximum DC voltage input1,000V
Maximum resistance detected40 megaohms
Maximum capacitance detected4,000 microfarads
Maximum frequency detected1 megahertz (MHz)
Temperature measurement range-4 to 1,832 degrees Fahrenheit (F), -20 to 1,000 degrees Celsius (C)
Duty cycle measurement range0 to 90%
Power supply9V NEDA 1604, JIS 006P, or IEC 6F22 battery (one, installed)
Fuse0.315 amp/1,000V fast-blow ceramic fuse (one, installed), 10 amp/1,000V fast-blow ceramic fuse (one, installed)
Standards metEuropean Conformity (CE); International Electrotechnical Commission (IEC) and European Normal (EN) safety standard 61010-1; Underwriters Laboratories (UL)
Weight0.88 lb./400 g
Meter dimensions7.7 x 3.5 x 2.3 inches /196 × 92 × 60 mm (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.

What’s in the Box?

  • Amprobe 34XR-A TRMS digital multimeter
  • (1) Set test leads
  • (2) Alligator clips
  • (1) Type-K thermocouple probe
  • (1) Temperature probe adaptor plug
  • (1) 9V battery (installed)
  • (2) 0.315 amp/1,000V fast-blow ceramic fuse (1 installed, 1 spare)
  • (1) 10 amp/1,000V fast-blow ceramic fuse (installed)
  • Magnetic strap holster
  • Instructions

From the Manufacturer

Amprobe began life in Long Island, NY in the late 1940's under the name Pyramid Instrument Company. In 1960 the company name was formally changed to Amprobe Instrument Corporation. Amprobe continued to design, engineer, manufacture and distribute product from its Lynbrook, NY location until it was merged to form ATP and relocated to South Florida in late 1999. The Amprobe 34XR-A True RMS Digital Multimeter comes with with the temperature and a backlight for contractors and field service technicians. It comes with a handy auto power off system to help save the life of the battery, making it last longer for when you really need it. It has seperate doors for easy battery access and easy fuse access as well. It comes wit ha Magne-Grip Holster and a magnetic hanging strap.
