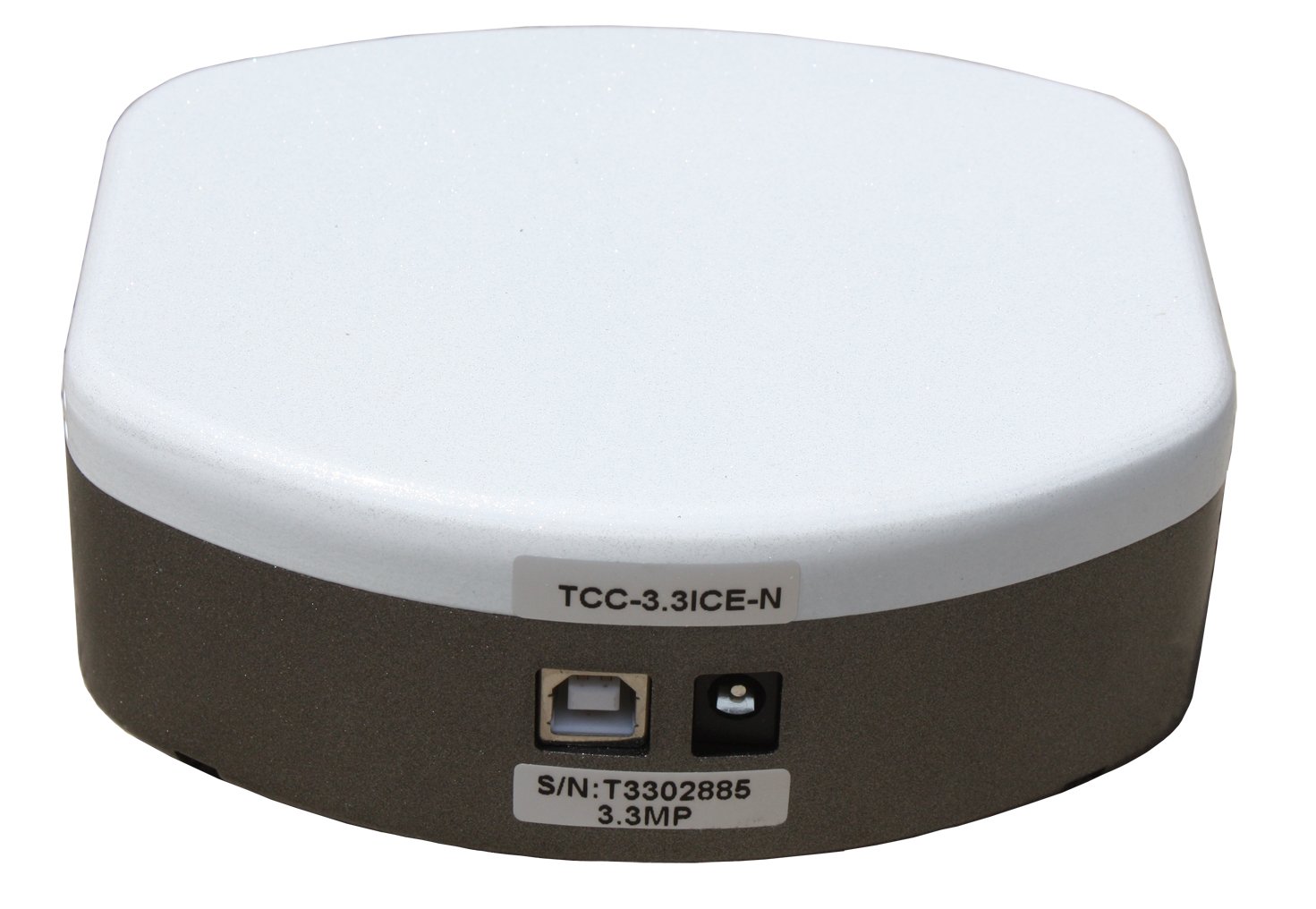

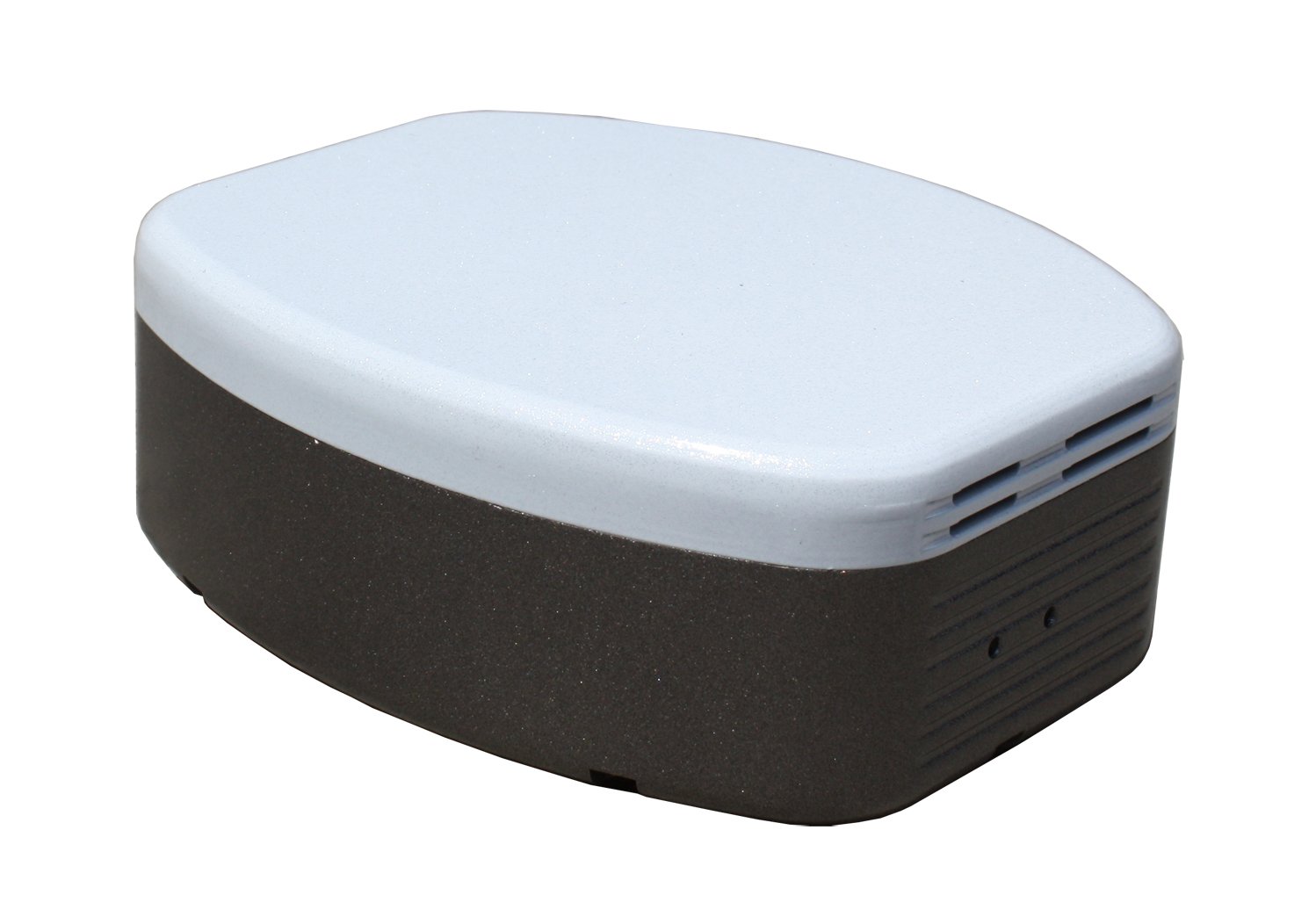

Ample Scientific TCC-3.3ICE-N 3.3 MP Digital Microscope CCD Camera with Image Capturing And Processing Software

Be the first to review this item

ASIN B003WOKPX8

Specifications for this item
Number of Items
1
Part Number
TCC-3.3ICE-N
Brand Name
Ample Scientific
Size Name
3.3 MP, -20 to + 70 degrees C, 1/1.8" Micron Chip
UNSPSC Code
41111700

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital 3.3 megapixel (MP) camera with a scientific-grade 1/1.8" charge-coupled device (CCD) sensor, used with microscopes that have trinocular ports and eyepieces in education, research, and industry applications
  • 12-bit, RGB Bayer filter for color image acquisition
  • 3.46 x 3.46 micron pixels, and resolution output of 5 frames per second [(FPS) 2080 x 1536] or 30 FPS (640 x 480) with low-speed readout capabilities
  • Peltier-cooled to -30 degrees C below ambient temperature, for images with low noise, even at long exposures
  • Angle control light function for program imaging processing

Package Details

Shipping Weight: 4 pounds
Package Size: 12.3 x 9.9 x 6.7 inches

Product Description

The Ample Scientific TCC-3.3ICE-N camera microscope is a 3.3-megapixel (MP), scientific-grade, charge-coupled device (CCD) digital camera for microscopes, with 3.46 x 3.46 micron pixels, a 12-bit color RGB Bayer filter, an angle control light function, and a standard C-mount interface. This digital camera for microscopes enhances object or image resolution, and can display an image on a monitor. It is commonly used for education, medical and scientific research, and for industry documentation.

This high-resolution, 3.3 MP microscope camera features a Sony charge-coupled device (CCD) color image sensor to manage noise reduction and image quality. It is used with trinocular ports and eyepieces, and connects with a 2.58-meter USB 2.0 cable. It is Peltier-cooled to -30 degrees C below ambient temperature, for images with low noise, even at long exposures. Automatic and manual adjustment capabilities are available. Program controls include image size, gain, brightness, exposure time and RGB. It has image processing capabilities of crop, contrast, mirror, invert, rotate, flip, length, area, and angle light control measurement. The camera also comes with a driver installation CD with image capture and processing software, and a protective aluminum carrying case.

Specifications

Camera Digital, 3.3 mega-pixel, charge-coupled device (CCD), scientific grade
Interface Standard C-mount
Camera connection 2.58-meter USB cable (included)
Sensor 1/1.8” Sony micron
Pixels 3.46 x 3.46 micron pixels
Maximum resolution frame rate output 8 frames per second (FPS) for 2592 x 1944 (*W x H); 30 FPS for 640 x 480; low-speed readout capable
Angle light control Yes
Filter RGB Bayer
A/D conversion 12-bit color RGB
Operational temperature 0 to 60 degrees C
Storage temperature -20 to + 70 degrees C
Operational humidity 45 to 85%
G Sensitivity 455 millivolts (mV)
Conversion 12-bit A/D
Fan 30 x 30, 5,000 RPM
Exposure time 1ms to 60 minutes, automatic/manual
Data interface USB 2.0/480MB/S
White balance Automatic or manual
Electrical input connection 2.58-meter USB 2.0 cable port
Power supply 5V external
*Overall Dimensions 100 x 81 x 48 mm (H x W x D)
Weight 480g
Warranty One year limited

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying viewing abilities. A trinocular eyepiece is used to output digital images to an internal or external device such as a camera or monitor. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also use LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ample Scientific LLC manufactures laboratory equipment and supplies such as microscopes and centrifuges. Founded in 2009, and headquartered in Norcross, GA, Ample Scientific offers scientific equipment for research, educational, clinical and industrial applications.

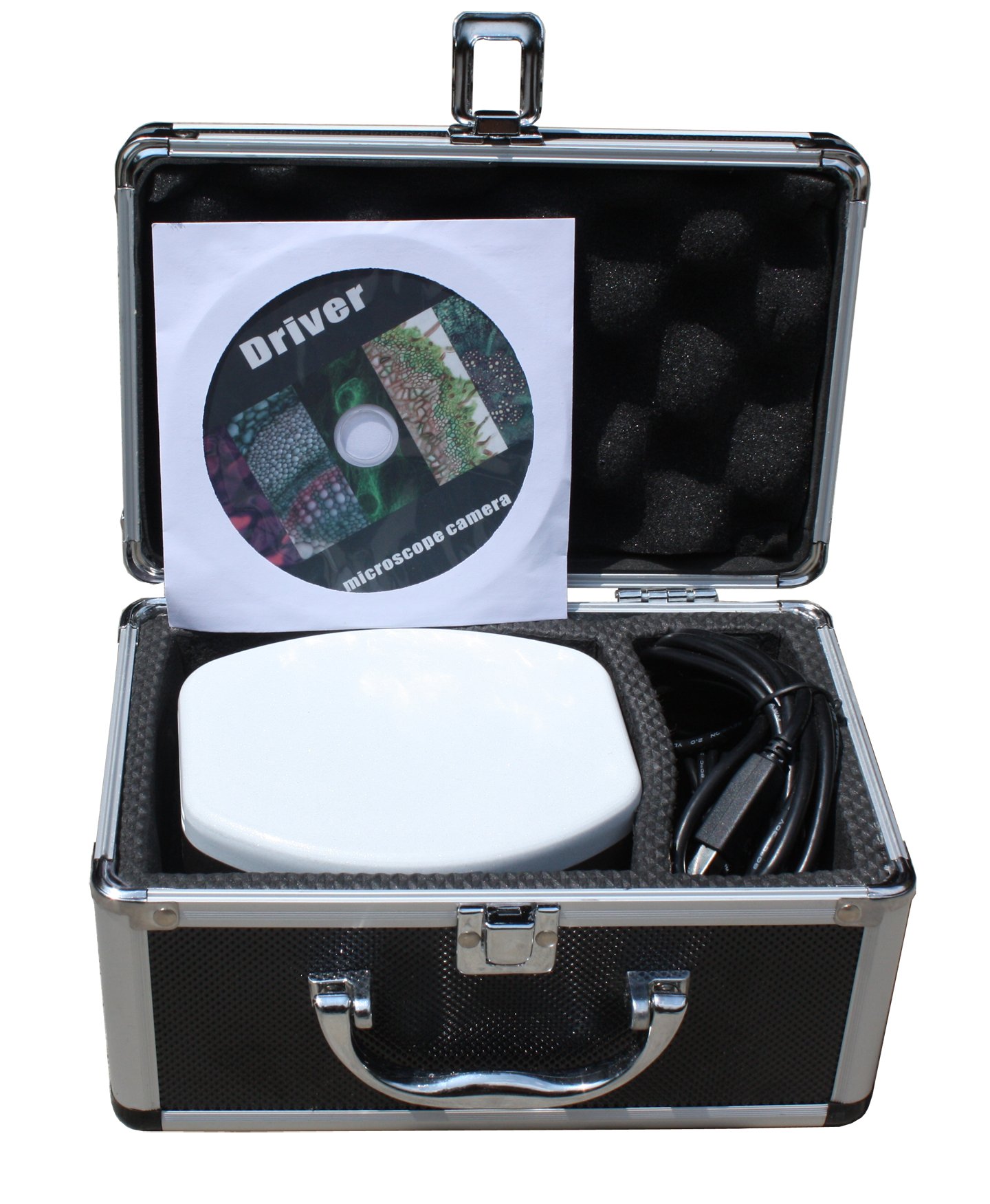

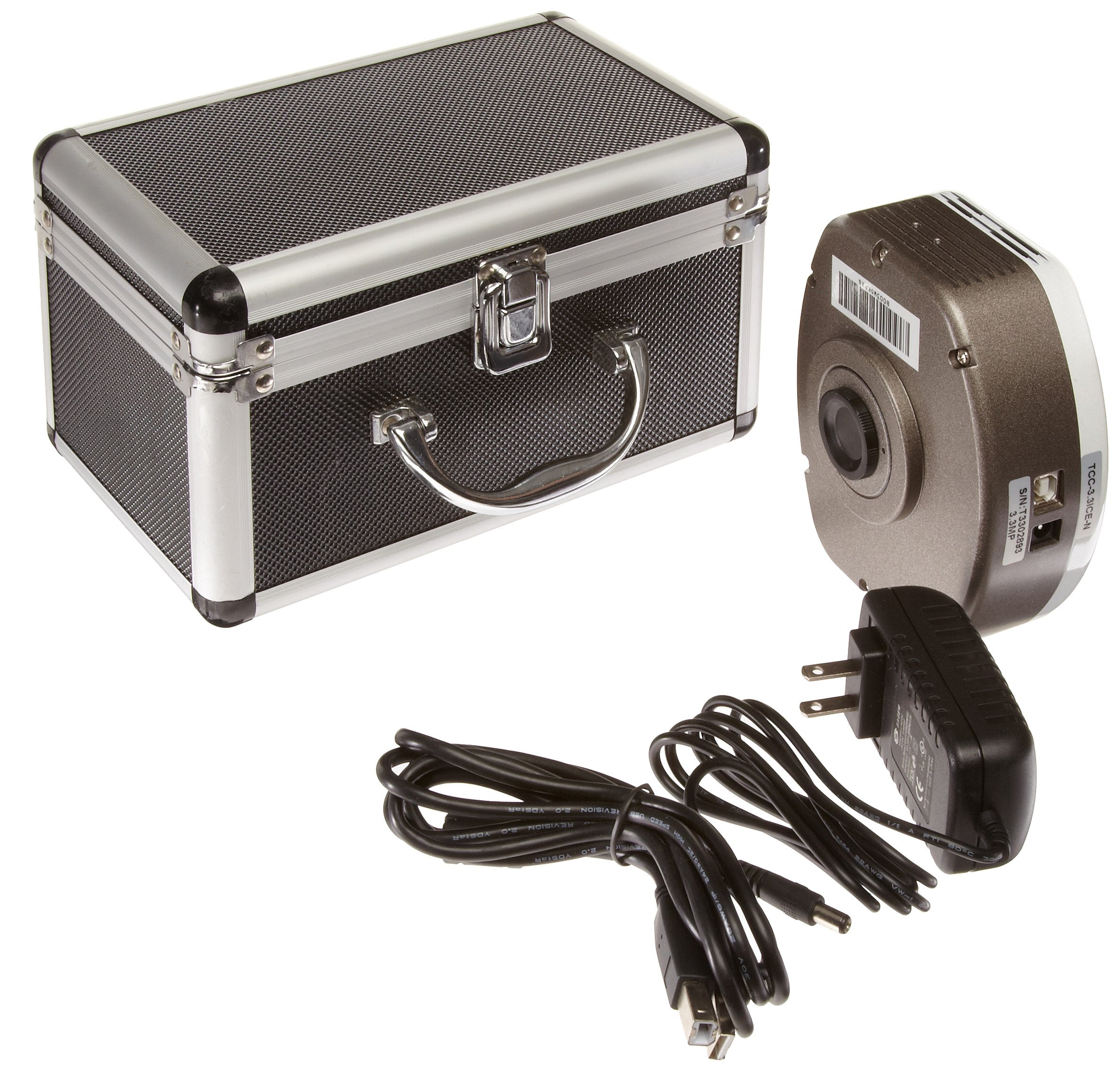

What’s in the Box?

  • TCC-3.3ICE-N Camera
  • 2.58-meter, USB 2.0 cable port
  • Driver installation CD, with image capture and processing software
  • Aluminum carrying case
  • Instructions
