Ample Scientific SM-Plus-24 2X and 4X Objectives Dual Magnification Binocular Stereo Microscope, WF10X/20 mm Eyepiece

Be the first to review this item

ASIN B003WOKPRE

Specifications for this item
Number of Items
1
Part Number
SM-Plus-24
Brand Name
Ample Scientific
Size Name
2X and 4X Objectives
UNSPSC Code
41111703

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 22 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Stereo microscope for inspection and dissection creates three-dimensional images
  • Binocular viewing heads, inclined at 45 degrees for ergonomic comfort, ease eye strain and provide a more comprehensive view
  • Dual magnification options of 20X or 40X, with 2X and 4X objectives, and 10XD widefield eyepieces for a range of application ability

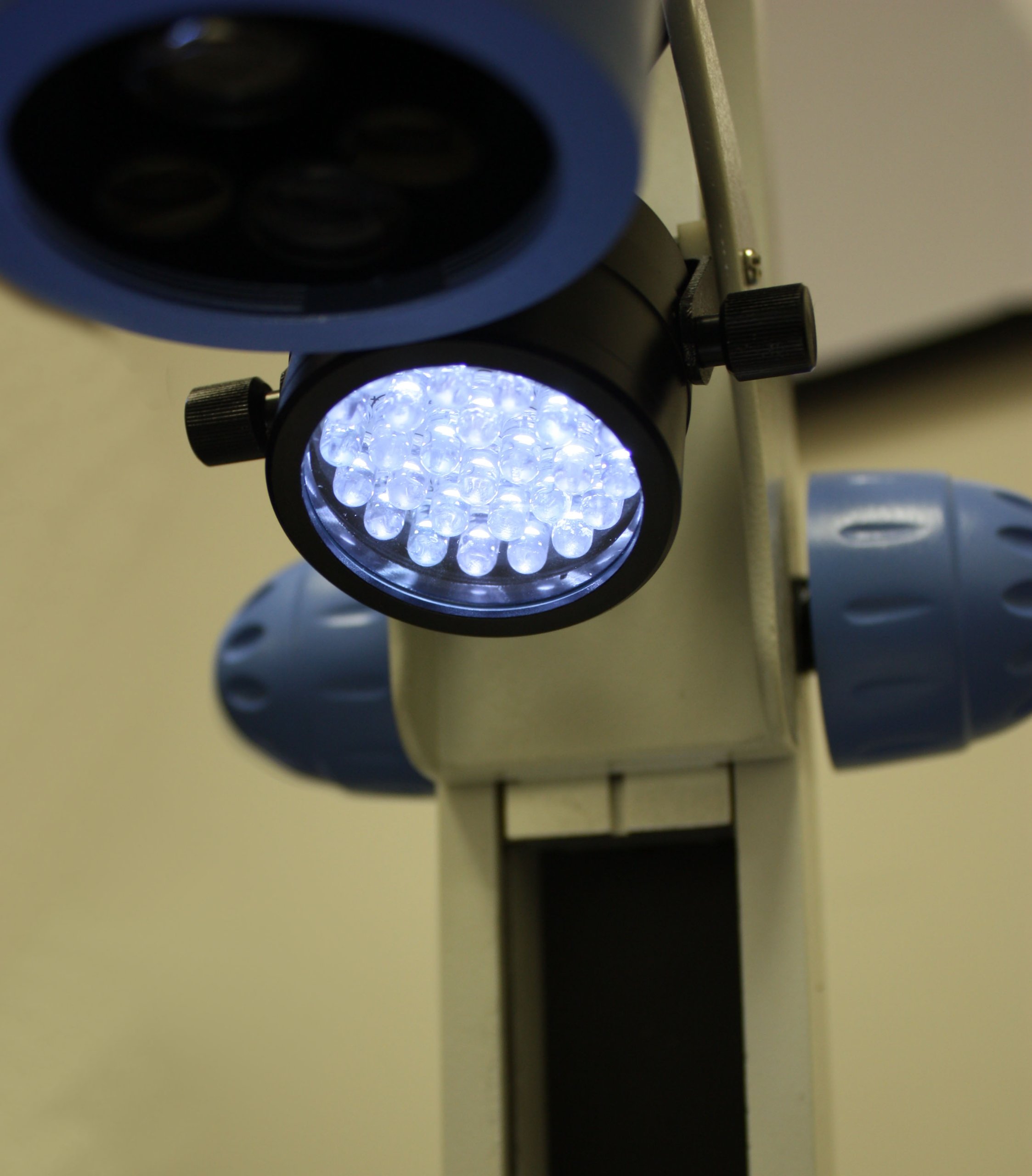

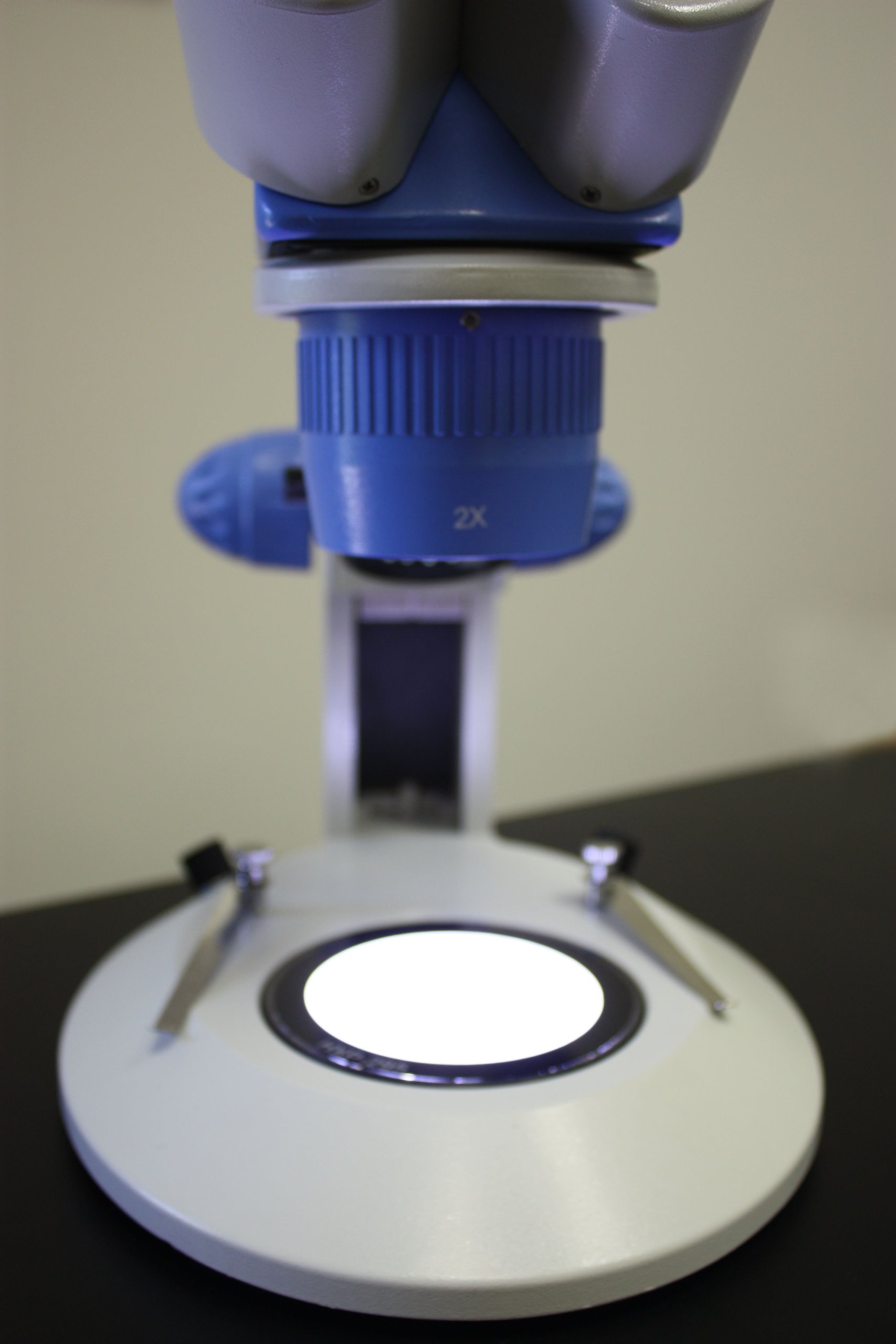

  • Upper LED illumination reflects light off of the specimen with 30 LED bulbs, and lower LED illumination transmits light up through the specimen for enhanced visibility
  • One year limited warranty

Package Details

Shipping Weight: 11 pounds
Package Size: 17.5 x 16.1 x 11.5 inches

Product Description

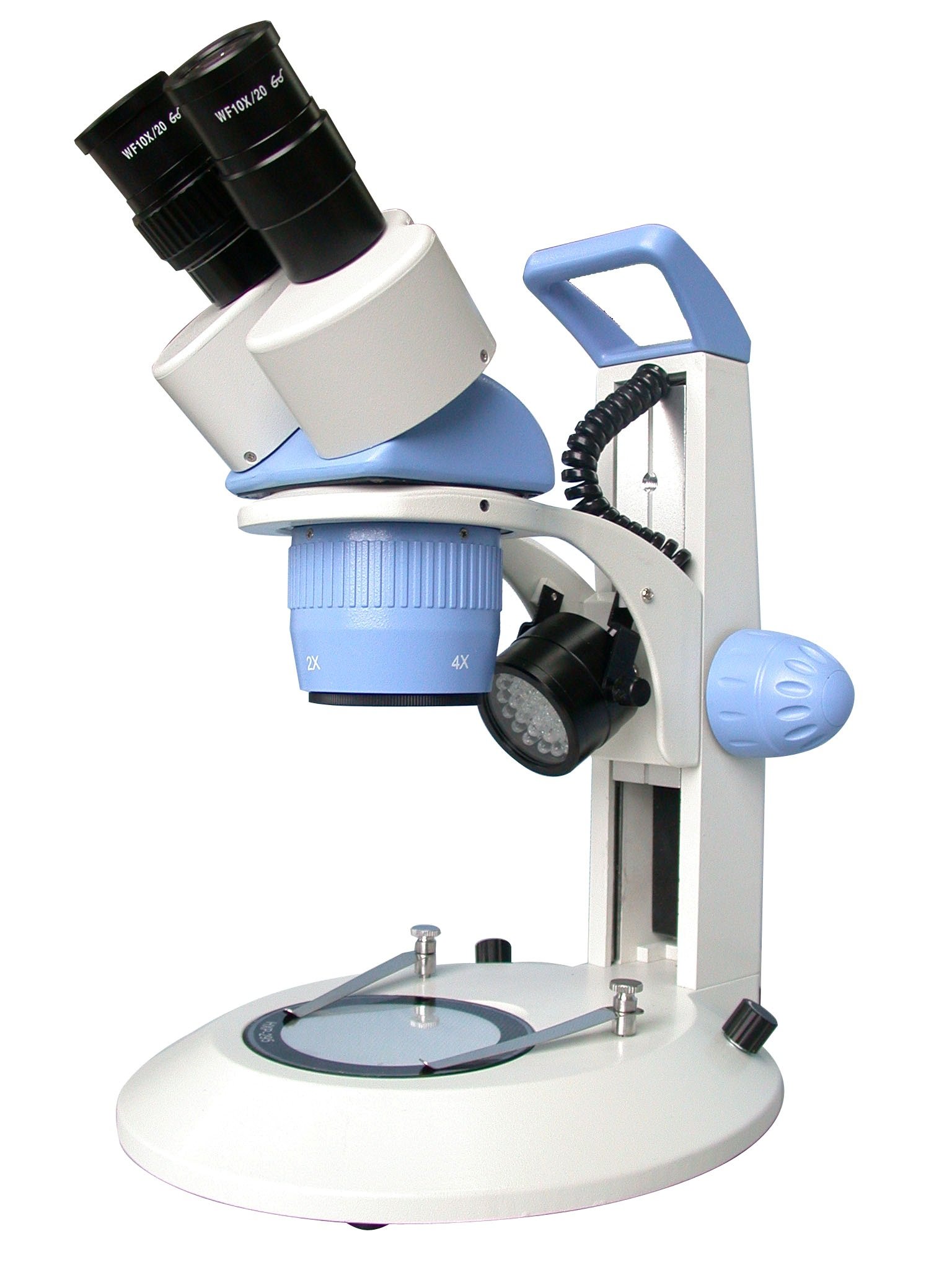

The Ample Scientific SM-Plus-24 stereo microscope has binocular viewing heads, 30 LED bulbs for reflected and transmitted illumination, widefield 10XD eyepieces with a field number (FN) of 20 mm, and 2X and 4X objectives for total magnification of 20X and 40X. This microscope, with its stereo optical system creates a three-dimensional image, and enhances the resolution of an object or image. It is commonly used by hobbyists, educators, and professionals for research.

This microscope features binocular viewing heads set at a 45-degree degree inclination for ergonomic comfort, which ease eye strain and provide a more comprehensive view. It has 55-75 mm interpupillary adjustment for individual eye spacing.. Upper LED illumination reflects light off of the specimen, and lower LED illumination transmits light up through the specimen for enhanced visibility. Upper and lower illumination components are adjustable. The microscope has a dove-tail stand for durability that allows for one-handed operation. An ergonomic handle makes moving the microscope in a classroom or laboratory safe and secure. Stage clips hold the specimen in place.

Specifications

Total optical magnification 20X to 40X
Objective lenses 2X and 4X
Eyepieces 10XD widefield
Field number (FN) 20 mm
Viewing configuration Binocular
Illumination Upper and lower (adjustable) with 30 LED bulbs
Interpupillary adjustment 55-75 mm
Working distance 100 mm
Overall dimensions 62 x 39.5 x 48 cm/24.41 x 15.55 x 18.9 inches (H x W x D)
Weight 4.2 kg (9.26 lb.)
Illumination power source 85 to 265V
Warranty One year limited

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying viewing abilities. A trinocular eyepiece is used to output digital images or video to an internal or external device such as a camera or monitor. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also use LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ample Scientific LLC manufactures laboratory equipment and supplies such as microscopes and centrifuges. Founded in 2009, and headquartered in Norcross, GA, Ample Scientific offers scientific equipment for research, educational, clinical and industrial applications.

What’s in the Box?

  • SM-Plus-24 microscope
  • Microscope head
  • 2 widefield, 10XD eyepieces
  • Dust cover
  • Customer service card
  • Instructions
