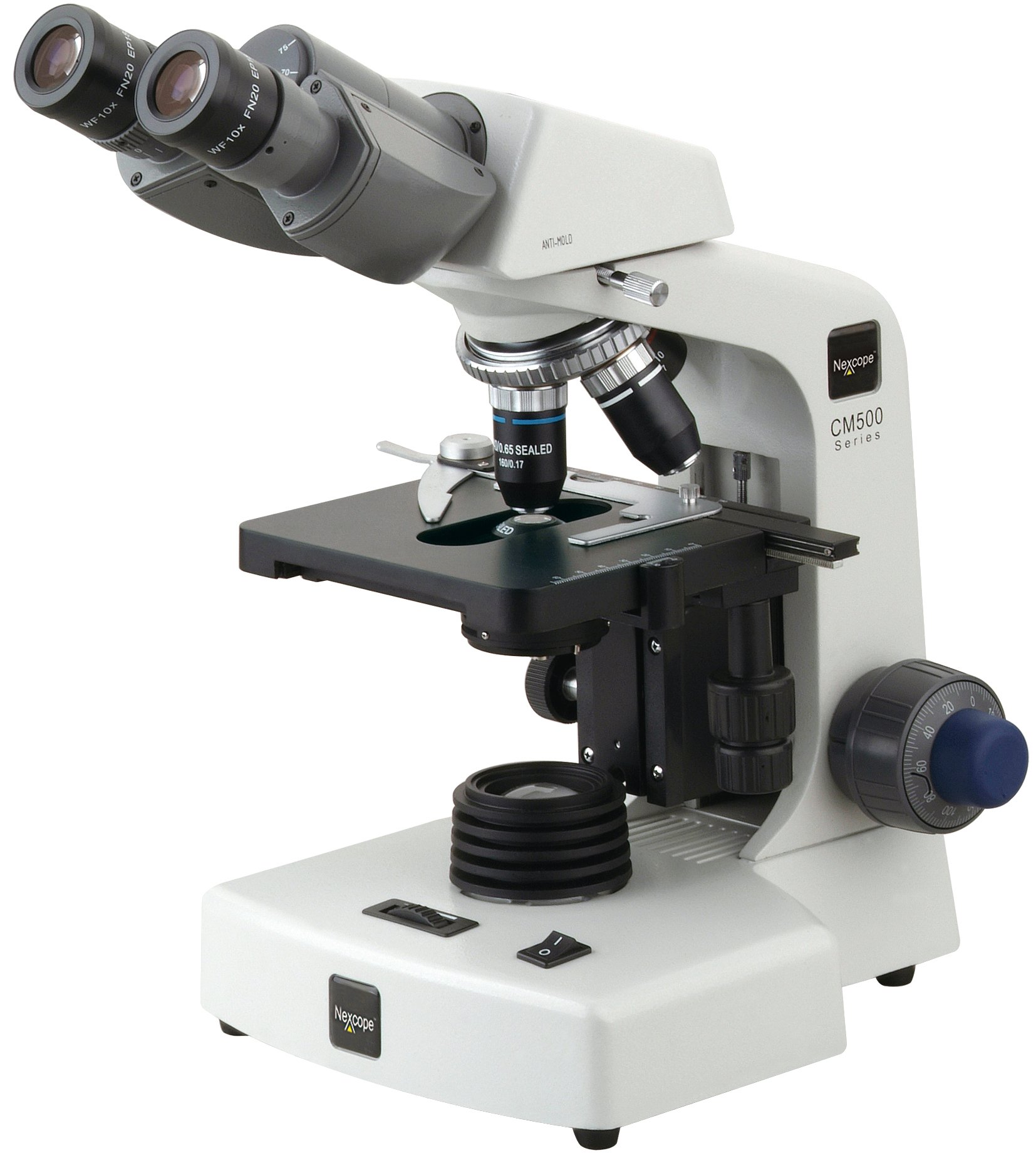

Ample Scientific CM502 Nexcope Plan Objectives Professional Binocular Microscope, 4X, 10X, 40X, 100X Magnification, W10X/20 mm Eyepiece

Be the first to review this item

ASIN B003WOKQ14

Specifications for this item
Number of Items
1
Part Number
CM502
Brand Name
Ample Scientific
Size Name
Plan Objectives Professional
UNSPSC Code
41111709

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 1 hr 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compound microscope provides high magnification for biological and research applications
  • Ergonomic Seidentopf binocular viewing heads ease eye strain, provide a more comprehensive view, and rotate 360 degrees on two axes for ease of operation
  • Widefield 10XD eyepiece with 4XD, 10XD, 40XRD (sealed), and 100XRD (oil immersion method) objectives with plan lenses to show sharper images
  • 3-watt LED lighting with dimmer adjustment, and an Abbe 1.25 Numerical Aperture (NA) sealed condenser with bright field illumination to show contrast
  • One year limited warranty

Package Details

Shipping Weight: 17.9 pounds
Package Size: 20.1 x 15.9 x 11 inches

Product Description

The Ample Scientific CM502 Nexcope compound, biological research microscope has binocular viewing heads, a widefield 10XD eyepiece with a field number (FN) of 20 mm, and 4XD, 10XD, 40XRD (sealed), and 100XRD (oil immersion method) objectives and plan lenses. This microscope, with its compound optical system, enhances the resolution of an object or image, and is commonly used for biological research by professionals in medical, veterinary, and post-secondary institutions.

This microscope features Seidentopf binocular viewing heads that rotate 360 degrees on two axes, with a wide inter-pupillary range. Adjustable resolution provides 4XD, 10XD phase, 40XRD plan (sealed), and 100XRD (oil immersion method) objectives for a range of viewing abilities. The microscope's illumination system has brightfield to illuminate from below, and darkfield illumination to enhance contrast. Its plan lenses sharpen images. Dimmable LED illumination is long-lasting, provides a brighter light beam at a cooler temperature than traditional bulbs, and creates a more uniform output at any level. An Abbe 1.25 Numerical Aperture (NA) sealed condenser with an aperture controls the diameter of the light cast on the specimen. A reversed nosepiece faces outward, which protects the objectives while providing clear access to the specimen stage. The microscope has a precision coaxial focus mechanism for viewing adjustment. A large, low-drive, graphite-coated, research-grade mechanical stage is scratch-resistant and accomodates two slides. An anti-mold head, and all-metal gearing provide durability. The microscope has a limited one-year warranty.

Specifications

Optical magnification 4XD, 10XD phase, 40XRD plan (sealed), and 100XRD (oil)
Objective lenses Sealed
Lens type Plan
Eyepiece 10X widefield
Viewing capabilities Seidentopf, binocular heads
Field diameter (FD) 20 mm
Illumination LED
Condenser 1.25 NA Abbe sealed
Stage Mechanical, square, graphite-coated
Gearing Rack and pinion
*Overall dimensions 38.74 x 18.42 x 24.13 cm/15.25 x 7.25 x 9.5 inches (H x W x D)
Weight 7.03 kg/15.5 lb.
Power source 110V
Warranty One year limited

*(H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Microscopes are instruments used to enhance the resolution of an object or image. There are three types of microscopes: compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying viewing abilities. A trinocular eyepiece is used to output digital images to an internal or external device such as a camera or monitor. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also use LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ample Scientific LLC manufactures laboratory equipment and supplies such as microscopes and centrifuges. Founded in 2009, and headquartered in Norcross, GA, Ample Scientific offers scientific equipment for research, educational, clinical and industrial applications.

What’s in the Box?

  • CM502 microscope
  • Warranty
  • Instructions
