Ample Scientific CM304 Nexcope Objectives Educational Biological Monocular Rechargeable Microscope, 4X, 10X, 40X, 100X Magnification, W10/18 mm Eyepiece

Be the first to review this item

ASIN B003WOKPYW

Specifications for this item
Number of Items
1
Part Number
CM304
Brand Name
Ample Scientific
Size Name
Rechargeable Microscope, W10/18 mm Eyepiece
UNSPSC Code
41111700

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Biological microscope provides high magnification for biological, diagnostic and educational use in K-12 classrooms, medical and veterinary clinics, universities, and in industrial laboratories
  • Cordless, rechargeable LED illumination with dimmer adjustment switch provides one hour of continuous lighting with one minute of cranking
  • Built-in, spiral, 1.25 numerical aperture (NA) Abbe sealed condenser for high resolution
  • Sealed objectives with magnification abilities of 4X, 10X, 40X and 100X (oil immersion method) for a variety of resolvant options
  • One year limited warranty

Package Details

Shipping Weight: 11.6 pounds
Package Size: 19.5 x 13.8 x 8.8 inches

Product Description

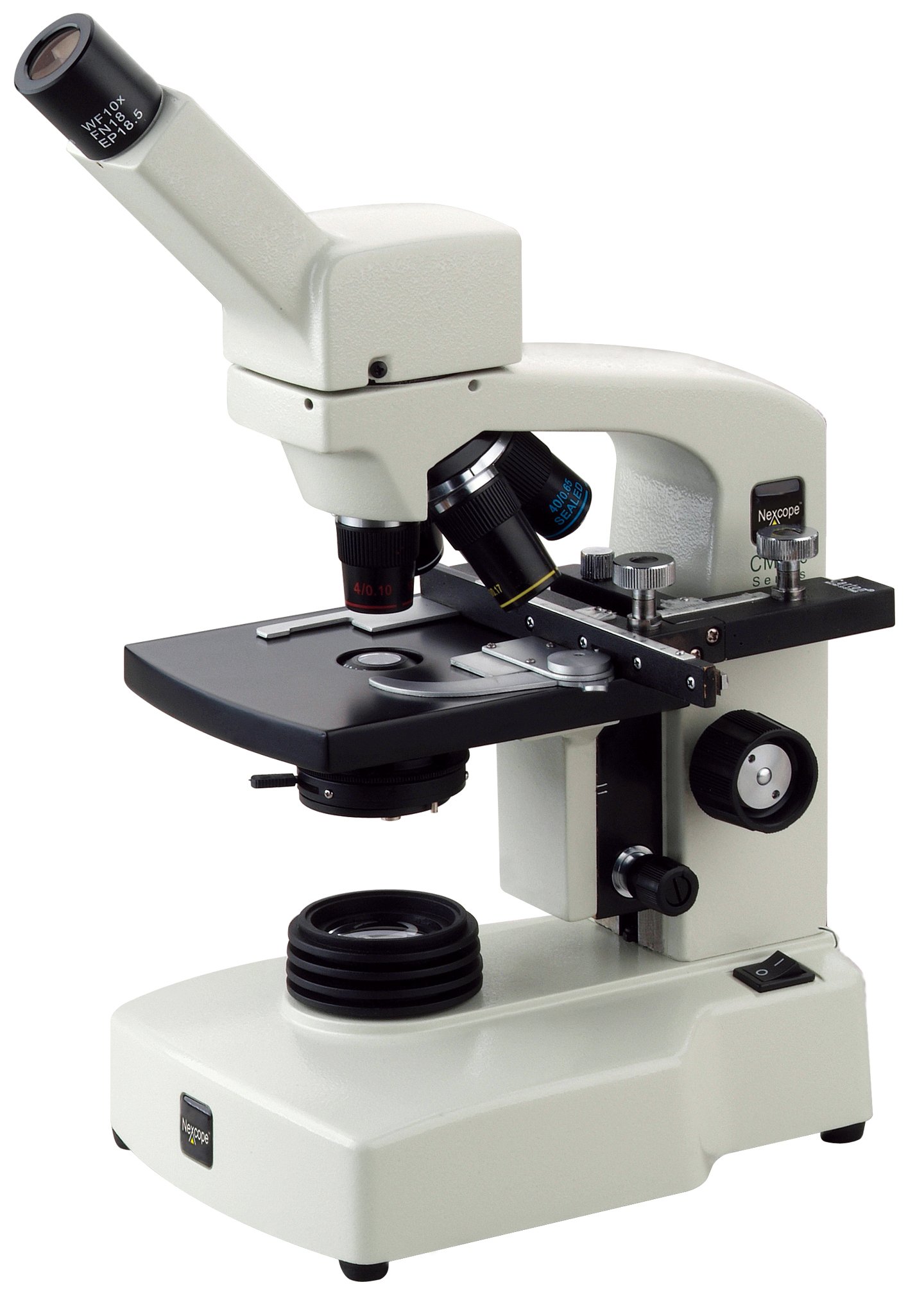

The Ample Scientific CM304 Nexcope biological, portable microscope has a monocular viewing head, a built-in, spiral, 1.25 numerical aperture (NA) Abbe condenser, cordless and rechargeable LED illumination, a mechanical stage, and magnification abilities of 4X, 10X, 40X and 100X (oil immersion method) for a variety of resolvant options. This biological microscope enhances object or image resolution, and its rechargeable LED illumination is commonly used in K-12 classrooms, for research and professional applications in medical and veterinary clinics, universities and in industrial laboratories.

This microscope features a monocular viewing head with fixed 45-degree vertical inclination. Deutsches Institut für Normung (DIN) objective lenses are sealed to prevent contamination from immersion oil. The 10XD widefield eyepiece magnifier locks onto the unit for ease of operation, and provides an 18 mm field diameter. It has cordless, rechargeable LED illumination with a dimmer switch for lighting adjustment, and a 1.25 NA Abbe condenser for high resolution. With one minute of cranking, the built-in generator provides up to one hour of continuous LED illumination. A rectangular mechanical stage provides ease of operation, and has two spring-clip slide holders to hold the specimen in place.

The CM304 Nexcope has an aluminum cast body that resists rigorous use, and all removable parts lock in place for tamper-proof security. The microscope comes with an AC/DC adapter/charger, a dust cover, and a tension control tool.

Specifications

Optical magnification 4X, 10X, 40X, and 100X (0.10, 0.25, 0.60, 1.25 NA)
Objective lenses Sealed
Eyepiece 10XD widefield
Field diameter (FD) 18 mm
Illumination Cordless, rechargeable LED with dimmer switch
Condenser Built-in, spiral 1.25 NA Abbe
Stage Mechanical, rectangular
*Overall dimensions 35.56 x 14.99 x 20.98 mm/14 x 5.9 x 8.26 inches (H x W x D)
Weight 3.52 kg/7.75 lb.
Power source AC or DC
Warranty Five year limited

*(H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying viewing abilities. A trinocular eyepiece is used to output digital images to an internal or external device such as a camera or monitor. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also use LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ample Scientific LLC manufactures laboratory equipment and supplies such as microscopes and centrifuges. Founded in 2009, and headquartered in Norcross, GA, Ample Scientific offers scientific equipment for research, educational, clinical and industrial applications.

What’s in the Box?

  • CM304 Nexcope microscope
  • AC/DC adapter/charger
  • Tension control tool
  • Customer service card
  • Dust cover
  • Instructions
